Eaton 6-speed FS6406A Transmission Gear 4304057

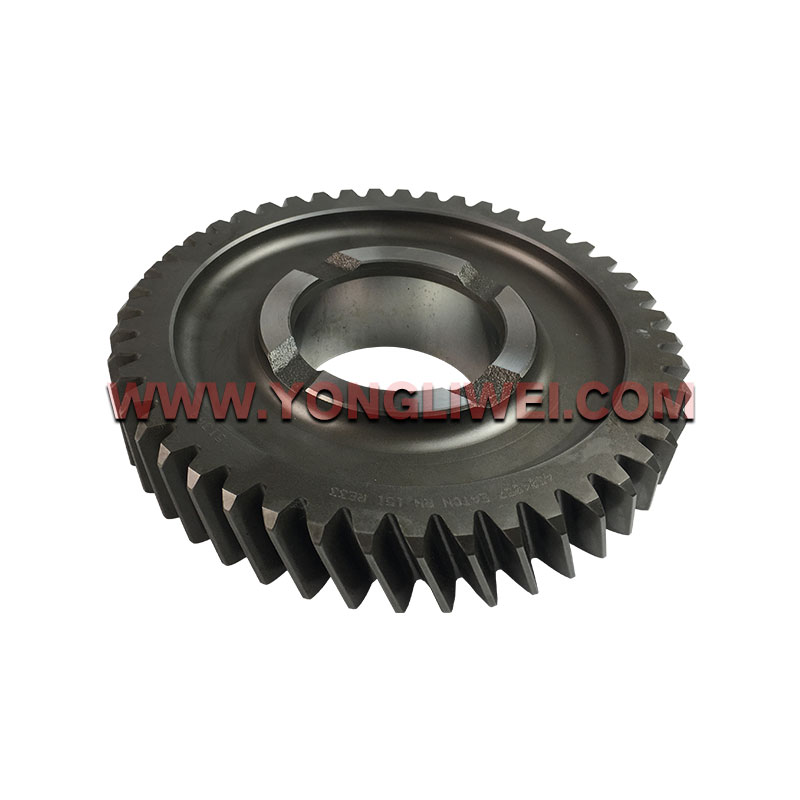

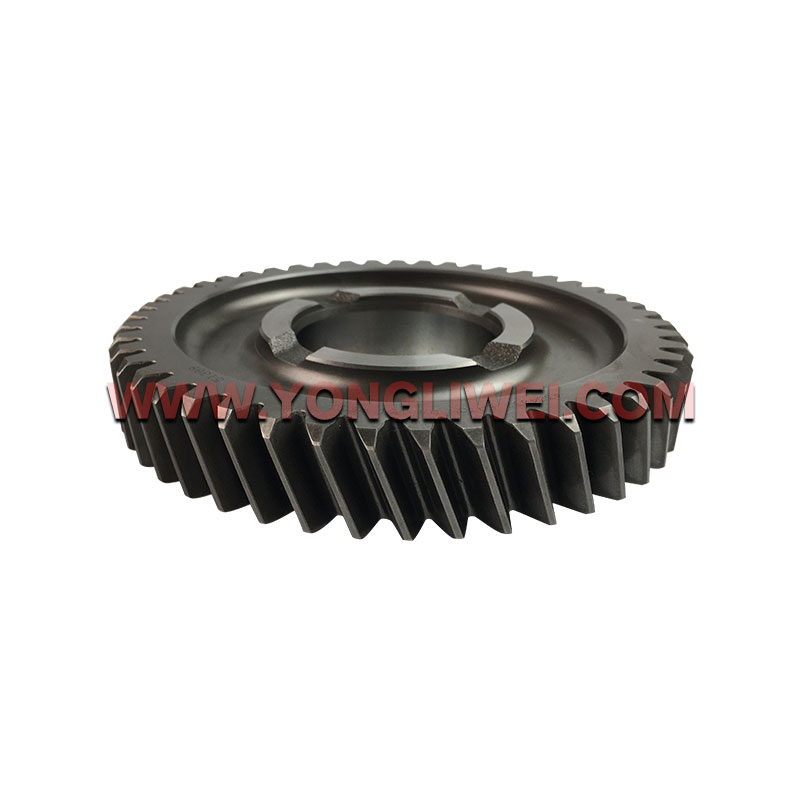

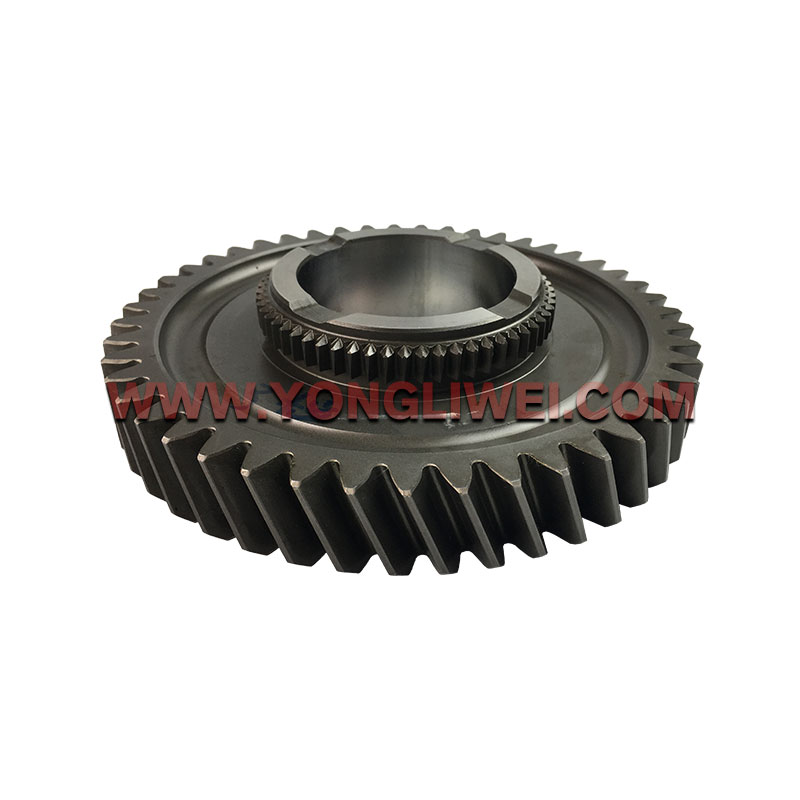

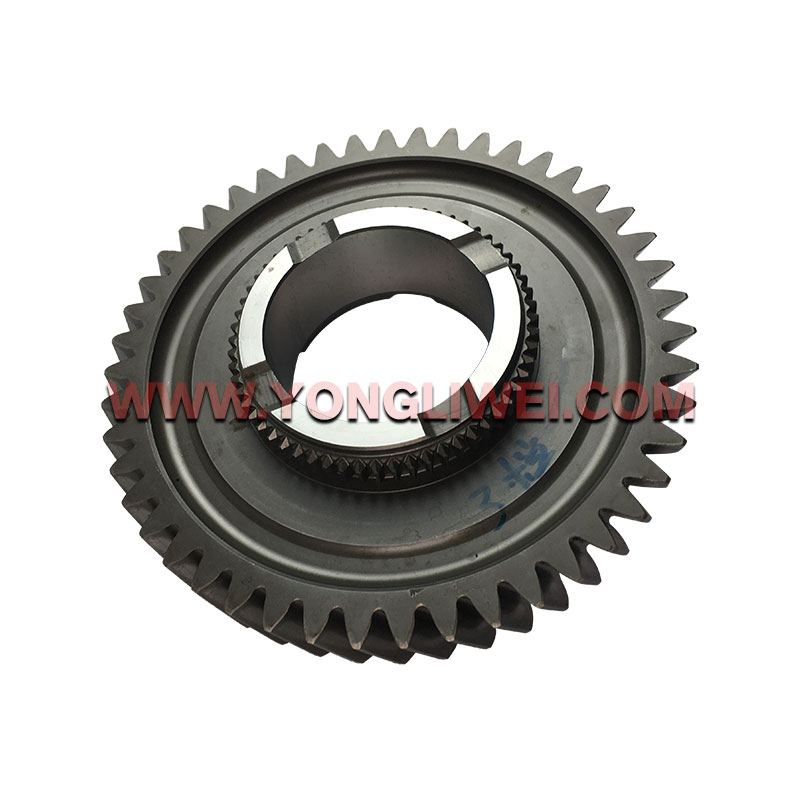

4304057 is original countershaft gear exclusively matched for Eaton Fuller FS6406A six-speed synchronized manual transmission for medium trucks. Adopts one-piece forged alloy steel with full carburizing quenching treatment, precision ground helical teeth for stable meshing and low operation noise. It bears medium load torque during urban delivery and short-distance hauling, effectively solve gear tooth pitting, eccentric wear, abnormal gearbox noise and jumping gear faults for light & medium cargo trucks, sanitation and municipal engineering vehicles.
Availability:
Quantity:
  • 4304057

  • Eaton

  • Gear 4304057

Product parameters

Basic Info

OEM No: 4304057
Alias: Countershaft Drive Gear / Helical Transmission Gear
Product Name: Eaton Fuller FS6406A 6-Speed Transmission Countershaft Gear
Brand: Eaton Fuller
Applicable Gearbox Series: Eaton FS6406A, FSO6406A 6-speed synchronized manual transmission
Category: Medium Truck Transmission Core Parts – Countershaft Gear Assembly



Weight Parameter

Net Weight: 2.9KG
Gross Weight: 3.5KG with export carton packing



Material & Feature

  • High-strength alloy steel integral forging, complete carburizing quenching & tempering, high surface hardness with outstanding wear and impact resistance;

  • High-contact ratio helical teeth precision grinding, smooth contact surface to reduce vibration and gear operation noise;

  • Inner spline precision machining with tight tolerance, seamless fit with countershaft without radial runout during power transmission;

  • Optimized tooth root fillet structure to disperse shift impact stress and avoid tooth root cracking under frequent start-stop conditions;

  • Standard OEM outer diameter, tooth profile and overall thickness, direct plug-and-play replacement without cutting or grinding modification;

  • Whole surface anti-rust passivation treatment, stable service performance under long-term high-temperature gear oil sealed environment.



Application

Perfectly matched light and medium commercial vehicles equipped with Eaton FS6406A series 6-speed manual gearboxes: Sinotruk light trucks, FAW medium cargo vehicles, Kenworth, International medium trucks, logistics delivery vans, sanitation and municipal engineering vehicles; widely used in urban distribution and suburban short-distance freight transportation.



Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.



MOQ & Packing

MOQ: 1 piece
Warranty: 3–6 months, warranty void for man-made damage, improper disassembly and wrong installation
Packing: Anti-rust plastic film + thick foam buffer + reinforced shockproof export solid wooden case, moisture-proof and anti-collision for long ocean transportation
