Eaton 6-speed Transmission Assembly ESO-4106A

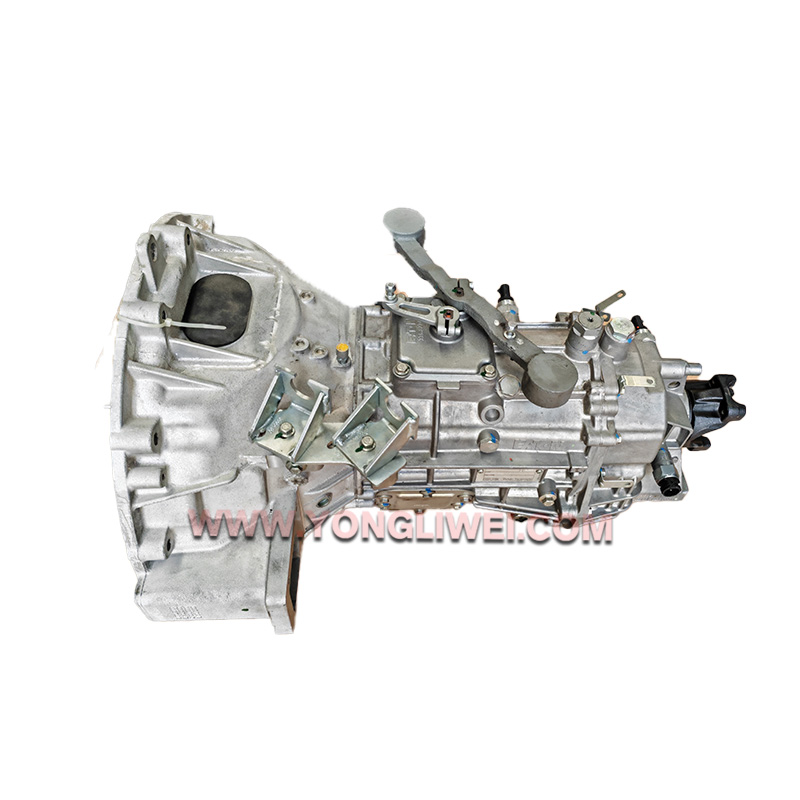

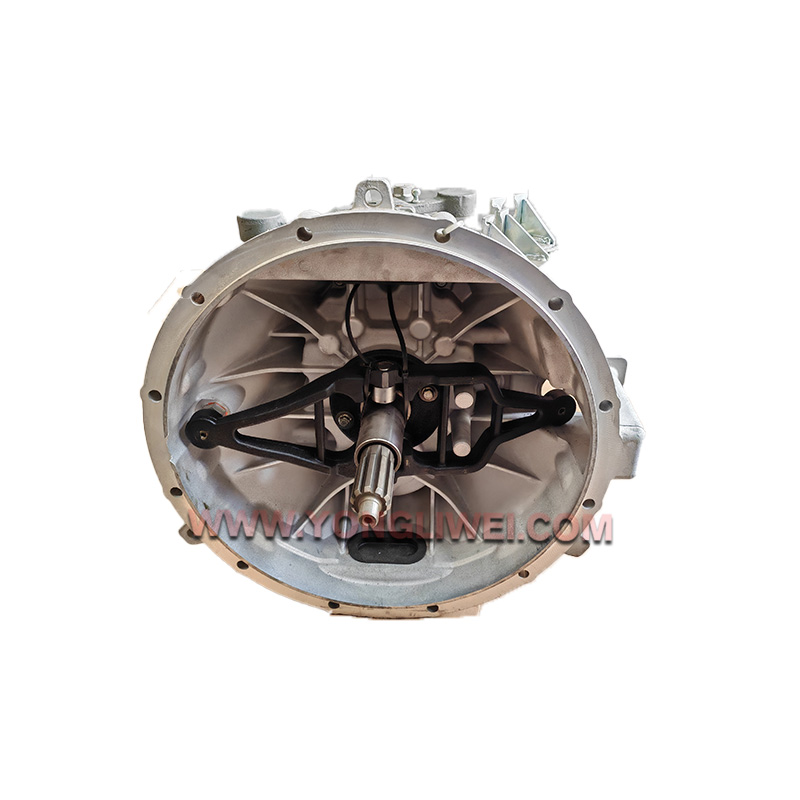

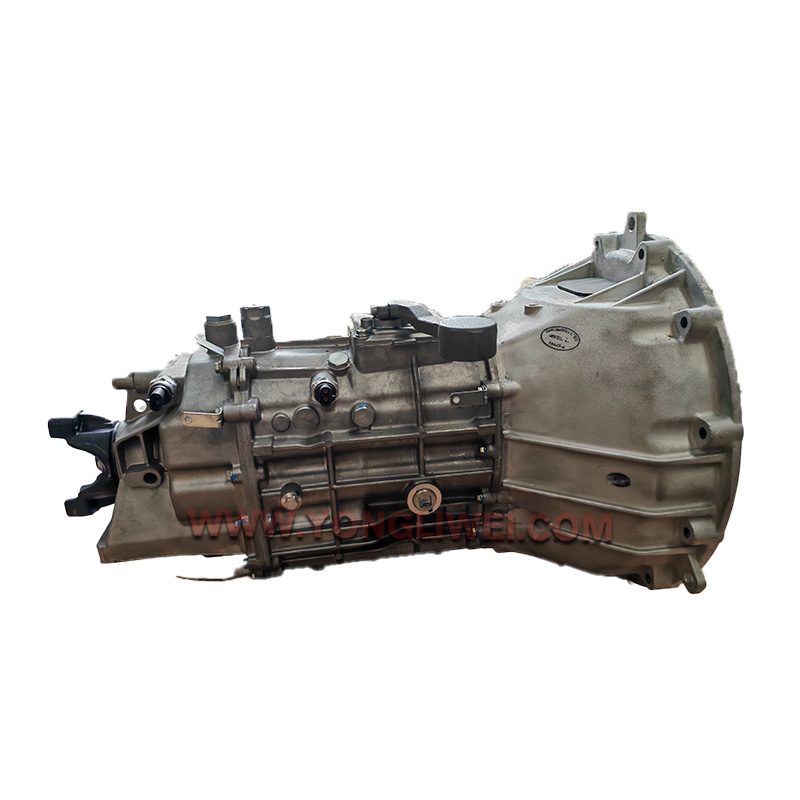

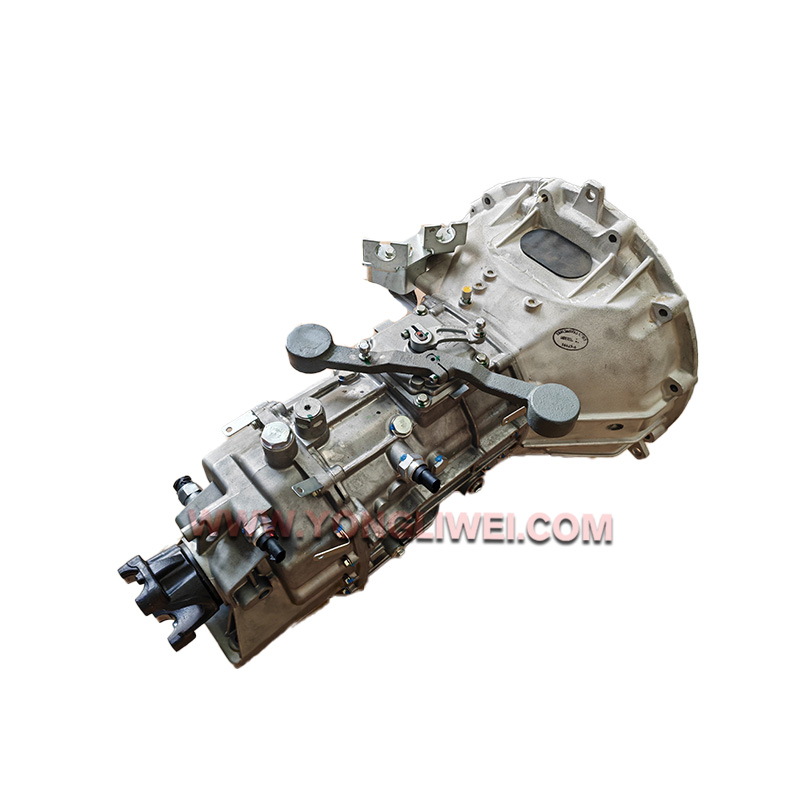

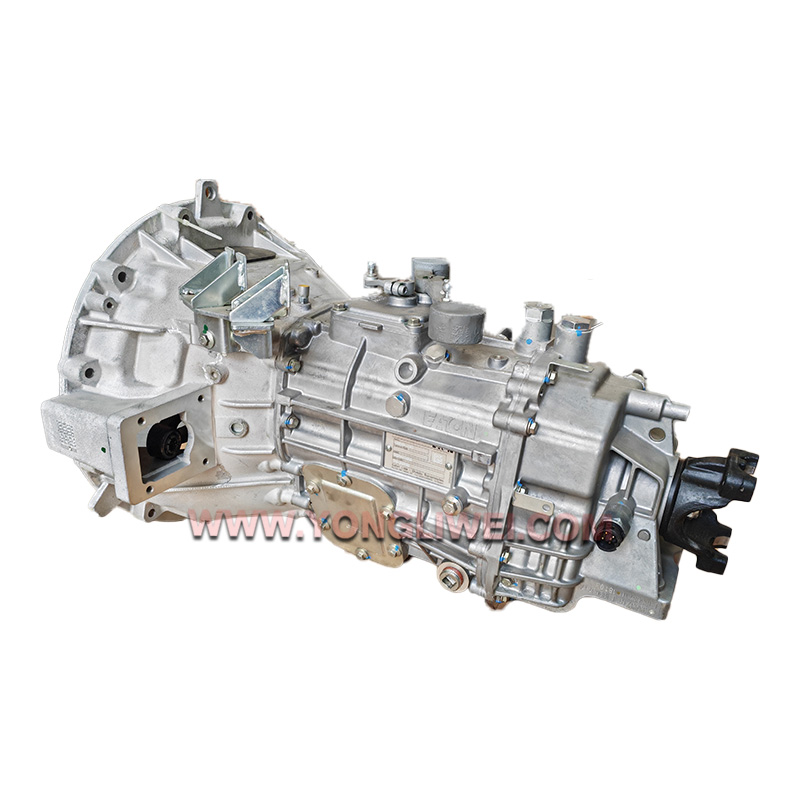

Eaton Fuller ESO-4106A full-synchronized 6-speed manual transmission assembly, lightweight aluminum housing, dual overdrive gears for excellent fuel efficiency. Carbon fiber synchronizer rings deliver light and smooth shifting, multi-position PTO ports, max input torque 450Nm, stable performance for light trucks, mini buses and delivery vehicles.
Availability:
Quantity:
  • ESO-4106A

  • Eaton

  • ESO-4106A

Product parameters

Basic Info

Model: ESO-4106A
Product Name: Eaton 6-speed Transmission Assembly ESO-4106A
Brand: Eaton Fuller
Category: Transmission Parts > Complete Manual Gearbox Assembly



Weight Parameter

Net Weight: 70KG

Gross Weight: 86KG with export wooden case packing



Material & Feature

Integrated die-cast aluminum alloy housing and shift forks for lightweight design, effective oil-leakage prevention. All forward gears fitted with wear-resistant carbon fiber synchronizer cone rings, low shift resistance and no gear knocking noise. Three-bearing support structure reduces operation noise; double overdrive speed ratios optimize fuel economy. Reserved left & right PTO interfaces and parking brake mounting position, wide torque coverage, durable under frequent light-load urban transportation.




Application

Perfectly matched for light-duty cargo trucks, city delivery vehicles, mini passenger buses and high-end pickup trucks.



Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.


MOQ, Warranty & Packing

MOQ: 1 piece
Warranty: 3–6 months, man-made damage and incorrect installation not covered
Packing: Shockproof export wooden case with foam filling, moisture-proof for long-distance ocean transportation
