Engine SACHS clutch plate 1878 010 226

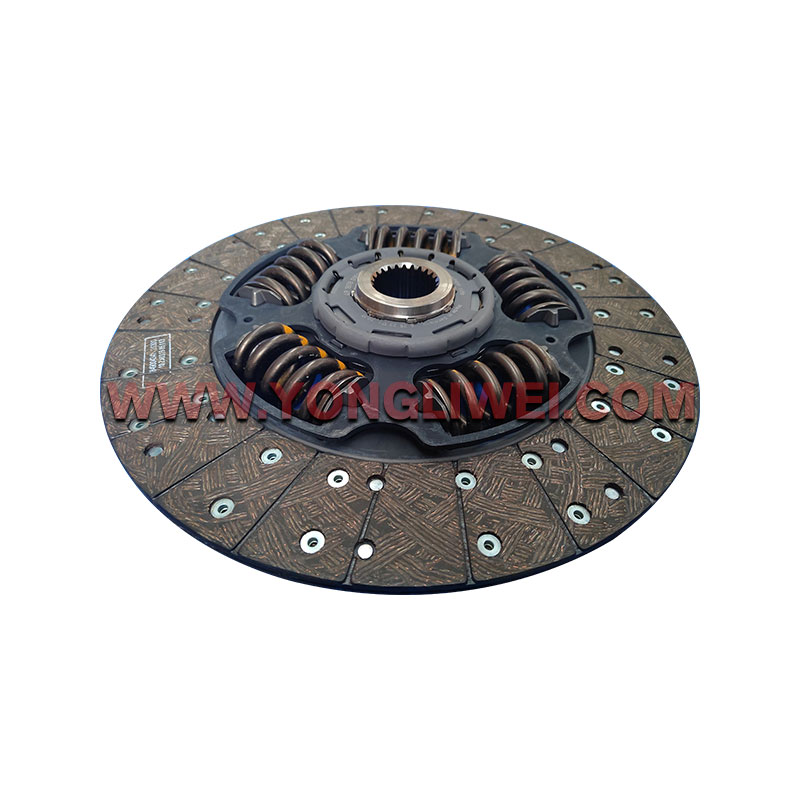

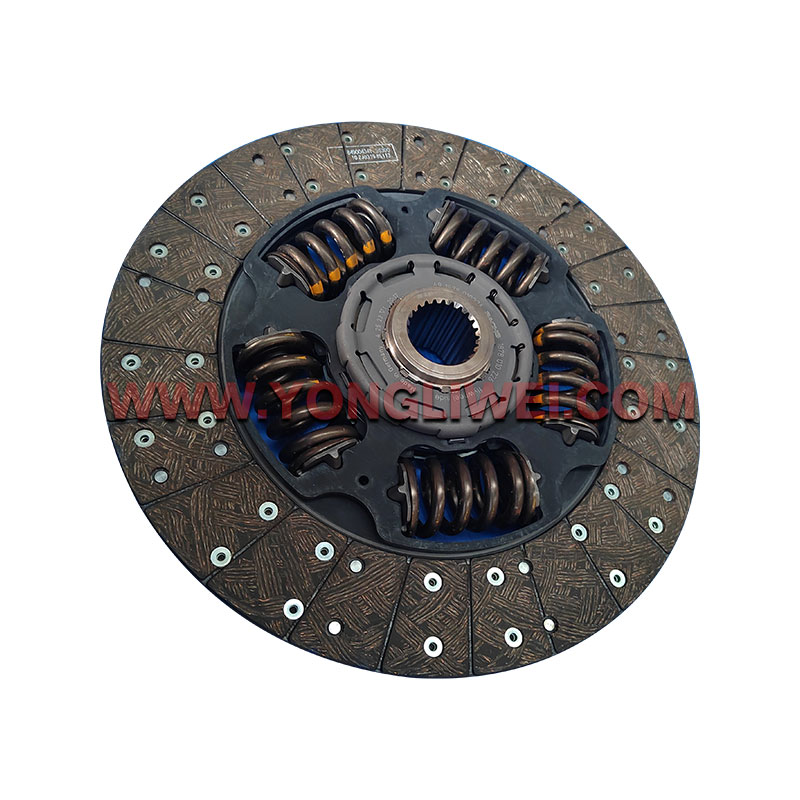

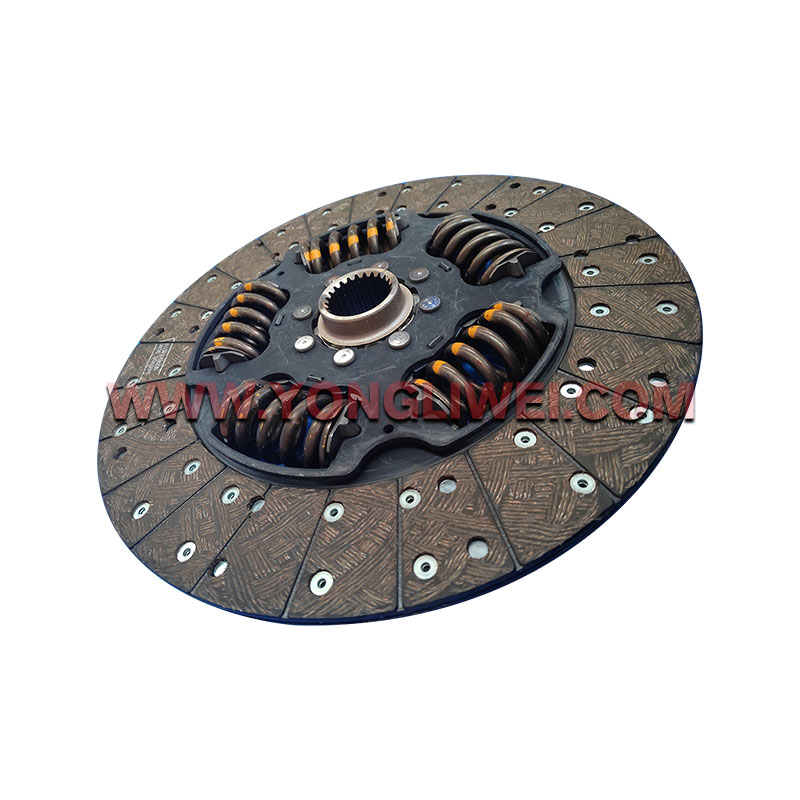

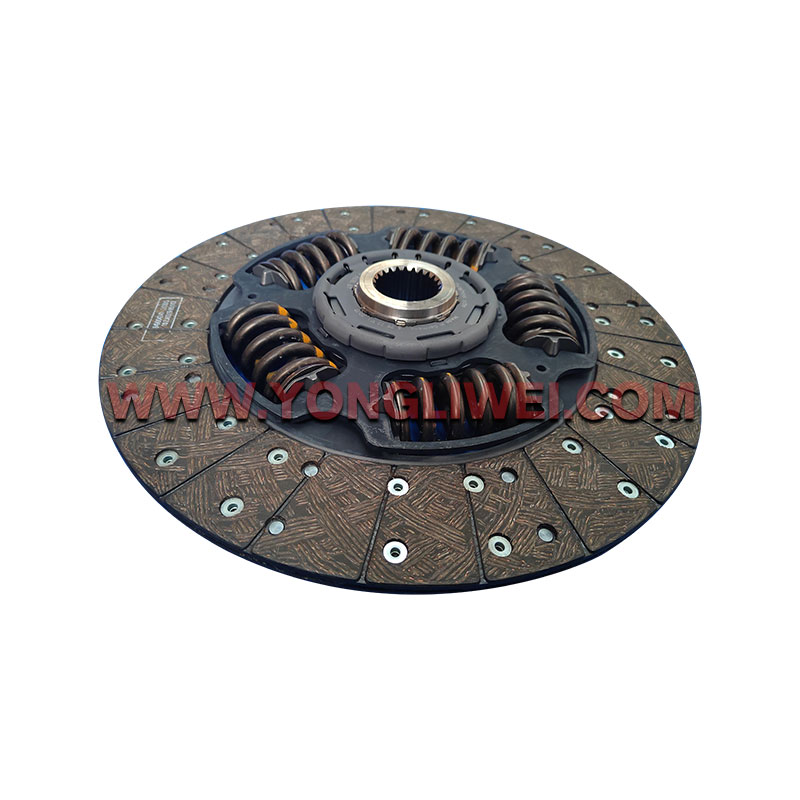

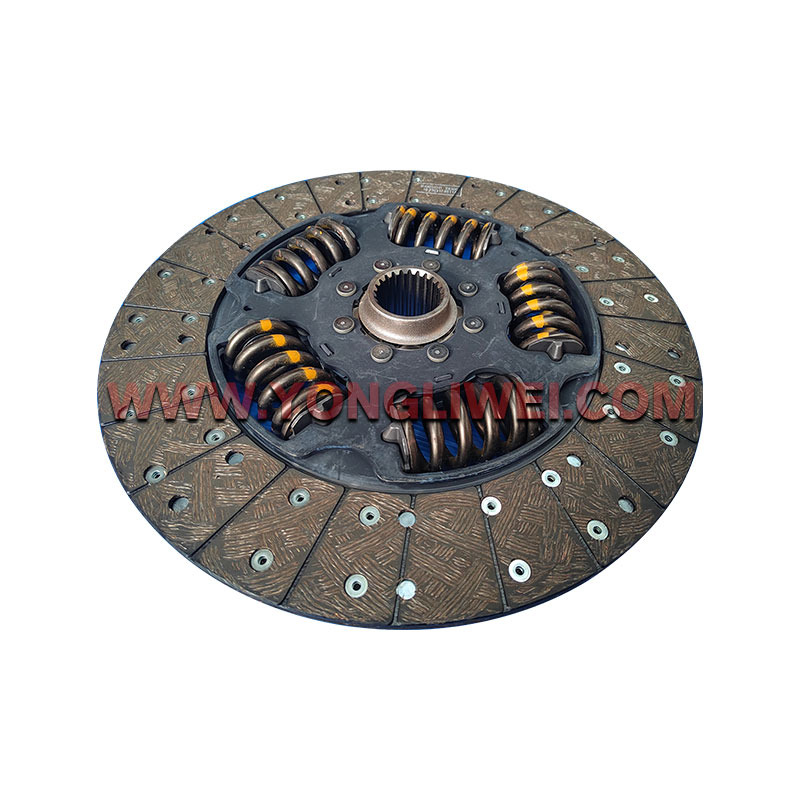

1878010226 is genuine ZF SACHS heavy-duty torsional damping clutch disc, standard size 430mm, hub specification 46×50-24 splines (24 teeth, model 430WGTZ). It adopts high-temperature organic friction lining and multi-group built-in torsion spring hub, steadily transferring high engine torque while absorbing drivetrain vibration and shift impact. Compatible with Volvo FH, Renault, UD, Mack heavy trucks and matched ZF 16S Ecosplit / 12TX Traxon transmissions. It fixes typical faults including clutch slip, abnormal chassis vibration, lining ablation, broken damping springs and stiff gear shifting, direct OEM plug-and-play maintenance replacement.
Availability:
Quantity:
  • 1878 010 226

  • SACHS

  • 1878 010 226

Product parameters

Basic Info

OEM No: 1878 010 226
Alias: Clutch Disc / Driven Friction Plate / Torsion Damping Clutch Hub Assembly
Product Name: SACHS 430WGTZ Heavy Truck Torsional Damping Clutch Disc
Brand: SACHS (ZF Group)
Outer Diameter: 430 mm
Hub Spline: 46×50-24N, 24 internal teeth
Model Code: 430WGTZ
Matching OE Cross Codes: Volvo 23441664 / 23463974, Renault 7423463974, UD 22301254, Mack 22301292
Category: Engine Clutch Friction Parts – Driven Clutch Disc Assembly


Weight Parameter

Net Weight: 11.75KG
Gross Weight: 13.2KG with export carton packing



Material & Feature

  • High-temperature resistant long-life organic friction material, stable friction coefficient, anti-burning under long full-load climbing and frequent half-clutch operation;

  • Multi-layer heavy-duty torsion damping spring group inside hub, excellent vibration isolation, effectively reduce transmission rattling and vehicle body shaking;

  • Integral heat-treated alloy spline hub, precise 24-tooth internal spline, perfect fit ZF transmission input shaft without radial runout under large torque;

  • Rivet reinforced friction surface, tight combination, avoid lining peeling off during frequent start-stop;

  • Whole piece dynamic balance calibration, stable high-speed cruise without jitter;

  • Full dimension consistent with OEM 1878010226, no cutting, grinding or modification during installation;

  • Strict high temperature friction durability, torsion fatigue and impact resistance test before delivery, reliable for long-distance logistics, mountain and mine heavy haulage.



Application

Fits European heavy-duty commercial vehicles: Volvo FH II series, Renault Trucks, UD Trucks, Mack heavy tractors; also compatible with domestic heavy trucks equipped with ZF Ecosplit4 16-speed manual & Traxon 12-speed AMT transmissions (16S2530, 16S2531, 12TX2620, 12TX2820). Widely used in cross-border long haul, bulk cargo transportation, mountain full-load haulage and mine engineering transport.



Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.



MOQ & Packing

MOQ: 1 piece
Warranty: 3–6 months, warranty void for man-made collision deformation, improper disassembly and wrong installation
Packing: Anti-rust plastic film + thick foam buffer + neutral export carton, moisture-proof and anti-collision for long ocean transportation
