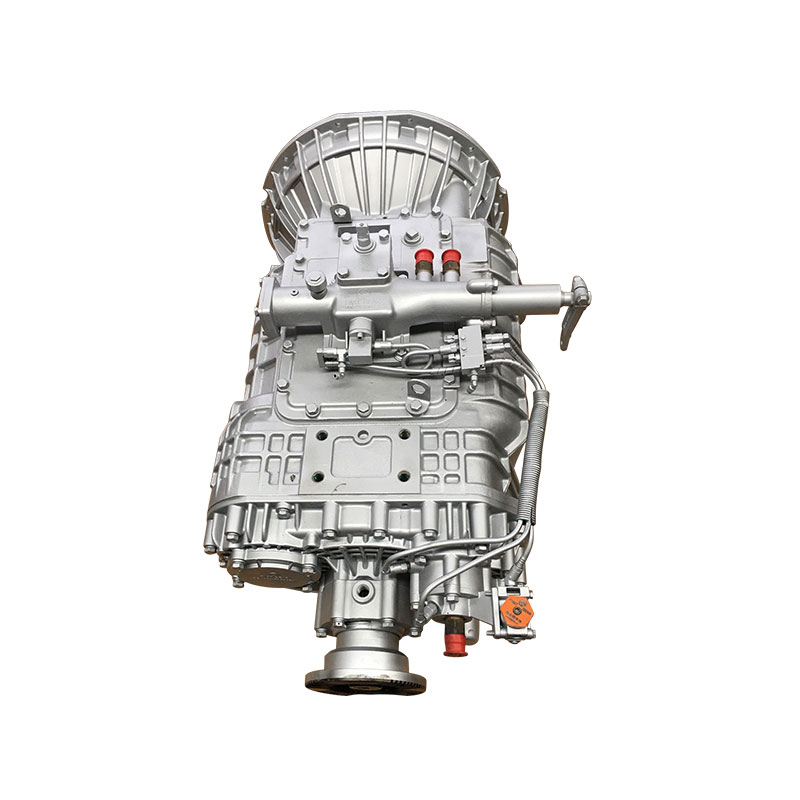

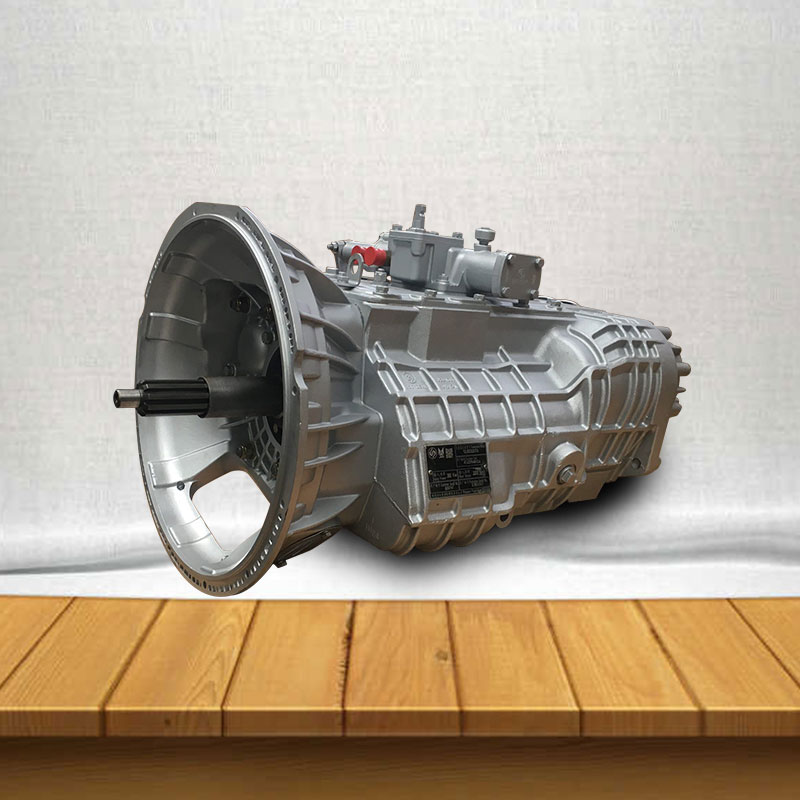

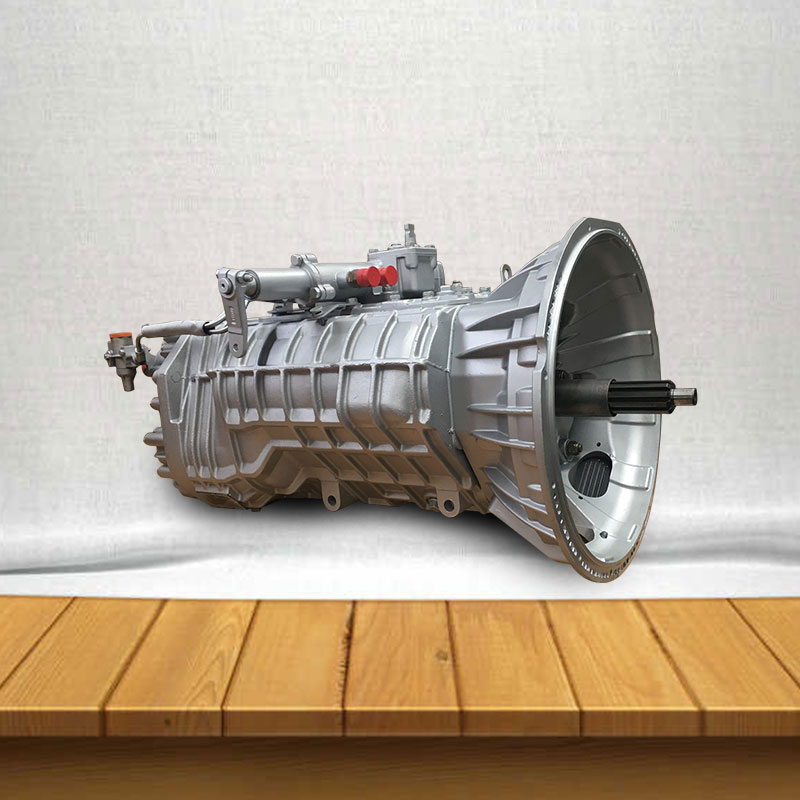

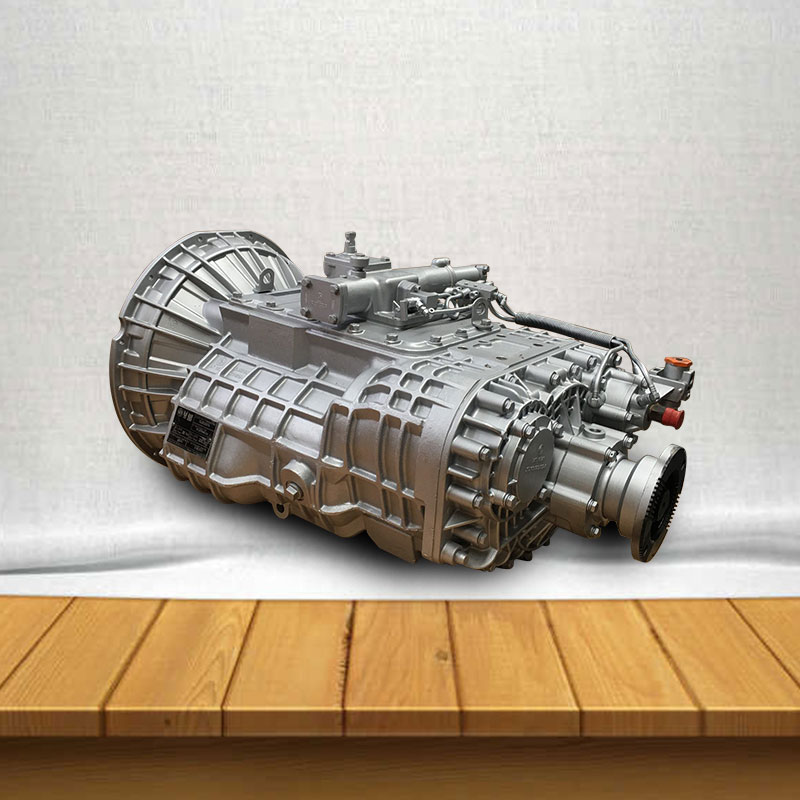

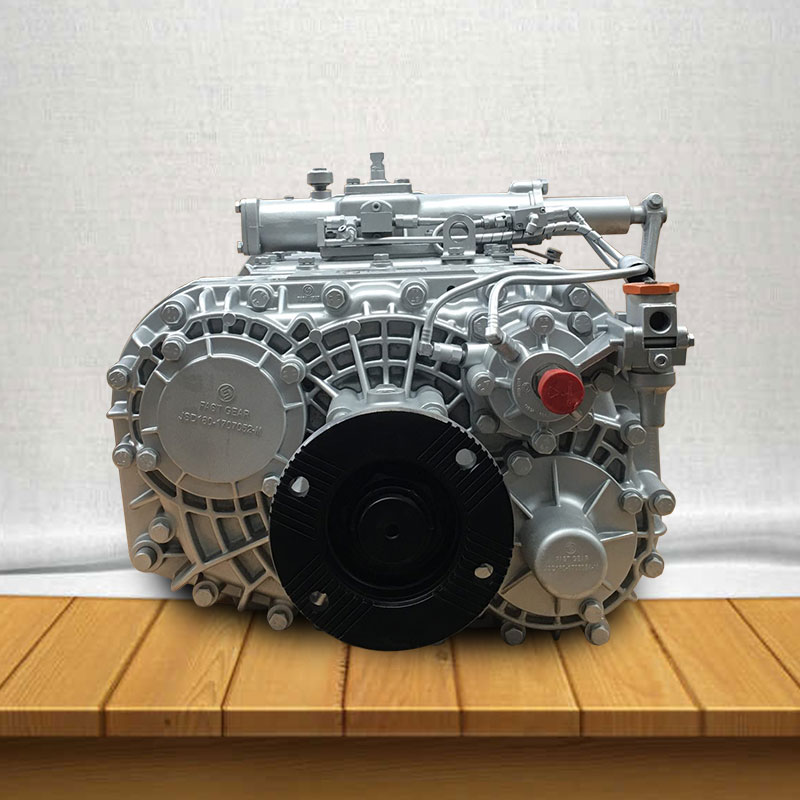

Fast 12JSD220TA Transmission Mechanical Twin Countershaft with Synchronizer for Heavy Duty Truck

Brand: Fast
Model: 12JSD220TA
Type: Manual Transmission
Features: 12 Rear Twin-countershaft Transmission with synchronizer
Availability:
Quantity:
Inquire Add to Basket

  • 12JSD220TA

  • Fast

Product parameters
Transmission model12JSD220TA
Transmission seriesMechanical twin countershaft with synchronizer
Forward gear12 speed
Shift modeManual
Number of gears12
Number of reverse gears2
Maximum input torque2200Nm
Transmission weight375kg
Head gear ratio12.1
2 gear ratio9.41
3 gear ratio7.31
4 gear ratio5.71
5 gear ratio4.46
6 gear ratio3.48
7 gear ratio2.71
8 gear ratio2.11
9 gear ratio1.64
10 gear ratio1.28
11 gear ratio1
12 gear ratio0.78
Reverse gear 1 transmission ratio11.56
Reverse gear 2 transmission ratio2.59
Transmission oil capacity16L

Fast 12 speed transmission:

Transmission Model
Input Torque
Input Power
Rated Input Rotation
Length
Oil Capacity
Weight
12JS120T/12JS135T
1200-1350N•m220-243kw2600rpm919mm14.5L315kg
12JS120TA/12JS135TA
1200-1350N•m220-243kw2600rpm919mm14.5L315kg
12JS160T/12JSD160T
1600N•m285kw2600rpm968.5mm14.5L/15L350/365kg
12JS160TA/12JSD160TA
1600N•m285kw2600rpm968.5mm14.5L/15L350/365kg
12JS180T/200T
1800-2000N•m331-355kw2600rpm983.4mm15.5L375kg
12JSD180T/200T/220T
1800-2200N•m331-380kw2600rpm983.4mm16L375kg
12JSDX160T/200T
1600-2000N•m285-355kw2600rpm968.5-983.4mm15L/16L365-375kg
12JS180TA/200TA/220TA
1800-2200N•m331-380kw2600rpm983.4mm15.5L375kg
12JSD180TA/200TA/220TA/240TA
1800-2200N•m331-400kw2600rpm983.4mm16L375kg
12JSDX160TA/200TA/220TA
1600-2200N•m285-380kw2600rpm968.5-983.4mm15L/16L365-375kg
12JSDX240T
2400N•m400kw2600rpm983.4mm15L/16L400/295kg
12JS260T
2600N•m417kw2600rpm1022mm15L440kg


Transmission Speed Ratios:

1F
2F
3F
4F
5F
6F
7F
12JS120T/12JS135T
15.50
12.08
9.47
7.32
5.72
4.46
3.47
12JS120TA/12JS135TA
12.10
9.55
7.39
5.71
4.46
3.48
2.71
12JS160T/12JSD160T
15.53
12.08
9.39
7.33
5.73
4.46
3.48
12JS160TA/12JSD160TA
12.10
9.41
7.31
5.71
4.46
3.48
2.71
12JS180T/200T
15.53
12.08
9.39
7.33
5.73
4.46
3.48
12JSD180T/200T/220T
15.53
12.08
9.39
7.33
5.73
4.46
3.48
12JSDX160T/200T
15.53
12.08
9.39
7.33
5.73
4.46
3.48
12JS180TA/200TA/220TA
12.10
9.41
7.31
5.71
4.46
3.48
2.71
12JSD180TA/200TA/220TA/240TA
12.10
9.41
7.31
5.71
4.46
3.48
2.71
12JSDX160TA/200TA/220TA
12.10
9.41
7.31
5.71
4.46
3.48
2.71
12JSDX240T
13.15
10.35
8.22
6.52
5.13
4.10
3.21
12JS260T
13.60
10.76
8.51
6.69
5.30
4.17
3.26

8F
9F
10F
11F
12F
R1
R2
12JS120T/12JS135T
2.71
2.12
1.64
1.28
1.00
14.73
3.30
12JS120TA/12JS135TA
2.14
1.66
1.28
1.00
0.78
11.49
2.58
12JS160T/12JSD160T
2.71
2.10
1.64
1.28
1.00
14.86
3.33
12JS160TA/12JSD160TA
2.11
1.64
1.28
1.00
0.78
11.56
2.59
12JS180T/200T
2.71
2.10
1.64
1.28
1.00
14.86
3.33
12JSD180T/200T/220T
2.71
2.10
1.64
1.28
1.00
14.86
3.33
12JSDX160T/200T
2.71
2.10
1.64
1.28
1.00
14.86
3.33
12JS180TA/200TA/220TA
2.11
1.64
1.28
1.00
0.78
11.56
2.59
12JSD180TA/200TA/220TA/240TA
2.11
1.64
1.28
1.00
0.78
11.56
2.59
12JSDX160TA/200TA/220TA
2.11
1.64
1.28
1.00
0.78
11.56
2.59
12JSDX240T
2.53
2.01
1.59
1.25
1.00
12.58
3.21
12JS260T
2.58
2.04
1.60
1.26
1.00
13.01
3.12
