1601430-14
1601430-14
OEM Vehicle Part No.: 1601430-14
SACHS Standard Part No.: 3151 001 039 (100% interchangeable)
Brand: SACHS (ZF Group original clutch brand, Germany)
Cross Reference OE: MAN 81305060062, DAF 16011373282, Sinotruk WG9725160560, Eurotec 95006821

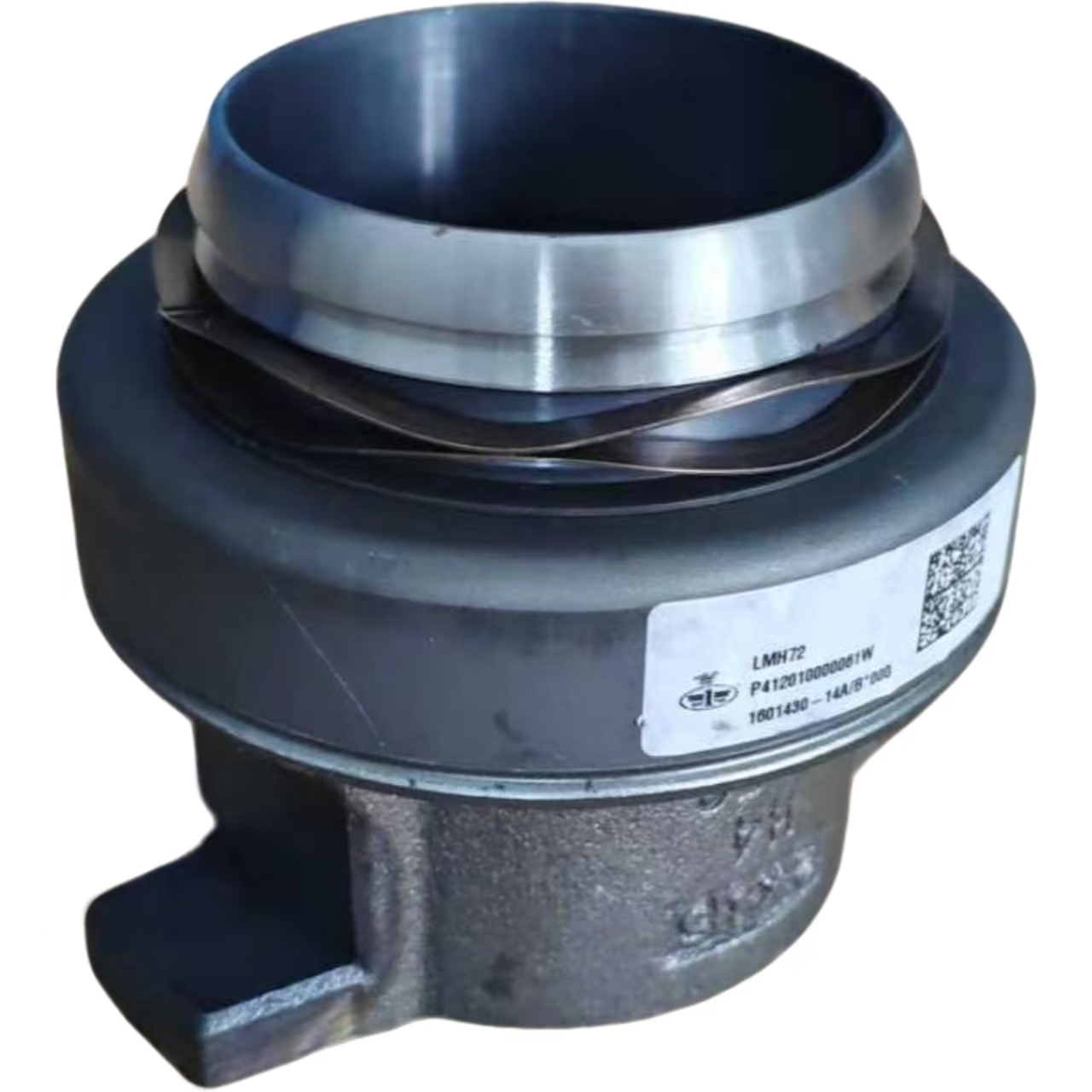

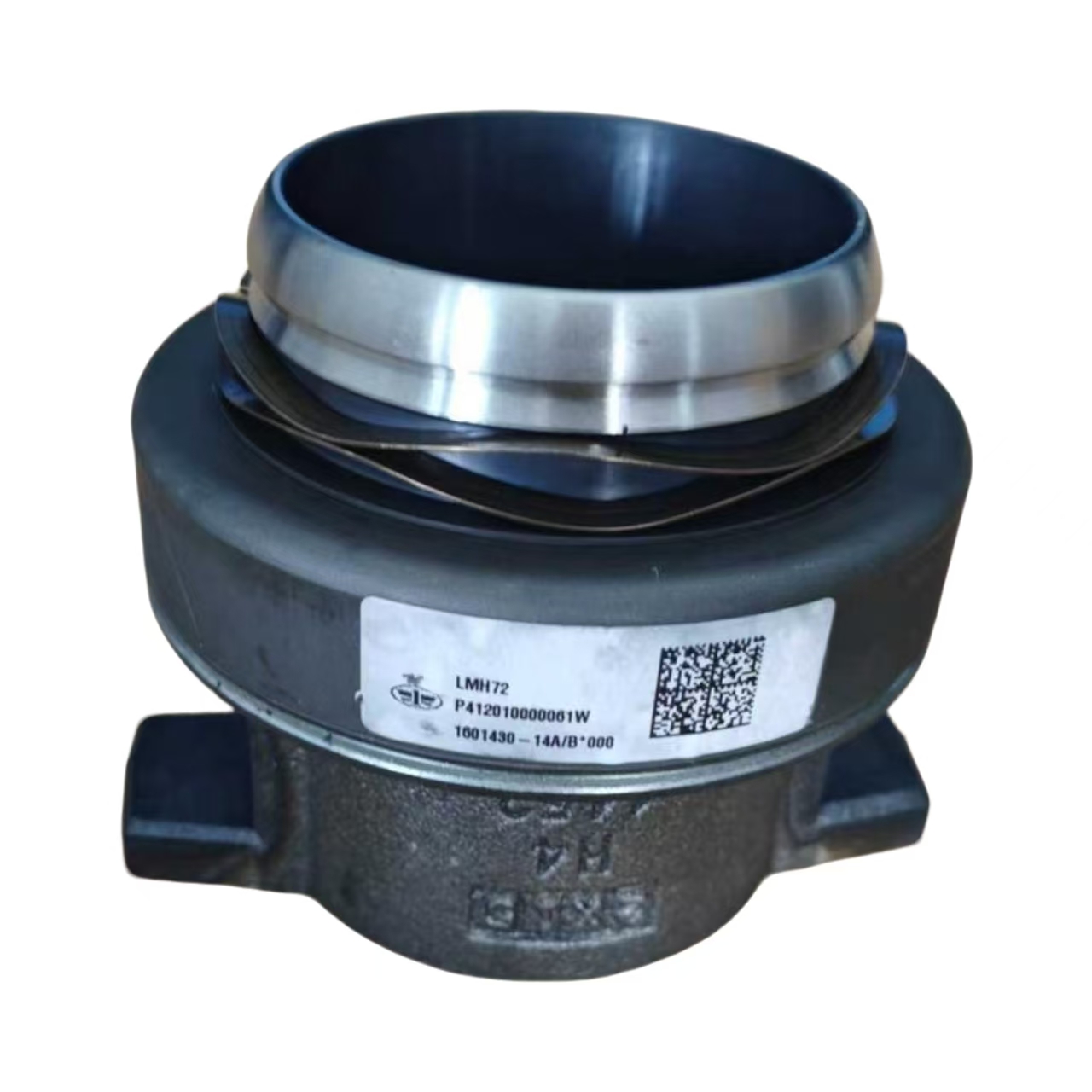

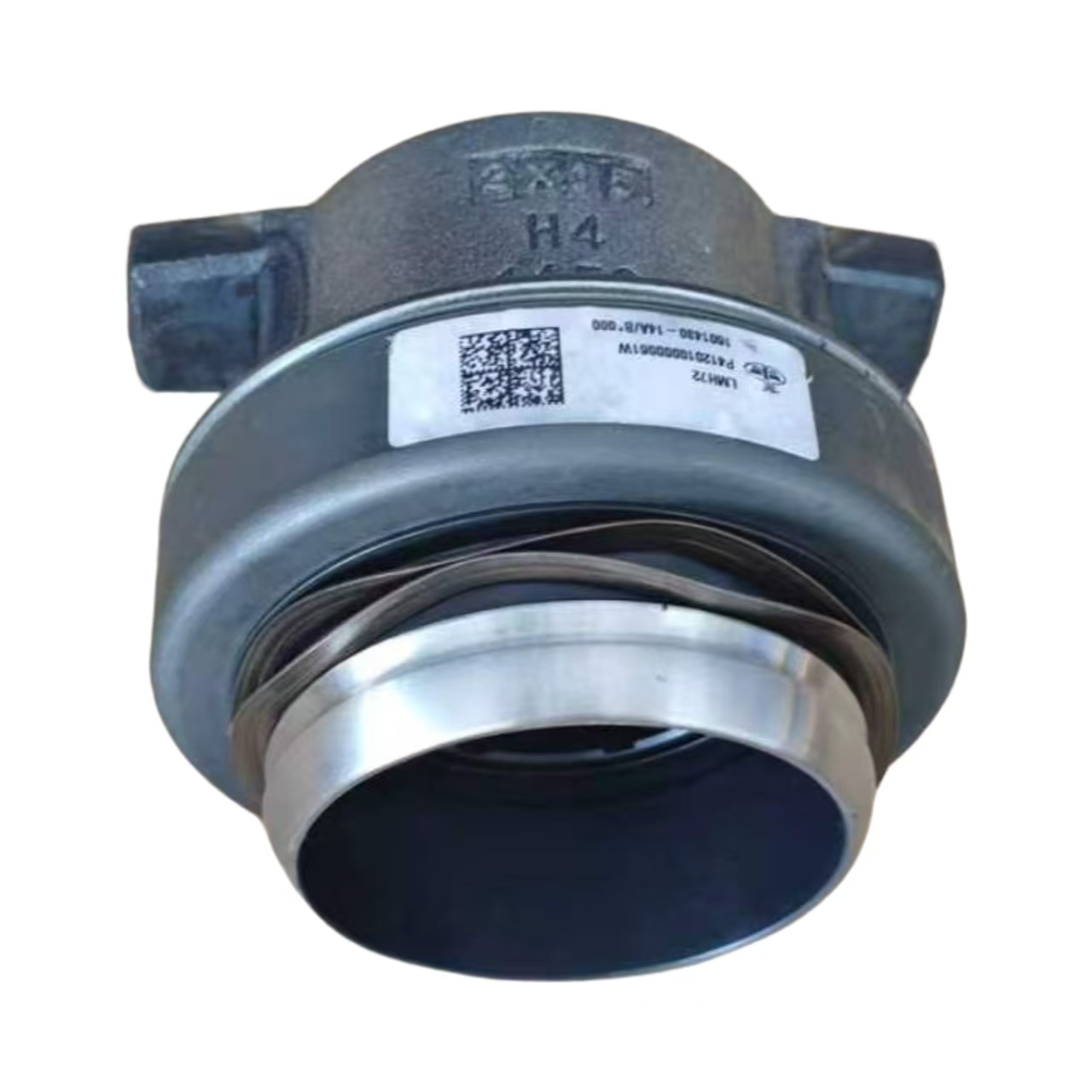

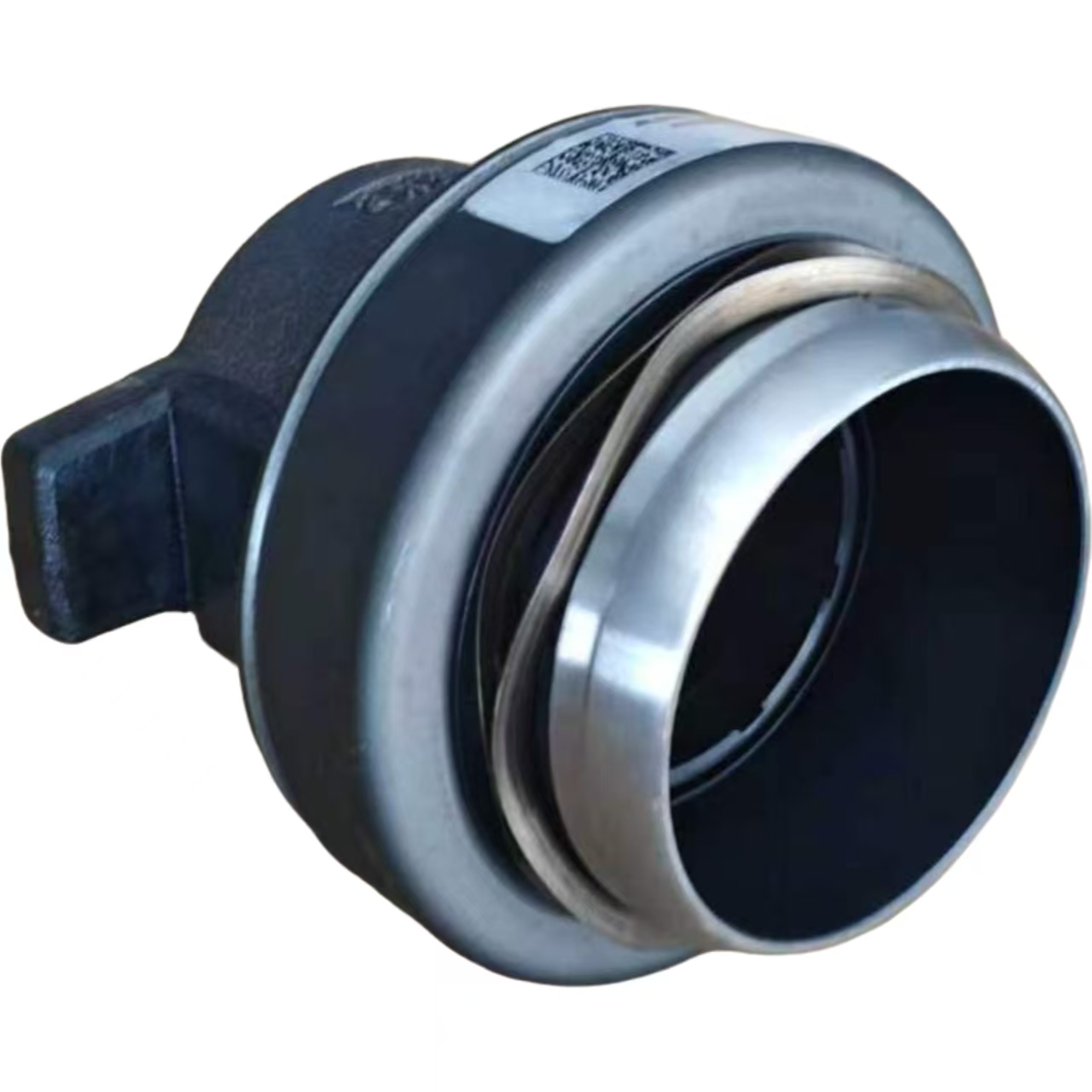

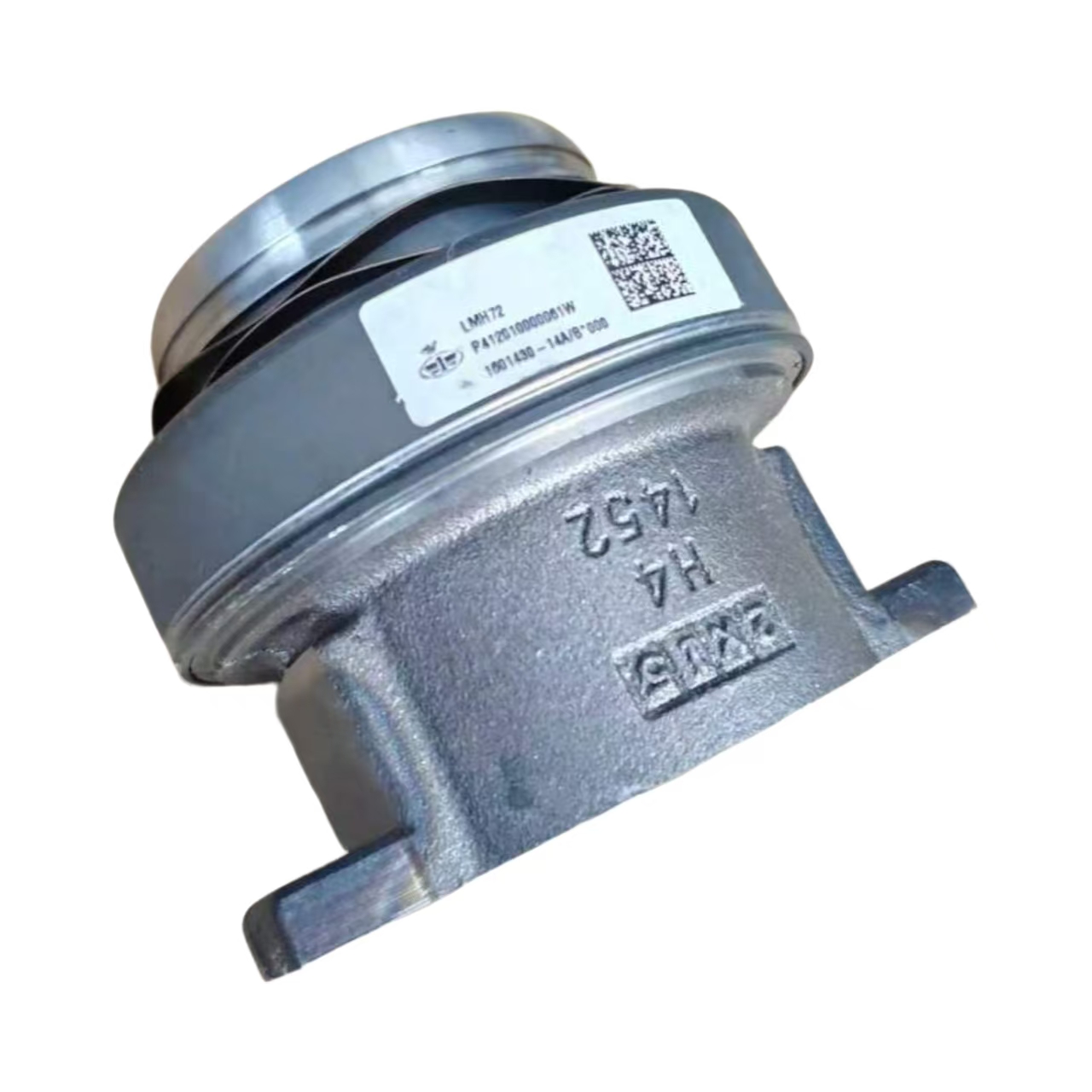

Product Type: Integrated Cast Iron Housing Clutch Release Throw-out Bearing
Compatible Gearbox: ZF 16S151NMV, 16S1930, 16S2230, 16S2530, 16S2531 Ecosplit4 16-speed heavy truck manual transmission
Applicable Vehicles: Sinotruk Sitrak/Howo, FAW J6P/J7, MAN TGS/TGX, DAF CF/XF, Iveco Stralis heavy haul tractors
Matching Clutch: 430mm single-plate diaphragm spring clutch assembly
Material: High tensile cast iron housing, GCr15 quenched bearing steel rolling core, hardened wear-resistant thrust ring, multi-layer HNBR dust & oil sealing set
Net Weight: approx 3.65kg (reference value)
Matching Components: Clutch release fork 1297 368 007, clutch bell housing, 430mm clutch pressure plate & driven disc
Function: Transmit axial thrust from release fork, push diaphragm spring to engage/disengage clutch, enable smooth gear shift
Category: Heavy Truck ZF 16S Series Transmission Clutch System Core Repair Spare Parts
Integrated high-strength cast iron housing with dual mounting lugs, high structural rigidity, anti-deformation under frequent clutch impact loads
GCr15 bearing steel rolling body fully quenched, low friction coefficient, anti-seize performance under continuous high-temperature working conditions
Hardened thrust contact surface, drastically reduce abrasion against diaphragm spring fingers and extend service life
Multi-channel labyrinth dustproof and oil-proof sealing design, isolate clutch dust and high-temperature oil mist, no regular greasing maintenance required
Standard OEM outer dimension, inner bore and lug spacing, direct bolt-on installation without cutting or grinding modification during gearbox overhaul
Self-centering structure compensates assembly coaxial deviation, eliminates eccentric wear and abnormal clutch grinding noise
Adapt to long-distance full-load highway logistics, mountain heavy climbing and high-frequency clutch operation working scenarios
Replace seized, thrust-surface worn, noisy original SACHS release bearing marked 1601430-14 for ZF 16-speed Ecosplit gearbox
Troubleshoot vehicle faults: incomplete clutch separation, stiff gear shifting, clutch slipping, abnormal grinding noise when stepping clutch, difficulty engaging gears
Complete full disassembly overhaul and regular maintenance of clutch bell housing for fleets with ZF 16-speed manual gearboxes
Assemble with matched release fork 1297 368 007 and 430mm clutch kit per official ZF clutch assembly standards; full overhaul recommended to replace clutch disc, pressure plate and release bearing together as a set
MOQ: 1 piece
Warranty: 6–12 months (exclude overload clutch slipping, collision deformation, improper installation and natural abrasion aging)
Packaging: Reinforced independent carton + full shockproof foam wrapping to protect thrust ring and rolling core from scratch and impact damage
Remarks: Confirm gearbox is ZF 16S Ecosplit4 series with 430mm clutch before ordering; 1601430-14 cannot be interchanged with small-size release bearings for 12TRAXON AMT gearboxes; compatible with Sachs standard part 3151 001 039
