1358 304 247
ZF
1358 304 247

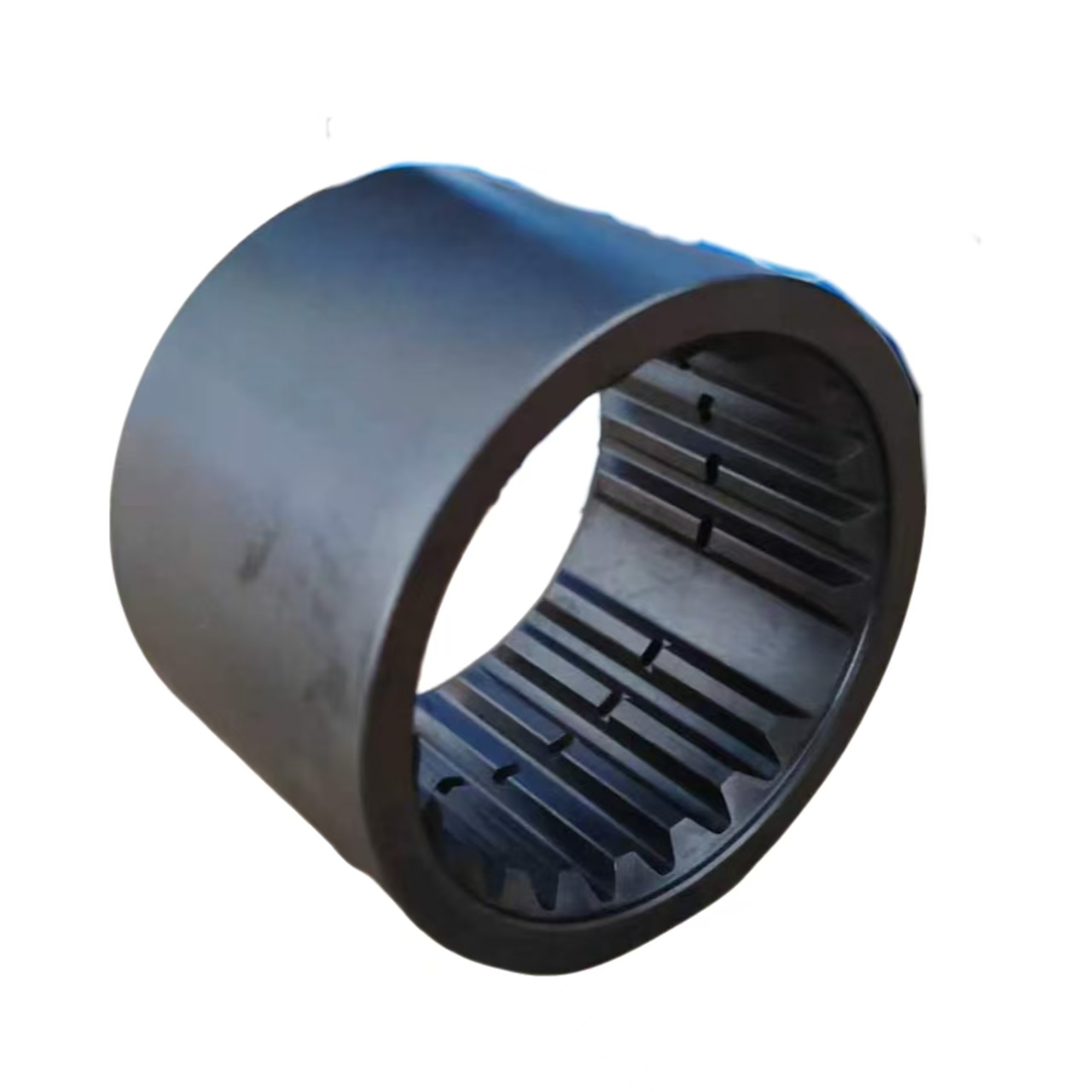

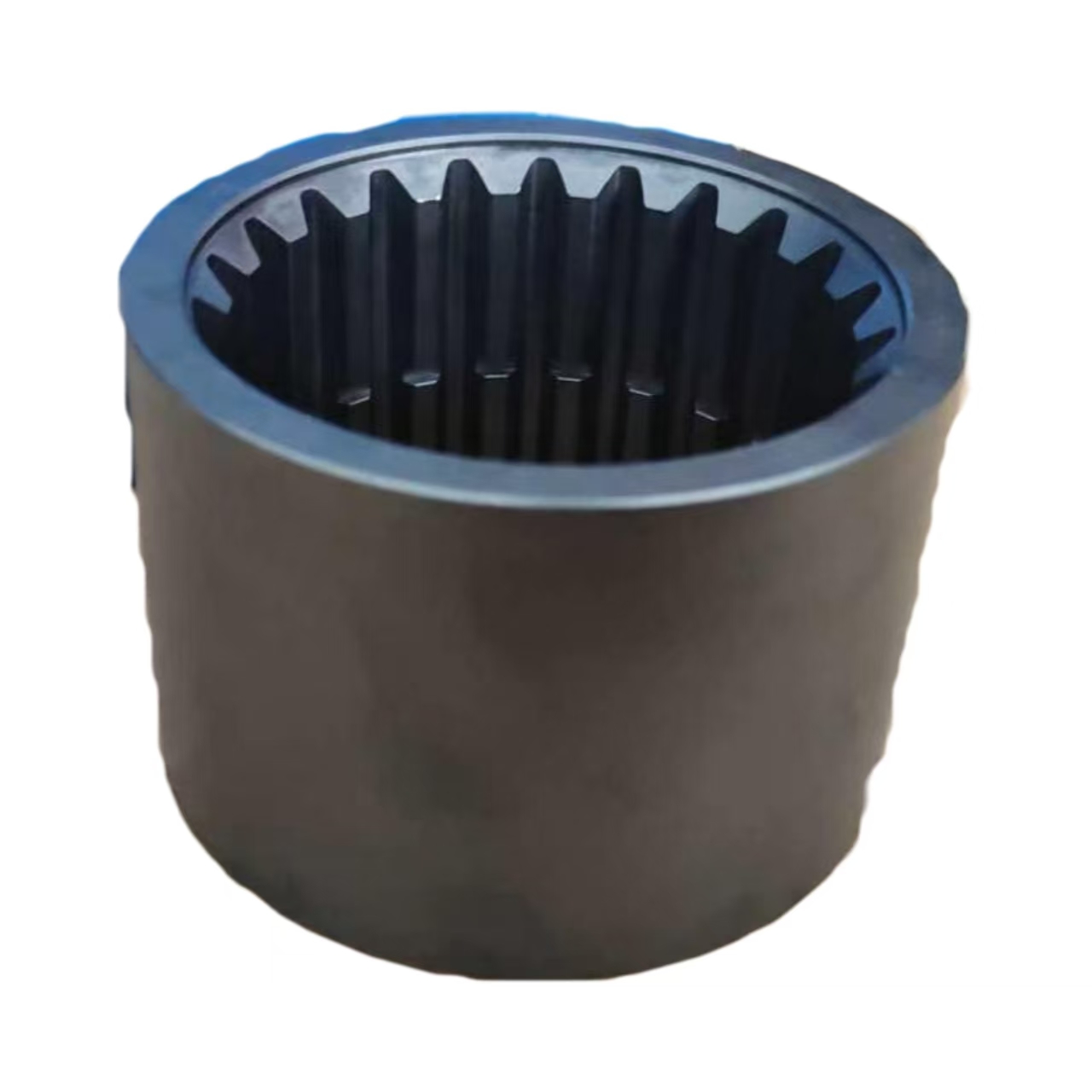

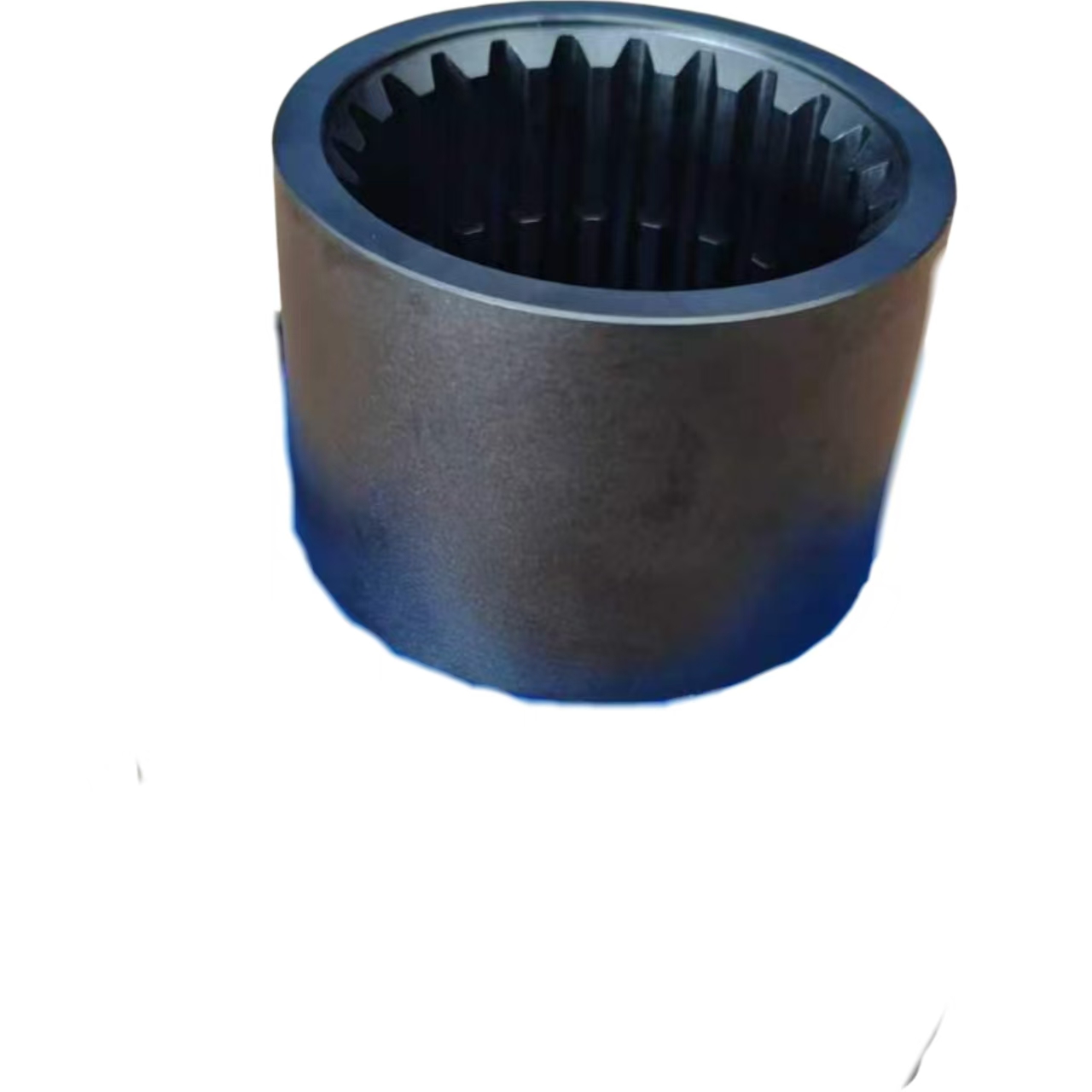

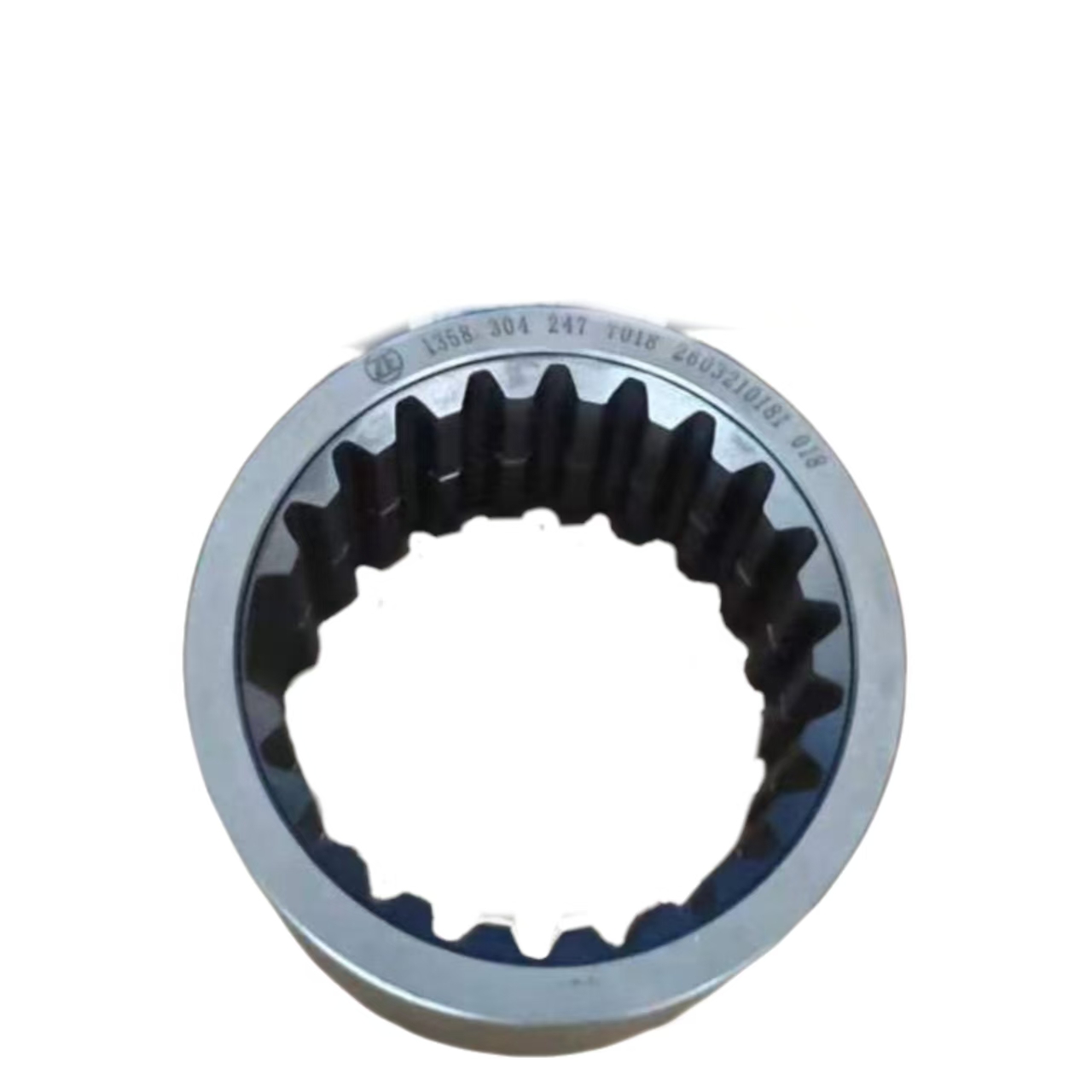

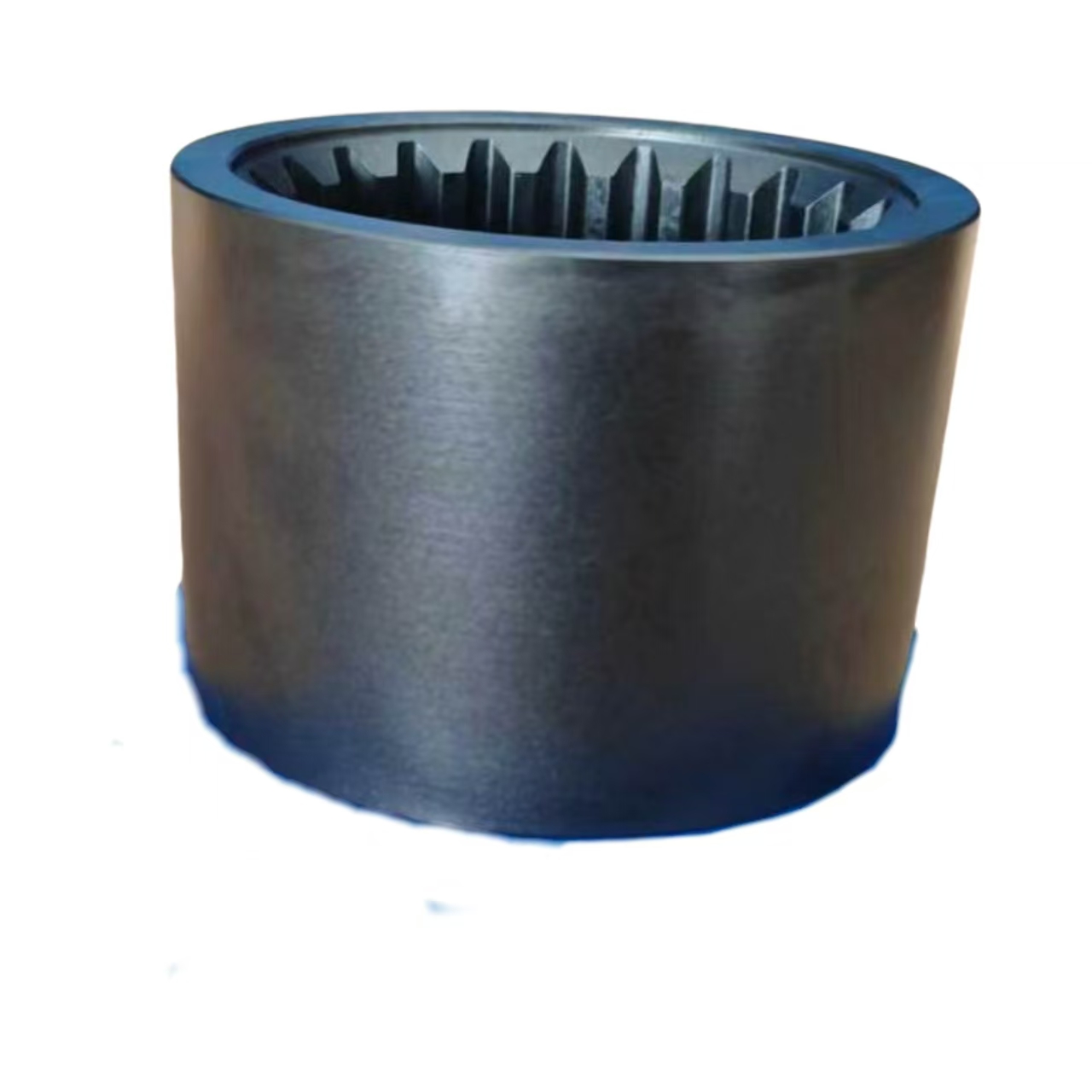

OE Part No.: 1358 304 247
Product Type: Transmission Plain Sliding Bushing / Wear Liner
Brand: ZF OEM Matching Replacement Spare Parts
Compatible Gearbox: ZF 12TRAXON 12TX2420, 12TX2620, 12TX2820 AMT 12-speed heavy truck transmission
Applicable Vehicles: Sinotruk Sitrak, FAW J7, Mercedes Actros, DAF XF, MAN TGX heavy haul tractors
Material: High-lead copper alloy bimetallic bushing, oil storage micro-groove inner wall
Net Weight: approx 0.14kg (reference value)
Core Structure: Integrated thin-wall cylindrical liner, built-in micro oil storage channels
Working Temperature Range: -35℃ ~ 175℃
Function: Reduce friction between shaft and hole, absorb running vibration, control assembly fit clearance, avoid metal direct wear
Category: Heavy Truck ZF 12TRAXON AMT Transmission Synchronizer & Main Shaft Repair Spare Parts
Bimetallic copper-steel composite structure, excellent self-lubricating and wear resistance under high-speed frequent sliding conditions
Inner wall precision engraved micro oil storage grooves, lasting oil film formation to prevent dry grinding damage during insufficient lubrication
Strict OEM outer diameter, inner bore and length dimension, interference press-fit installation without reaming or polishing modification during overhaul
Low friction coefficient effectively lower shifting resistance, eliminate loose gear and abnormal jitter noise during automatic shift
High temperature resistant and anti-fatigue performance, adapt long-distance continuous full-load logistics and mountain climbing working conditions
Replace worn, oversized clearance, deformed original bushing marked 1358 304 247 for ZF 12TRAXON gearbox
Repair automatic shift lag, loose gear position, abnormal vibration and grinding noise inside gearbox
Complete synchronizer and main shaft disassembly overhaul for heavy truck logistics fleets
Press-fit installation matched with synchronizer hub, main shaft and gear housing following official ZF assembly standards
MOQ: 1 piece
Warranty: 3–6 months (exclude improper press installation, lack of lubrication, overload and natural abrasion aging)
Packaging: Independent shockproof foam + sealed carton packaging to avoid bushing extrusion deformation
Remarks: Confirm gearbox model 12TRAXON 12TX series before order placement to guarantee matching accuracy
