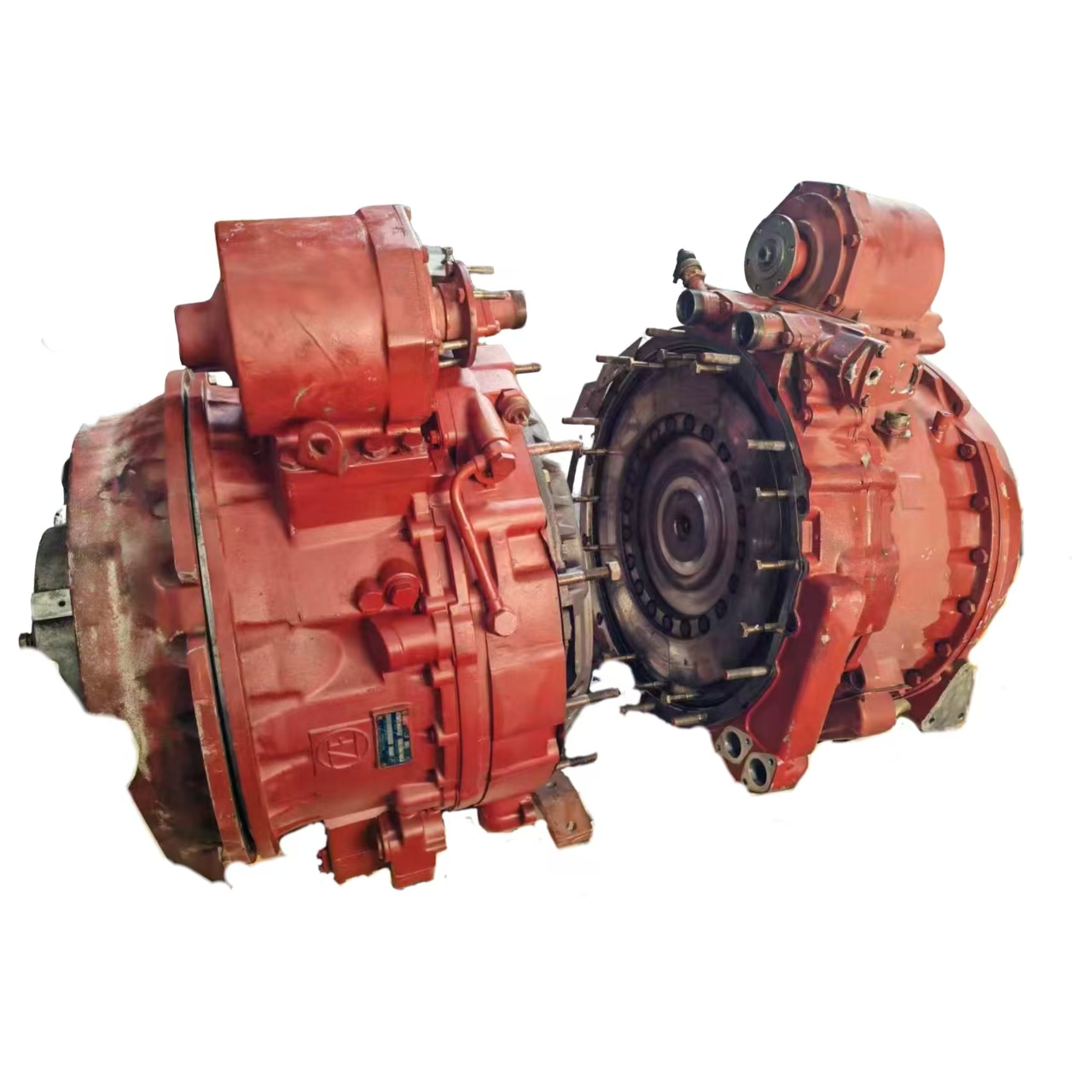

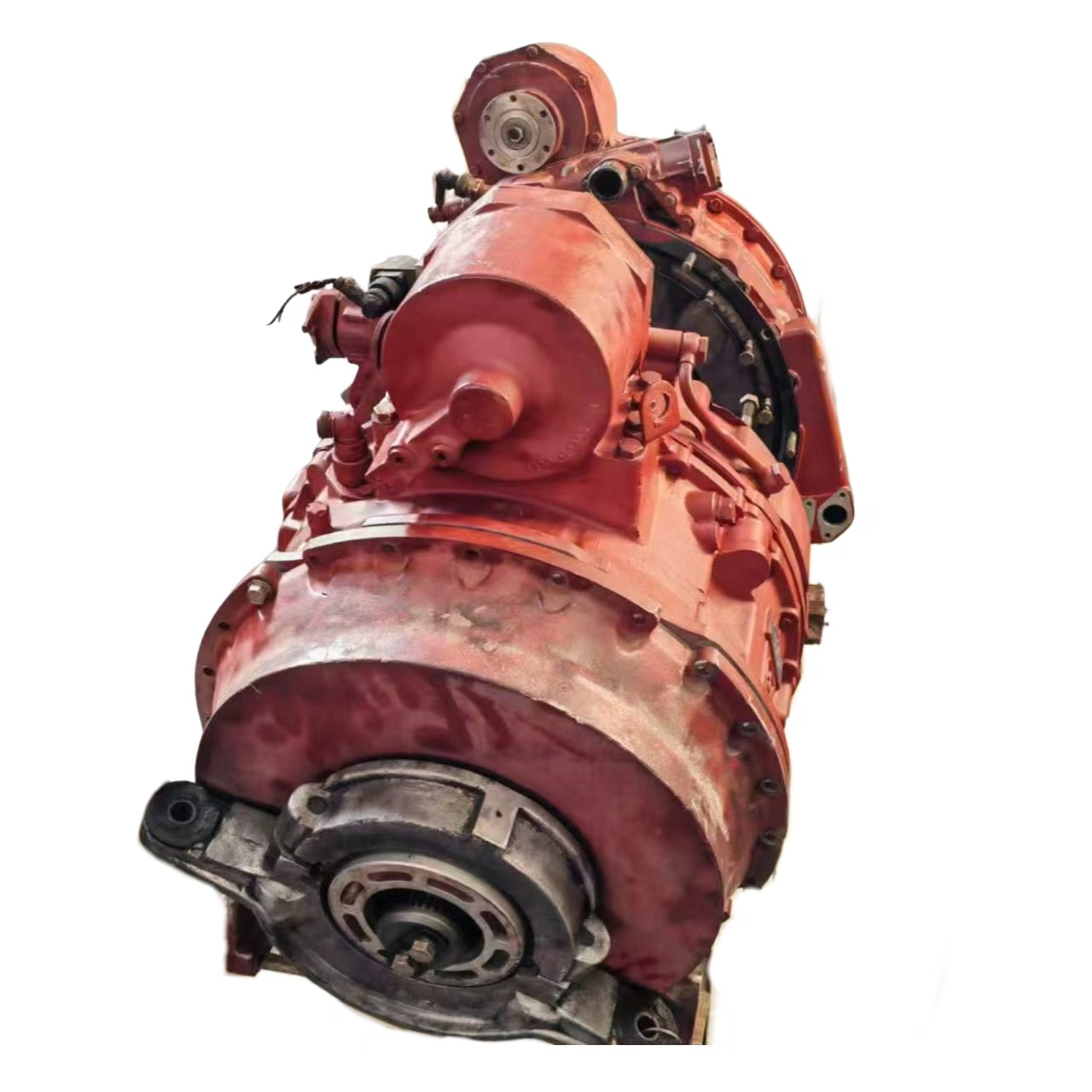

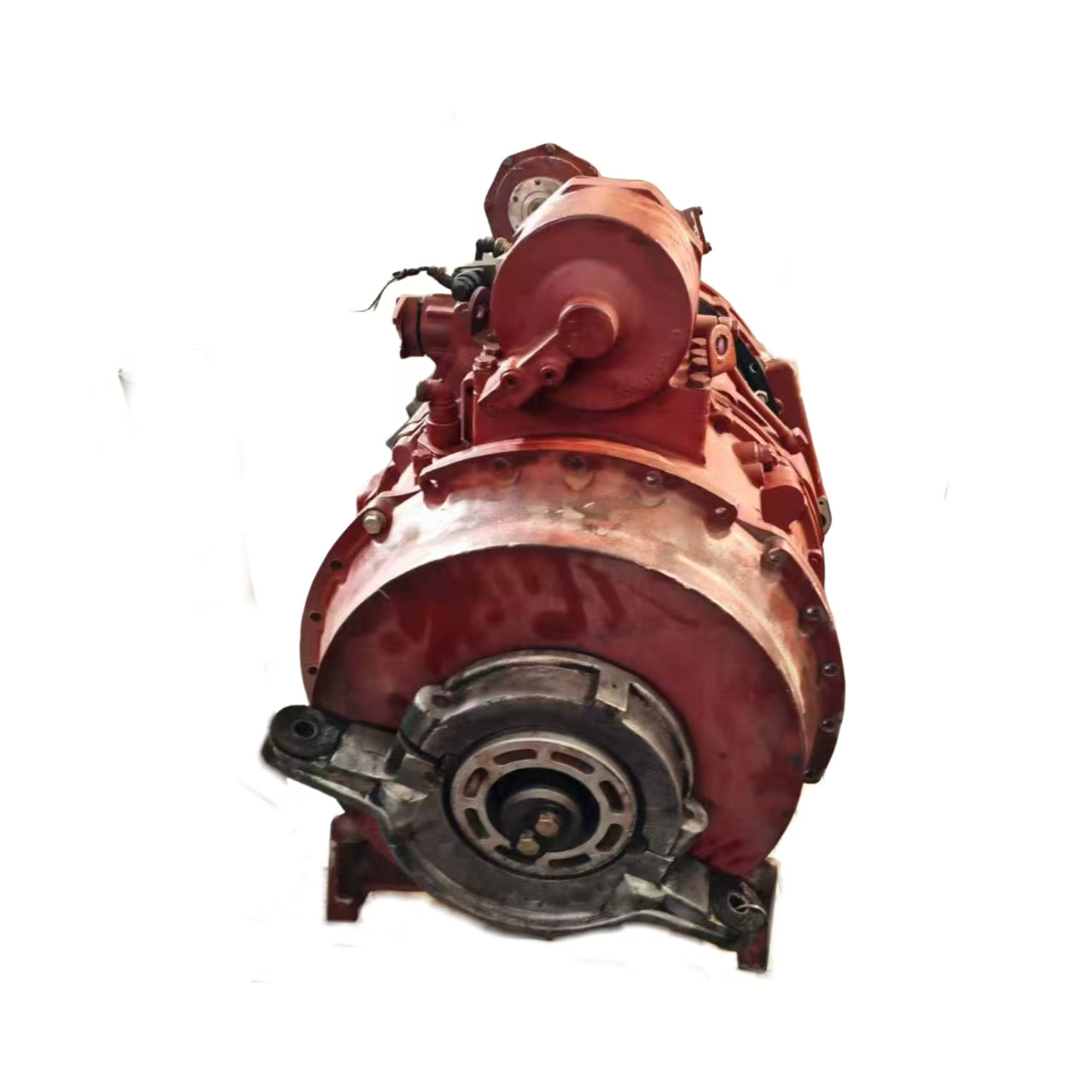

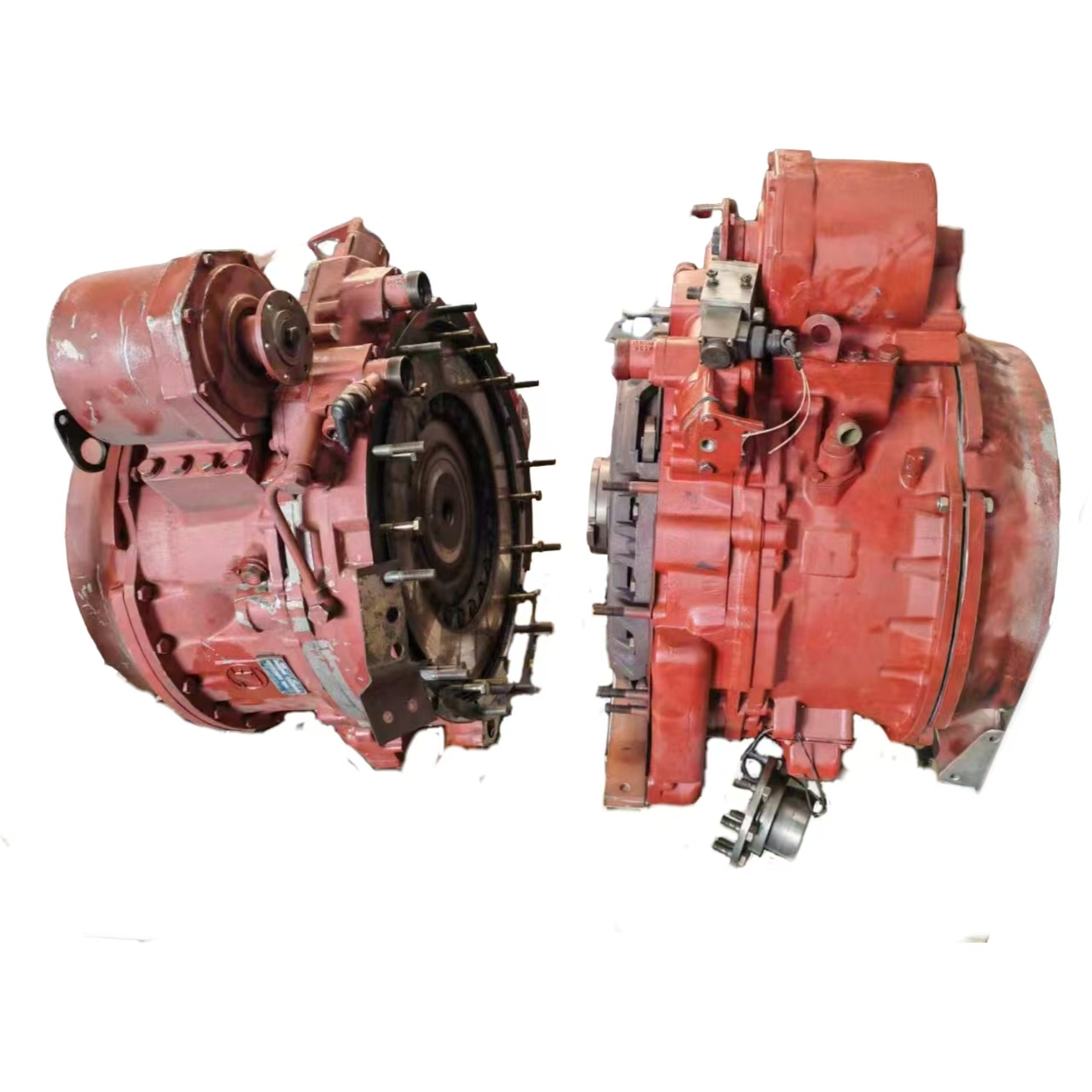

WSK 400
ZF
WSK 400
Model No.: WSK 400
Spare Parts Catalog Code: 4130.002.484
Product Type: Integrated Torque Converter Assembly with Separate Clutch
Brand: ZF Transmatic OEM Matching
Matched Gearbox: ZF 16S151, 16S221 heavy truck manual transmissions
Matching Equipment: Off-road cranes, mining dumpers, heavy haul tractors
Material: Cast iron converter housing, forged alloy turbine & impeller, high temperature resistant friction plates
Net Weight: approx 138 kg (reference value)
Total Oil Capacity: 10 L (converter independent oil circuit)
Max Input Torque: 2400 N·m
Built-in Components: Hydraulic separating clutch, integrated charge gear pump, speed sensing sensor
Category: Heavy Construction Vehicle ZF Transmission Power Transfer Spare Parts
Thick cast iron housing with integral reinforcing ribs, anti-deformation against severe bumpy construction site roads
Precision forged impeller and turbine set, stable fluid torque transmission without power loss under full load
Built-in separating clutch structure switches hydraulic drive and rigid lock-up automatically, lowering fuel consumption during highway cruising
Independent circulating oil cooling system, stable working temperature under continuous downhill heavy-load conditions
Standard OEM connecting flange size, whole pre-assembled unit for direct bolt-on installation without extra machining
Integrated oil pump and sensor structure, fewer external pipeline joints to reduce leakage risks
Replace slipping, leaking or internally damaged original WSK400 torque converter assemblies
Complete power train overhaul for construction machinery and heavy logistics fleets
Refit heavy haul vehicles equipped with ZF 16S series gearboxes
Eliminate vehicle faults including torque converter slipping, weak starting power and abnormal vibration during acceleration
MOQ: 1 set
Warranty: 3–6 months (excluding wrong transmission oil, overload, collision damage and normal abrasion aging)
Packaging: Reinforced fumigated wooden case with full shockproof foam inner wrapping
Remarks: Confirm matched ZF 16S gearbox model before order placement
