ZF16 Gearbox Top Cover Empty Shell Shell 1315 307 383

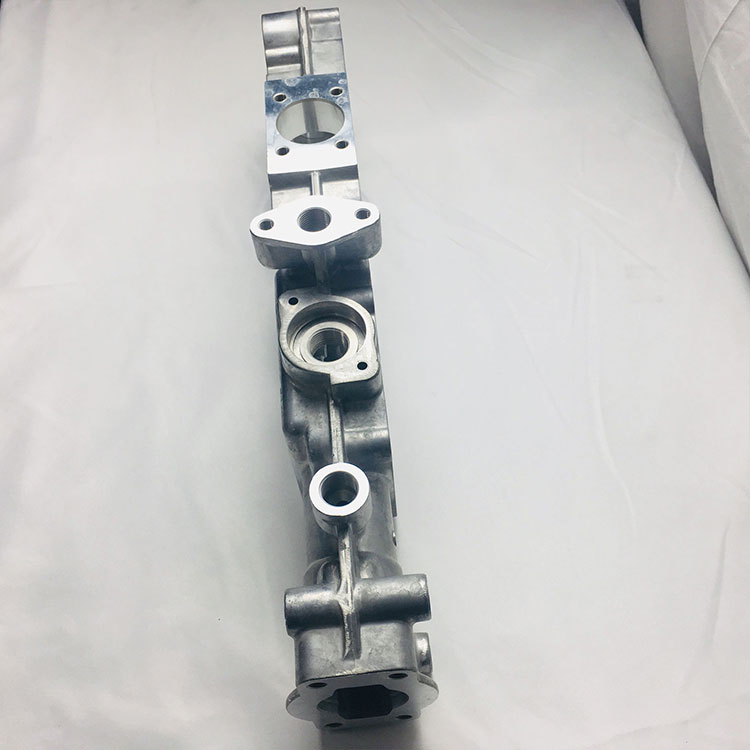

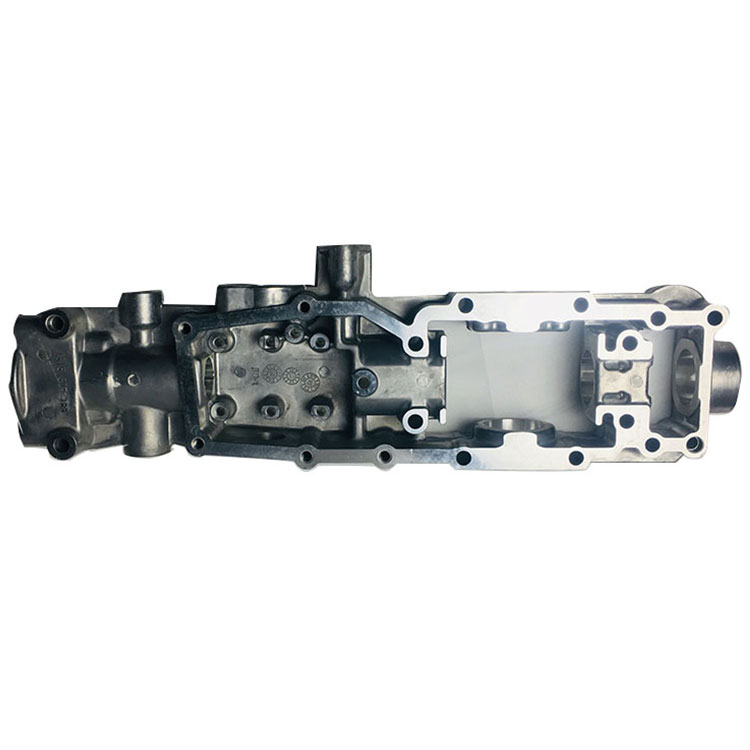

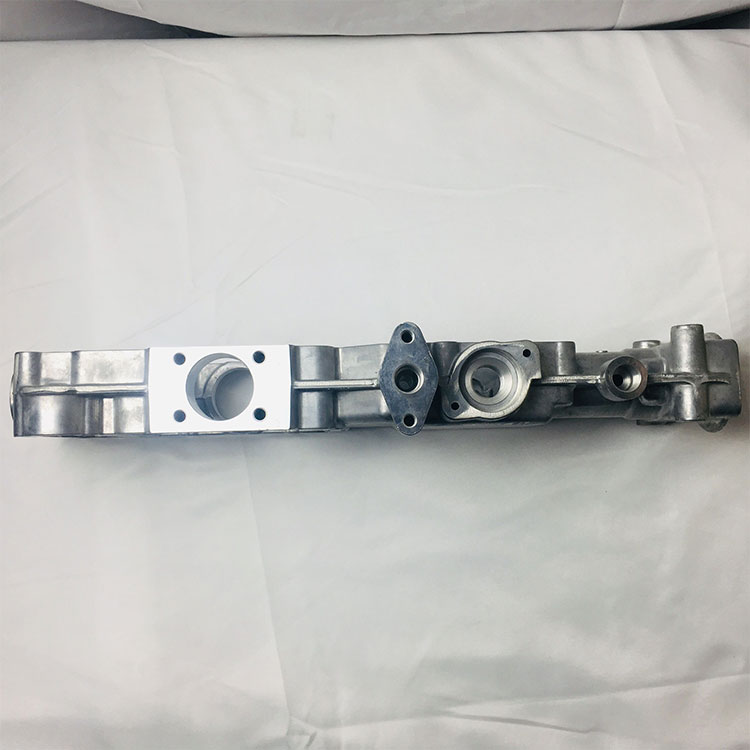

1315 307 383 is the bare empty aluminum top cover/shift base housing (without internal shift valves, cylinders and linkages) for ZF Ecosplit 16-speed heavy-duty manual truck transmissions (main models: 16S2530, 16S1650). It serves as the upper base frame of the pneumatic/manual shift control system, providing mounting positions for shift valves, linkages and selector components, ensuring main/auxiliary box high/low speed range shifting. Made of rigid cast aluminum alloy, it withstands long-term heavy vibration, temperature fluctuation and harsh road conditions of European heavy trucks, maintains shift mechanism positioning, prevents oil leakage and shift jamming faults.

Availability:
Quantity:
  • 1315 307 383

  • ZF

Product parameters

Basic Info

  • Alias: Gearbox shift control housing, bare top cover shell, upper shift base empty housing

  • Part Number: 1315 307 383 / 1315307383

  • Compatible Gearbox: ZF Ecosplit 16S series 16-speed heavy-duty manual transmissions (16S2530, 16S1650 etc.)

  • Applicable Vehicles: European heavy-duty long-haul trucks (MAN, DAF, Iveco etc.) fitted with ZF Ecosplit 16-speed gearboxes

  • Category: Heavy Truck Drivetrain Parts – ZF 16-Speed Gearbox Top Cover Empty Shift Housing

  • Net Weight: approx. 5kg

Package Contents: 1 x ZF bare shift housing 1315 307 383 (empty shell only, no internal components)

Material: Cast aluminum alloy, precision machined mounting & sealing surfaces


Material & Advantages



  1. Rigid cast aluminum alloy structure, good vibration resistance and structural stability

  2. Precision machined mounting holes and sealing surfaces, ensuring accurate shift mechanism assembly and preventing oil leakage

  3. OEM matching mounting dimensions for direct bolt-on replacement

  4. Designed for repeated heavy-load main/auxiliary box pneumatic shifting cycles in long-distance transport

  5. Fixes deformed, cracked, leaking upper shift housing faults

  6. Adapted to highway heavy haulage and mixed complex road conditions



Application


For overhaul and repair of European heavy-duty long-haul trucks with ZF Ecosplit 16-speed transmissions. Replace damaged empty shift housings, then reinstall original internal shift valves, cylinders and linkages, fit new gaskets, check air pipelines and test shift function.


Origin & Lead Time

In stock, delivery within 1–3 working days; bulk orders: 4–7 days; sea freight: 10–24 days


MOQ & Packing

MOQ: 1 piece
Warranty: 6 months, not covered for improper programming, water damage, overvoltage and unauthorized circuit modification
Packing: Anti-static bag + shockproof foam + reinforced export carton
