ZF 16S1650 Gearbox Parts Main Shaft Kit - Buy Main Shaft Kit, 16S1650 Gearbox Parts, ZF parts Product on Yongliwei Industry and Trade

Product parameters

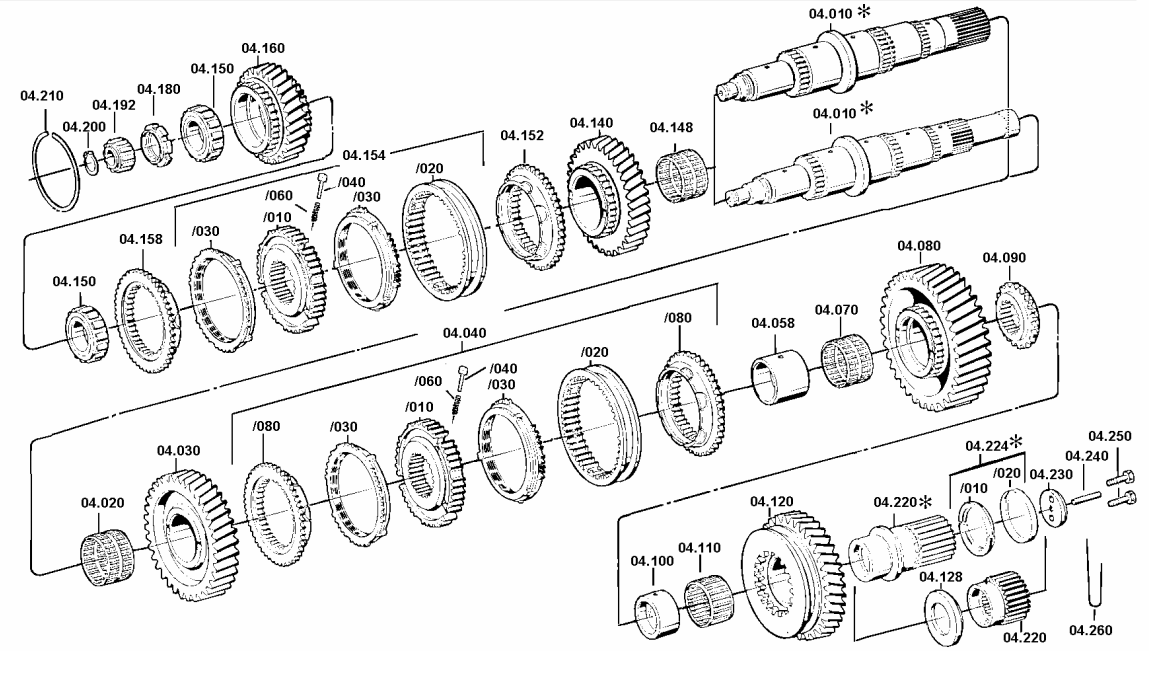

main shaft

FIG.	QTY.	PART-NUMBER	DESCRIPTION	OPT.	MOD.NO.	TECHNICAL INFORMATION
010	1	0091304359	MAIN SHAFT		60285
020	1	0735320418	NEEDLE CAGE			K82X90X50
030	1	0091304322	HELICAL GEAR			Z=382M
040	1	1316204017	SYNCHRONIZER
/010	1	1316304152	SYNCHRONIZER BODY			ZF-BK160
/020	1	1316304169	SLIDING SLEEVE			ZF-BK 160
1030	2	1316304170	SYNCHRONIZER RING			ZF-BK 160
1040	3	297304436	PRESSURE PIECE
1060	3	0732040409	COMPRESSION SPRING			ZFN 403
/080	2	1316304154	CLUTCH BODY			ZF-BK160
058	1	1297304035	BUSH
070	1	0735320487	NEEDLE CAGE			K82 X90X68
080	1	0091304297	HELICAL GEAR			Z=471M
090	1	0091304207	CLUTCH BODY
100	1	0091304034	BUSH
110	1	0735320486	NEEDLE CAGE			K78 X86X44
120	1	0091304210	GEAR			Z=38 REVERSE
128	1	0091304209	RING
140	1	0091304317	HELICAL GEAR			Z=353M
148	1	0735320452	NEEDLE CAGE			K82X90X55
150	2	0750118005	CY.ROLL.BEARING			WTB 63,0X97,5X34,8
152	1	0091304310	CLUTCH BODY			ZF-BK-150
154	1	0091204034	SYNCHRONIZER			3+4MBK150*KPL
/010	1	0091304361	SYNCHRONIZER BODY		59353	ZF-BK150
/020	1	1310304225	SLIDING SLEEVE			ZF-BK150
/030	2	1297304484	SYNCHRONIZER RING			ZF-BK150
/040	3	1297304436	PRESSURE PIECE
/050	3	0732040409	COMPRESSION SPRING			ZFN403
158	1	0091304310	CLUTCH BODY			ZF-BK-150
160	1	0091304314	HELICAL GEAR			4MZ=30
180	1		LOCKING NUT			M60X1,5*500N.M
	1	0501398371	LOCKING NUT			M60X1,5
192	1	0735455040	CY.ROLL.BEARING			35x68x28
200	1	0630501028	RETAINING RING			35X1,5*DIN 471
210	1		RING			5,90(ABSTUFUNG:0,20MM)DIN 1652-4
	1	0730005473	RING			A=5,00
	1	0730005472	RING			A=4,80
	1	0730005471	RING			A=4,60
	1	0730005470	RING			A=4,40
	1	0730005469	RING			A=4,20
	1	0730005468	RING			A=4,00
	1	0730005467	RING			A=3,80
	1	0730005466	RING			A=3,60
	1	0730005465	RING			A=3,40
	1	0501398358	RING			A=5,30
	1	0501398362	RING			A=5,60
	1	0501398360	RING			A=5,90
	1	0730005464	RING			A=3,20
	1	0730007747	RING			A=3,00
220	1	0091304194	SUN GEAR			Z=27
230	1	0091304291	FIXING WASHER
240	1	0730061842	PIPE			A=50,00
250	2		HEXAGON SCREW			M 10X50 DIN 9318.8
	2	0636010168	HEXAGON SCREW		60285	M 10X50 DIN 9318.8
260	1	0666890019	WIRE			1,4 MM X220mm
