| Quantity: | |
|---|---|
16S1650
ZF
16S1650

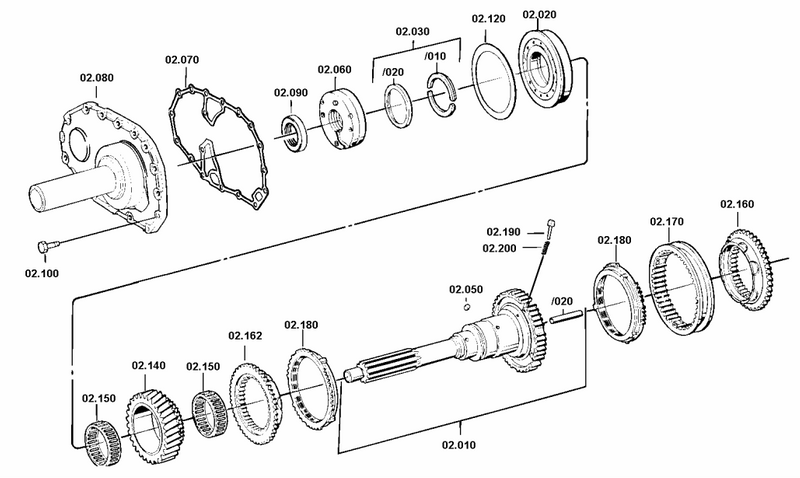

| FIG. | QTY. | PART-NUMBER | DESCRIPTION | OPT. | MOD.NO. | TECHNICAL INFORMATION |
| 010 | 1 | 0091202062 | INPUT SHAFT | CPL. | ||
| 1020 | 1 | 0730062323 | PIPE | A=60,00 EE | ||
| 020 | 1 | 0750118130 | CY.ROLL.BEARING | WTB 80,0X150,0X27,5 | ||
| 030 | 1 | SPLIT RING | WTB | |||
| /010 | 1 | 1295202034 | SPLIT RING | X | CPL.GESTANZT | |
| 1 | SPLIT RING | 4,00(ABSTUFUNG:0,10MM) | ||||
| 1 | 0730105156 | SPLIT RING | A=4,00 | |||
| 1 | 0730105155 | SPLIT RING | A=3,90 | |||
| 1 | 0730105154 | SPLIT RING | A=3,80 | |||
| 1020 | 1 | 0730062579 | RETAINING RING | A=4,20 | ||
| 1 | 1295202033 | SPLIT RING | X | |||
| 1010 | 1 | SPLIT RING | 4,30(ABSTUFUNG:0,05MM) | |||
| 1 | 0730103244 | SPLIT RING | A=4,30 | |||
| 1 | 0730104338 | SPLIT RING | A=4.25 | |||
| 1 | 0730104337 | SPLIT RING | A=4,20 | |||
| 1 | 0730103941 | SPLIT RING | A=4,10 | |||
| 1 | 0730103940 | SPLIT RING | A=4,05 | |||
| 1 | 0730103939 | SPLIT RING | A=4,00 | |||
| 1 | 0730103938 | SPLIT RING | A=3,95 | |||
| 1 | 0730103937 | SPLIT RING | A=3,90 | |||
| 1 | 0730103936 | SPLIT RING | A=3,85 | |||
| 1 | 0730103935 | SPLIT RING | A=3.80 | |||
| 1020 | 1 | 0730061816 | RETAINING RING | 81X93X7,5 | ||
| 050 | 1 | 0635470012 | CYL.ROLLER | 7 X7 DIN 5402 | ||
| 060 | 1 | 295202054 | PUMP | |||
| 070 | 1 | 1313302014 | GASKET | |||
| 080 | 1 | 0091302306 | CONN. PLATE | |||
| 090 | 0734310386 | SHAFT SEAL | 58951 | 55X75X8 FACFW | ||
| 100 | 16 | HEX.CAP.SCREW | M10X25 DIN 9338.8 | |||
| 16 | 0636015120 | HEX.CAP.SCREW | M10X25 DIN 9338.8 | |||
| 120 | 1 | SHIM | 0,80(ABSTUFUNG:0,08MM) | |||
| 1 | 0730103804 | SHIM | A=0,80 | |||
| 1 | 0730108096 | SHIM | A=0,75 | |||
| 1 | 0730102505 | SHIM | A=0,70 | |||
| 1 | 0730102504 | SHIM | A=0,60 | |||
| 1 | 0730102503 | SHIM | A=0,50 | |||
| 140 | 1 | 0091302294 | HELICAL GEAR | 1M KONSTZ=36ZF7B | ||
| 150 | 2 | 0735320896 | NEEDLE CAGE | 88X96 X29*FA.SKF | ||
| 160 | 1 | 0091304311 | CLUTCH BODY | ZF-BK 150 | ||
| 162 | 1 | 0091304310 | CLUTCH BODY | ZF-BK-150 | ||
| 170 | 1 | 1310304202 | SLIDING SLEEVE | 59567 | ZF-BK150 | |
| 180 | 2 | 297304484 | SYNCHRONIZER RING | ZF-BK150 | ||
| 190 | 3 | 297304436 | PRESSURE PIECE | |||
| 200 | 3 | 0732040409 | COMPRESSION SPRING |
