ZF 16S1650 Gearbox Parts Shift System Spring Set

0091307304 G.SHIFT SHAFT
1238307411 PROTECTING CAP
1307307006 GEAR SHIFT LEVER
0636015469 HEXAGON SCREW
0637006120 HEXAGON NUT
1295307379 WASHER
1295307250 WASHER
0630532205 V RING
0735470007 ROLLER
1295307585 LOCK
1295307156 LOCK
1295307178 DRIVER
1295307175 DRIVER
1295307176 SKID PIECE
0091380071 CYLINDRICAL PIN
0091307197 SKID PIECE
0732040736 COMPR.SPRING
1295307409 STOP PART
1295307243 STOP BOLT
0501398399 THREADED BOLT
0637002039 HEXAGON NUT
0750115335 BALLROLLER
Learn more about gearboxes. Can add or call +8618807289527 (Kari).
0730062448 BUSH
0091307160 BOLT
0091307153 COVER
1313307002 GASKET
0091307149 COVER
0636015084 HEXAGON SCREW
1313307020 GASKET
1295307434 COVER
0634300302 SHAFT SEAL
0634307367 SHAFT SEAL
0636015084 HEXAGON SCREW
0091307500 COVER
1313307003 GASKET
0636015073 HEXAGON SCREW
0636015084 HEXAGON SCREW
0634314021 RING
6038202003 CUT-OFF VALVE
0636101664 CYLINDRICAL SCREW
0630302090 WASHER
0091307219 STOP PART
0501398398 THREADED
0637002039 HEXAGON NUT
1313307004 GASKET
0731208056 PIN
0636010121 HEXAGON SCREW
0630302090 SPRING WASHER
0501210059 SWITCH
0634801062 SEALING RING
0636302021 SCREW PLUG
0634801062 SEALING RING
0732040986 COMPR.SPRING
0732040986 COMPR.SPRING
0732040986 COMPR.SPRING
0732040984 COMPR.SPRING
0732040983 COMPR.SPRING
1295307522 WASHER
0730104083 WASHER
0732040765 COMPR.SPRING
Availability:
Quantity:
  • 16S1650

  • ZF

  • 16S1650

Product parameters

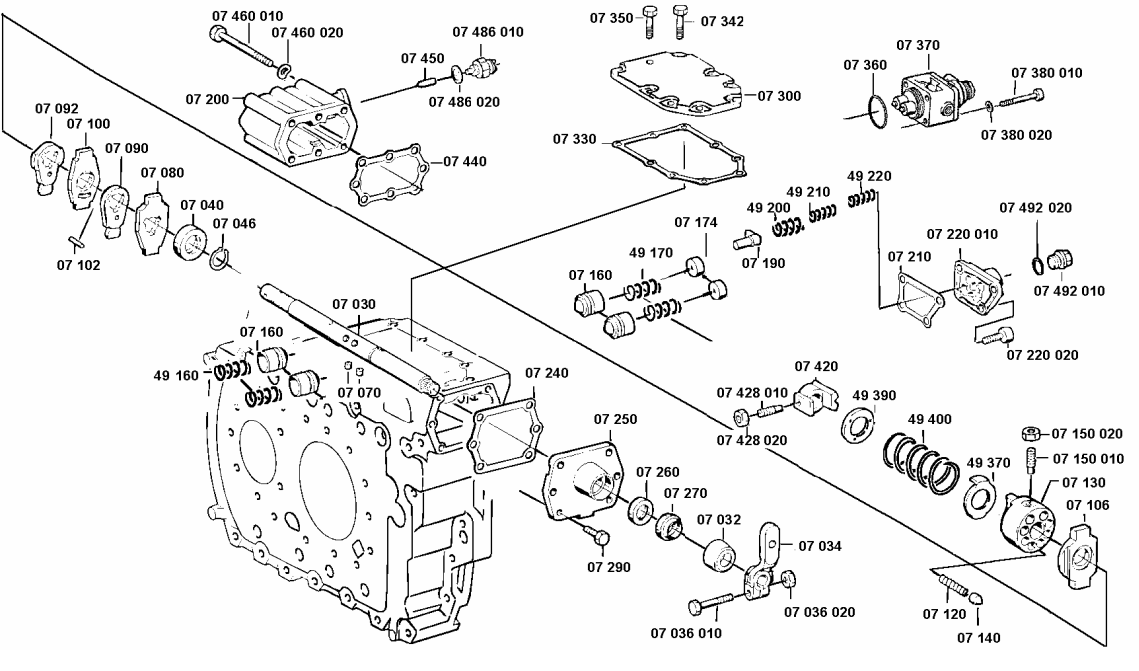

gear shift system

FIG. QTY. PART-NUMBER DESCRIPTION OPT. MOD.NO. TECHNICAL   INFORMATION
030 1 0091307304 G.SHIFT SHAFT


032 1 1238307411 PROTECTING CAP


034 1 1307307006 GEAR SHIFT LEVER
60101
036 1
HEXAGON SCREW

M10X40*DIN933/ZFB988*10.9A3C
1010 1 0636015469 HEXAGON SCREW

M10X40*DIN933/ZFB988*10.9 A3C
1030 1 0637006120 HEXAGON NUT

M10 DIN 934 A3C
040 1
WASHER



1 1295307379 WASHER X


1 1295307250 WASHER X

046 1 0630532205 V RING


070 6 0735470007 ROLLER


080 1
LOCK


/010 1 1295307585 LOCK X

/020 1 1295307156 LOCK X

090 1 1295307178 DRIVER


092 1 1295307175 DRIVER


100 1 1295307176 SKID PIECE


102 1 0091380071 CYLINDRICAL PIN


106 1 0091307197 SKID PIECE


120 8 0732040736 COMPR.SPRING


130 1 1295307409 STOP PART


140 8 1295307243 STOP BOLT


150 1
THREADED BOLT

M12X1,5
/010 1 0501398399 THREADED BOLT

M12X1,545,0N.M
/020 1 0637002039 HEXAGON NUT

BM12X1,570,0N.M
160 4 0750115335 BALLROLLER

WTB 20X8,1
174 2 0730062448 BUSH

A=11,00
190 1 0091307160 BOLT


200 1 0091307153 COVER


210 1 1313307002 GASKET


220 1
COVER


/010 1 0091307149 COVER



4
HEXAGON SCREW


/020 4 0636015084 HEXAGON SCREW


240 1 1313307020 GASKET


250 1 1295307434 COVER


260 1 0634300302 SHAFT SEAL

25X35X7B
270 1 0634307367 SHAFT SEAL

AS25X35X10
290 6
HEXAGON SCREW

M8X22 ISO 40178.8

6 0636015084 HEXAGON SCREW

M8X22 ISO 40178.823,0N.M
300 1 0091307500 COVER


330 1 1313307003 GASKET


342 8
HEXAGON SCREW

M8X18 ISO 40178.8
/010 8 0636015073 HEXAGON SCREW

M8X18 ISO 40178.823,0N.M
350 1
HEXAGON SCREW

M8X22 ISO 40178.8
1010 1 0636015084 HEXAGON SCREW

M8X22 ISO 40178.823,0N.M
360 1 0634314021 RING

36,2X3 ZFN744 ACM-70-10
370 1 6038202003 CUT-OFF VALVE


380 4
CYLINDRICAL SCREW

M8X60 ISO 47628.8 A3C
1010 4 0636101664 CYLINDRICAL SCREW

M8X60 ISO 47628.8 A3C
1020 4 0630302090 WASHER

B8 DIN 137
420 1 0091307219 STOP PART


428

THREADED

M12X1,5
1010 1 0501398398 THREADED

M12X1,5    45,0N.M
/020 1 0637002039 HEXAGON NUT

BM12X1,5 DIN 439/ZFB999
440 1 1313307004 GASKET


450 1 0731208056 PIN


460

HEXAGON SCREW

M8X105  ISO 40148.8
/010 6 0636010121 HEXAGON SCREW

M8X105  ISO  40148.823,0N.M
1020 6 0630302090 SPRING WASHER

B8 DIN 137 FST FE/ZN8C
486

SWITCH


1010 1 0501210059 SWITCH


1020 1 0634801062 SEALING RING

A18X24 DIN 7603
492

SCREW PLUG

M18X1,5
/010 1 0636302021 SCREW PLUG

M18X1,5 DIN 908 ST A3C
/020 1 0634801062 SEALING RING

A18X24 DIN 7603 AL
160 2 0732040986 COMPR.SPRING

ZFN 403
170 1 0732040986 COMPR.SPRING

ZFN 403
200 2 0732040986 COMPR.SPRING


210 1 0732040984 COMPR.SPRING


220 1 0732040983 COMPR.SPRING


370 1 1295307522 WASHER


390 1 0730104083 WASHER

A=2,00
400 1 0732040765 COMPR.SPRING
