ZF 16S1650 Gearbox Parts GV Shift System 1313312002 0091312013

0091312013 GEAR SHIFT RAIL
1313312002 GEAR SHIFT FORK
1315312047 SCREW
1297306120 SLIDING PAD
1313207003 DETENT PLUNGER
0634801050 SEALING RING
1296312042 CYLINDER
1296312016 CYLINDER
0750112034 FLANGE PACKING
0091312016 PISTON
0750112089 DOUB.U-PACKING
0637011574 LOCKING NUT
0634313671 O-RING
0501396632 WAY VAL
0634314017 O-RING
0634314018 O-RING
0636010096 HEX CAP SCREW
0630302090 SPRING WASHER
0501210059 SWITCH
0634801062 SEALING RING
1295212006 PIN
Learn more about gearboxes. Can add or call +8618807289527 (Kari).
Availability:
Quantity:
  • 16S1650

  • ZF

  • 16S1650

Product parameters

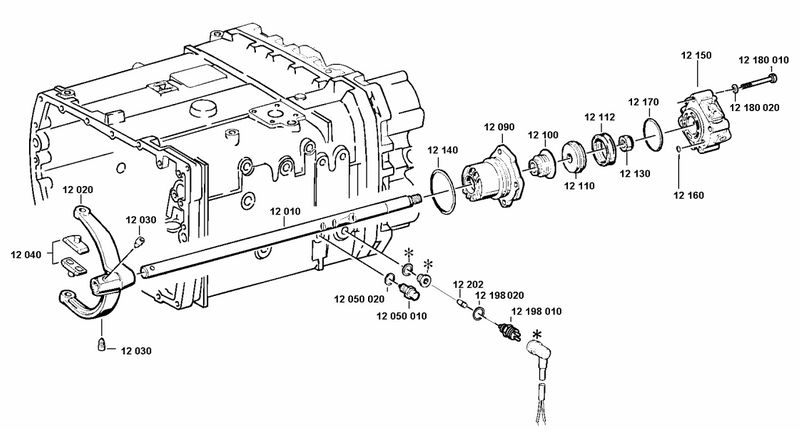

GV shift system

FIG. QTY. PART-NUMBER DESCRIPTION OPT. MOD.NO. TECHNICAL  INFORMATION
010 1 0091312013 GEAR SHIFT RAIL


020 1 1313312002 GEAR SHIFT FORK


030 2 1315312047 SCREW

M12X1 DIN EM 10083-170   N.M*
040 2 1297306120 SLIDING PAD


050 1
DETENT PLUNGER

235N*65N.M
1010 1 1313207003 DETENT PLUNGER


1020 1 0634801050 SEALING RING

A 16 X22    DIN 7603 CU
090 1
CYLINDER

WTB*GV

1 1296312042 CYLINDER X


1 1296312016 CYLINDER X

100 1 0750112034 FLANGE PACKING

WTB 25X38X14,2
110 1
PISTON



1 0091312016 PISTON
59109
112 1 0750112089 DOUB.U-PACKING

WTB 53X63X16,2
130 1 0637011574 LOCKING NUT

V M16X1,5 DIN 980 STOVER*10 FE/ZN8C
140 1 0634313671 O-RING

80X3   ZFN  744  ACM-80-10
150 1 0501396632 WAY VAL


160 1 0634314017 O-RING

5,28X1,78 ZFN  744 ACM-70-10
170 1 0634314018 O-RING

59  X2   ZFN  744 ACM-70-10
180 4
HEXAGON SCREW

WTB*M8X60DIN931/8.8FE/ZN8C

4
HEX CAP SCREW

M8X60*DIN931*8.8  *23,0N.M*
1010 4 0636010096 HEX CAP SCREW

M8X60*DIN931*8.8
/020 4 0630302090 SPRING WASHER

B  8     DIN 137  FST FE/ZN8C







198 1
SWITCH


/010 1 0501210059 SWITCH

OEFF 45,0N.M
/020 1 0634801062 SEALING RING

A 18 X24     DIN 7603  AL
202 1 1295212006 PIN
