ZF 16S1650 Gearbox Parts Planetary Drive Kit 0091232022

0091232022 PLANET CARRIER
1297232023 GEAR SET
0730103846 INTERM.WASHER
0501306212 SHIM
0750119109 ROLLER
1297332109 PLANET SHAFT
0631329050 SLOT.PIN
0631329017 SLOT.PIN
0091332022 DIFFERENTIAL GEAR
1297332122 INTERMEDIATE RING
1297332002 INTERMEDIATE RING
0750116165 BALL BEARING
0730513755 SNAP RING
0730513756 SNAP RING
0730513757 SNAP RING
0730513758 SNAP RING
0730513759 SNAP RING
0730513760 SNAP RING
297332080 RING GEAR
0730505055 LOCKING WIRE
0091338045 PULSE WASHER
0091338042 PULSE WASHER
0501210859 PULSE SENSOR
1297338041 OUTPUT FLANGE
0636020211 HEXAGON SCREW
0634314015 O-RING
1295332051 FIXING WASHER
0636011540 HEX CAP SCREW
Learn more about gearboxes. Can add or call +8618807289527 (Kari).
Availability:
Quantity:
  • 16S1650

  • ZF

  • 16S1650

Product parameters

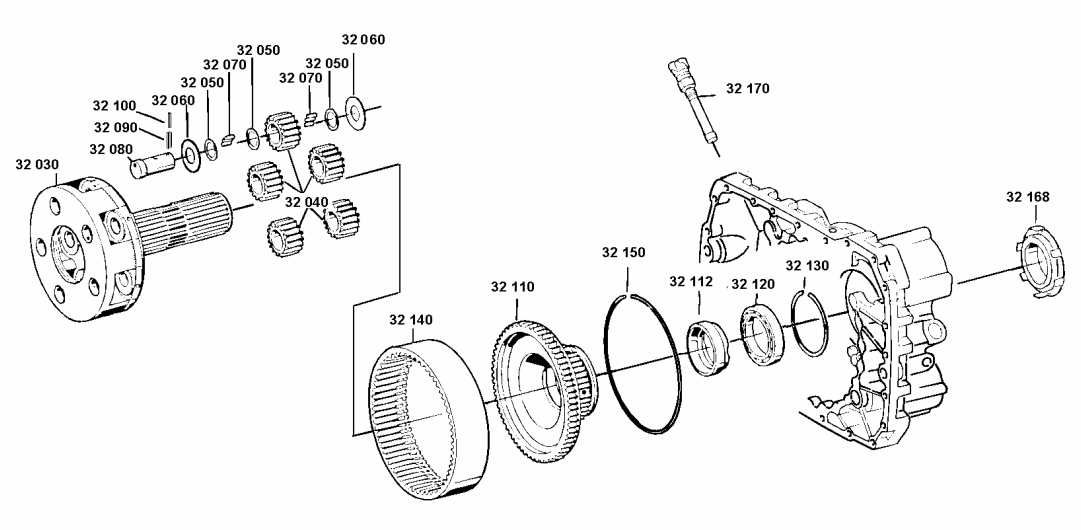

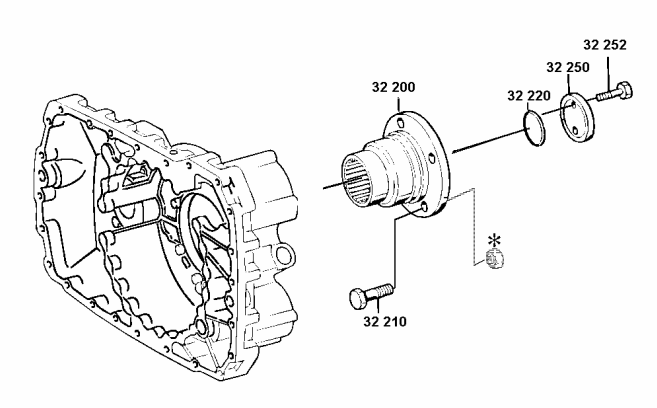

planetary driveoutput flange

FIG. QTY PART-NUMBER DESCRIPTION OPT. MOD.NO. TECHNICAL INFORMATION
030 1 0091232022 PLANET CARRIER

CPL
040 1 1297232023 GEAR SET

CPL
050 15 0730103846 INTERM.WASHER

A=1,00
060 10 0501306212 SHIM


070 120 0750119109 ROLLER

WTB 10,0X16,8
080 5 1297332109 PLANET SHAFT


090 5 0631329050 SLOT.PIN

5 X24       ISO 8752 ST
100 5 0631329017 SLOT.PIN

3 X24       ISO 8752   ST
110 1 0091332022 DIFFERENTIAL GEAR


112 1
INTERMEDIATE RING

WTB

1 1297332122 INTERMEDIATE RING X


1 1297332002 INTERMEDIATE RING X

120 1 0750116165 BALL BEARING

WTB 80,0X110,0X16,0
130 1
SNAP RING

2,50(ABSTUFUNG:0,10MM)

1 0730513755 SNAP RING

A=2,50*

1 0730513756 SNAP RING

A=2,40*

1 0730513757 SNAP RING

A=2,30*

1 0730513758 SNAP RING

A=2,20*

1 0730513759 SNAP RING

A=2,10*

1 0730513760 SNAP RING

A=2,00*
140 1 297332080 RING GEAR


150 1 0730505055 LOCKING WIRE

A=3,20
168 1
PULSE WASHER


/010 1 0091338045 PULSE WASHER X

/020 1 0091338042 PULSE WASHER X

170 1 0501210859 PULSE SENSOR

N°VDO 2159.20.10.00
200 1 1297338041 OUTPUT FLANGE


210 4
HEXAGON SCREW

M14X1,5X50 DIN 960/ZFB 98810.9 A3C

4 0636020211 HEXAGON SCREW

M14X1,5X50 DIN 960/ZFB 98810.9 A3C
220 1 0634314015 O-RING

68  X4    ZFN 744 ACM-70-10
250 1 1295332051 FIXING WASHER


252 2 0636011540 HEX CAP SCREW

M12x60*DIN 931*10.9 A3C
