ZF 16S1650 Gearbox Parts 0097031004 GP Housing 0097031003 GP Cover 0091301162

0091301162 HOUSING
0736303005 SCREW PLUG
1313301037 GASKET
0636010168 HEX CAP SCREW
0636010168 HEXCAP SCREW
0636010168 HEXCAP SCREW
0091301115 SUPPORT PLATE
0636010190 HEXCAPSCREW
0636010494 HEXCAP SCREW
0636010172 HEX CAP SCREW
0731201459 CYLINDRICAL PIN
0750116002 BALL BEARING
0730003515 SHIM
4005302034 SHIM
0730100115 SHIM
0730100846 SHIM
0730100116 SHIM
296301006 COVER
0750111341 SHAFT SEAL
1313301036 GASKET
0636302066 SCREW PLUG
0634801324 SEALING RING
1296301008 SPRAY TUBE
0636302053 SCREW PLUG
0634801013 SEALING RING
1238308165 COVER
1238308201 GASKET
0636016005 HEX CAP SCREW
0630302021 SPRING WASHER
Learn more about ZF gearboxes. Can add or call +8618807289527 / yongliwei@yongliwei.com.
Availability:
Quantity:
  • 0091301162

  • ZF

  • 16S1650

Product parameters

GP housingcover Gp

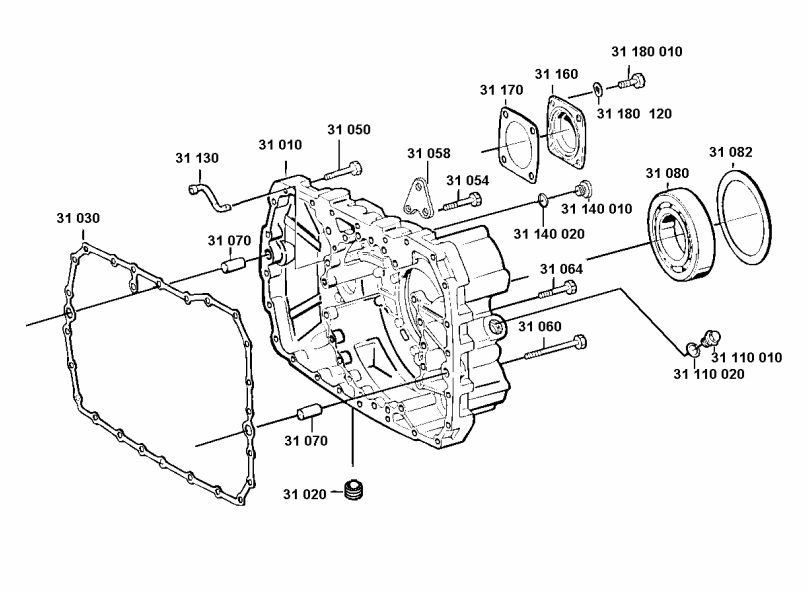

FIG. QTY. PART-NUMBER DESCRIPTION OPT. MOD.NO. TECHNICAL  INFORMATION
010 1 0091301162 HOUSING


020 1
SCREW PLUG

M24X1,5*50N.M*

1 0736303005 SCREW PLUG

M24X1,5
030 1 1313301037 GASKET


050 17
HEXCAP SCREW

M10X50*DIN931*8.8*

17 0636010168 HEX CAP SCREW

M10X50*DIN931*8.8*
052 9
HEXCAP SCREW

M10X50*DIN 931*8.8*

9 0636010168 HEXCAP SCREW

M10X50*DIN931*8.8*
054 2
HEXCAP SCREW

M10X50*DIN931*8.8*

2 0636010168 HEXCAP SCREW

M10X50*DIN931*8.8*
058 1 0091301115 SUPPORT PLATE


060 2
HEXCAP SCREW

M10X90*DIN931*8.8*

2 0636010190 HEXCAPSCREW

M 10X90*D[N 931*8 g
064 1 0636010494 HEXCAP SCREW

M 10X50 SK*DIN 931*8.8
068 2 0636010172 HEX CAP SCREW

M10X55*DIN931*8.8*
070 2 0731201459 CYLINDRICAL PIN


080 1 0750116002 BALL BEARING

WTB 90,0X160,0X30,0
082 1
SHIM

0,60(ABSTUFUNG:0,10MM)

1 0730003515 SHIM X
A=0,60

1 4005302034 SHIM X
A=0,50

1 0730100115 SHIM X
A=0,30

1 0730100846 SHIM X
A=0,40

1 0730100116 SHIM X
A=0,20

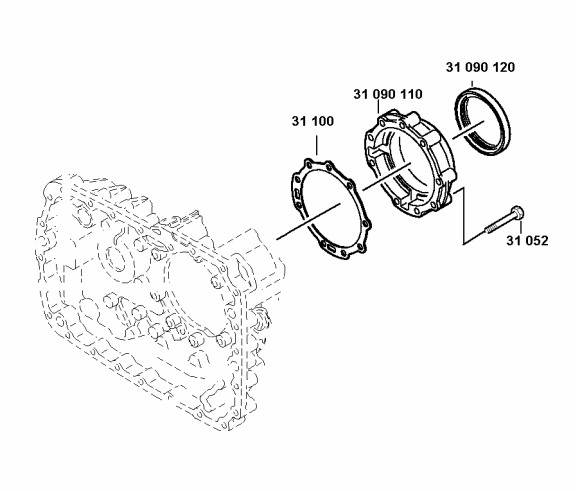

090 1
COVER


/110 1 296301006 COVER


/120 1 0750111341 SHAFT SEAL

WTB  105X130X12        2EE
100 1 1313301036 GASKET


110 1
SCREW PLUG


/010 1 0636302066 SCREW PLUG

M30X1,5 DIN 908        100,0N.M
1020 1 0634801324 SEALING RING

A30X36 DIN 7603 ST FE/ZN8C
130 1 1296301008 SPRAY TUBE


140

SCREW PLUG +RING

M10X1
/010 1 0636302053 SCREW PLUG

M10X1 DIN 908 ST
/020 1 0634801013 SEALING RING

A 10X14   DIN 7603 AL
160 1 1238308165 COVER

DIN EM 10130    DC01-A
170 1 1238308201 GASKET


180 4
HEX CAP SCREW

M12X20*DIN 933*8.8
/010 4 0636016005 HEX CAP SCREW

M12X20*DIN 933*8.860,0N.M
/020 4 0630302021 SPRING WASHER

B12*DIN 137*FST*
