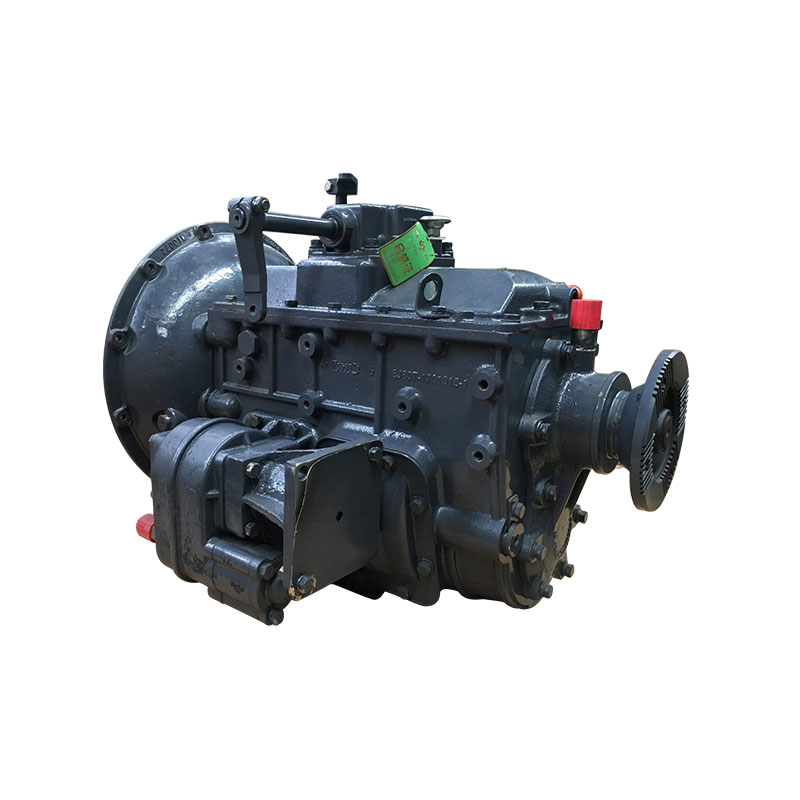

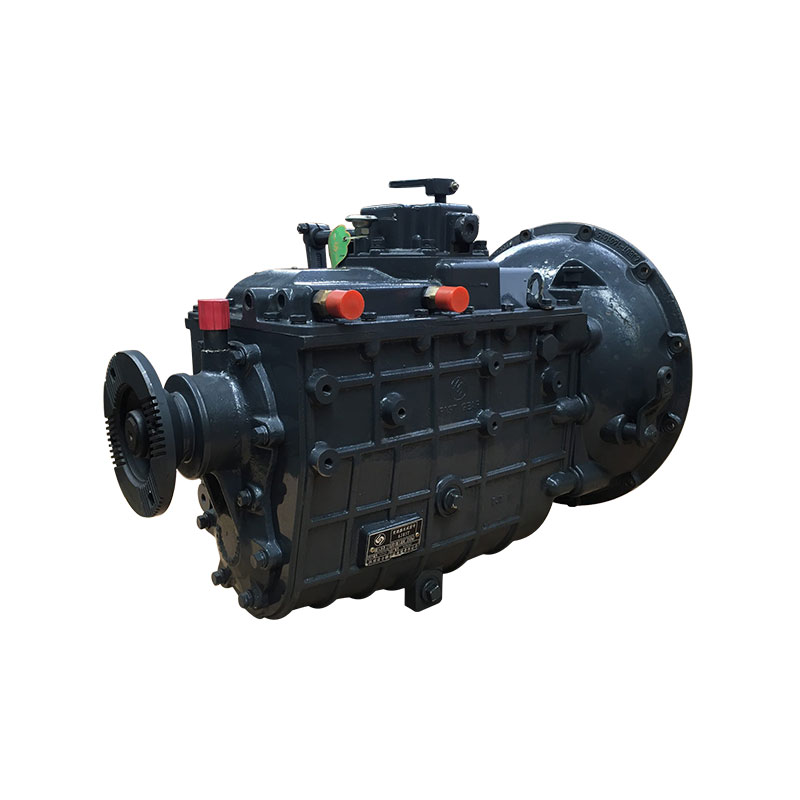

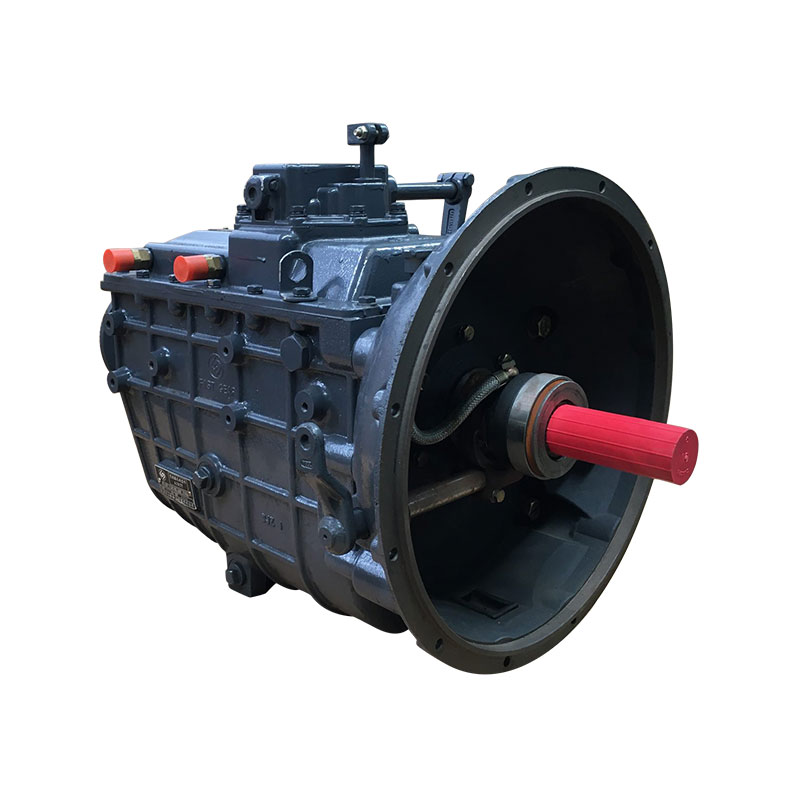

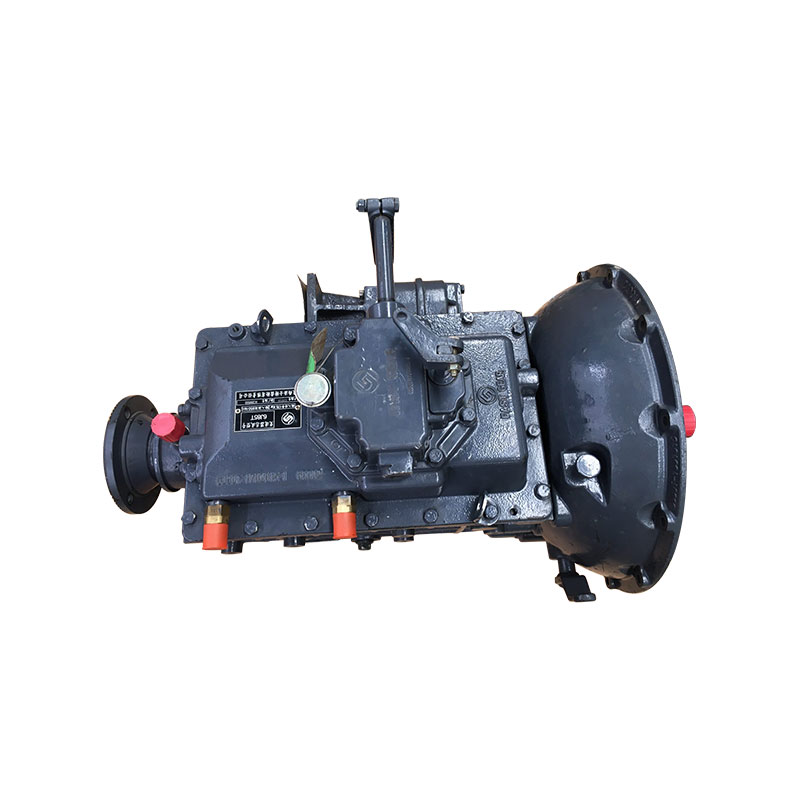

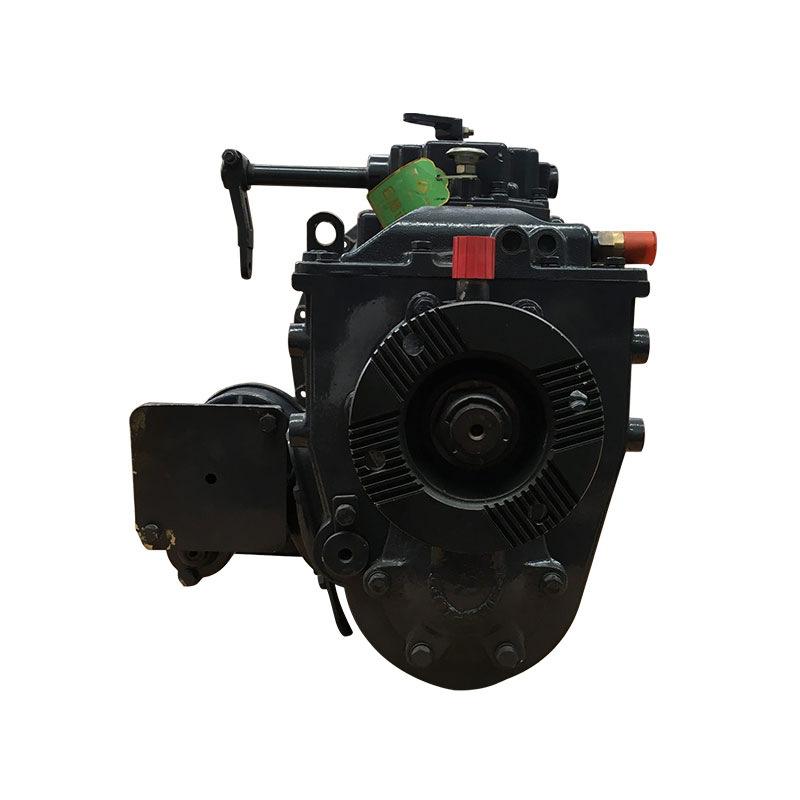

6J85T
Fast
6J85T

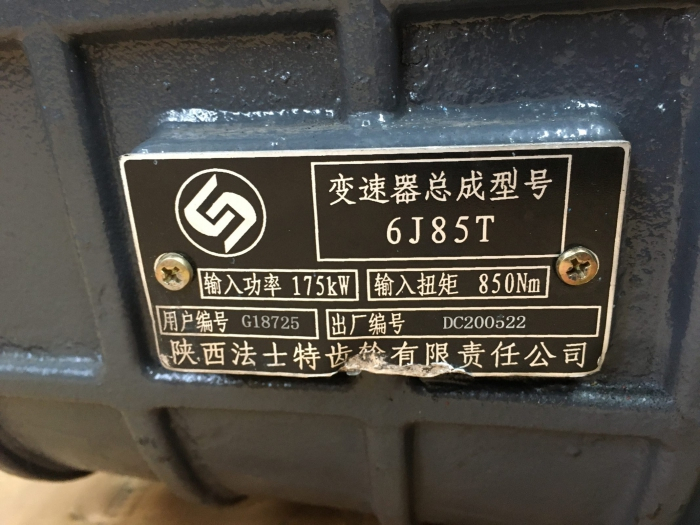

| Transmission model | 6J85T |
| Forward gear | 6 speed |
| Shift mode | Manual |
| Maximum input torque | 850Nm |
| Input Power | 175 KW |
| Transmission weight | 210kg |
| Head gear ratio | 8.04 |
| 2 gear ratio | 4.52 |
| 3 gear ratio | 2.64 |
| 4 gear ratio | 1.66 |
| 5 gear ratio | 1 |
| 6 gear ratio | 0.83 |
| Reverse gear 1 transmission ratio | 8.05 |
| Transmission oil capacity | 8L |
| Manipulate advantage | Single and double lever, left and right control |
| Center distance | 148mm |
1. Using self-made high performance fast shift synchronizer, flexible and portable operation.
2. The side force taking window can be matched with the force taking device.
3. Designed with light weight and high strength,adopting single box and single axle structure.
4. Simple structure,Full helical gear and full grinding gear design, low noise and high reliability.
5. Has become the standard speed variator of Yutong high end business car and Futian high Rui light car.
| 6 Speed Single Countershaft Transmission | |
| Transmission Model: | 6 Rear |
| Input Torque : | 800-950 |
| Input Power(kw): | 147-195 |
| Rated Input Rotation: | 2600 |
| Length: | 751-920 |
| Oil capacity: | 11 |
| Weight(kg): | 235-245 |
| Transmission Model | Input Torque | Input Power | Rated Input Rotation | Length | Oil Capacity | Weight |
| F6J80T/85T/95T | 800-950N•m | 147-195kw | 2600rpm | 751mm | 11L | 235kg |
| F6J80TA/85TA/95TA | 800-950N•m | 147-195kw | 2600rpm | 751mm | 11L | 235kg |
| F6J80TB/85TB/95TB | 800-950N•m | 147-195kw | 2600rpm | 751mm | 11L | 235kg |
| F6J80TC/85TC/95TC | 800-950N•m | 147-195kw | 2600rpm | 751mm | 11L | 235kg |
| 6J90T | 900N•m | 191kw | 2600rpm | 920mm | 11L | 245kg |
| 6J90TA | 850N•m | 176kw | 2600rpm | 920mm | 11L | 245kg |
| 6J90TB | 900N•m | 191kw | 2600rpm | 920mm | 11L | 245kg |
| 6J90TC | 900N•m | 191kw | 2600rpm | 920mm | 11L | 245kg |
| Transmission Speed Ratios | |||||||
| Model | 1F | 2F | 3F | 4F | 5F | 6F | 1R |
| F6J80T/85T/95T | 7.03 | 4.09 | 2.48 | 1.56 | 1 | 0.73 | 6.34 |
| F6J80TA/85TA/95TA | 9.03 | 5.25 | 3.19 | 2 | 1.31 | 1 | 8.15 |
| F6J80TB/85TB/95TB | 7.03 | 4.09 | 2.48 | 1.56 | 1 | 0.81 | 6.34 |
| F6J80TC/85TC/95TC | 7.03 | 4.09 | 2.48 | 1.75 | 1.3 | 1 | 6.34 |
| 6J90T | 7.03 | 4.09 | 2.48 | 1.56 | 1 | 0.73 | 6.34 |
| 6J90TA | 9.03 | 5.25 | 3.19 | 2 | 1.31 | 1 | 8.15 |
| 6J90TB | 7.03 | 4.09 | 2.48 | 1.56 | 1 | 0.81 | 6.34 |
| 6J90TC | 7.03 | 4.09 | 2.48 | 1.75 | 1.3 | 1 | 6.34 |
Email: truckparts@yongliwei.com
WhatsApp: +86-13593740499 / +86-18807289527
Wechat: +86-13593740499
Alibaba URL: syylw.en.alibaba.com
Address: Building 1, Mingxiang Chuanggu, Longmen Road 2, Bailang Economic Development Zone, Shiyan City, Hubei Province, China
