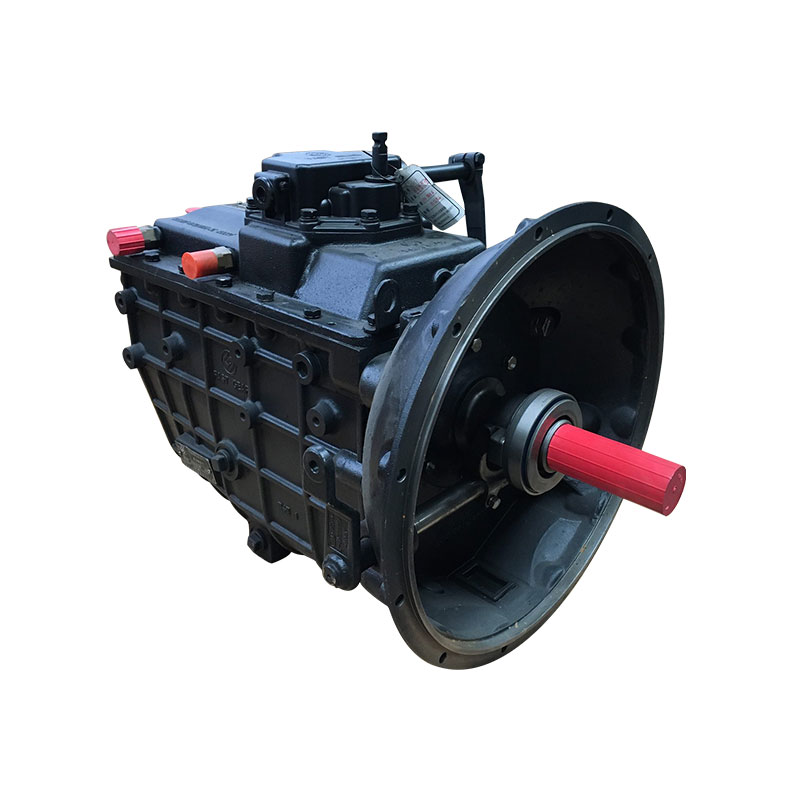

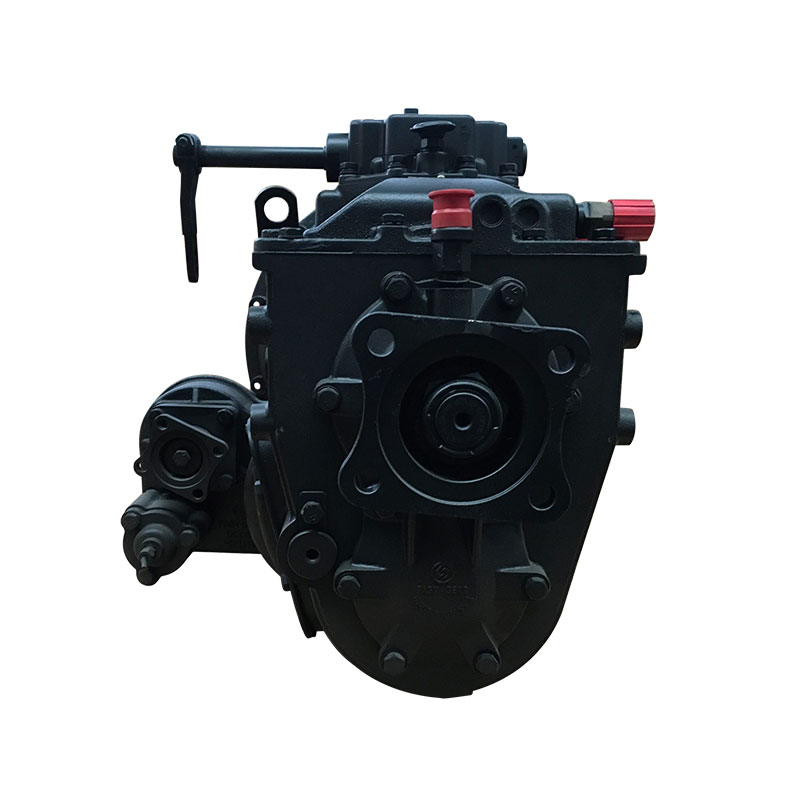

6J80T Fast Gearbox 800 Nm Input Torque Single-lever And Double-lever Operation Transmission

Availability:

Quantity:



Inquire Add to Basket

Model:
6J80T
Brand:
Fast
Code:
6J80T

Product Description

Product parameters

Transmission Model	6J80T
Input Torque	800 Nm
Input Power	147 KW
Rated Input Rotation	2600 RPM
Length	722 mm
Center distance	148mm
Oil capacity	8L
Weight	210kg
Head gear ratio	8.05
2 gear ratio	4.52
3 gear ratio	2.66
4 gear ratio	1.66
5 gear ratio	1
6 gear ratio	0.83
Reverse gear 1 transmission ratio	8.05
Manipulative form	Single-lever and double-lever operation possible
Applicable vehicle models	Applicable to various types of trucks, passenger cars, special vehicles, etc.

1. Single counter shaft, full synchronizer structure;

2. The 1/2 gear and the 3/4 gear adopt double cone synchronizer, which has a large synchronization capacity and is flexible and light in gear shifting;

3. Helical gear transmission, large bearing capacity, low noise and long service life;

4. Small center distance, small size and light weight;

5. It can be equipped with side power take-off to meet the needs of vehicle modification.

1. Using self-made high performance fast shift synchronizer, flexible and portable operation.

2. The side force taking window can be matched with the force taking device.

3. Designed with light weight and high strength,adopting single box and single axle structure.

4. Simple structure,Full helical gear and full grinding gear design, low noise and high reliability.

5. Has become the standard speed variator of Yutong high end business car and Futian high Rui light car.

6 Speed Single Countershaft Transmission
Transmission Model:	6 Rear
Input Torque :	800-950
Input Power(kw):	147-195
Rated Input Rotation:	2600
Length:	751-920
Oil capacity:	11
Weight(kg):	235-245

Transmission Model	Input Torque	Input Power	Rated Input Rotation	Length	Oil Capacity	Weight
F6J80T/85T/95T	800-950N•m	147-195kw	2600rpm	751mm	11L	235kg
F6J80TA/85TA/95TA	800-950N•m	147-195kw	2600rpm	751mm	11L	235kg
F6J80TB/85TB/95TB	800-950N•m	147-195kw	2600rpm	751mm	11L	235kg
F6J80TC/85TC/95TC	800-950N•m	147-195kw	2600rpm	751mm	11L	235kg
6J90T	900N•m	191kw	2600rpm	920mm	11L	245kg
6J90TA	850N•m	176kw	2600rpm	920mm	11L	245kg
6J90TB	900N•m	191kw	2600rpm	920mm	11L	245kg
6J90TC	900N•m	191kw	2600rpm	920mm	11L	245kg

Transmission Speed Ratios
Model	1F	2F	3F	4F	5F	6F	1R
F6J80T/85T/95T	7.03	4.09	2.48	1.56	1	0.73	6.34
F6J80TA/85TA/95TA	9.03	5.25	3.19	2	1.31	1	8.15
F6J80TB/85TB/95TB	7.03	4.09	2.48	1.56	1	0.81	6.34
F6J80TC/85TC/95TC	7.03	4.09	2.48	1.75	1.3	1	6.34
6J90T	7.03	4.09	2.48	1.56	1	0.73	6.34
6J90TA	9.03	5.25	3.19	2	1.31	1	8.15
6J90TB	7.03	4.09	2.48	1.56	1	0.81	6.34
6J90TC	7.03	4.09	2.48	1.75	1.3	1	6.34
