| Quantity: | |
|---|---|
6DS180A
Fast

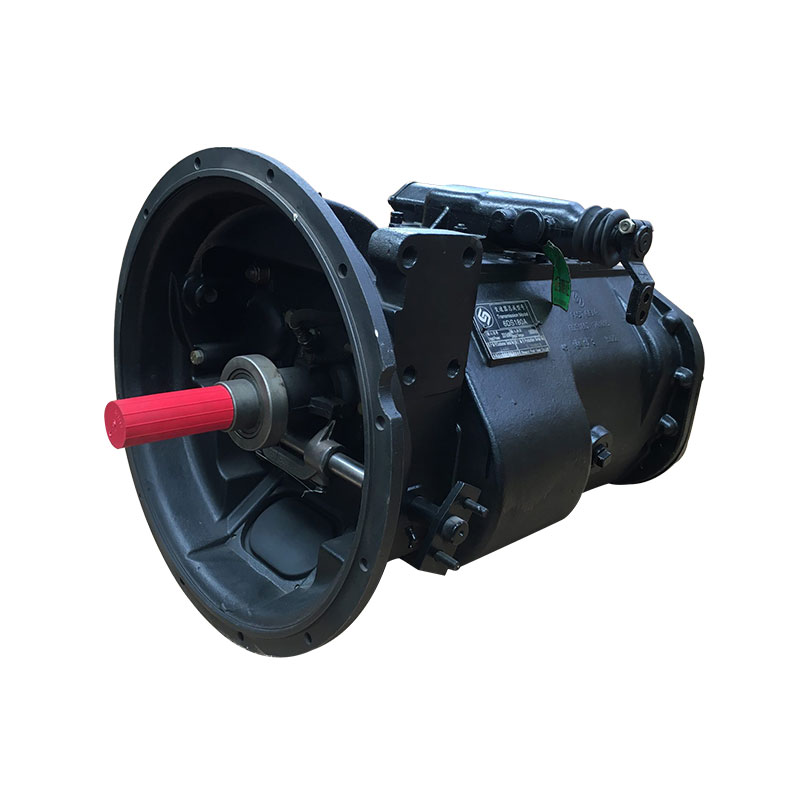

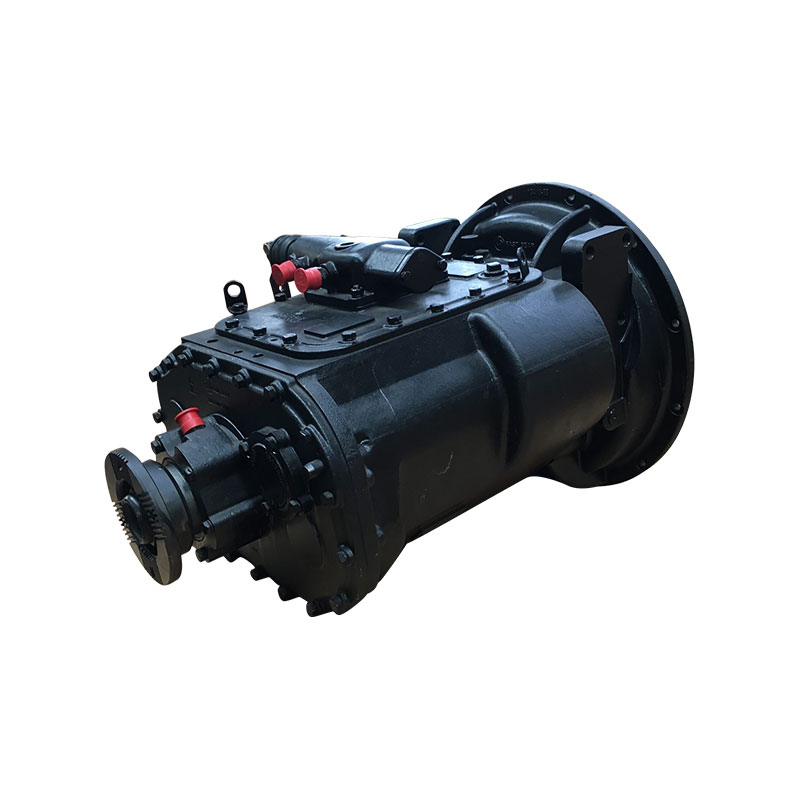

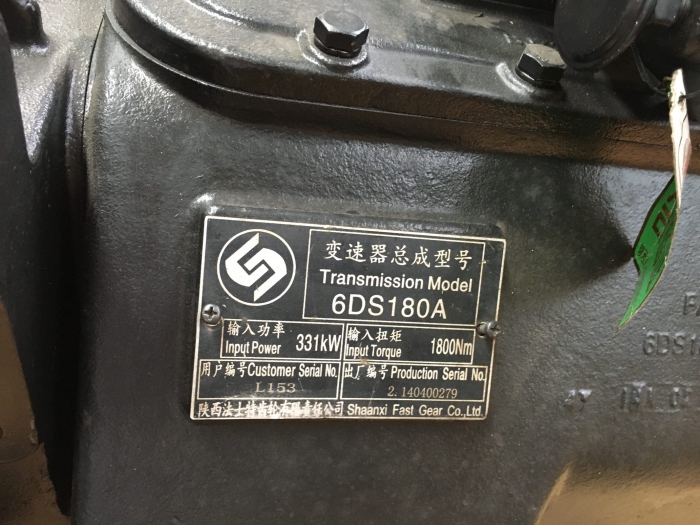

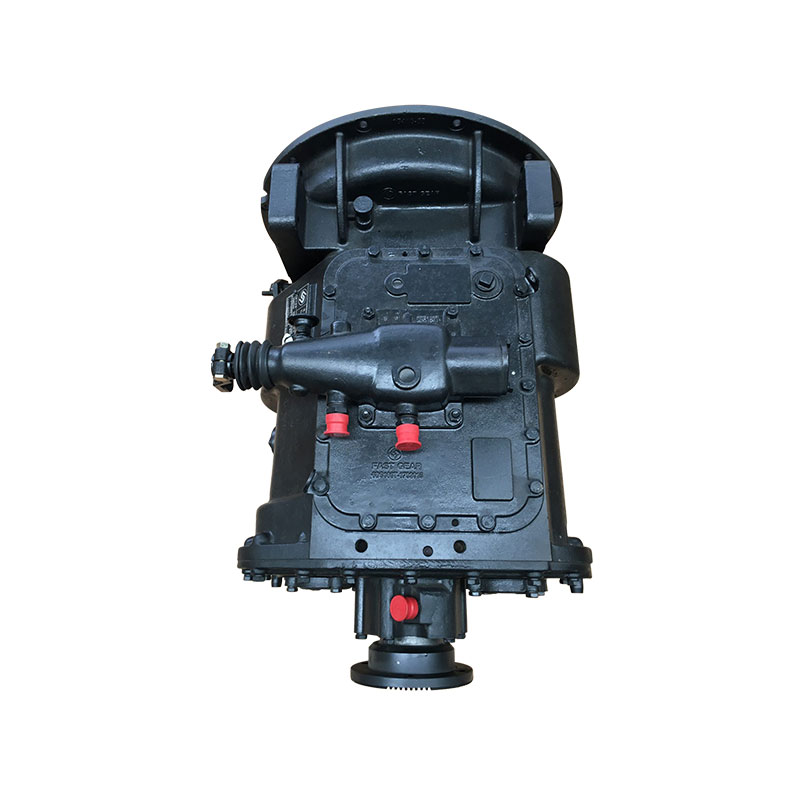

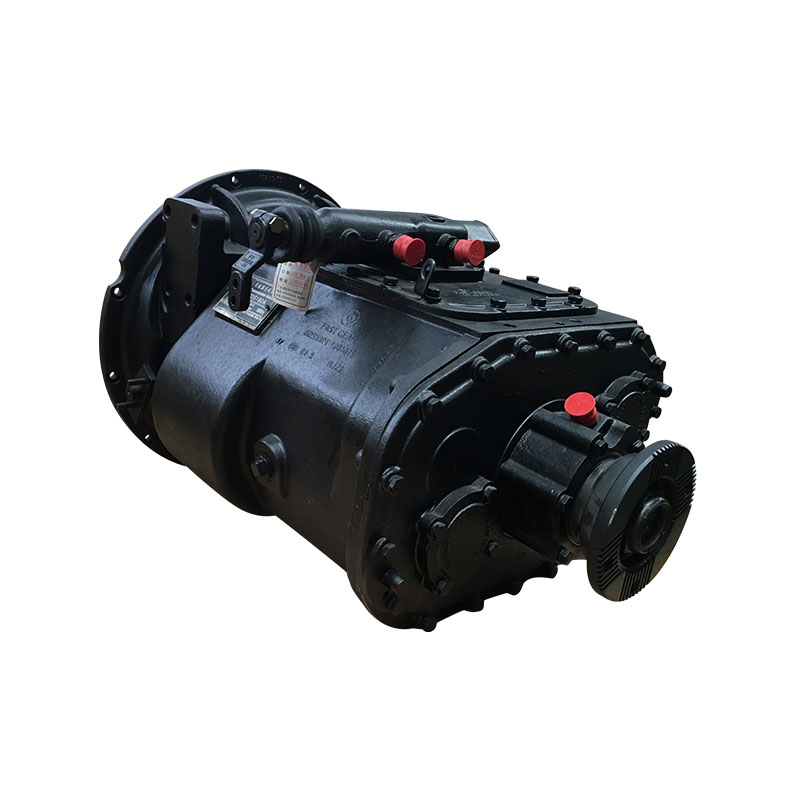

6DS180A
| Transmission model | 6DS180A |
| Forward gear | 6 speed |
| Shift mode | Manual |
| Maximum input torque | 1800 Nm |
| Input Power | 331 KW |
| Rated Input Rotation | 2600 rpm |
| Installation length | 783 mm |
| Head gear ratio | 8.43 |
| 2 gear ratio | 4.91 |
| 3 gear ratio | 2.97 |
| 4 gear ratio | 1.87 |
| 5 gear ratio | 1.33 |
| 6 gear ratio | 1 |
| Reverse gear 1 transmission ratio | 7.5 |
| Transmission oil capacity | 13L |
| Transmission weight | 240kg |
| 6&7 Speed Twin-countershaft without synchronizer | |
| Transmission Model: | 6&7 Rear |
| Input Torque : | 900-2000 |
| Input Power(kw): | 176-355 |
| Rated Input Rotation: | 2600 |
| Length: | 784-924 |
| Oil capacity: | 13-23 |
| Weight(kg): | 260-388 |
1. Using self-made high performance fast shift synchronizer, flexible and portable operation.
2. The side force taking window can be matched with the force taking device.
3. Designed with light weight and high strength,adopting single box and single axle structure.
4. Simple structure,Full helical gear and full grinding gear design, low noise and high reliability.
5. Has become the standard speed variator of Yutong high end business car and Futian high Rui light car.
| Transmission Model | Input Torque | Input Power | Rated Input Rotation | Length | Oil Capacity | Weight |
| 6DS150/180 | 1500-1800N•m | 265-331kw | 2600rpm | 784mm | 13L | 266kg |
| 6DS150A | 1500N•m | 265kw | 2600rpm | 784mm | 13L | 266kg |
| 7DS90/7DS100 | 900/1000N•m | 176/199kw | 2600rpm | 821.3mm | 14L | 260kg |
| 7DS90B/7DS100B | 900/1000N•m | 176/199kw | 2600rpm | 821.3mm | 14L | 260kg |
| 7DS95 | 950N•m | 195kw | 2600rpm | 821.3mm | 14L | 260kg |
| 7DS118/118B/118C | 1180N•m | 220kw | 2600rpm | 821.3mm | 14L | 260kg |
| 7DS135 | 1350N•m | 243kw | 2600rpm | 821.3mm | 14L | 260kg |
| 7DS180/180A | 1800N•m | 331kw | 2600rpm | 924mm | 23L | 388kg |
| 7DS200K | 2000N•m | 355kw | 2600rpm | 924mm | 23L | 388kg |
| Transmission Speed Ratios | ||||||||
| Model | 1F | 2F | 3F | 4F | 5F | 6F | 7F | 1R |
| 6DS150/180 | 7.04 | 4.1 | 2.48 | 1.56 | 1 | 0.74 | 6.26 | |
| 6DS150A | 8.43 | 4.91 | 2.97 | 1.87 | 1.33 | 1 | 7.5 | |
| 7DS90/7DS100 | 9.2 | 5.43 | 3.54 | 2.53 | 1.82 | 1.33 | 1 | 7.72 |
| 7DS90B/7DS100B | 8.17 | 4.82 | 3.14 | 2.09 | 1.44 | 1 | 0.82 | 7.54 |
| 7DS95 | 10.18 | 7.23 | 4.27 | 2.7 | 1.85 | 1.34 | 1 | 9.4 |
| 7DS118 | 10.22 | 5.43 | 3.54 | 2.53 | 1.82 | 1.33 | 1 | 9.04 |
| 7DS118B | 9.08 | 4.82 | 3.14 | 2.09 | 1.44 | 1 | 0.82 | 8.03 |
| 7DS118C | 10.18 | 7.23 | 4.27 | 2.7 | 1.85 | 1.34 | 1 | 9.4 |
| 7DS135 | 9.2 | 5.43 | 3.54 | 2.53 | 1.82 | 1.33 | 1 | 7.72 |
| 7DS180 | 9.14 | 6.7 | 4.85 | 3.6 | 2.65 | 1.61 | 1 | 8.51 |
| 7DS180A | 7.03 | 5.16 | 3.73 | 2.77 | 1.66 | 1 | 0.77 | 6.55 |
| 7DS200K | 9.14 | 5.59 | 4.07 | 2.99 | 2.15 | 1.61 | 1 | 8.51 |
