| Quantity: | |
|---|---|

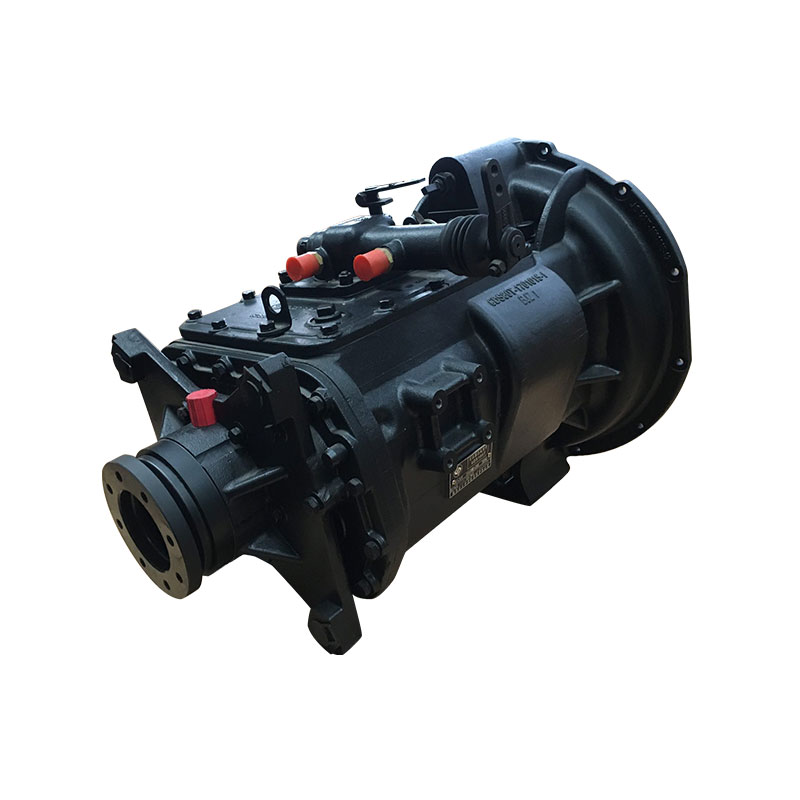

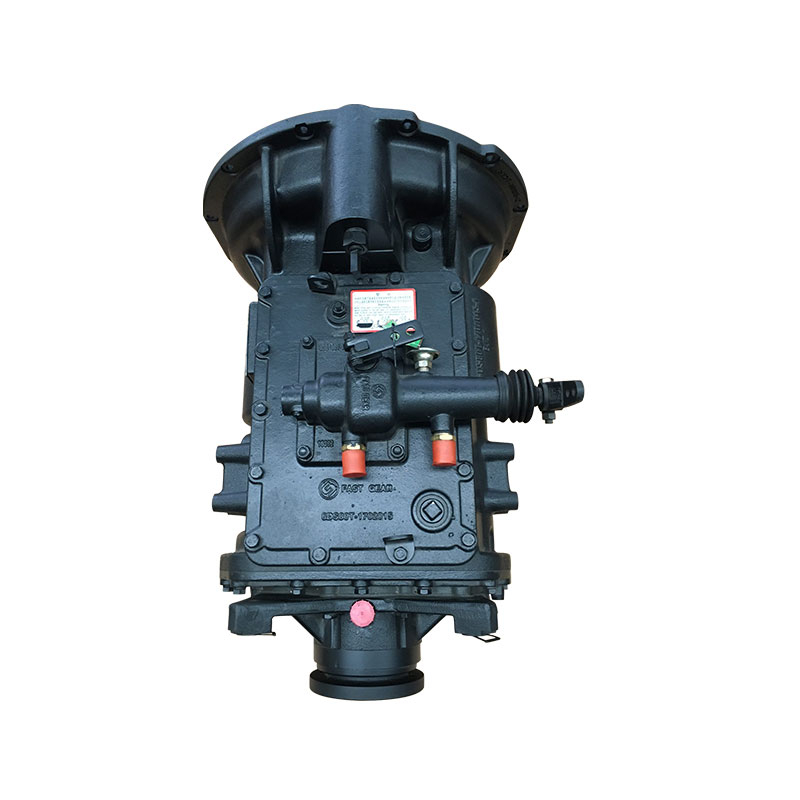

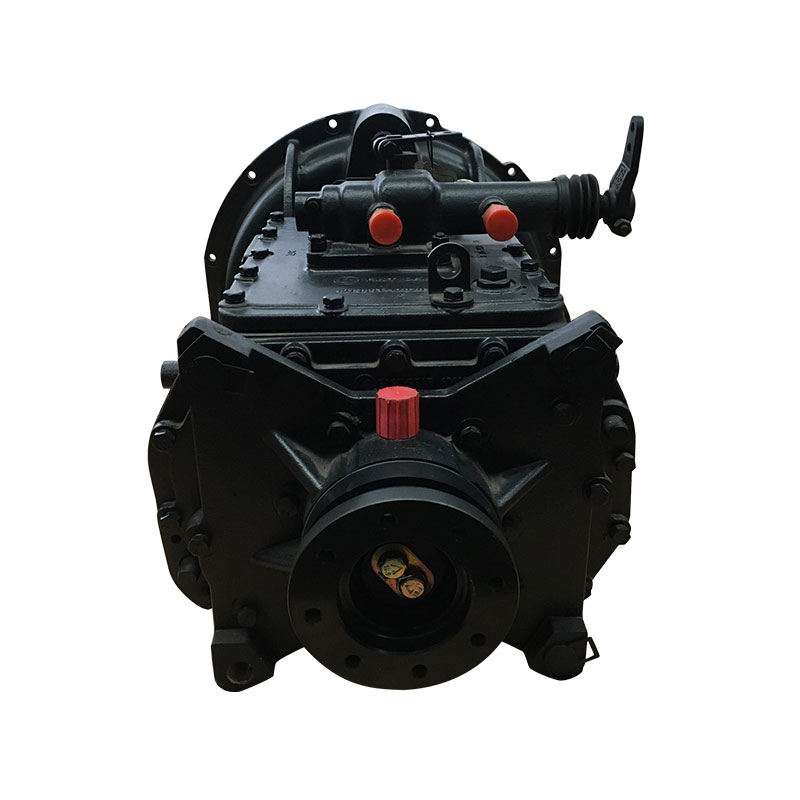

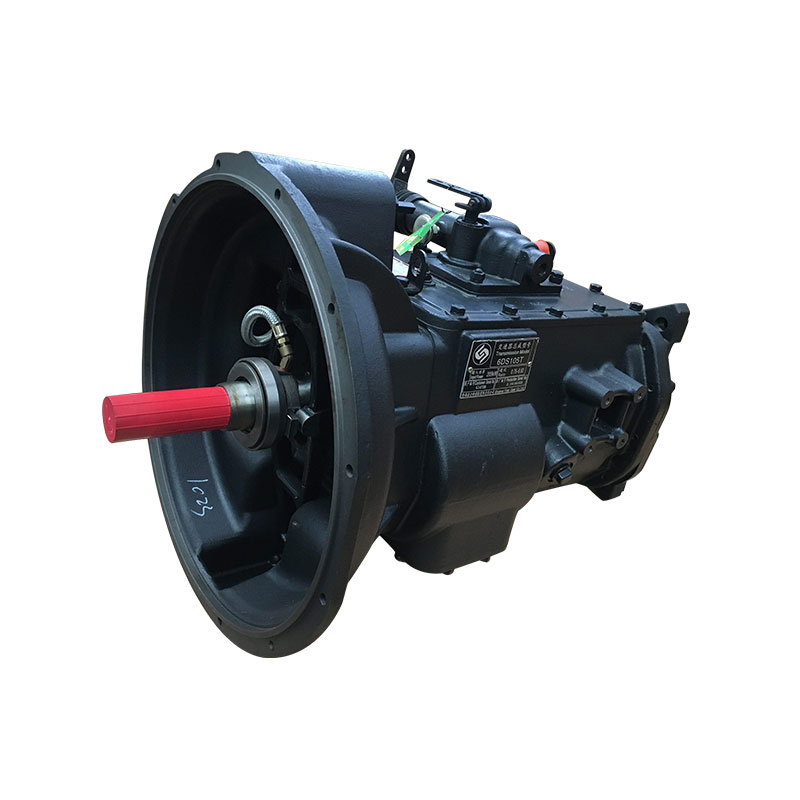

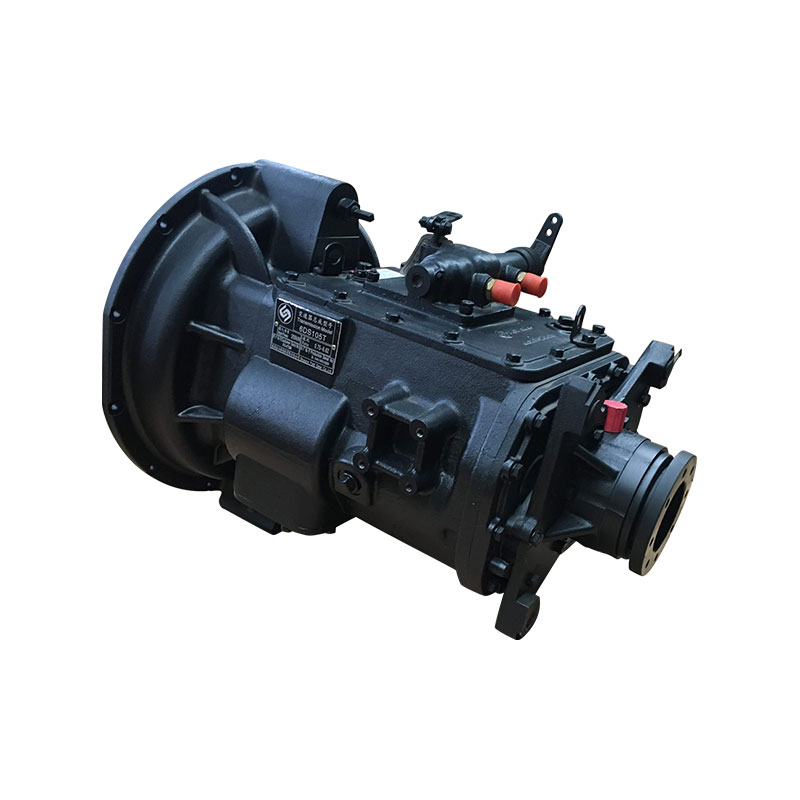

6DS105T
Fast
6DS105T
| 6&7 Speed Twin-countershaft without synchronizer | |
| Transmission Model: | 6&7 Rear |
| Input Torque : | 900-2000 |
| Input Power(kw): | 176-355 |
| Rated Input Rotation: | 2600 |
| Length: | 784-924 |
| Oil capacity: | 13-23 |
| Weight(kg): | 260-388 |
1. Using self-made high performance fast shift synchronizer, flexible and portable operation.
2. The side force taking window can be matched with the force taking device.
3. Designed with light weight and high strength,adopting single box and single axle structure.
4. Simple structure,Full helical gear and full grinding gear design, low noise and high reliability.
5. Has become the standard speed variator of Yutong high end business car and Futian high Rui light car.
| Transmission Model | Input Torque | Input Power | Rated Input Rotation | Length | Oil Capacity | Weight |
| 6DS150/180 | 1500-1800N•m | 265-331kw | 2600rpm | 784mm | 13L | 266kg |
| 6DS150A | 1500N•m | 265kw | 2600rpm | 784mm | 13L | 266kg |
| 7DS90/7DS100 | 900/1000N•m | 176/199kw | 2600rpm | 821.3mm | 14L | 260kg |
| 7DS90B/7DS100B | 900/1000N•m | 176/199kw | 2600rpm | 821.3mm | 14L | 260kg |
| 7DS95 | 950N•m | 195kw | 2600rpm | 821.3mm | 14L | 260kg |
| 7DS118/118B/118C | 1180N•m | 220kw | 2600rpm | 821.3mm | 14L | 260kg |
| 7DS135 | 1350N•m | 243kw | 2600rpm | 821.3mm | 14L | 260kg |
| 7DS180/180A | 1800N•m | 331kw | 2600rpm | 924mm | 23L | 388kg |
| 7DS200K | 2000N•m | 355kw | 2600rpm | 924mm | 23L | 388kg |
| Transmission Speed Ratios | ||||||||
| Model | 1F | 2F | 3F | 4F | 5F | 6F | 7F | 1R |
| 6DS150/180 | 7.04 | 4.1 | 2.48 | 1.56 | 1 | 0.74 | 6.26 | |
| 6DS150A | 8.43 | 4.91 | 2.97 | 1.87 | 1.33 | 1 | 7.5 | |
| 7DS90/7DS100 | 9.2 | 5.43 | 3.54 | 2.53 | 1.82 | 1.33 | 1 | 7.72 |
| 7DS90B/7DS100B | 8.17 | 4.82 | 3.14 | 2.09 | 1.44 | 1 | 0.82 | 7.54 |
| 7DS95 | 10.18 | 7.23 | 4.27 | 2.7 | 1.85 | 1.34 | 1 | 9.4 |
| 7DS118 | 10.22 | 5.43 | 3.54 | 2.53 | 1.82 | 1.33 | 1 | 9.04 |
| 7DS118B | 9.08 | 4.82 | 3.14 | 2.09 | 1.44 | 1 | 0.82 | 8.03 |
| 7DS118C | 10.18 | 7.23 | 4.27 | 2.7 | 1.85 | 1.34 | 1 | 9.4 |
| 7DS135 | 9.2 | 5.43 | 3.54 | 2.53 | 1.82 | 1.33 | 1 | 7.72 |
| 7DS180 | 9.14 | 6.7 | 4.85 | 3.6 | 2.65 | 1.61 | 1 | 8.51 |
| 7DS180A | 7.03 | 5.16 | 3.73 | 2.77 | 1.66 | 1 | 0.77 | 6.55 |
| 7DS200K | 9.14 | 5.59 | 4.07 | 2.99 | 2.15 | 1.61 | 1 | 8.51 |
