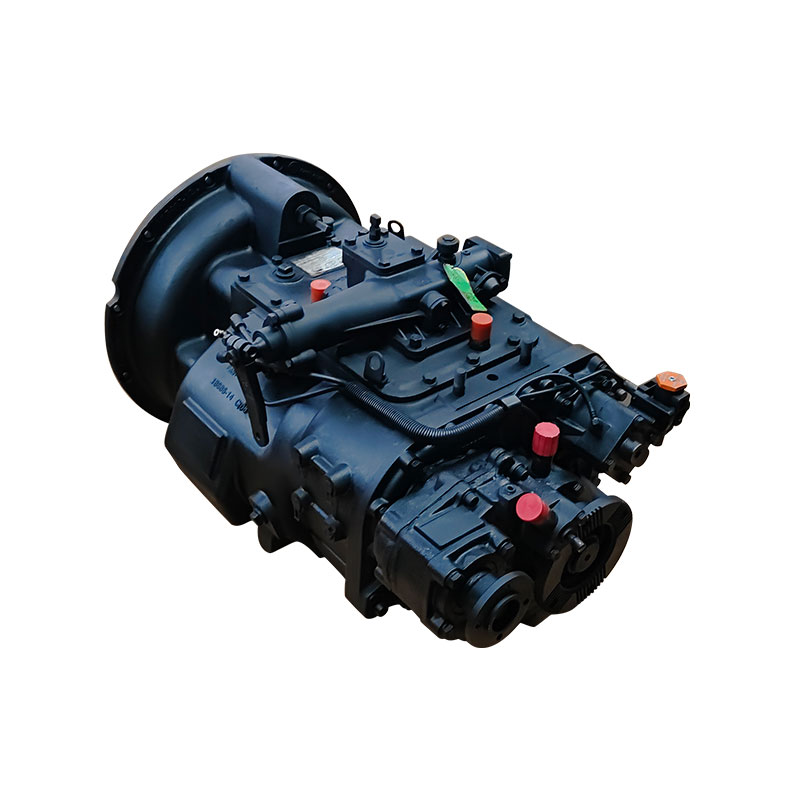

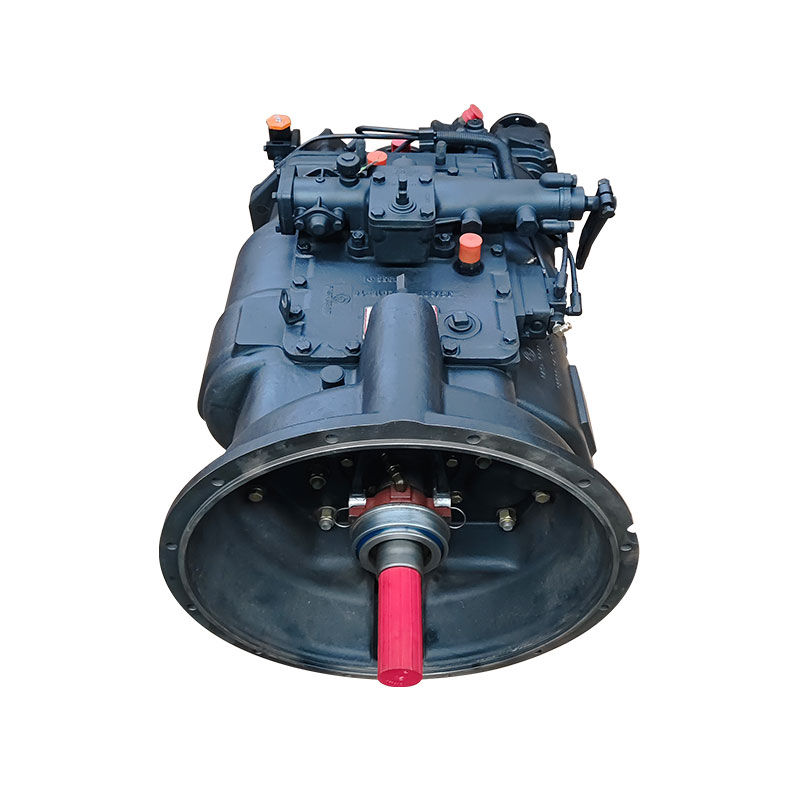

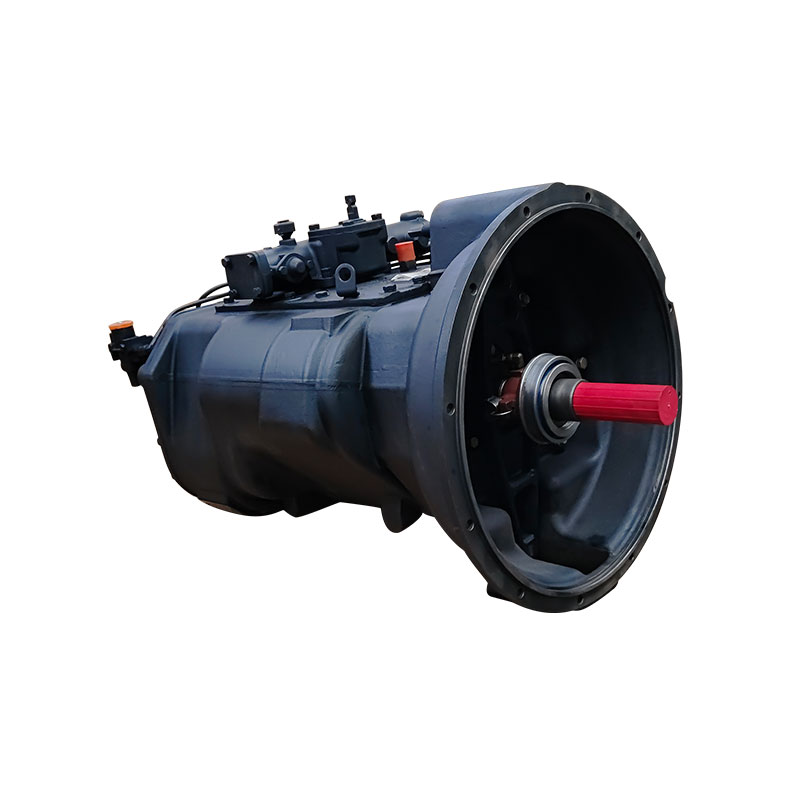

Road Transport Vehicles Long-distance Buses Gearbox 8JS118T-B Fast Direct Drive Transmission

Availability:

Quantity:



Inquire Add to Basket

Model:
8JS118T-B
Brand:
Fast
Code:
8JS118T-B

Product Description

Product parameters

Transmission Model	8JS118T-B
Input Torque	1180Nm
Shift mode	Manual
Oil capacity	6L
Weight	220kg
Head gear ratio	10.31
2 gear ratio	7.33
3 gear ratio	5.09
4 gear ratio	3.77
5 gear ratio	2.73
6 gear ratio	1.94
7 gear ratio	1.35
8 gear ratio	1
Reverse gear 1 transmission ratio	10.26
Applicable vehicle models	This series of transmissions are suitable for all kinds of road transport vehicles, long-distance buses, buses, etc.

Product advantages

1. Twin-countershaft structure, power split, high reliability;

2. Small center distance, small size and light weight;

3. Main shaft and gear are installed floating, there is no needle bearing between the gear and the shaft, and the transmission efficiency is high;

4. The gears are designed with full "all helical and fine teeth gears", with smooth meshing and low noise;

5. Full synchronizer design, the main and auxiliary boxes both use lock-ring double-cone synchronizer, which has a large synchronization capacity and is flexible and light in gear shifting;

6. Combined design of main and auxiliary tanks, small speed ratio difference, good fuel economy;

7. Can realize single lever and double lever integrated in one operation;

8. There are various forms of power take-off, which can meet the power output requirements of various modifications of the vehicle.

More choices

Transmission Model:	8 Rear
Input Torque :	750-1800
Input Power(kw):	147-331
Rated Input Rotation:	2600
Length:	737.3-858.4
Oil capacity:	6-13
Weight(kg):	190-300

Transmission Model	Input Torque	Input Power	Rated Input Rotation	Length	Oil Capacity	Weight
8JS75T/85T/75TA/85TA	750-850N•m	147-175kw	2600rpm	737.3mm	6L	190kg
8JS85TE-C	750-850N•m	147-175kw	2600rpm	737.3mm	6L	190kg
8JS100T-B/8JS118T-B	1000/1180N•m	199/220kw	2600rpm	821.3mm	13L	267kg
8JS100TA-B/8JS118TA-B	1000/1180N•m	199/220kw	2600rpm	821.3mm	13L	267kg
8JS118TB-B/8JS118TC-B	1180N•m	220kw	2600rpm	821.3mm	13L	267kg
8JS105T/125T	1050-1250N•m	209-230kw	2600rpm	821.3mm	7L	215kg
8JS105TA/125TA	1050-1250N•m	209-230kw	2600rpm	821.3mm	7L	215kg
8JS130T-B/8JS130TA-B	1300N•m	243kw	2600rpm	858.4mm	13L	280kg
8JS180T-B/8JS180TA-B	1800N•m	331kw	2600rpm	858.4mm	13L	300kg
8JSX180T	1800N•m	331kw	2600rpm	968.5-983.4mm	13L	280kg

1. Using self-made high performance fast shift synchronizer, flexible and portable operation.

2. The side force taking window can be matched with the force taking device.

3. Designed with light weight and high strength,adopting single box and single axle structure.

4. Simple structure,Full helical gear and full grinding gear design, low noise and high reliability.

5. Has become the standard speed variator of Yutong high end business car and Futian high Rui light car.

8速带同步器

Transmission Speed Ratios
	1F	2F	3F	4F	5F	6F	7F	8F	R1	R2
8JS75T/85T	8.12	6.08	4.47	3.31	2.46	1.84	1.35	1	8.12	2.46
8JS75TA/85TA	6.01	4.5	3.31	2.45	1.82	1.36	1	0.74	6.01	1.82
8JS85TE-C	10.36	6.3	4.32	3.43	2.41	1.46	1	0.79	10.53	2.44
8JS100T-B/8JS118T-B	10.31	7.33	5.09	3.77	2.73	1.94	1.35	1	10.26
8JS100TA-B/8JS118TA-B	8.12	5.77	3.77	2.98	2.15	1.53	1	0.79	8.08
8JS118TB-B	11.4	7.94	5.63	4.06	2.81	1.96	1.39	1	11.35
8JS118TC-B	9.32	6.09	4.06	3.1	2.3	1.5	1	0.76	9.28	2.29
8JS105T/125T	11.26	7.88	5.55	3.98	2.83	1.98	1.39	1	11.48	2.88
8JS105TA/125TA	8.08	5.66	3.98	2.86	2.03	1.42	1	0.72	8.24	2.07
8JS130T-B	10.31	7.33	5.09	3.77	2.73	1.94	1.35	1	10.26
8JS130TA-B	8.12	5.77	3.77	2.98	2.15	1.53	1	0.79	8.08
8JS180T-B	10.31	7.33	5.09	3.77	2.73	1.94	1.35	1	10.26
8JS180TA-B	8.12	5.77	3.77	2.98	2.15	1.53	1	0.79	8.08
8JSX180T	10.21	7.13	5.24	3.84	2.66	1.86	1.36	1	10.67	2.78
