| Quantity: | |
|---|---|
F6J95TA
Fast
F6J95TA
| Transmission Model | F6J95TA |
| Transmission Application | MT |
| Input Torque | 950 Nm |
| Maximum Speed | 2600 RPM |
| Installation length | 751 mm |
| Weight | 235 Kg |
| Fuel Quantity | 11 L |
| Speed Ratio | 9.031-1.000 |
| Head gear ratio | 9.03 |
| 2 gear ratio | 5.25 |
| 3 gear ratio | 3.19 |
| 4 gear ratio | 2 |
| 5 gear ratio | 1.31 |
| 6 gear ratio | 1 |
| Reverse gear 1 transmission ratio | 8.15 |
| Manipulative form | Long-distance one-way and two-way control, and can be operated with single or double rods |

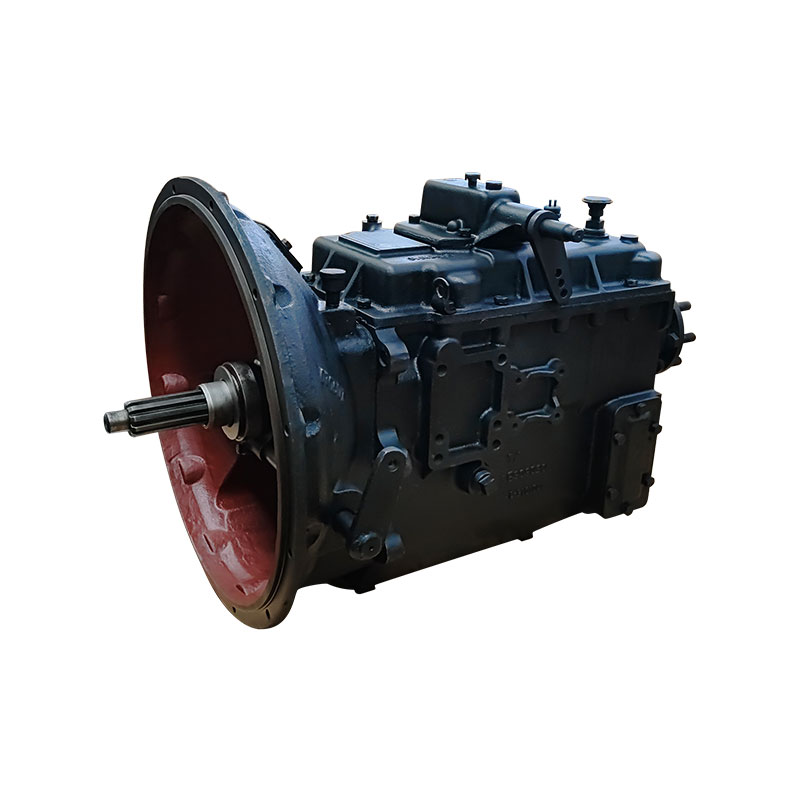

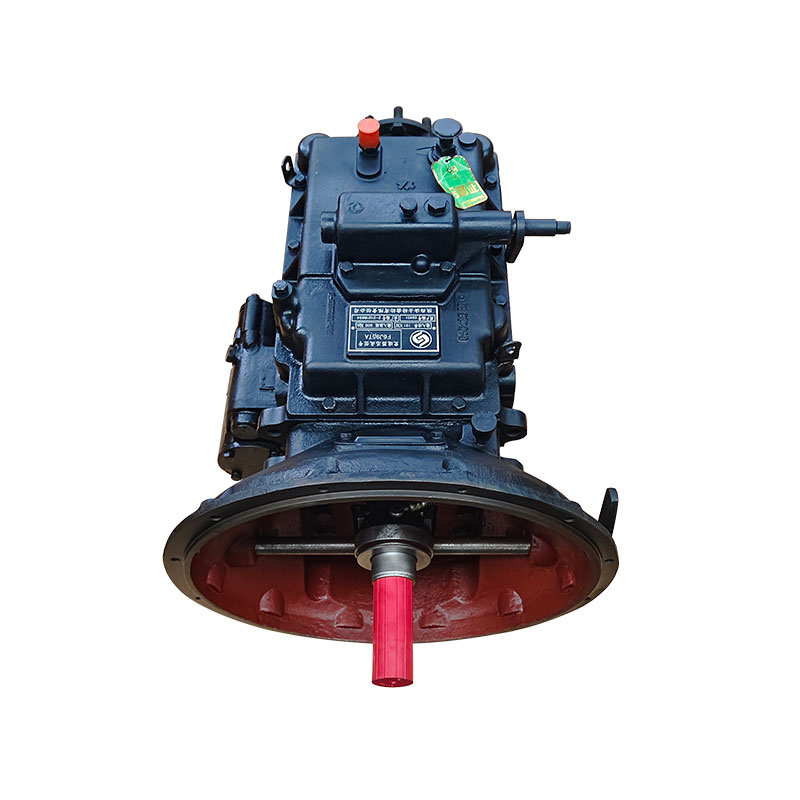

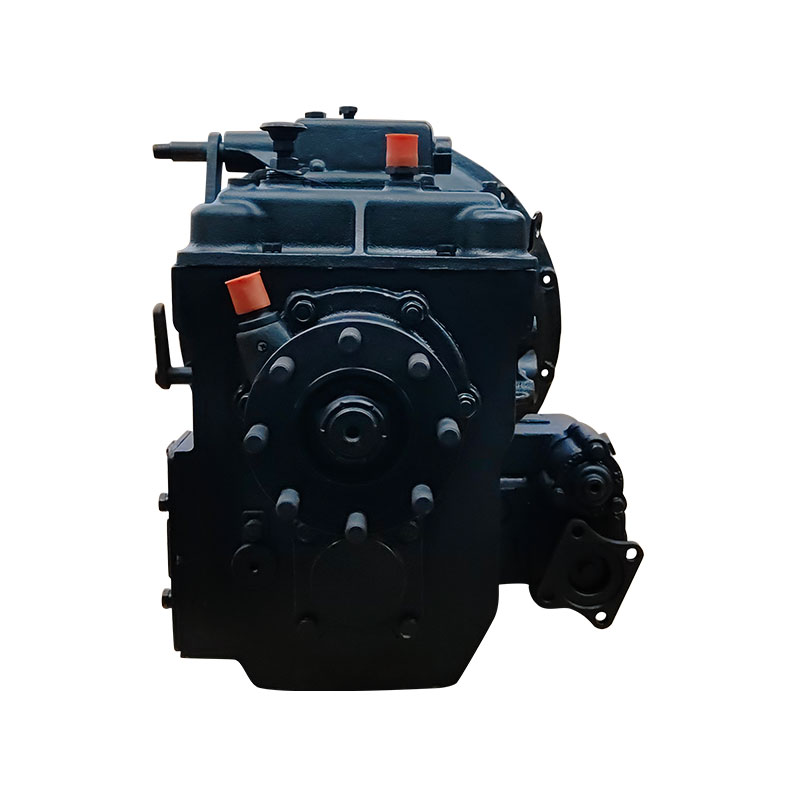

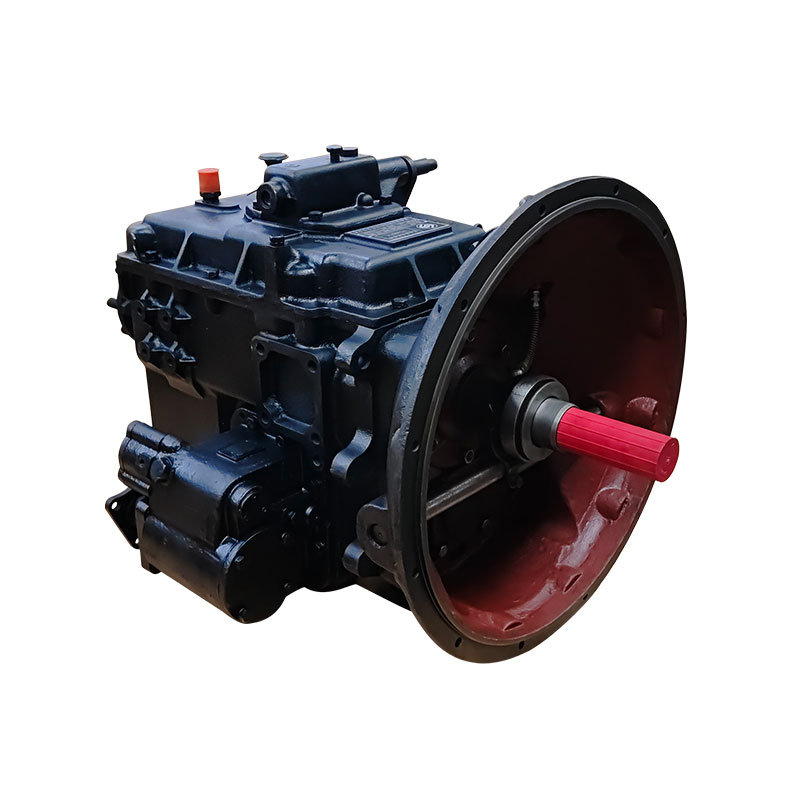

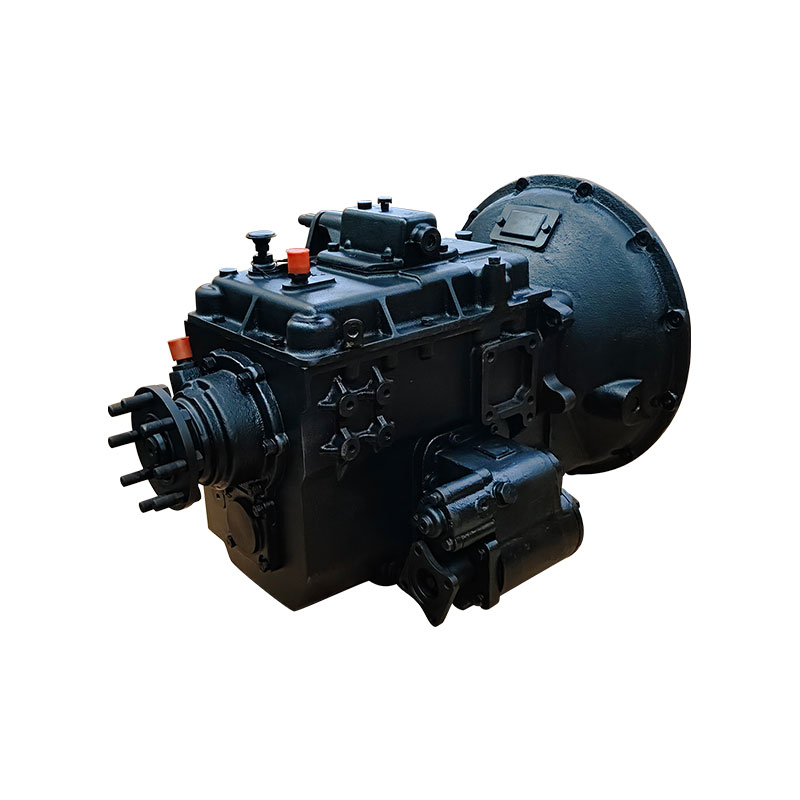

FAST F6J95TA transmission has 6 forward gears, the gear ratio steps are arranged reasonably, and has very outstanding fuel economy performance. With mechanical structure design and integrated with a synchronizer, and the maximum input speed is 2600RPM. The length of the F6J95TA transmission is 751mm. The F6J95TA manual transmission has 6 gears, and each gear has a different reduction ratio. The 1st gear reduction ratio is 9.031, the 2nd gear reduction ratio is 5.250, the 3rd gear reduction ratio is 3.188, the 4th gear reduction ratio is 2.004, the 5th gear reduction ratio is 1.311, the 6th gear reduction ratio is 1.000, and the reverse gear ratio is 8.146. The F6J95TA manual transmission has an input torque range of 950N.m.
FAST 6-speed MT series transmission have different models, with code J in the model name means mechanical transmission, with code T in the model name means transmission integrated with synchronizer. with code A in the model name means transmission top gear is overdrive.
1. Using self-made high performance fast shift synchronizer, flexible and portable operation.
2. The side force taking window can be matched with the force taking device.
3. Designed with light weight and high strength,adopting single box and single axle structure.
4. Simple structure,Full helical gear and full grinding gear design, low noise and high reliability.
5. Has become the standard speed variator of Yutong high end business car and Futian high Rui light car.
| 6 Speed Single Countershaft Transmission | |
| Transmission Model: | 6 Rear |
| Input Torque : | 800-950 |
| Input Power(kw): | 147-195 |
| Rated Input Rotation: | 2600 |
| Length: | 751-920 |
| Oil capacity: | 11 |
| Weight(kg): | 235-245 |
| Transmission Model | Input Torque | Input Power | Rated Input Rotation | Length | Oil Capacity | Weight |
| F6J80T/85T/95T | 800-950N•m | 147-195kw | 2600rpm | 751mm | 11L | 235kg |
| F6J80TA/85TA/95TA | 800-950N•m | 147-195kw | 2600rpm | 751mm | 11L | 235kg |
| F6J80TB/85TB/95TB | 800-950N•m | 147-195kw | 2600rpm | 751mm | 11L | 235kg |
| F6J80TC/85TC/95TC | 800-950N•m | 147-195kw | 2600rpm | 751mm | 11L | 235kg |
| 6J90T | 900N•m | 191kw | 2600rpm | 920mm | 11L | 245kg |
| 6J90TA | 850N•m | 176kw | 2600rpm | 920mm | 11L | 245kg |
| 6J90TB | 900N•m | 191kw | 2600rpm | 920mm | 11L | 245kg |
| 6J90TC | 900N•m | 191kw | 2600rpm | 920mm | 11L | 245kg |
| Transmission Speed Ratios | |||||||
| Model | 1F | 2F | 3F | 4F | 5F | 6F | 1R |
| F6J80T/85T/95T | 7.03 | 4.09 | 2.48 | 1.56 | 1 | 0.73 | 6.34 |
| F6J80TA/85TA/95TA | 9.03 | 5.25 | 3.19 | 2 | 1.31 | 1 | 8.15 |
| F6J80TB/85TB/95TB | 7.03 | 4.09 | 2.48 | 1.56 | 1 | 0.81 | 6.34 |
| F6J80TC/85TC/95TC | 7.03 | 4.09 | 2.48 | 1.75 | 1.3 | 1 | 6.34 |
| 6J90T | 7.03 | 4.09 | 2.48 | 1.56 | 1 | 0.73 | 6.34 |
| 6J90TA | 9.03 | 5.25 | 3.19 | 2 | 1.31 | 1 | 8.15 |
| 6J90TB | 7.03 | 4.09 | 2.48 | 1.56 | 1 | 0.81 | 6.34 |
| 6J90TC | 7.03 | 4.09 | 2.48 | 1.75 | 1.3 | 1 | 6.34 |
