Basic Info

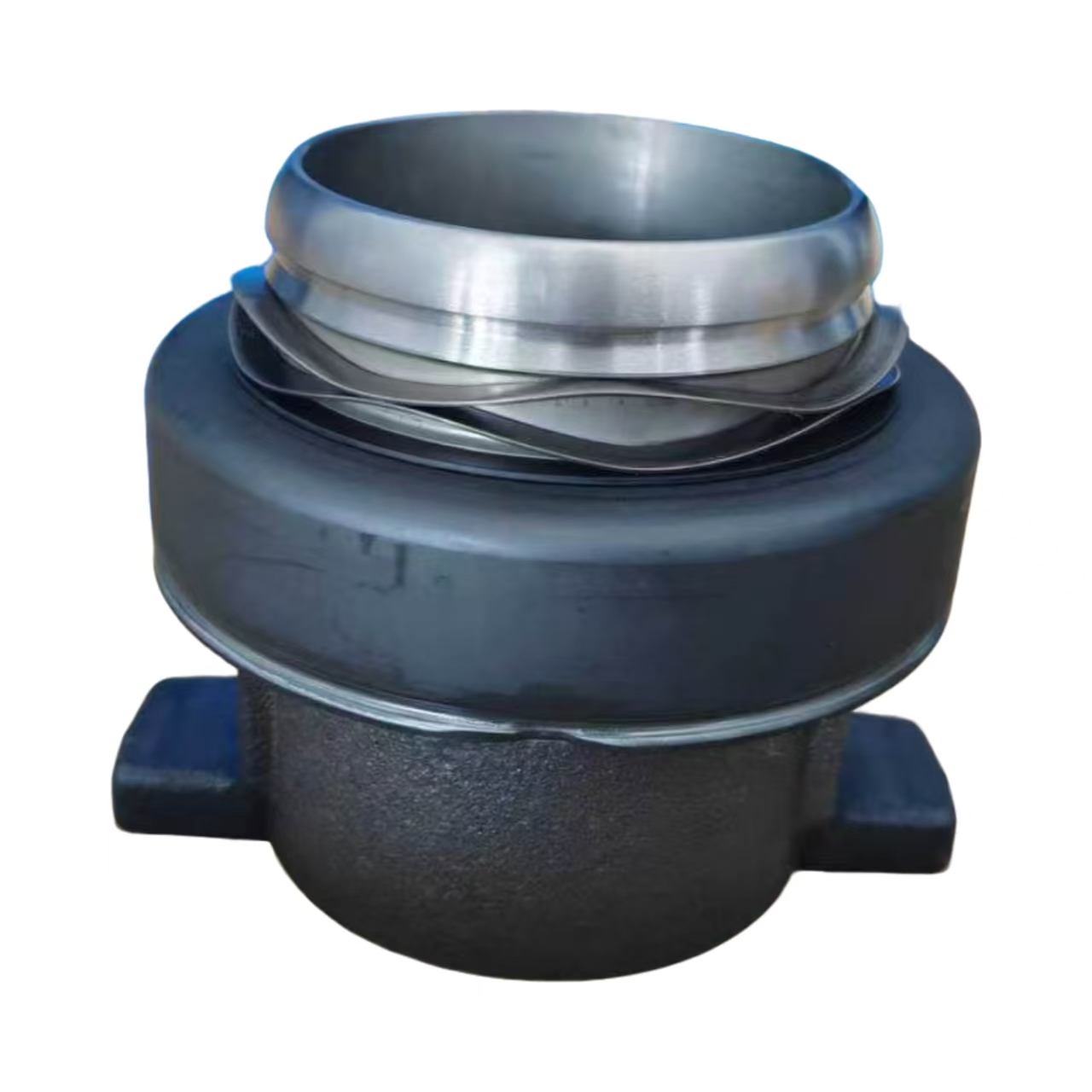

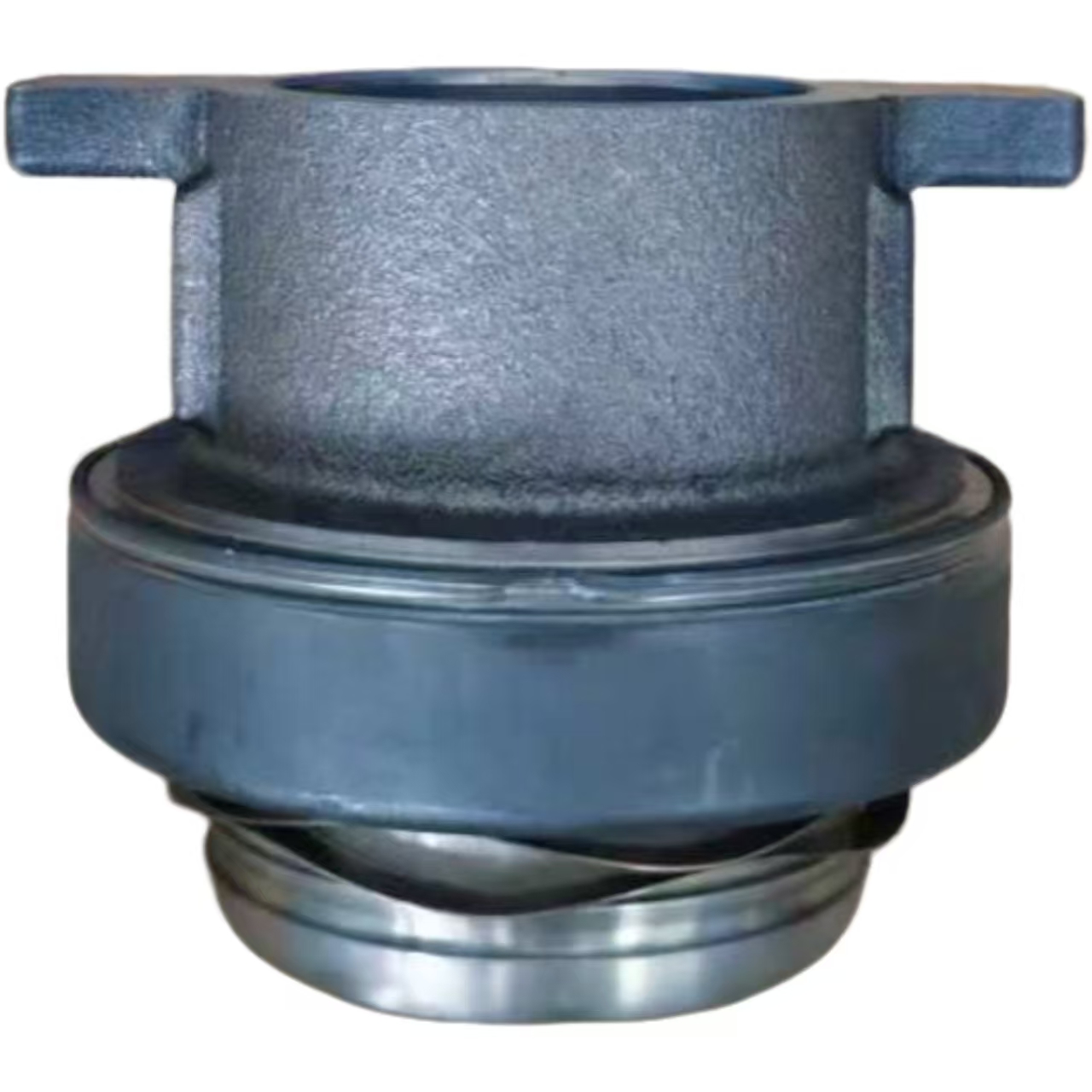

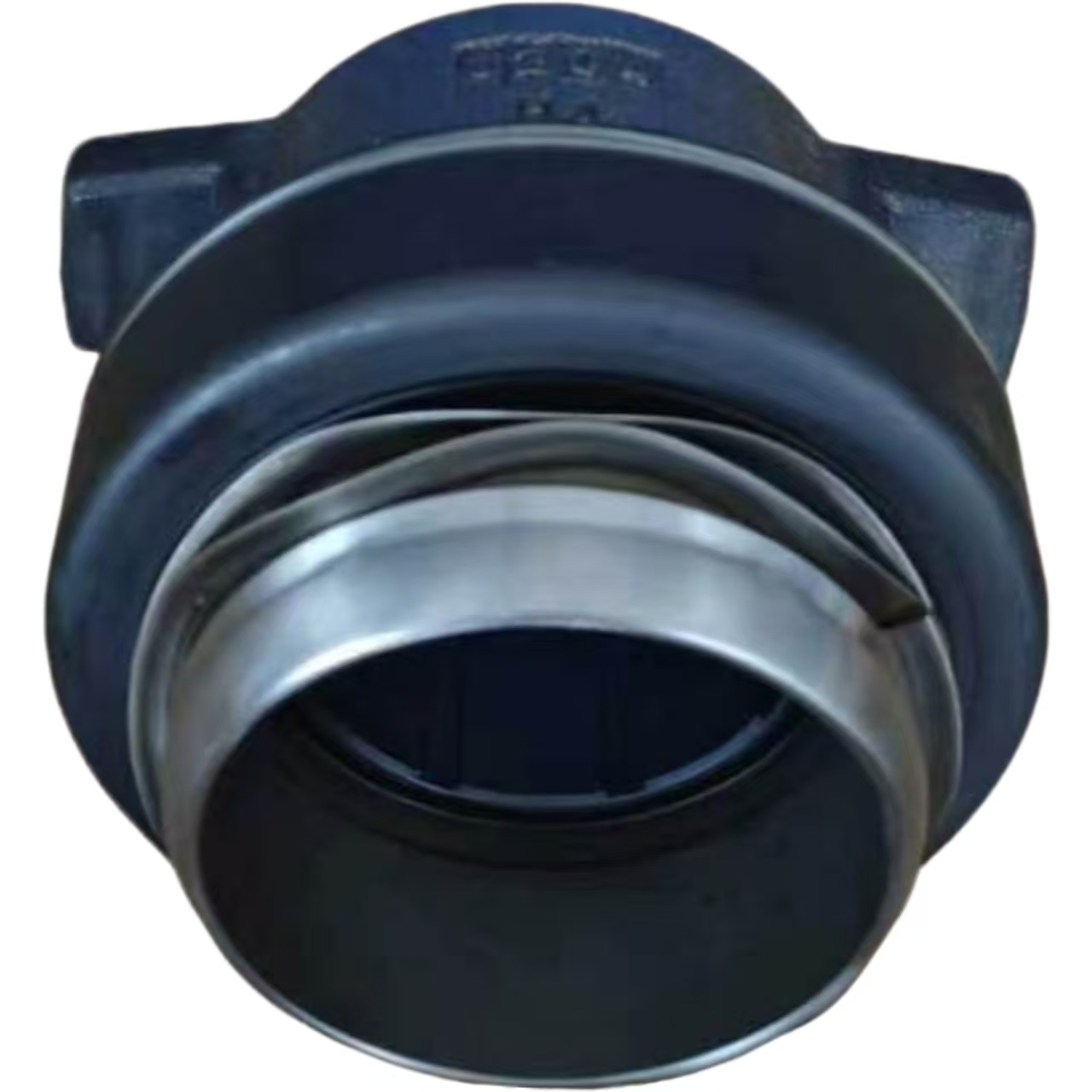

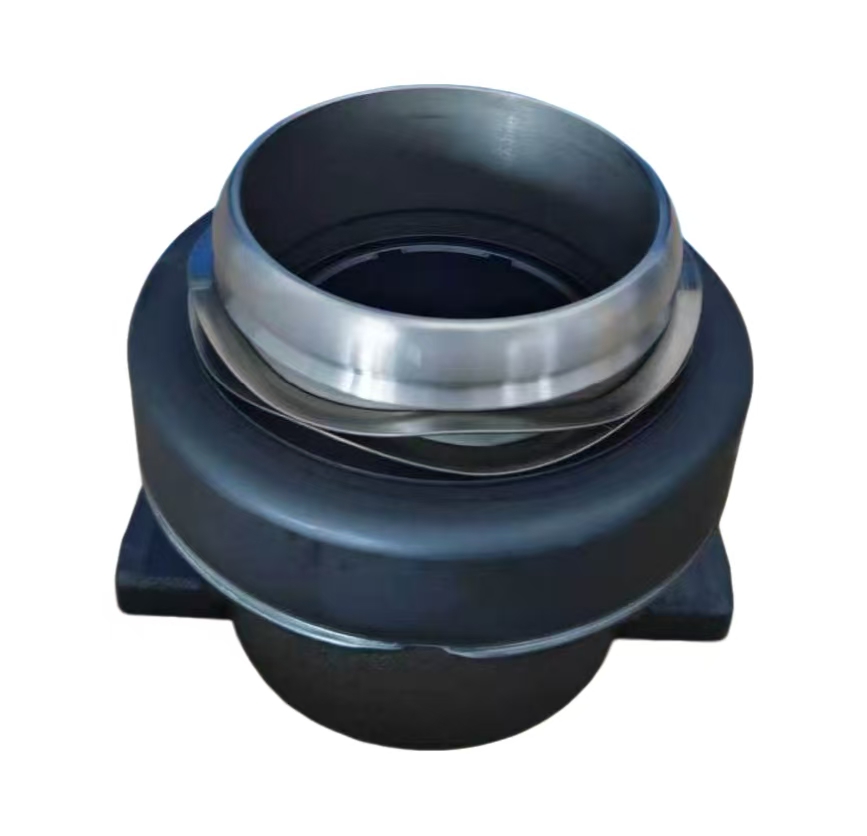

• OE Part No.: 3151 001 039

• Brand: SACHS (ZF Group original clutch brand, Germany)

• Cross Reference OE: MAN 81305060062, DAF 16011373282, Eurotec 95006821

• Product Type: Integrated Cast Iron Housing Clutch Release Throw-out Bearing

• Compatible Gearbox: ZF 16S151NMV, 16S1930, 16S2230, 16S2530, 16S2531 Ecosplit4 16-speed heavy truck manual transmission

• Applicable Vehicles: Sinotruk Sitrak/Howo, FAW J6P/J7, MAN TGS/TGX, DAF CF/XF, Iveco Stralis heavy haul tractors

• Matching Clutch: 430mm single plate diaphragm spring clutch assembly

• Material: High tensile cast iron housing, GCr15 bearing steel rolling core, high-temperature wear-resistant thrust ring, multi-layer HNBR dust-proof sealing set

• Net Weight: approx 3.65kg (reference value)

• Matching Components: Clutch release fork 1297 368 007, clutch bell housing, 430mm clutch pressure plate & driven disc

• Function: Transmit axial thrust from release fork, push diaphragm spring to realize clutch separation/combination, enable smooth gear shift

• Category: Heavy Truck ZF 16S Series Transmission Clutch System Core Repair Spare Parts

Material & Advantages

1. Integral high-strength cast iron housing with dual mounting lugs, high rigidity, anti-deformation under frequent clutch impact load

2. GCr15 bearing steel rolling body overall quenching, low friction, anti-seize, long service life under continuous high-temperature working environment

3. Hardened wear-resistant thrust contact surface, effectively reduce abrasion with diaphragm spring fingers, avoid early failure

4. Multi-channel labyrinth dustproof + oil-proof sealing structure, isolate clutch dust, high-temperature oil mist, no frequent greasing maintenance

5. Standard OEM outer dimension, inner bore and lug spacing, direct assembly without modification during gearbox overhaul

6. Self-centering design automatically compensates assembly alignment error, eliminate eccentric wear and abnormal clutch noise

7. Adapt to long-distance full-load highway logistics, mountain heavy climbing and high-frequency clutch operation conditions

Application Scenarios

• Replace seized, thrust-surface worn, noisy original SACHS release bearing marked 3151 001 039 for ZF 16-speed Ecosplit gearbox

• Fix vehicle faults including incomplete clutch separation, stiff gear shifting, clutch slipping, abnormal grinding noise when stepping clutch, difficulty engaging gears

• Complete clutch bell housing full disassembly overhaul and regular maintenance for fleets equipped with ZF 16-speed manual gearbox

• Assemble matched release fork 1297 368 007 and 430mm clutch kit following official ZF clutch assembly standards; replace bearing together with clutch disc and pressure plate during full overhaul

Supply & After-sale

• MOQ: 1 piece

• Warranty: 6–12 months (exclude overload clutch slipping, collision deformation, improper installation and natural abrasion aging)

• Packaging: Independent reinforced carton + full shockproof foam wrapping to protect thrust ring and rolling core from scratch and impact damage

• Remarks: Confirm gearbox is ZF 16S Ecosplit4 series with 430mm clutch before ordering; do not interchange with small-size release bearings for 12TRAXON AMT gearboxes
