Basic Info

• OE Part No.: 6482 000 216

• Cross Reference OEM Codes: DAF 2046284 / 2405101, MAN 81305500272, Iveco 42575288, ZF Sachs original matching part

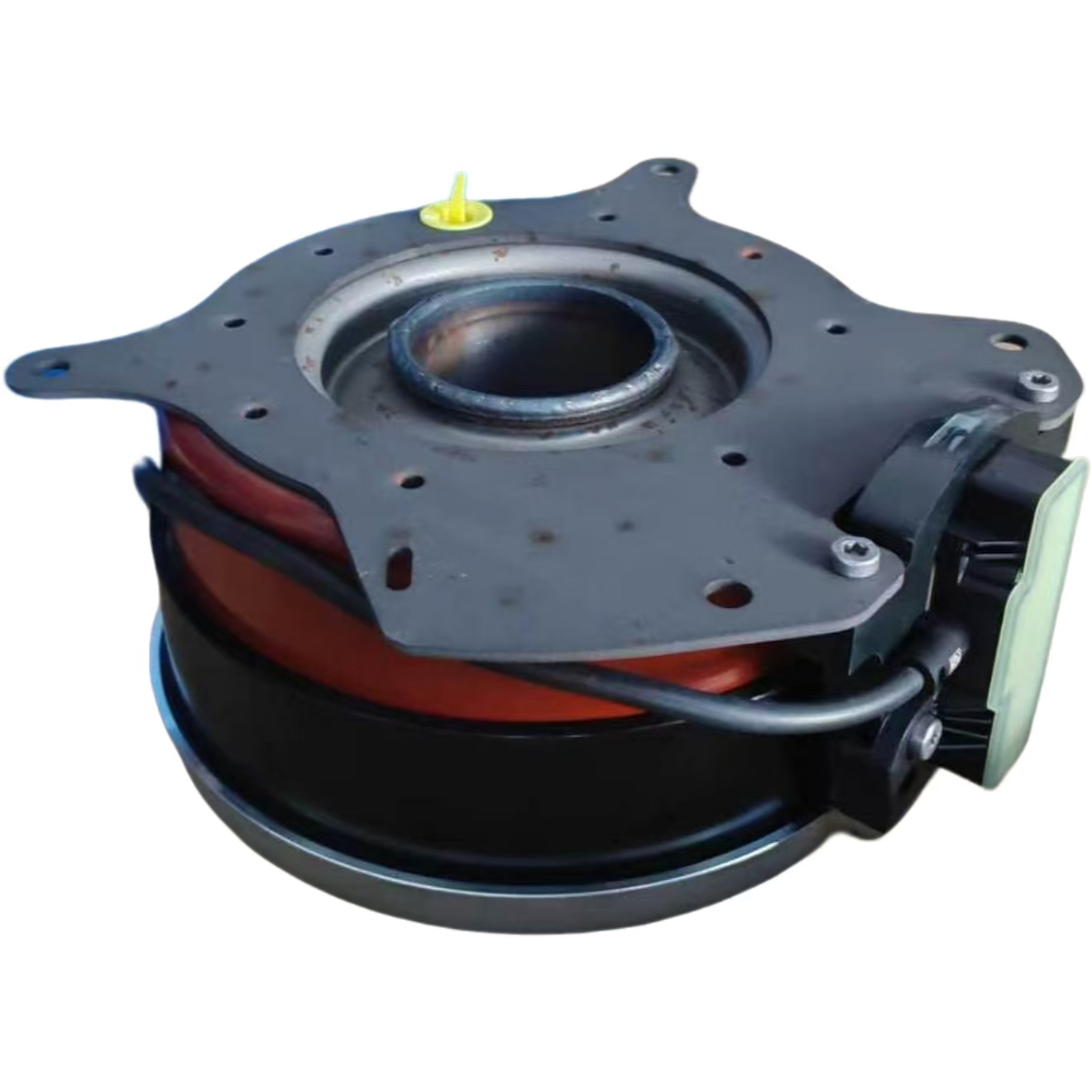

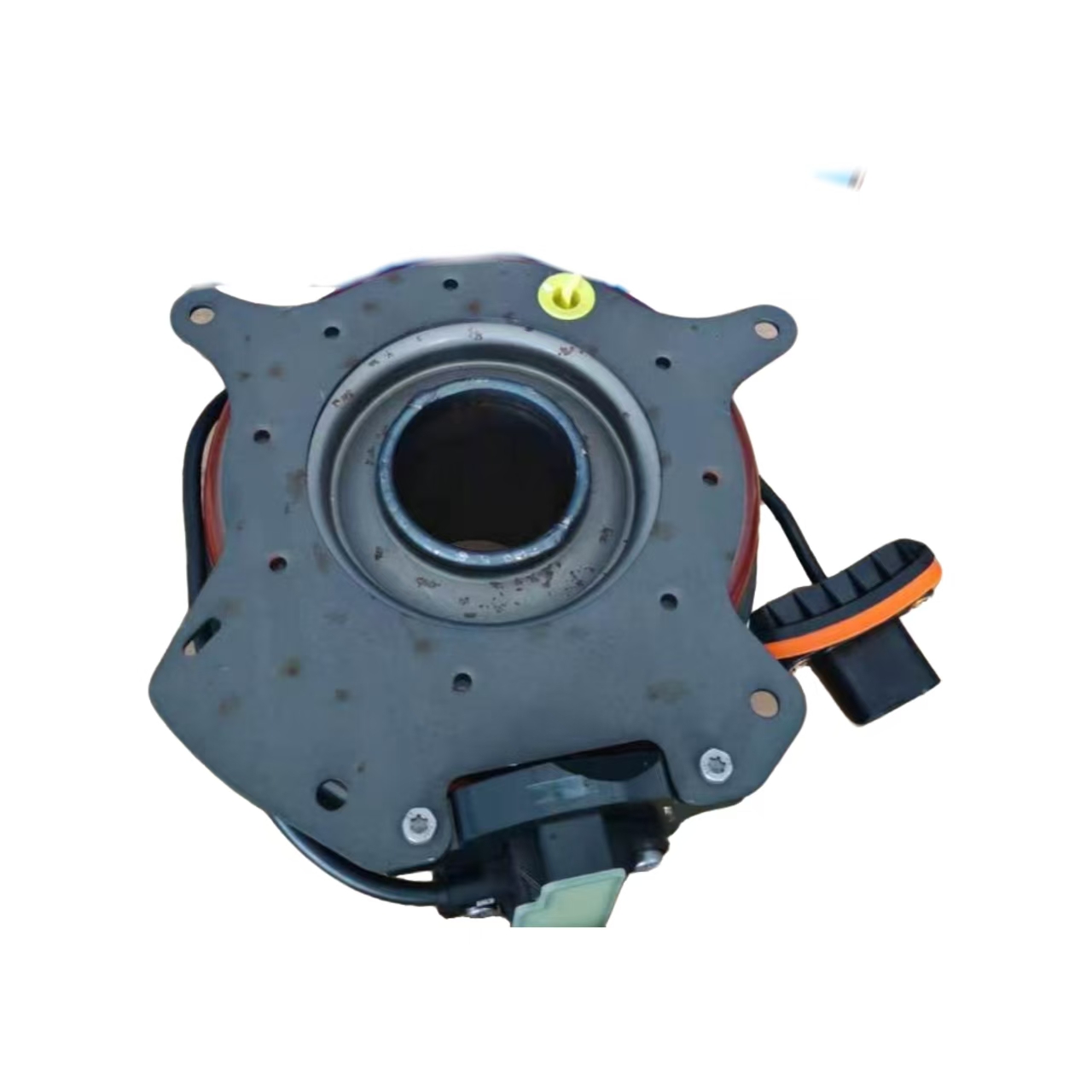

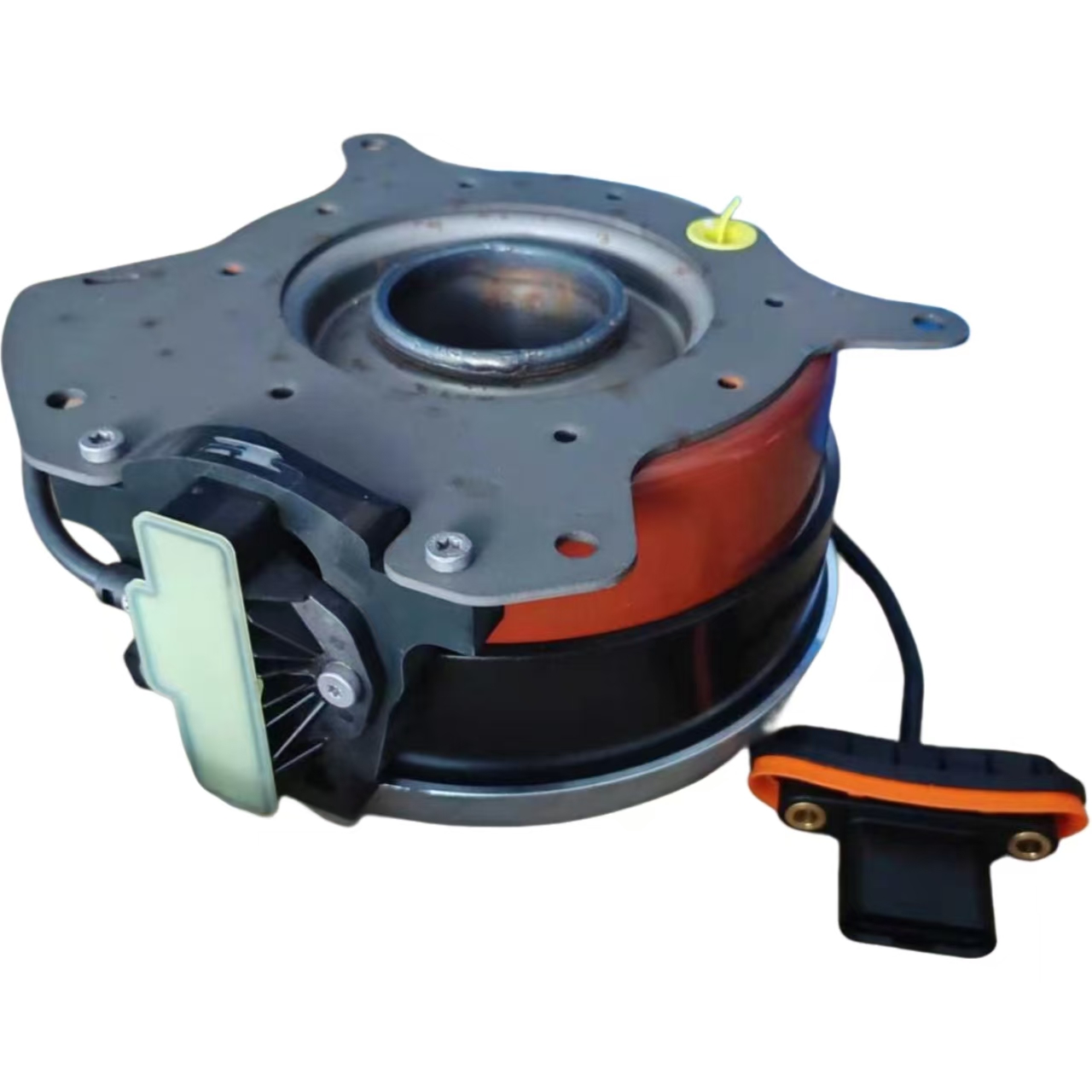

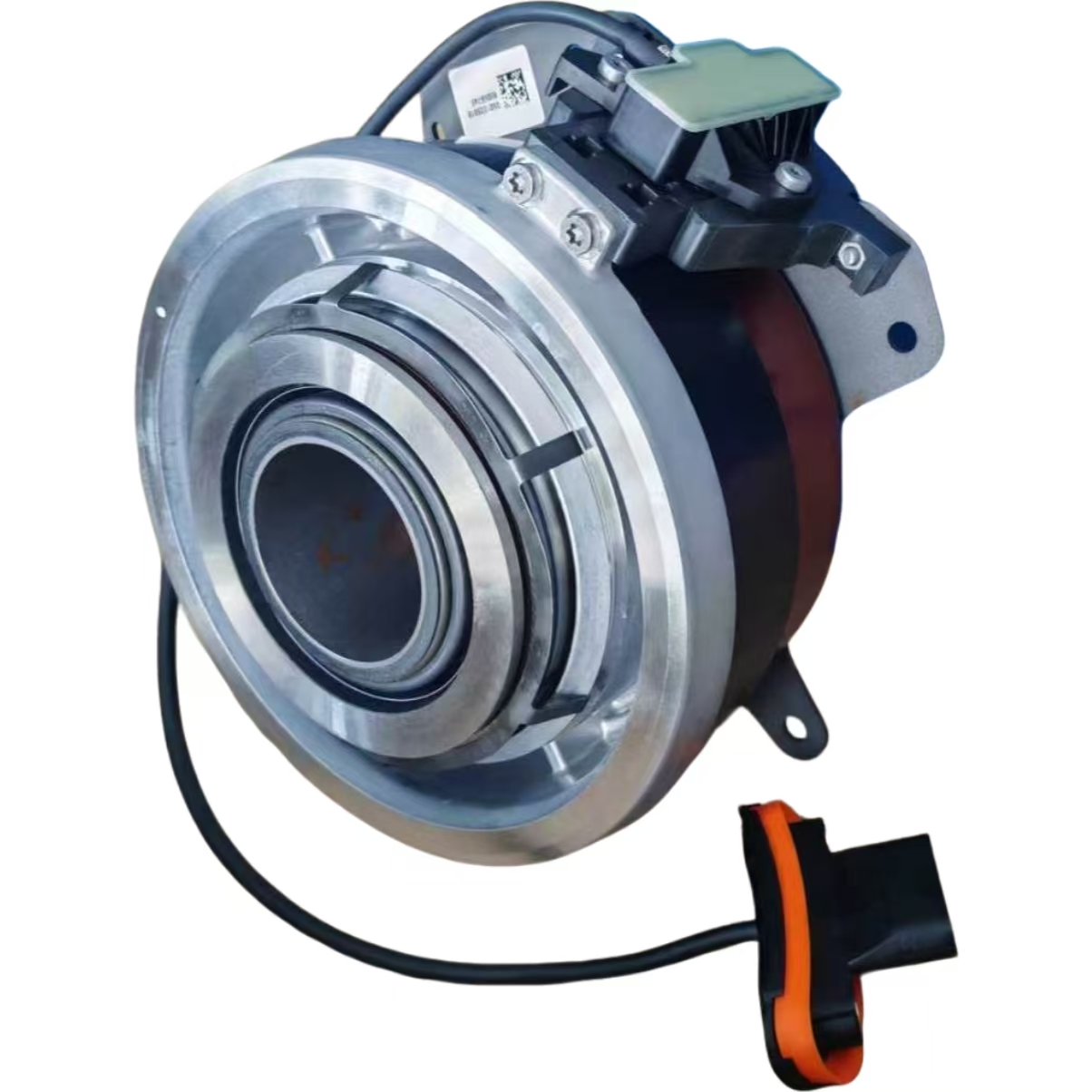

• Product Type: Integrated Concentric Clutch Actuator / Electropneumatic Central Slave Cylinder Assembly

• Brand: ZF Sachs OEM Matching Complete Spare Parts

• Compatible Gearbox: ZF 12TRAXON 12TX2420 / 12TX2620 / 12TX2820 AMT 12-speed heavy truck transmission

• Applicable Vehicles: Sinotruk Sitrak, FAW J7, DAF CF/XF, MAN TGX/TGS, Iveco Stralis heavy haul tractors

• Working Air Pressure: Standard 5.5 bar, Max release thrust ≥12000 N

• Sensor Parameter: 5V power supply, PWM signal output, IPX67 dustproof & waterproof grade

• Release Bearing Matching Size: Inner Ø96mm / Outer Ø124mm, positioning hole diameter Ø110mm

• Material: High-strength die-cast aluminum cylinder housing, GCr15 bearing steel release bearing, HNBR high-temperature resistant sealing rings

• Net Weight: approx 6.85kg (reference value)

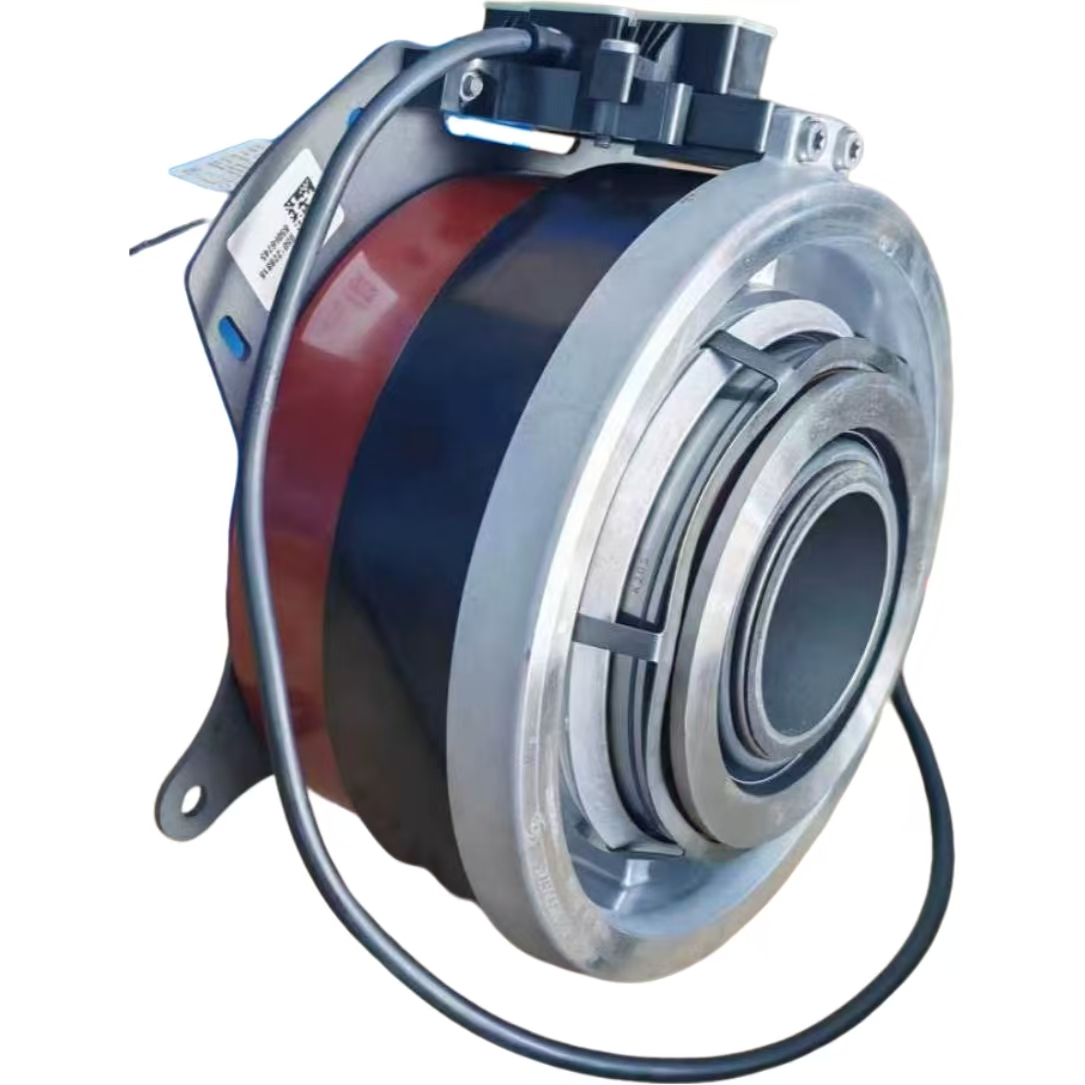

• Integrated Components: Pneumatic cylinder body, release bearing assembly, clutch travel position sensor, air inlet connector, wiring harness plug, dust-proof sealing cover

• Function: Receive TCM electrical signal, use compressed air to drive axial release movement, real-time feedback clutch separation stroke signal to gearbox control unit, realize automatic clutch disengagement/engagement for AMT shifting

• Category: Heavy Truck ZF 12TRAXON AMT Transmission Complete Clutch Actuation System Repair Spare Parts

Material & Advantages

1. Integrated one-piece die-cast aluminum cylinder body with thickened reinforcing ribs, strong structural rigidity, anti-deformation under long-term high air pressure impact

2. Built-in heavy-duty full-sealed release bearing pre-filled with high-temperature long-life grease, no regular greasing maintenance, resistant to clutch high-temperature radiation

3. Imported HNBR composite sealing rings with multi-channel labyrinth dustproof structure, effectively isolate dust, mud and water vapor to prevent internal air leakage

4. High-precision PWM stroke position sensor with IPX67 waterproof and dustproof performance, stable signal transmission without jump code or signal loss

5. Fully pre-assembled complete unit, unified OEM mounting flange and hole position, direct bolt-on installation during overhaul, no separate matching of bearing, cylinder and sensor

6. Optimized pneumatic flow channel design for fast response of clutch separation/engagement, reduce shift lag and clutch slipping risk during heavy-load climbing

7. Wide working temperature range (-40℃ ~ 180℃), adapt to high-frequency automatic shifting of long-distance full-load logistics and mountain heavy transport vehicles

Application Scenarios

• Replace air-leaking, sensor-faulty, seized original integrated clutch actuator marked 6482 000 216 for ZF 12TRAXON gearbox

• Fix vehicle faults including incomplete clutch separation, hard gear shifting, clutch slipping, TCM fault code report, slow shift response and power drop during acceleration

• Complete clutch system overall overhaul and scheduled maintenance for logistics heavy truck fleets equipped with ZF 12TRAXON AMT gearbox

• Matching assembly with 430mm Sachs clutch pressure plate & driven disc following official ZF vehicle assembly standards

Supply & After-sale

• MOQ: 1 piece

• Warranty: 6–12 months (exclude contaminated compressed air, improper installation, overload clutch slipping, collision damage and natural aging abrasion)

• Packaging: Independent reinforced fumigated wooden case + full inner shockproof foam wrapping to protect bearing, sensor and cylinder sealing surface from scratch and deformation

• Remarks: Confirm vehicle equipped with ZF 12TRAXON 12TX series AMT transmission before order placement; do not mix with model 6482000203 / 6482000218 which are incompatible
