Basic Info

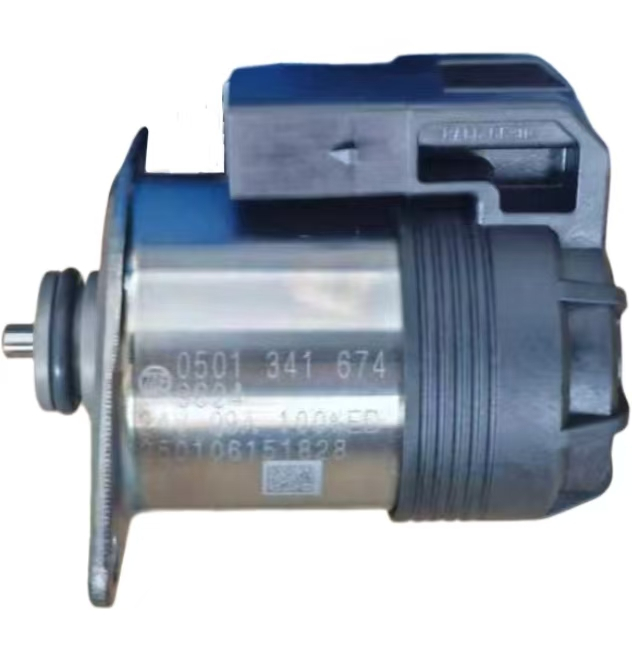

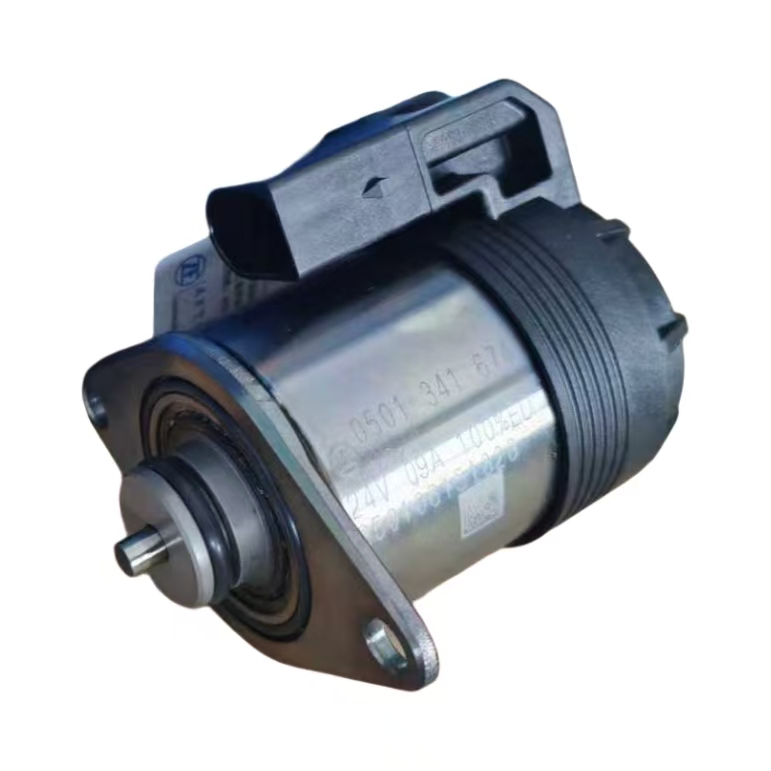

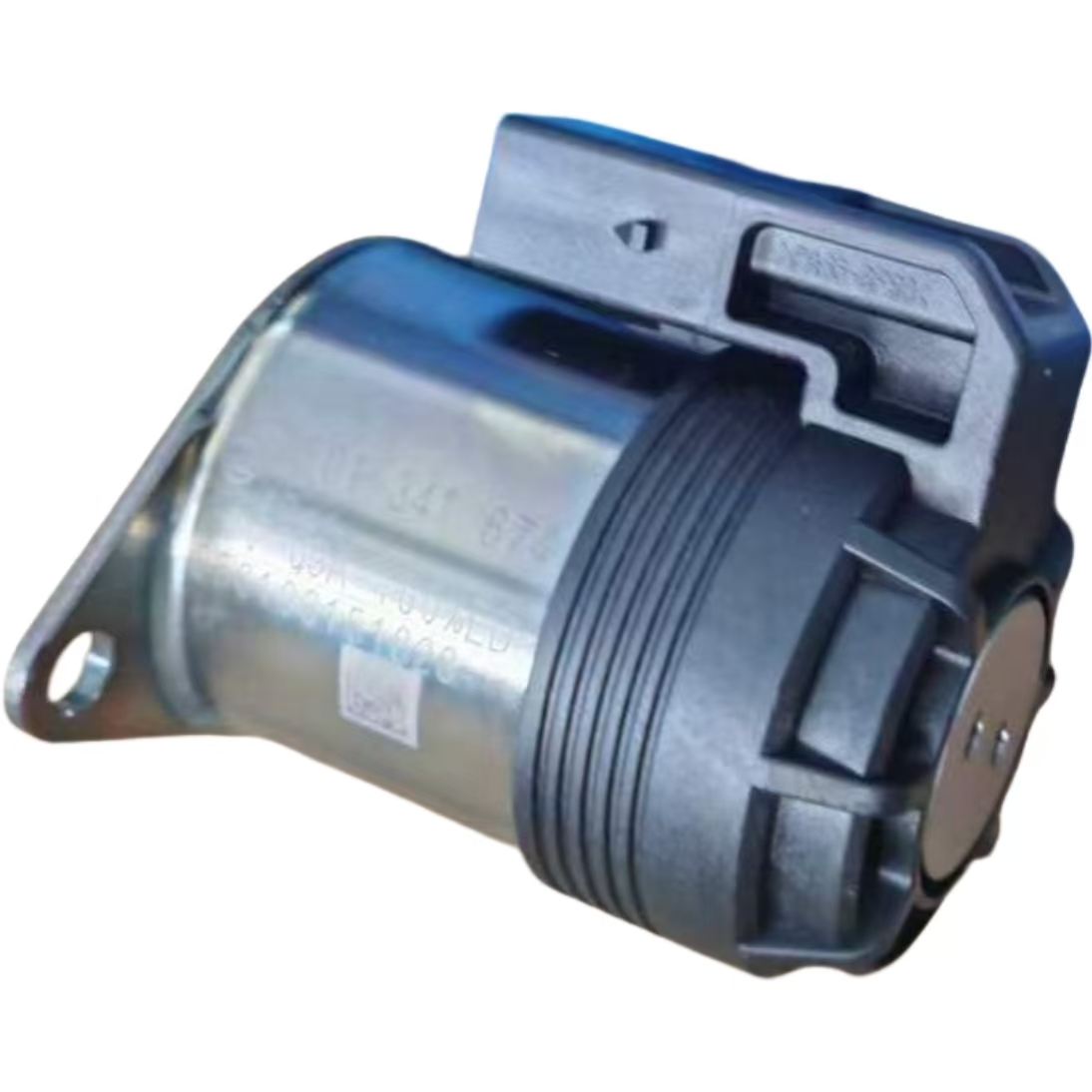

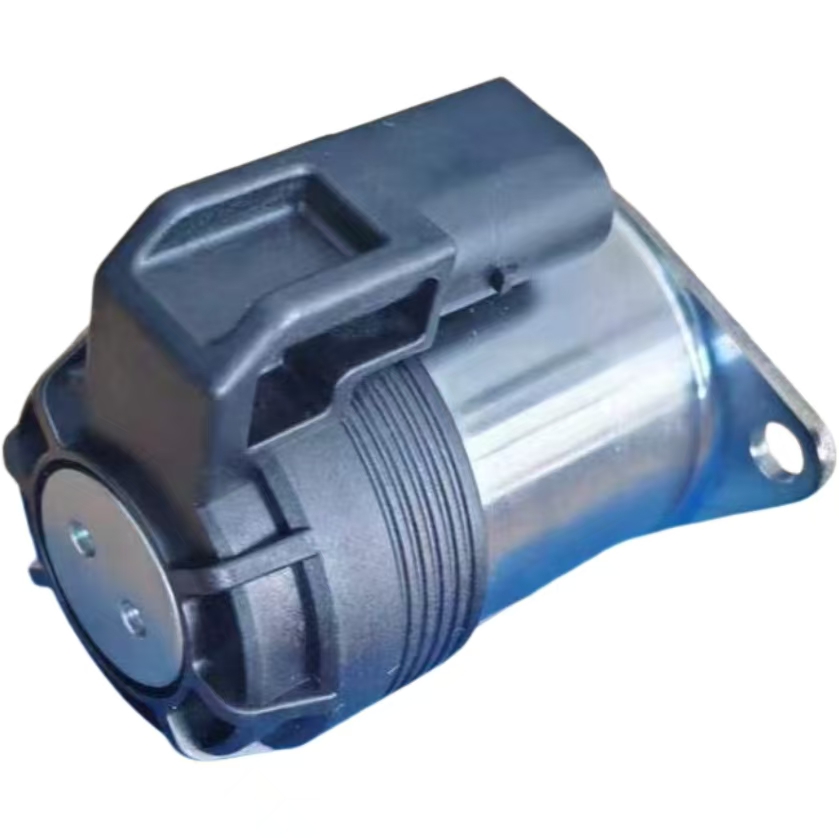

• OE Part No.: 0501 341 674

• Product Type: Intarder Hydraulic Retarder Proportional Solenoid Valve / Retarder Pressure Modulation Valve

• Brand: ZF OEM Matching Transmission Retarder System Repair Spare Parts

• Compatible Gearbox: ZF Traxon 12TX series AMT, upgraded ZF 16S Ecosplit series manual transmission equipped with original Intarder hydraulic retarder

• Applicable Vehicles: Sinotruk Sitrak, MAN TGS/TGX, DAF CF/XF, Iveco Stralis heavy-duty tractors

• Working Voltage: 24V DC

• Material: High-strength precision alloy valve body, stainless steel spool, HNBR high-temperature resistant multi-channel sealing assembly, anti-vibration encapsulated electromagnetic coil

• Net Weight: approx 0.42kg (reference value)

• Matching Components: Retarder ECU, retarder temperature & pressure sensors, retarder housing, main hydraulic circuit of transmission

• Function: Convert ECU electric control signal into proportional hydraulic pressure, adjust oil filling rate of retarder working cavity, achieve stepless control of hydraulic braking torque

• Category: Heavy Truck ZF Transmission Intarder Hydraulic Retarder System Repair Spare Parts

Material & Advantages

1. Precision machined alloy valve body and stainless steel spool, low hysteresis, rapid signal response, guarantee continuous linear adjustment of braking force

2. Imported HNBR composite multi-layer sealing structure, resistant to high-temperature gear oil corrosion, effectively prevent internal hydraulic oil cross leakage

3. High-stability fully encapsulated coil, strong anti-electromagnetic interference, stable operation under vehicle vibration and wide temperature environment

4. Standard OEM mounting hole layout, oil port thread and wiring plug interface, direct bolt-on installation during overhaul without modification

5. Accurate linear pressure output, avoid downhill retarder jitter, insufficient braking or sudden loss of braking power

6. Adapt to long-distance mountain downhill transportation and continuous heavy-load working conditions with frequent retarder use

Application Scenarios

• Replace unstable, leaking, signal-abnormal original retarder proportional valve marked 0501 341 674 for ZF transmission with Intarder

• Fix vehicle faults including retarder no braking force, intermittent braking, uneven braking strength, ECU reporting retarder solenoid valve fault codes, slow retarder response

• Complete integrated hydraulic retarder disassembly overhaul and regular maintenance for fleets equipped with ZF gearbox fitted with Intarder

• Assemble matched retarder sensors and control pipelines following official ZF Intarder assembly standards

Supply & After-sale

• MOQ: 1 piece

• Warranty: 6–12 months (exclude contaminated transmission oil, wiring short circuit, collision damage and natural sealing aging)

• Packaging: Independent shockproof foam + sealed carton packaging to protect valve spool and sealing surface from scratch

• Remarks: Confirm gearbox type and original valve part number before ordering; 0501 341 674 cannot be interchanged with 0501 330 120. Retarder ECU parameter calibration is recommended after installation.
