Basic Info

• OE Part No.: 0501 225 382

• Cross Reference OE: MAN 81325600092, DAF 1844561, Iveco 42555327, Eurotec 95009256

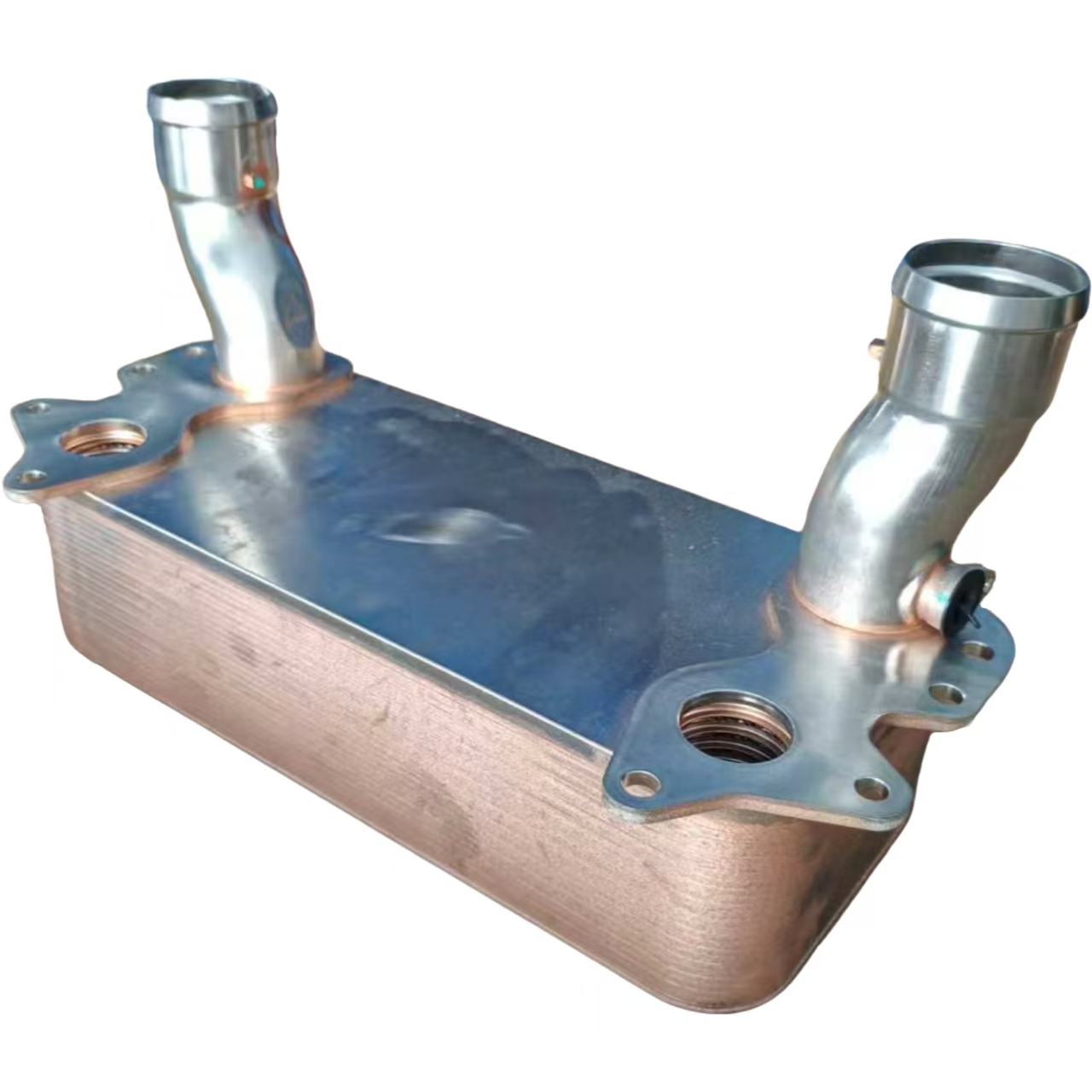

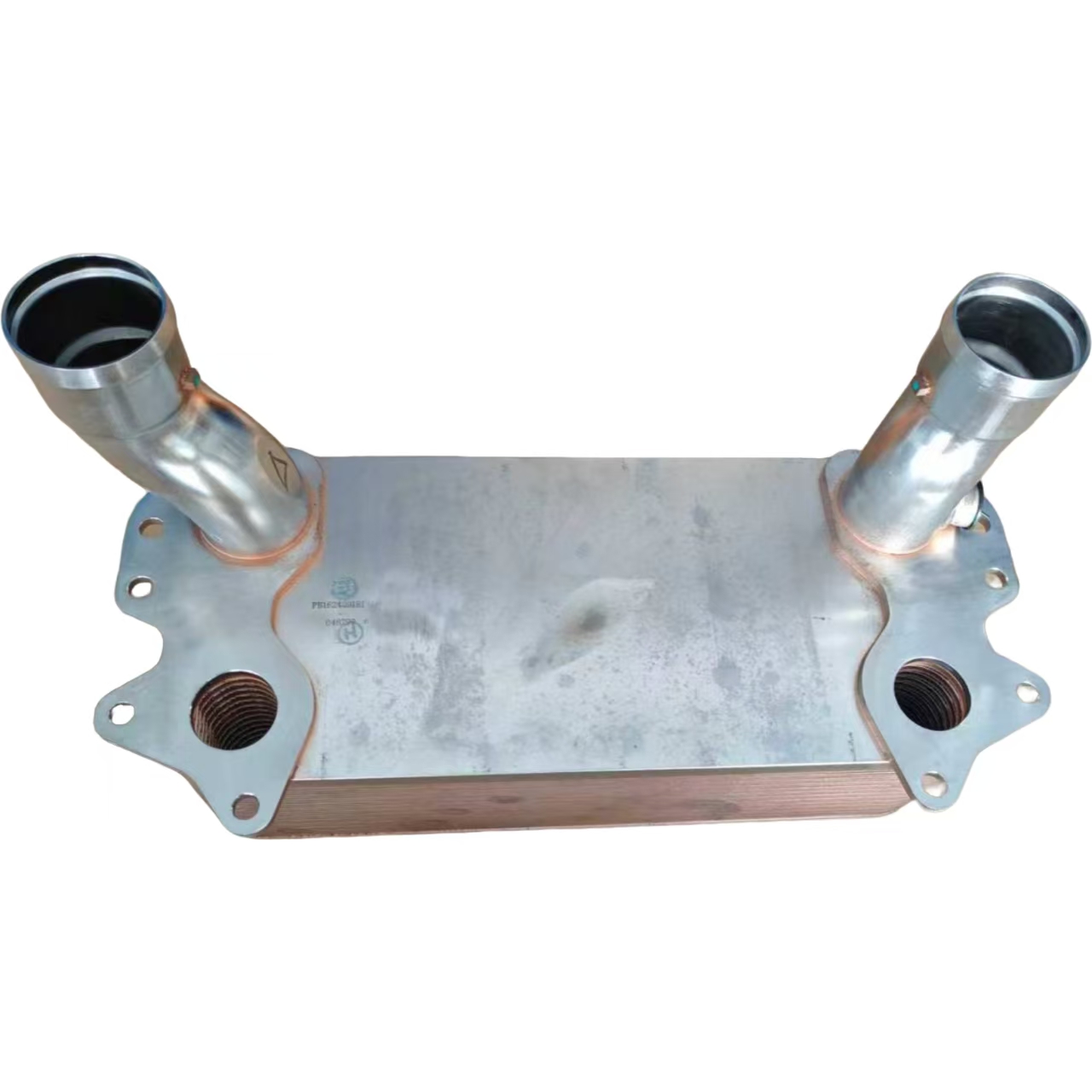

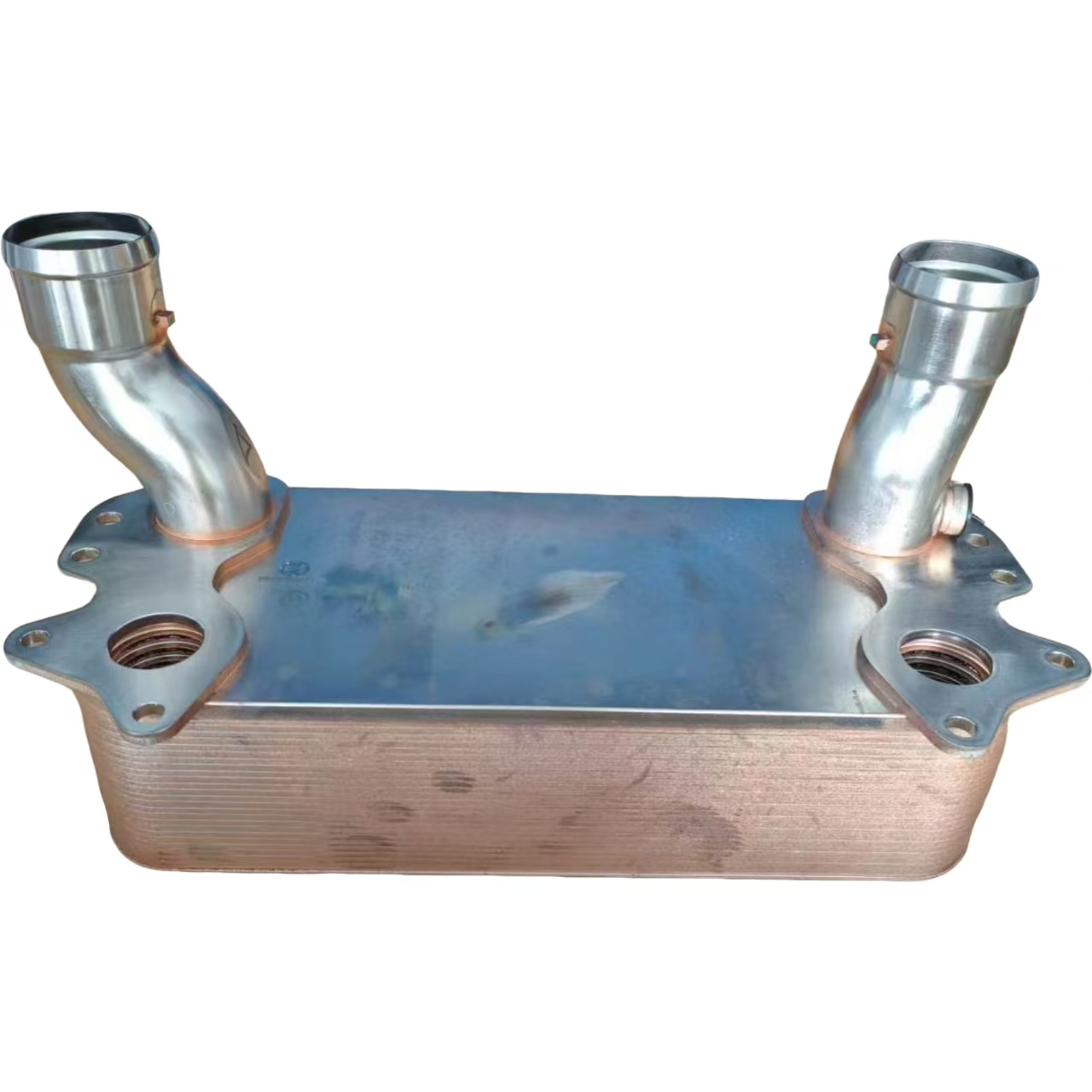

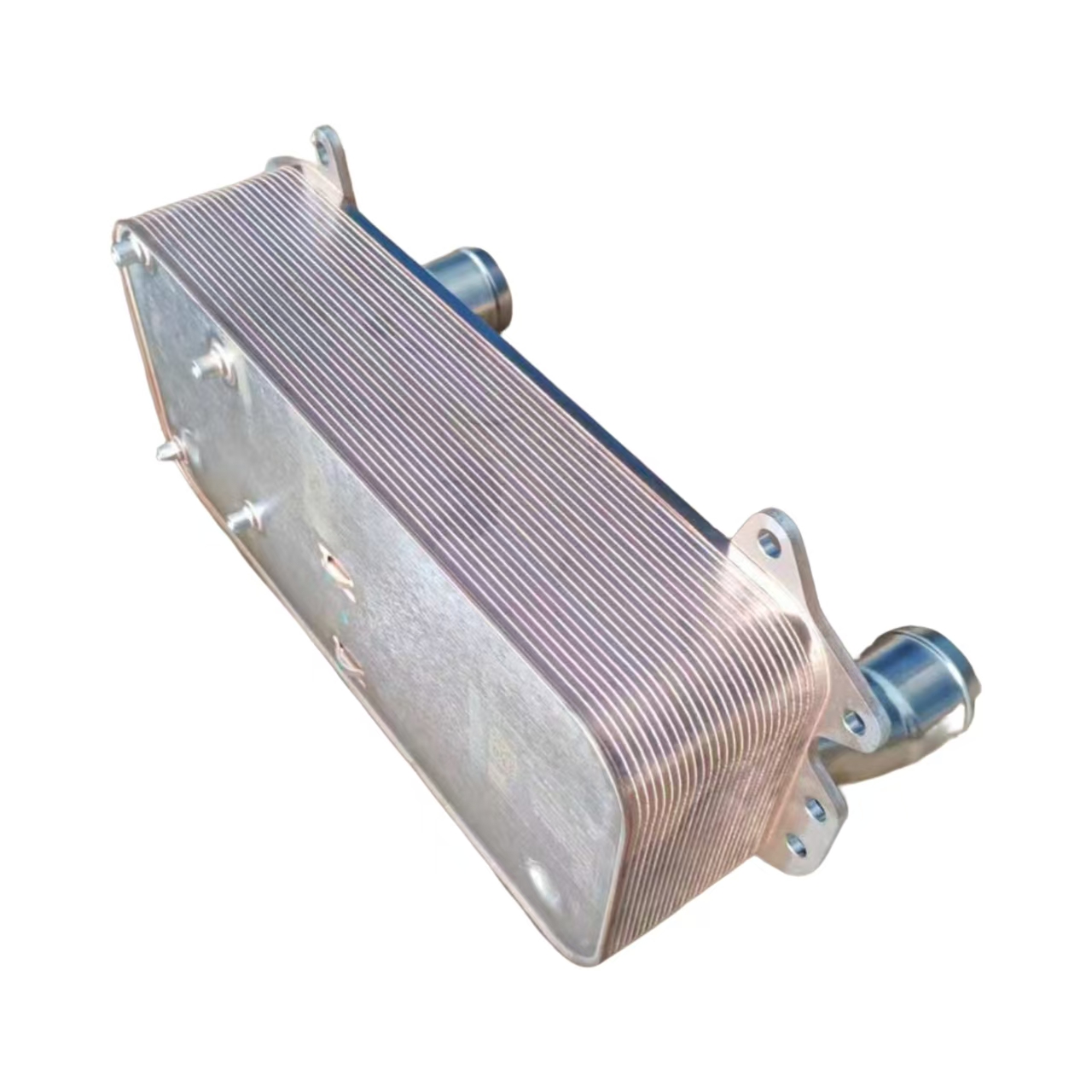

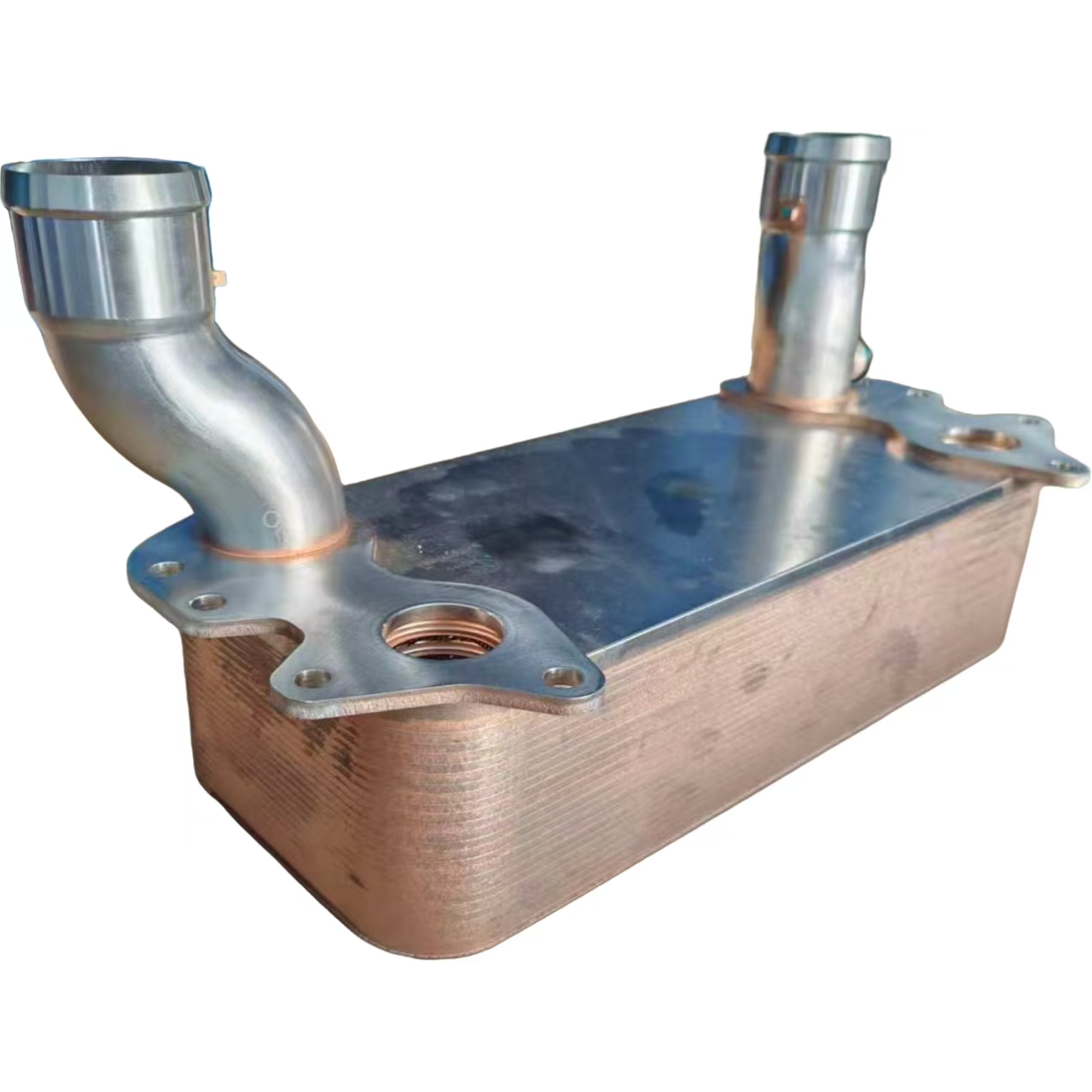

• Product Type: Intarder Retarder Plate Heat Exchanger / Retarder Hydraulic Oil Radiator Assembly

• Brand: ZF OEM Matching Transmission Retarder Cooling System Spare Parts

• Compatible Gearbox: ZF 12TRAXON 12TX series AMT automatic gearbox, ZF 16S Ecosplit series manual transmission with built-in Intarder hydraulic retarder

• Applicable Vehicles: Sinotruk Sitrak, FAW J7, MAN TGS/TGX, DAF CF/XF, Iveco Stralis heavy-duty tractors

• Material: 304 stainless steel integral vacuum brazed plate stack, cast aluminum inlet/outlet joints, HNBR high temperature sealing gaskets

• Net Weight: approx 6.38kg (reference value)

• Matching Components: Intarder retarder housing, retarder proportional valve, engine coolant pipeline, transmission retarder oil circuit

• Working Medium: High-temperature transmission retarder oil + engine antifreeze coolant

• Function: Realize cross heat exchange between retarder hot oil and engine cooling liquid, control retarder operating temperature within safe range, prevent overheating protection shutdown

• Category: Heavy Truck ZF Transmission Intarder Hydraulic Retarder Cooling System Repair Spare Parts

Material & Advantages

1. Full stainless steel plate stack vacuum brazed molding, high heat exchange density, excellent heat dissipation efficiency under continuous heavy braking

2. Anti-corrosion 304 stainless steel core, resistant to coolant acid corrosion and high-temperature gear oil erosion, long service life

3. Integrated cast aluminum oil/water inlet and outlet connectors, standard large-caliber pipe interface, no leakage risk after pipeline assembly

4. Compact stacked plate structure, small installation space, perfect fit original gearbox mounting bracket without modification

5. Multi-layer staggered flow channel design, uniform fluid flow, avoid local high temperature hot spots inside retarder oil circuit

6. Adapt to long-distance mountain downhill transportation, long-time continuous retarder heavy-load working conditions

Application Scenarios

• Replace blocked, leaking, heat-loss original retarder radiator marked 0501 225 382 for ZF gearbox with Intarder

• Fix vehicle faults including retarder rapid overheating, automatic retarder shutdown protection, insufficient retarder braking torque, oil boiling and pipeline oil leakage

• Complete integrated hydraulic retarder disassembly overhaul and cooling system maintenance for fleets equipped with ZF Traxon / 16S series retarder gearbox

• Assemble matched retarder pipeline and sealing gaskets following official ZF Intarder cooling circuit assembly standards

Supply & After-sale

• MOQ: 1 piece

• Warranty: 6–12 months (exclude coolant corrosion blockage, pipeline freeze crack, collision deformation and natural aging)

• Packaging: Independent reinforced wooden case + full shockproof foam wrapping to protect brazed plate core and pipe joints from impact leakage

• Remarks: Confirm gearbox model (12TRAXON or 16S Ecosplit with Intarder) before ordering; clean oil and coolant pipeline thoroughly before new radiator installation to avoid secondary blockage
