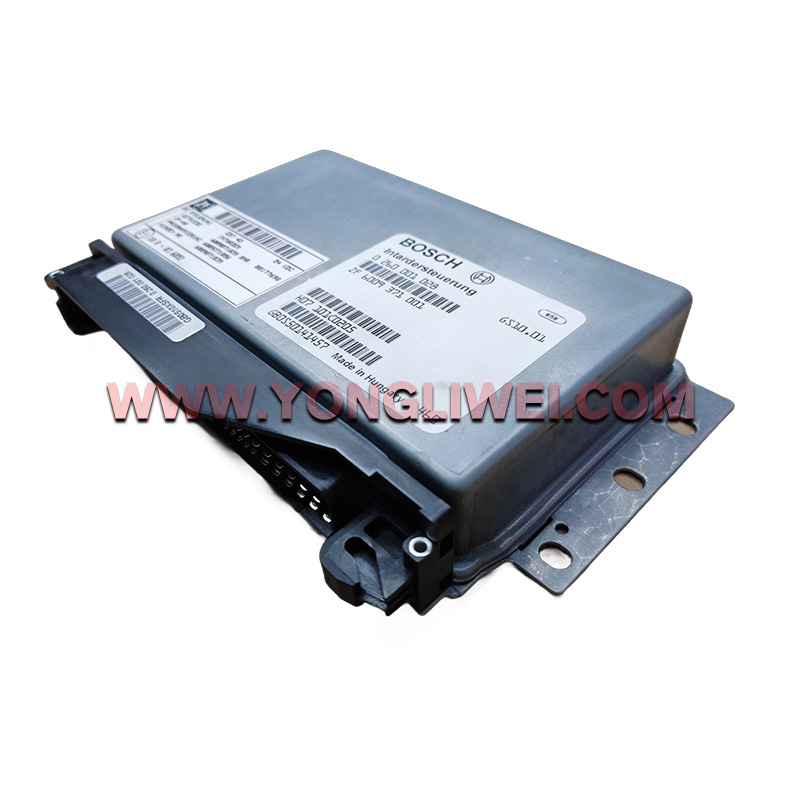

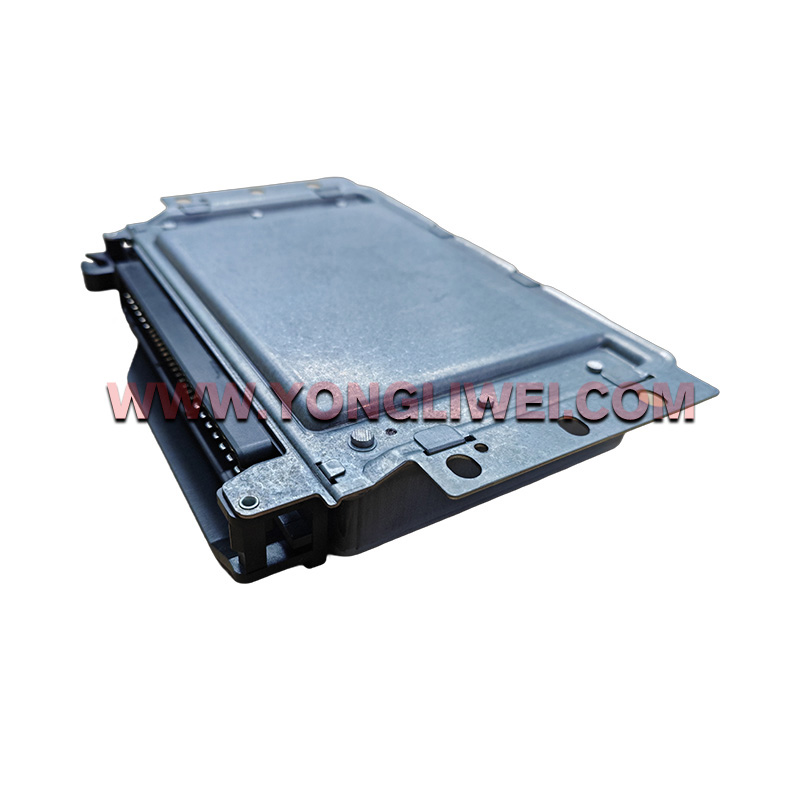

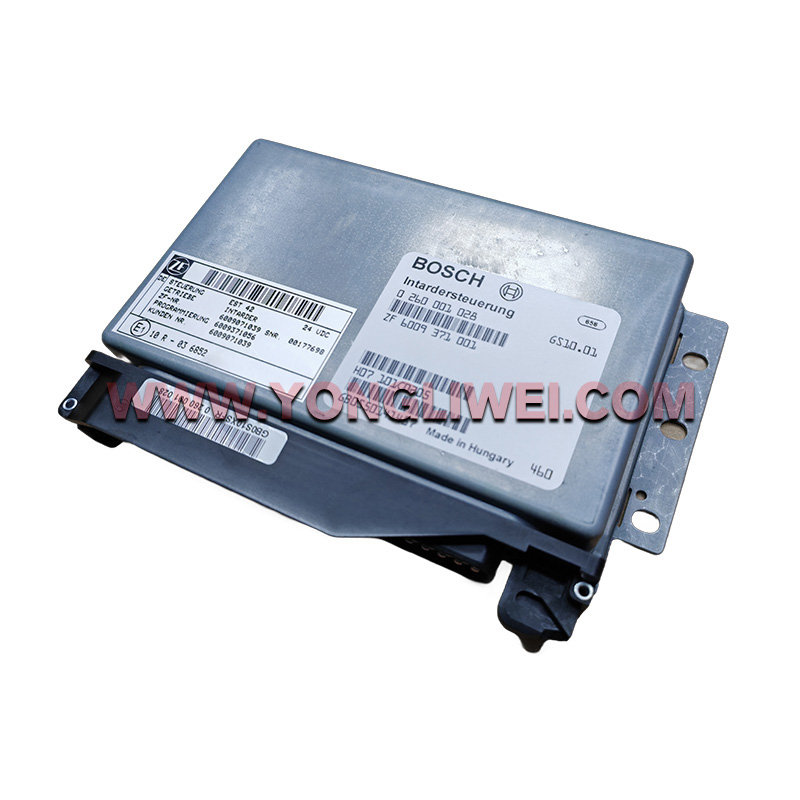

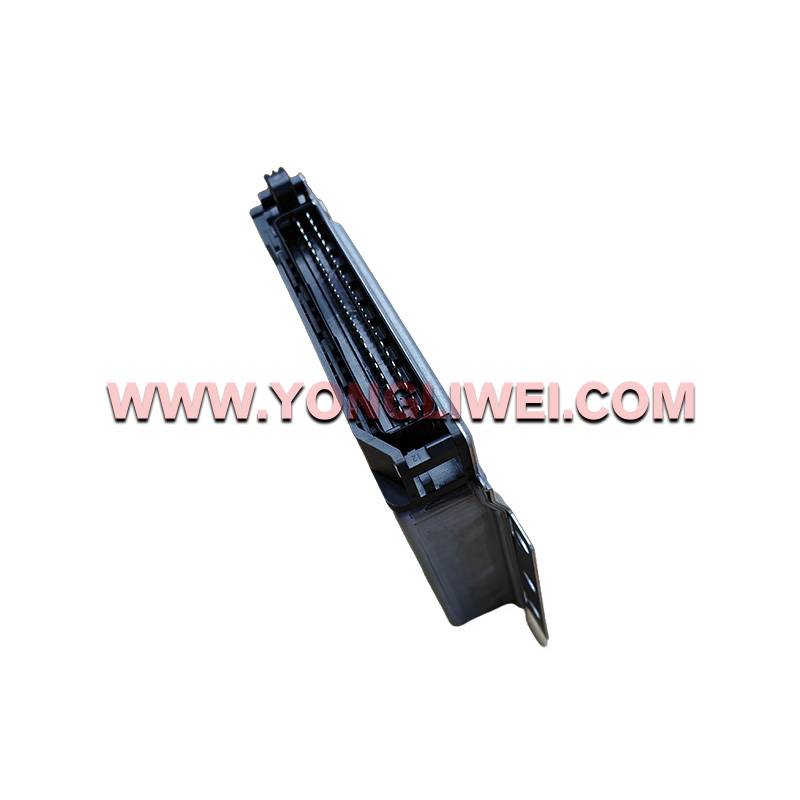

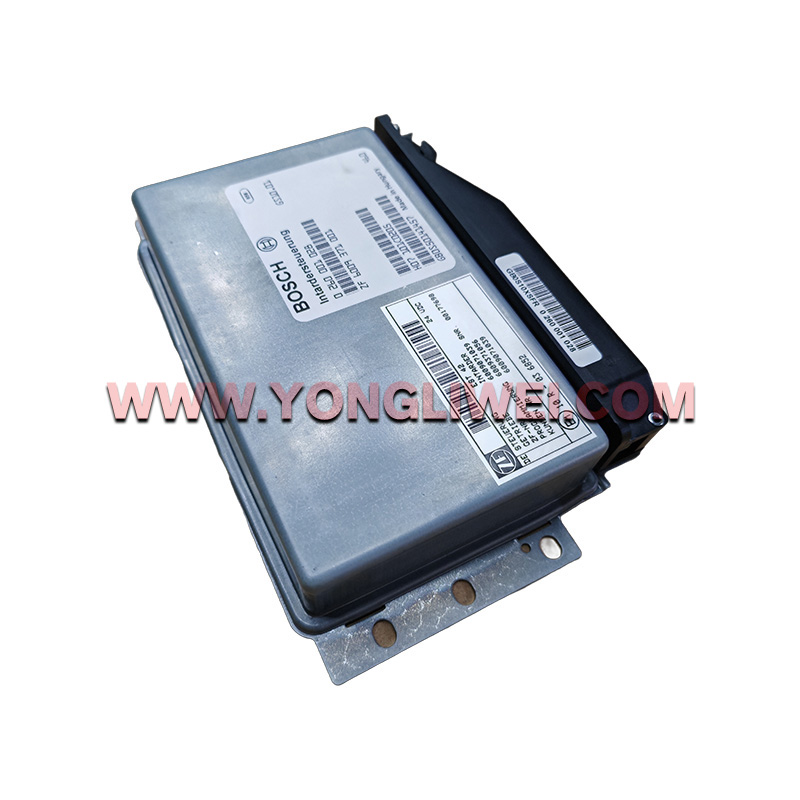

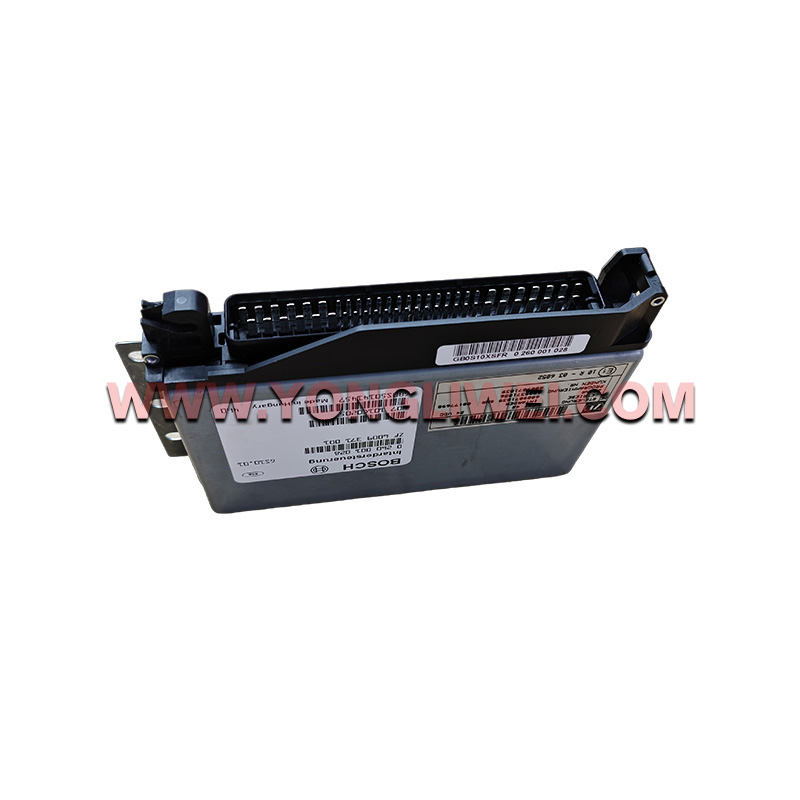

Bus Automatic Transmission Controller Computer Board 6009 371 001

6009 371 001 is ZF original transmission control unit (TCU) computer board for ZF EcoLife 6-speed bus automatic transmissions. It processes speed, pressure and temperature sensor signals, controls solenoid valves and shift logic, to achieve smooth automatic shifting and transmission protection functions. With sealed aluminum housing, anti-vibration circuit design and standard vehicle plug interface, it can be directly replaced after programming/calibration.
Availability:
Quantity:
  • Bus automatic transmission controller computer board 6009 371 001

  • ZF

  • 6009371001

Product parameters

Basic Info

Alias: ZF bus gearbox TCU / transmission electronic control module
Part Number: 6009 371 001
Matching Gearbox: ZF EcoLife 6S series bus automatic transmissions (6S1911BO, 6S1901BO, 6S1701BO etc.)
Applicable Vehicles: Yutong, Kinglong, Higer, MAN, Volvo city buses & intercity tourist coaches
Category: Bus ZF Transmission Electrical Parts – TCU Control Computer Board

Material & Advantages

  • Die-cast aluminum sealed housing, dustproof, waterproof and anti-electromagnetic interference

  • High-grade automotive PCB with anti-vibration coating, stable operation under long-term vibration

  • Built-in temperature monitoring, overheat protection, fault diagnosis and DTC storage functions

  • Original pin layout and connector interface, compatible with original vehicle wiring harness

  • Requires professional ZF diagnostic tool for parameter matching and adaptive learning after installation

  • Pass high-low temperature aging, vibration durability and signal stability bench tests before delivery

Application

For urban transit buses, school buses and airport shuttle coaches equipped with ZF 6S series automatic gearboxes. It solves gear shift disorder, fault codes, limp mode and abnormal shifting caused by damaged or failed original TCU boards

Origin & Lead Time

In stock, delivery within 1–3 working days; bulk orders: 4–7 days; sea freight: 10–24 days


MOQ & Packing

MOQ: 1 piece
Warranty: 6 months, not covered for improper programming, water damage, overvoltage and unauthorized circuit modification
Packing: Anti-static bag + shockproof foam + reinforced export carton
