Construction Machinery Transmission Filter 3312 199 031

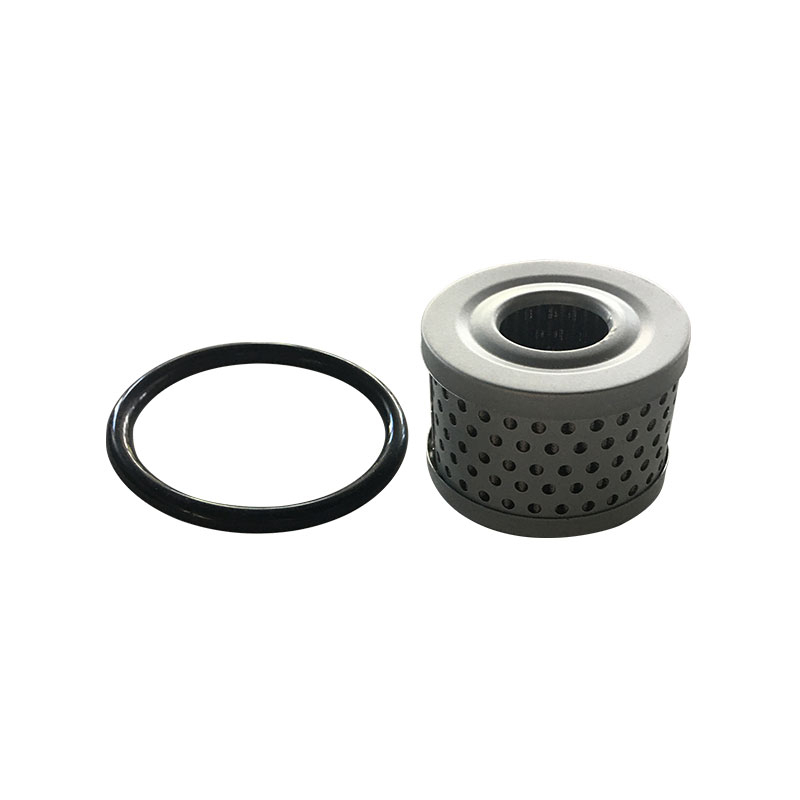

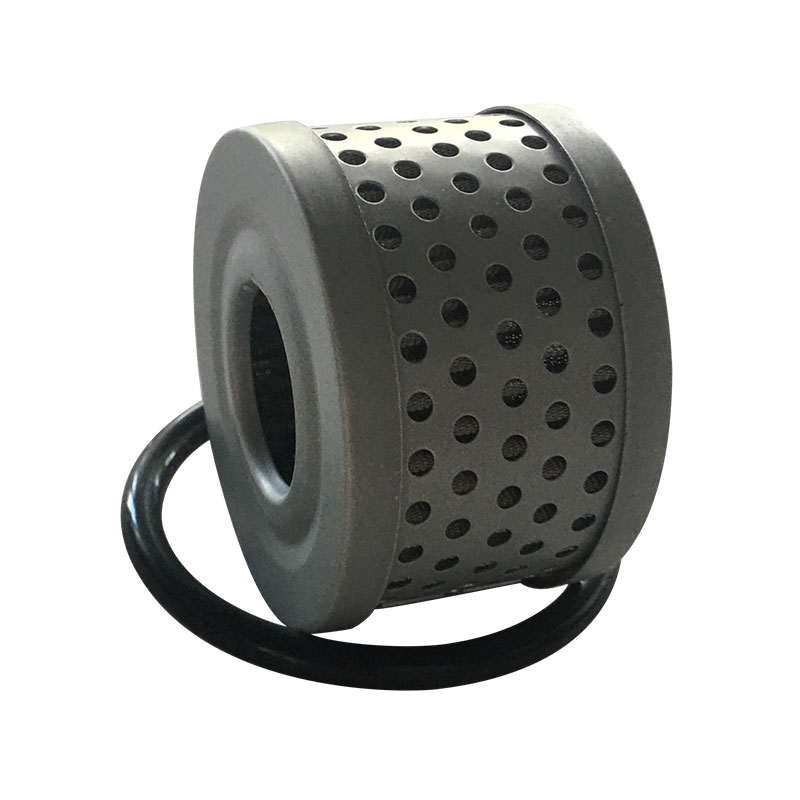

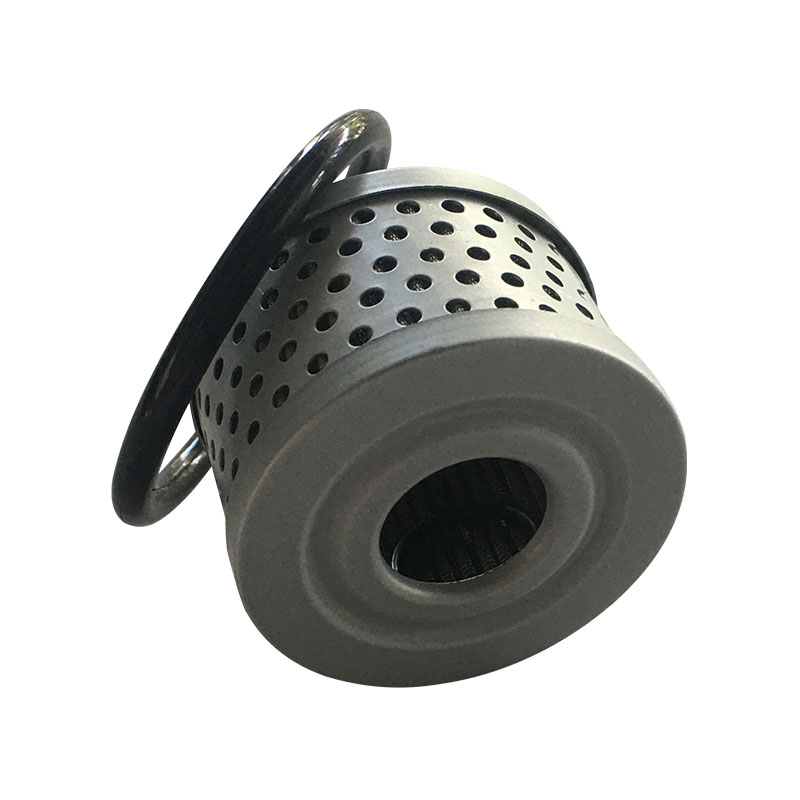

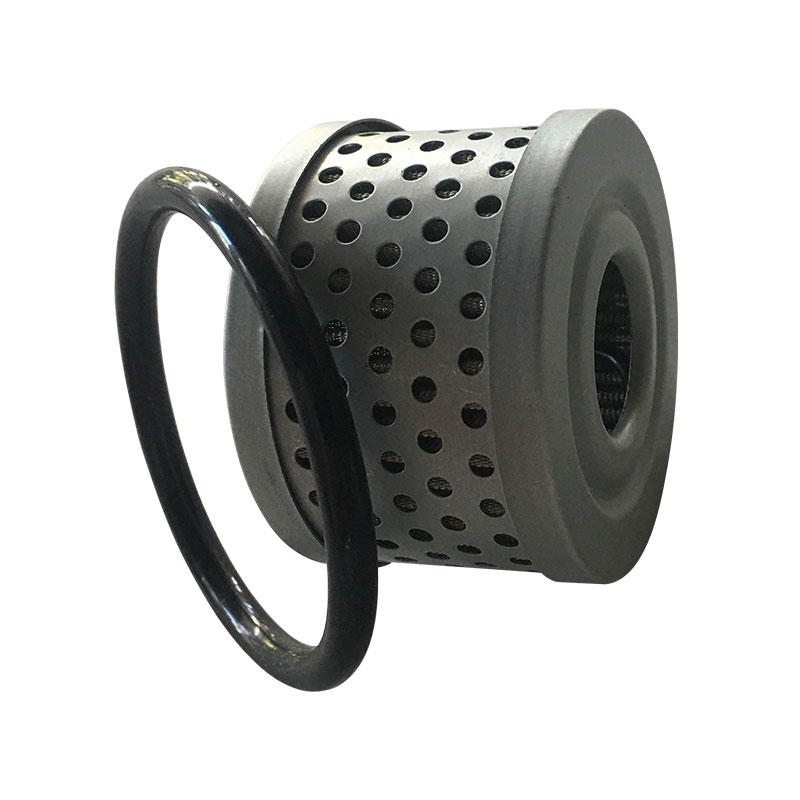

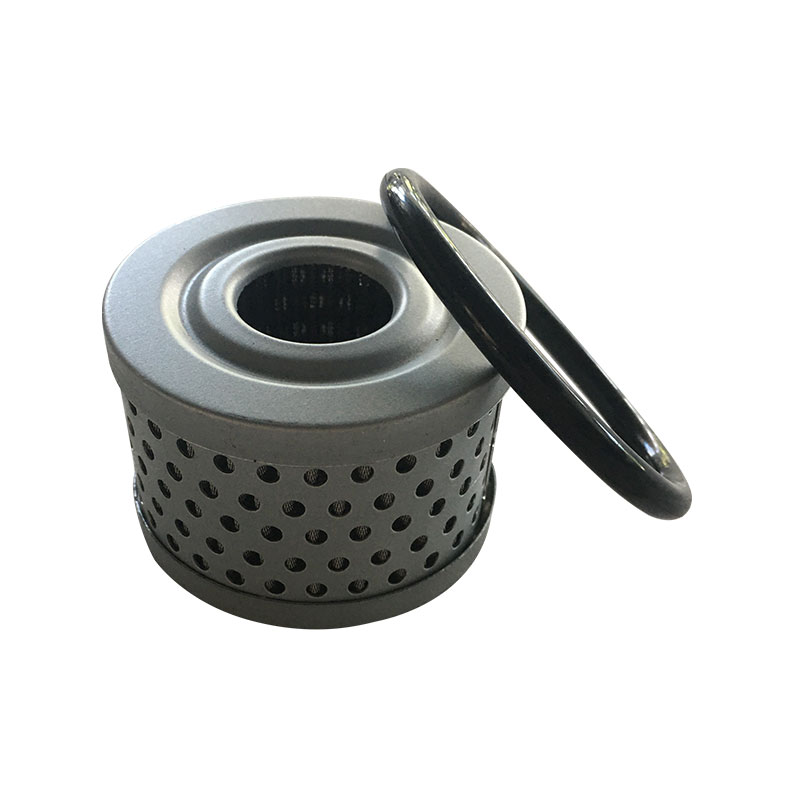

3312 199 031 is OEM transmission oil filter cartridge for ZF 45/63/85 series gearboxes, equipped with matching sealing O-ring. It traps metal particles and impurities in hydraulic oil, protects gear, valve and pump from abrasion, avoids slow shifting and oil channel blockage. Standard dimension for direct replacement.
Availability:
Quantity:
  • Construction machinery transmission filter 3312 199 031

  • Construction machinery transmission filter 3312 199 031

  • Construction machinery transmission filter 3312 199 031

Product parameters

Basic Info

Alias: ZF gearbox hydraulic filter element / construction machinery transmission filter kit
Product Name: Construction Machinery ZF Transmission Filter OEM 3312 199 031
Cross Ref: 3312301037, 3582069, SH62357
Applicable Gearbox: ZF45, ZF63, ZF63A, ZF63IV, ZF80-1A, ZF85 transmission
Applicable Equipment: Excavator, loader, marine vessel, engineering construction machinery

Category: Construction Machinery ZF Transmission Maintenance Parts – Filter Element Kit



Weight Parameter

Net Weight: 0.12KG
Gross Weight: 0.15KG with plastic bag packing
Size: OD59mm, ID24.5mm, Height41mm


Material & Feature


    1. Multi-layer fine filter paper with metal support mesh, high precision filtration

    2. Perforated steel outer shell, anti-deformation under hydraulic pressure impact

    3. Complete with HNBR sealing ring, tight assembly to prevent oil bypass

    4. Stable filtration performance under high temperature hydraulic oil environment

    5. Pass flow resistance and dirt holding capacity test before delivery

Application

Fit construction machinery and marine vessels with ZF 45/63/85 series gearbox, suitable for high-dust heavy-duty construction working conditions. Service cycle: 300 working hours or 1 year.


Origin & Lead Time

Spot stock, delivery in 1–3 working days; bulk orders 4–7 days; sea shipping 10–22 days.



MOQ & Packing

MOQ: 1 piece
Warranty: 3–6 months, invalid for long-term clogging and artificial damage
Packing: Independent oil-proof plastic bag + bubble wrap + neutral export carton
