Basic Info
Alias: Clutch Servo / Clutch Booster Actuator / Air Hydraulic Clutch Slave Booster Pump

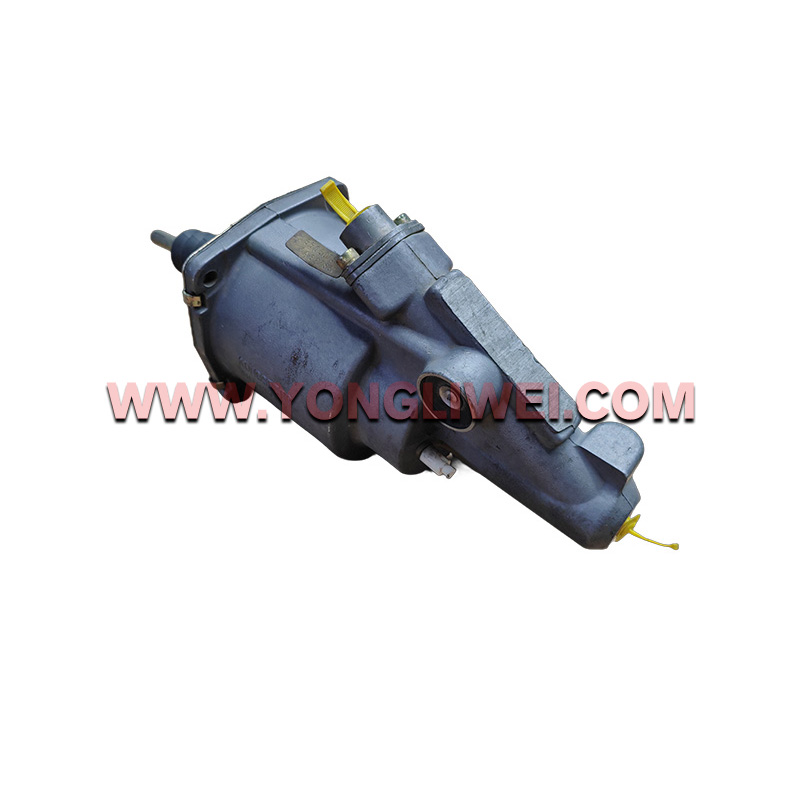

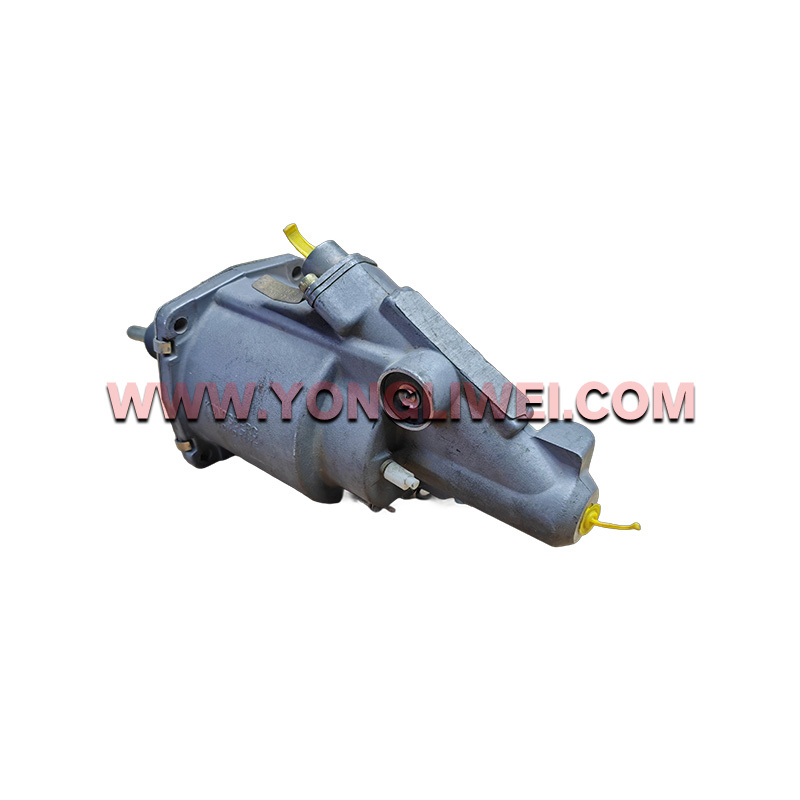

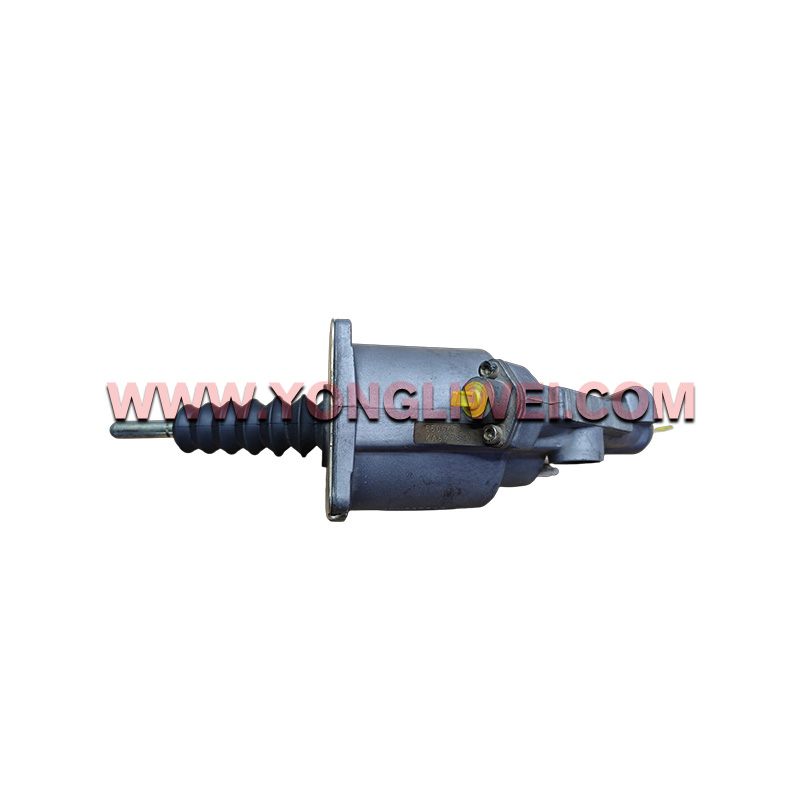

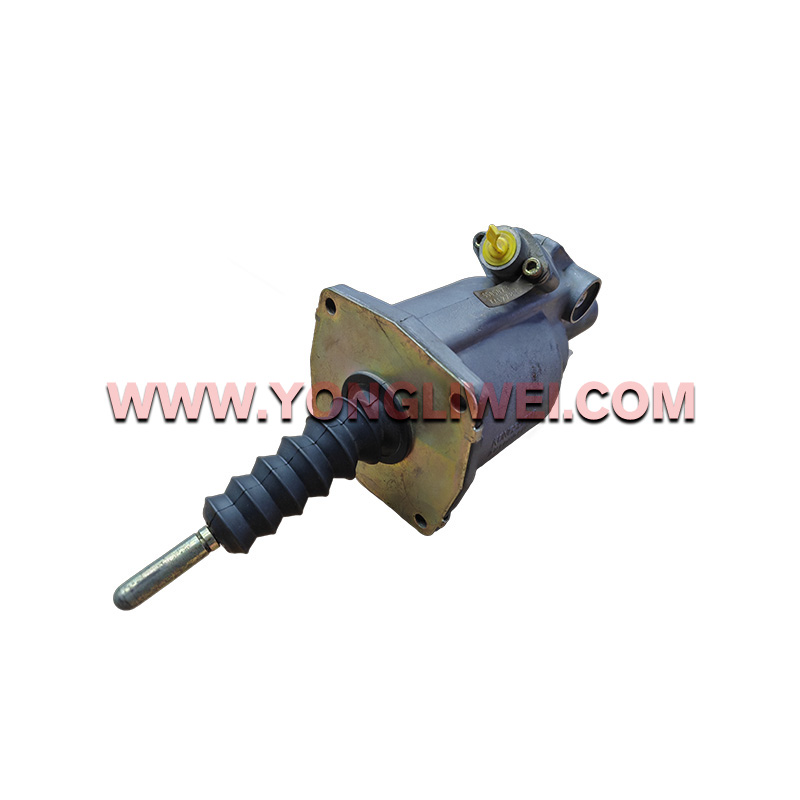

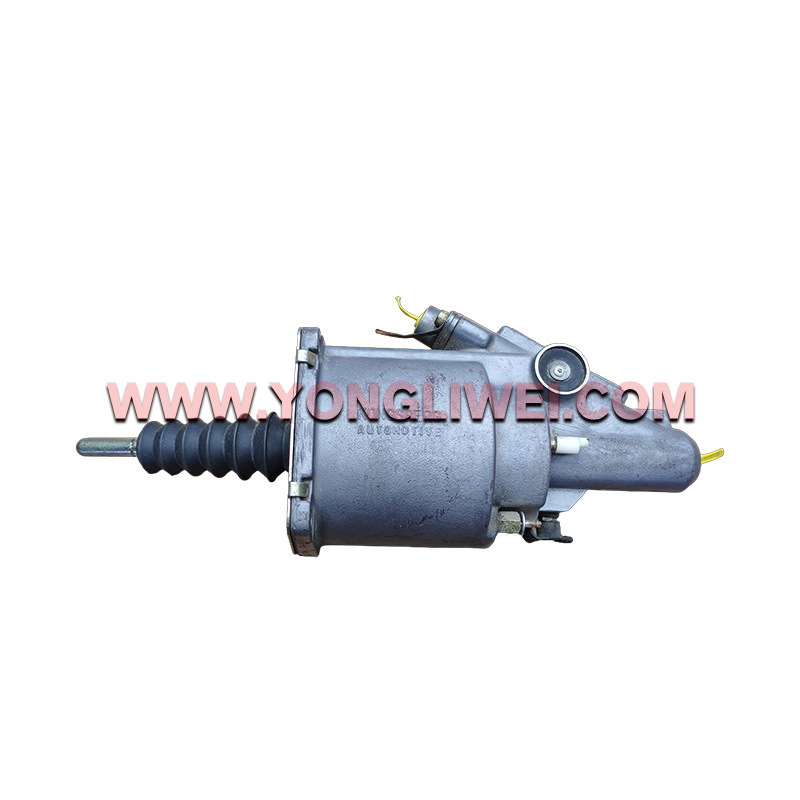

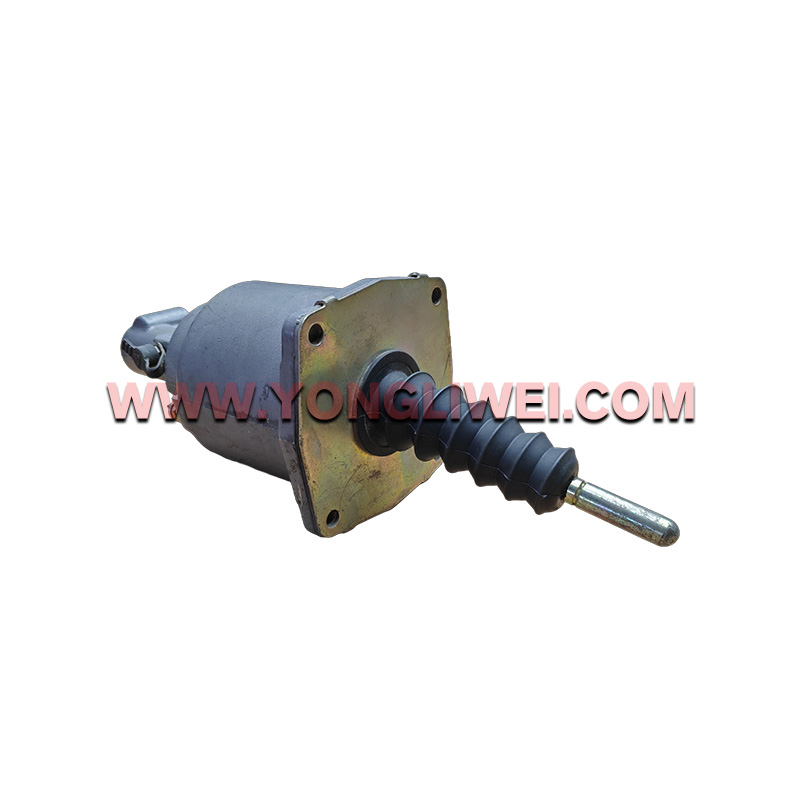

Product Name: Transmission Booster Sub-Pump OEM 5505073 (KA627831)
Brand: Kongsberg
Applicable Vehicles: MAN TGX/TGS, DAF XF/CF, Volvo FM, Iveco Trakker heavy tractors equipped with ZF Ecomid gearbox
Category: Heavy Truck Transmission Clutch Parts – Pneumatic Hydraulic Clutch Booster Assembly
Weight Parameter
Net Weight: 2.1KG
Gross Weight: 2.6KG with export carton packing
Material & Feature
High-density die-cast aluminum alloy main housing, light weight and strong corrosion resistance against brake fluid and high temperature;
Integrated air cylinder + hydraulic cylinder dual-chamber structure, large boosting ratio to reduce driver pedal load;
Wear-resistant nitrile rubber sealing rings inside, anti-aging, effectively prevent air and oil leakage under long-time vibration;
Standard air inlet, hydraulic oil port and mounting flange fully consistent with Kongsberg OEM parameters, no pipeline modification required;
Built-in dust-proof corrugated protective cover to block road mud, dust and rainwater erosion;
Precision internal piston and push rod assembly, stable stroke output without jamming during frequent shifting;
Strict air tightness test, hydraulic pressure cycle fatigue test and high-low temperature aging test before delivery, stable working performance at -30℃~120℃.
Application
Perfectly matched European heavy-duty logistics tractors, bulk cargo trucks, refrigerated semi-trailers and construction transport vehicles with ZF manual gearbox; widely used in cross-border highway transportation, mountain full-load freight and long-distance highway delivery scenarios.
Origin & Lead Time
Shiyan warehouse spot stock, deliver 1–2 working days after payment; bulk wholesale orders 3–5 working days, sea shipping cycle 7–18 days.
MOQ & Packing
MOQ: 1 piece
Warranty: 4–6 months, warranty void for man-made pipeline damage, improper installation and long-term lack of brake fluid maintenance
Packing: Anti-rust protective film + shockproof bubble wrap + thick neutral export carton, moisture-proof and anti-collision for long ocean transportation
