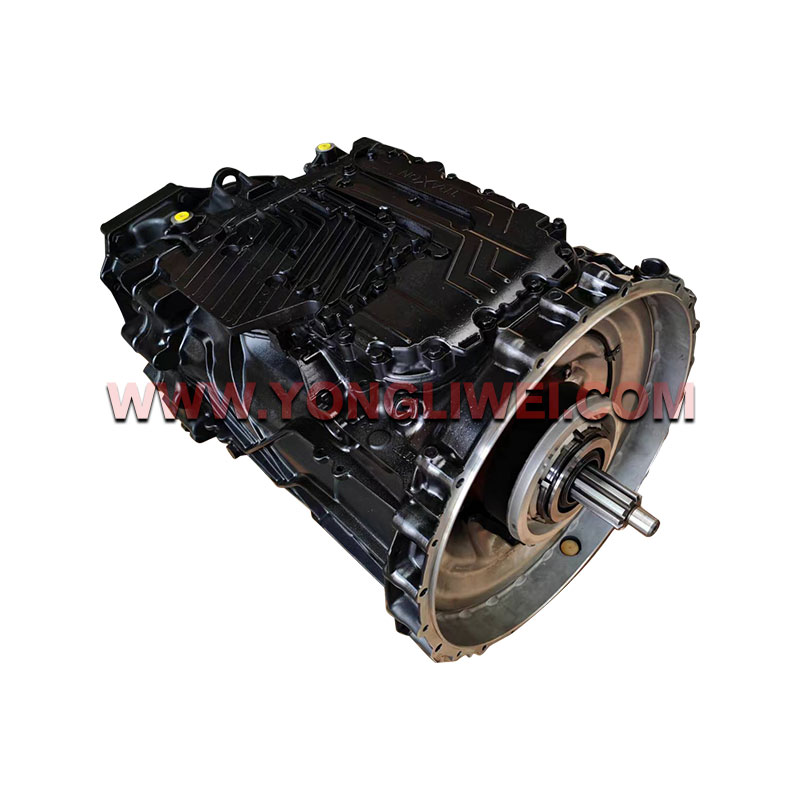

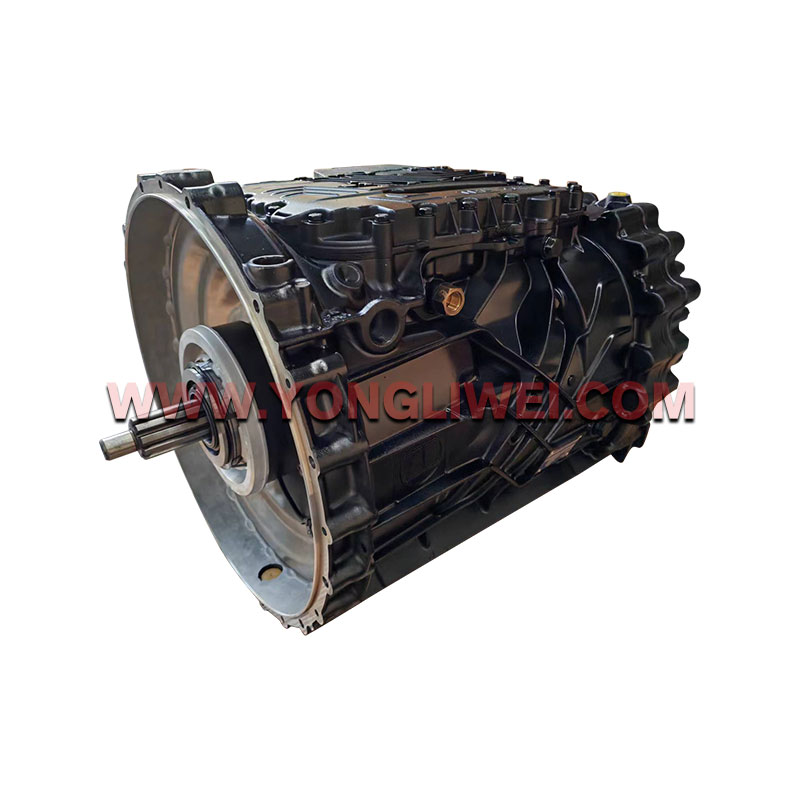

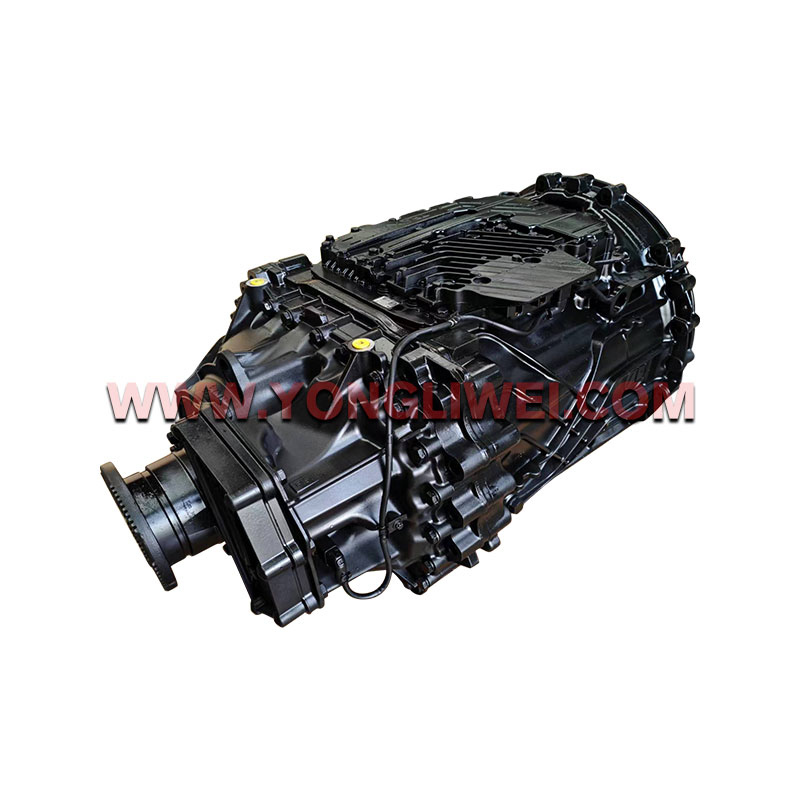

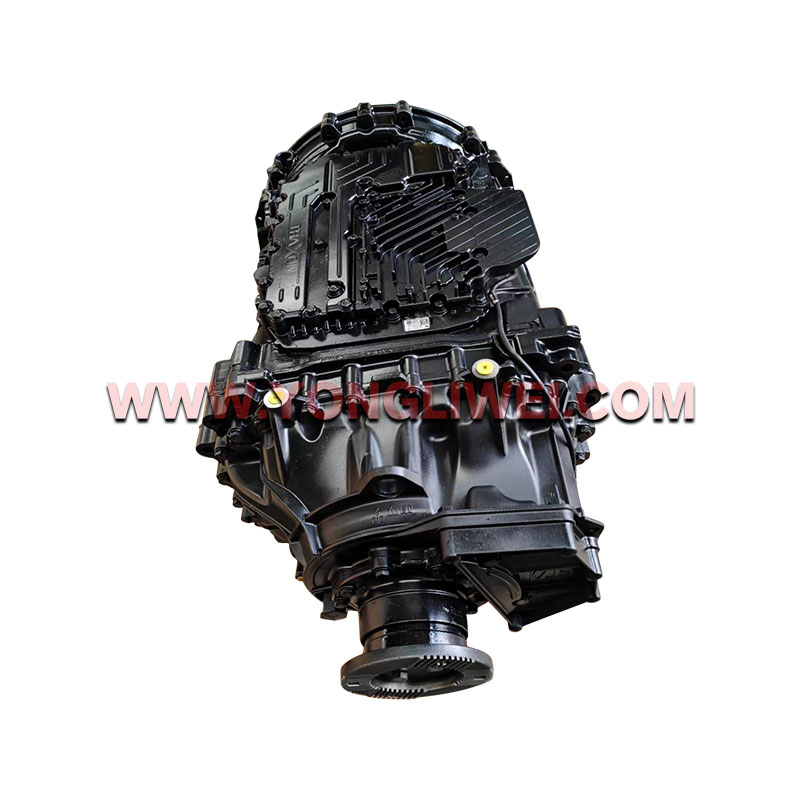

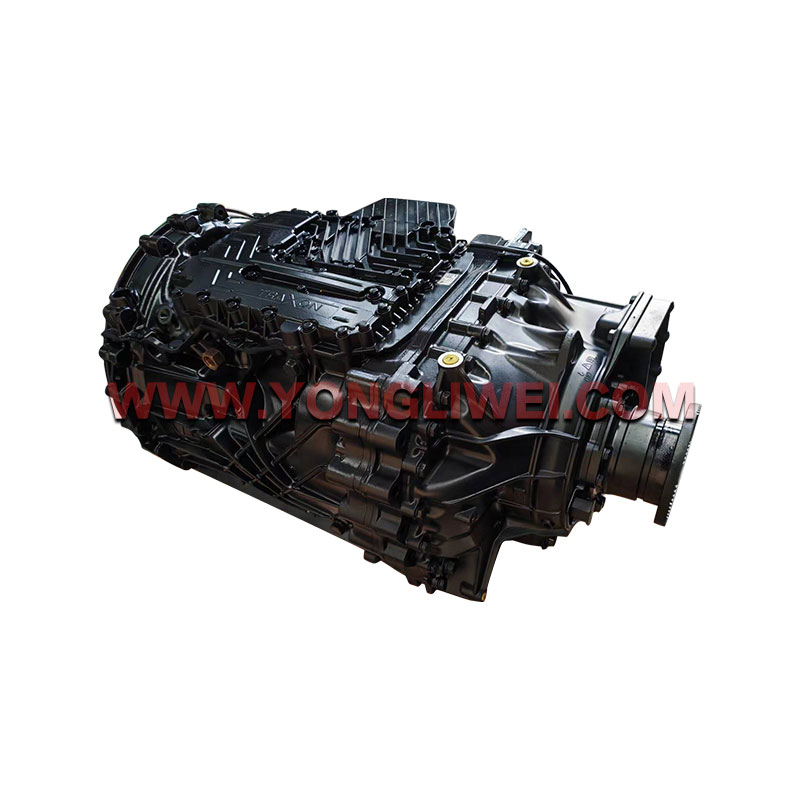

ZF 12TX2420TD automatic transmission assembly

ZF 12TX2420TD is ZF TraXon series 12-speed AMT automatic transmission assembly, max input torque 2400Nm, 12 forward + 4 reverse gears, direct drive design. Equipped with integrated shift actuator, built-in cooling circuit and optional dual PTO interface. Intelligent automatic shift program reduces fuel consumption, adapts highway, mountain and heavy haul working conditions. All OEM standard structure for direct vehicle matching installation.
Availability:
Quantity:
  • ZF 12TX2420TD automatic transmission assembly

  • ZF 12TX2420TD automatic transmission assembly

  • ZF 12TX2420TD automatic transmission assembly

Product parameters

Basic Info

Alias: ZF TraXon 12-speed full AMT gearbox assembly
Product Name: ZF 12TX2420TD Complete Automatic Transmission Assembly
Series: ZF TraXon AMT automatic transmission
Core Spec: 12 forward / 4 reverse gears, Max input torque 2400Nm, Direct drive (TD)
Net Weight: 265KG
ATF Oil Capacity: 13.5L
Category: Heavy Truck Complete Powertrain Parts – 12-speed AMT Transmission Assembly


Applicable Gearbox & Vehicles

Gear ratio range: 16.688 (1st) ~ 1.0 (12th direct gear)
Domestic models: Sinotruk Sitrak C7H, Foton Auman GTL/EST, FAW J7, Dongfeng Kinland
European models: MAN TGX/TGS, DAF XF, Volvo FM/FH matching TraXon platform
Application vehicles: Long-distance logistics tractor, bulk cement tanker, refrigerated semi-trailer, plateau heavy haul truck


Material & Feature

  1. Integrated die-cast aluminum housing with reinforced ribs, lightweight and high torsional rigidity

  2. All-in-one top cover shift controller built-in high/low range hydraulic actuator, stable gear shifting

  3. Optimized intelligent shift logic with coasting function, effectively cut fuel consumption

  4. Independent dual cooling oil circuit, stable heat dissipation during long downhill retarder operation

  5. Standard dual PTO installation ports, compatible with various upper equipment

  6. Complete matching OEM internal spare parts, easy maintenance and replacement

  7. Strict bench test for torque bearing, shift smoothness and hydraulic tightness before delivery


Application

Suitable for cross-country highway trunk transportation, mountain long-downhill heavy haul, plateau full-load and cold-region logistics, balance climbing power and high-speed fuel economy.


Origin & Lead Time

Spot stock, deliver in 2–3 working days; bulk orders 5–8 days; sea shipping 10–24 days.


MOQ & Packing

MOQ: 1 set
Warranty: 6–12 months, invalid for overload driving, inferior gear oil and artificial disassembly damage
Packing: Anti-rust oil coating + full plastic wrapping + shockproof foam + reinforced export wooden case
