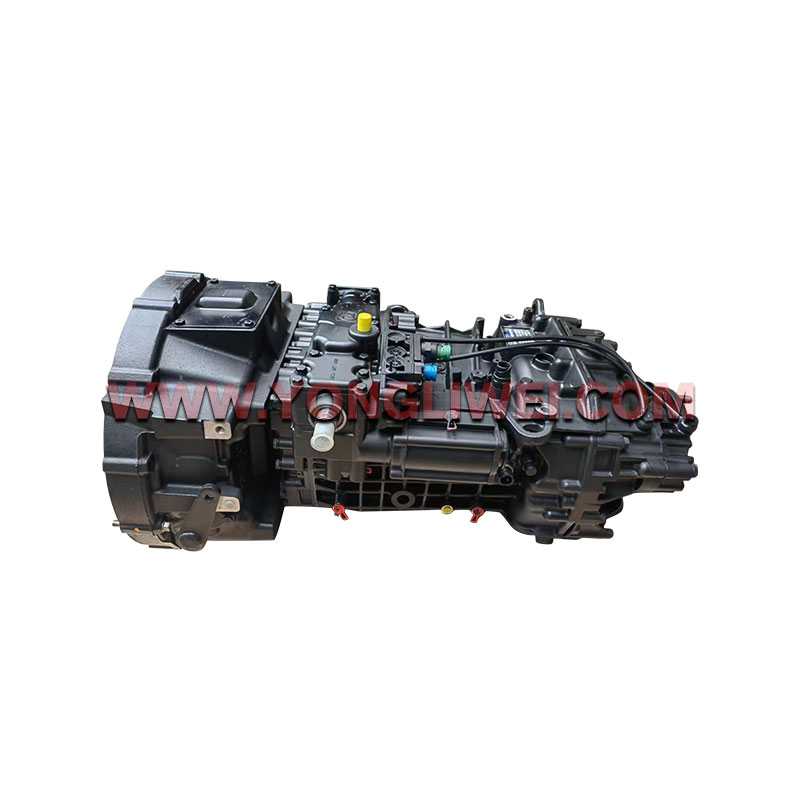

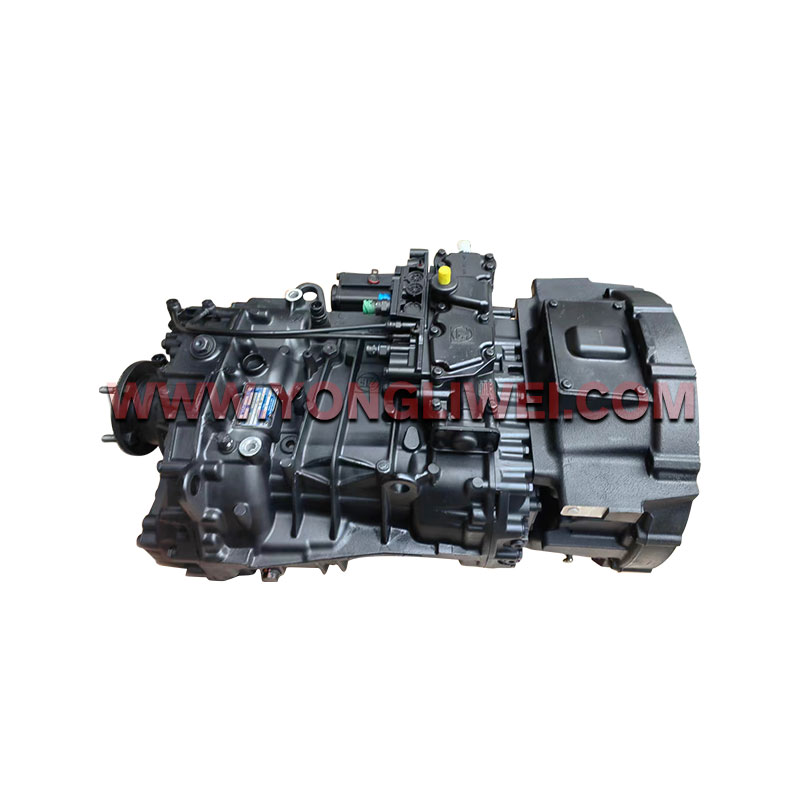

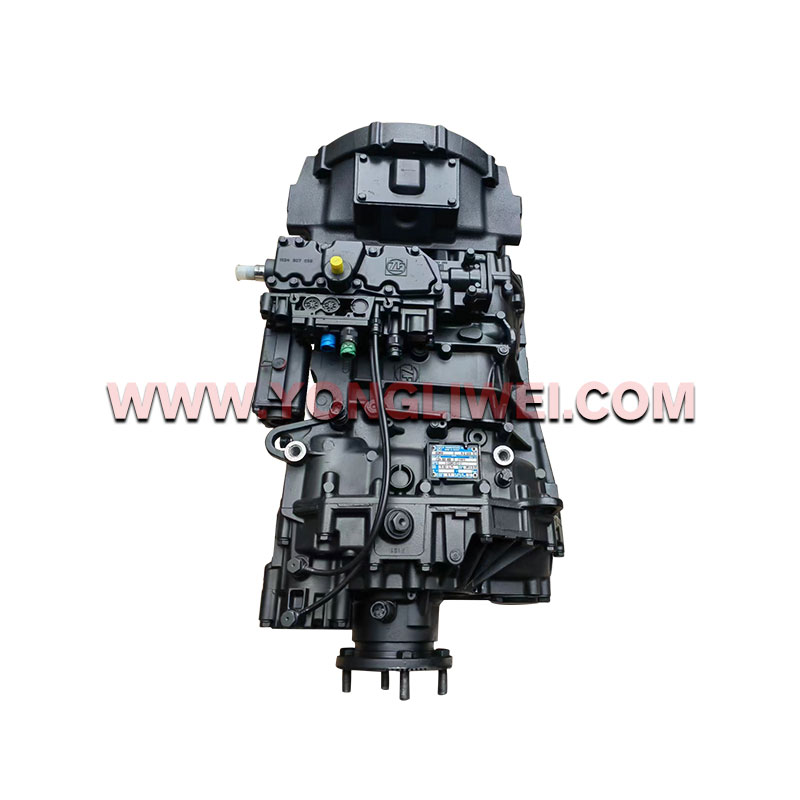

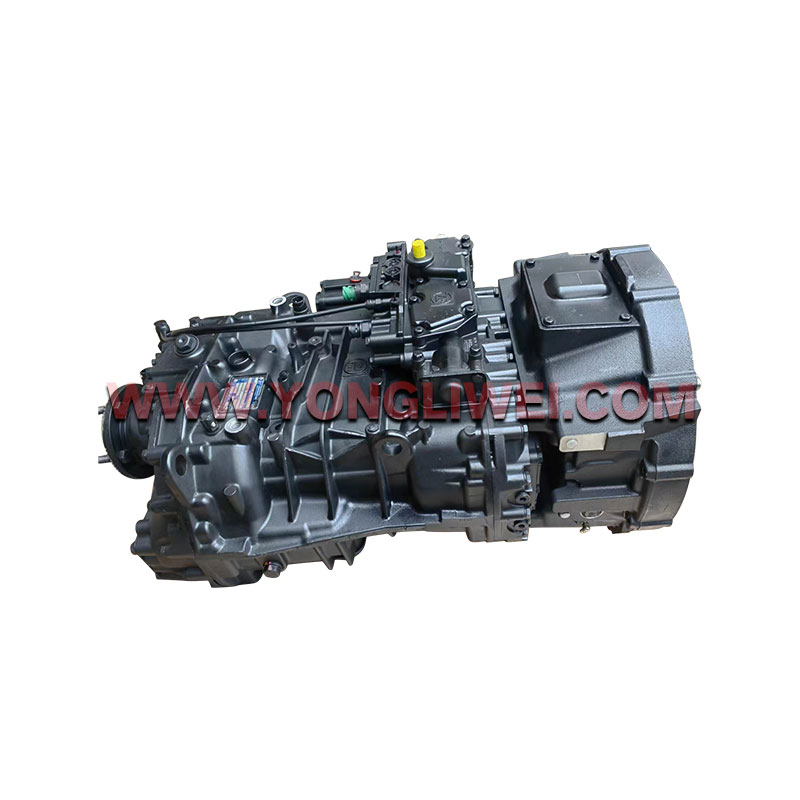

ZF 9S1110TD Transmission Assembly
ZF 9S1110TD Transmission Assembly
ZF 9S1110TD Transmission Assembly
Forward gears: 9 gears | Reverse gear: 1 gear
Max input torque: 1100 N·m
Main box center distance: 154 mm
Transmission oil capacity: 14.5 L, oil specification API GL-4 SAE 80W
Full transmission net weight: 190 KG
Gear Ratio Table
1st:12.73 / 2nd:8.83 / 3rd:6.28 / 4th:4.64 / 5th:3.48 / 6th:2.54 / 7th:1.81 / 8th:1.34 / 9th:1.00 (Direct Drive) / Reverse:12.04
Integrated die-cast aluminum alloy clutch housing & main box, lightweight high-rigidity structure, effectively reduce whole vehicle weight, anti-deformation under long-term 1100Nm medium torque operation;
Twin countershaft layout, all forward gears adopt multi-cone full synchronizer, light shift force, smooth gear switching and low running noise;
All gear sets use 20CrMnTi carburized alloy steel, vacuum quenching + precision helical tooth grinding, outstanding wear resistance and long service life;
TD direct-drive 9th gear design, small speed ratio step, outstanding fuel economy for highway medium-load transportation;
Built-in forced circulating lubrication oil channel, uniform oil supply for internal bearings and synchronizers to avoid dry friction damage;
Standard side wall PTO reserved interface, compatible with sanitation water truck, sprinkler and hydraulic auxiliary equipment;
Complete supporting shift mechanism, neutral switch, speed sensor and original wiring harness, one-stop complete assembly replacement;
High temperature resistant nitrile rubber sealing gaskets on all joint surfaces, stable sealing within -30℃~130℃ gearbox working temperature;
Strict full-load torsion impact test, continuous shift cycle simulation and hydraulic sealing leakage test before delivery, stable transmission performance for long-distance medium haul freight.
