| Quantity: | |
|---|---|
1324 301 169
ZF
1324 301 169
OE Part No.: 1324 301 169
Alternative OEM Codes: DAF 1898259, Mercedes 0022610030, MAN 81321060265, ZF 1324 301 170

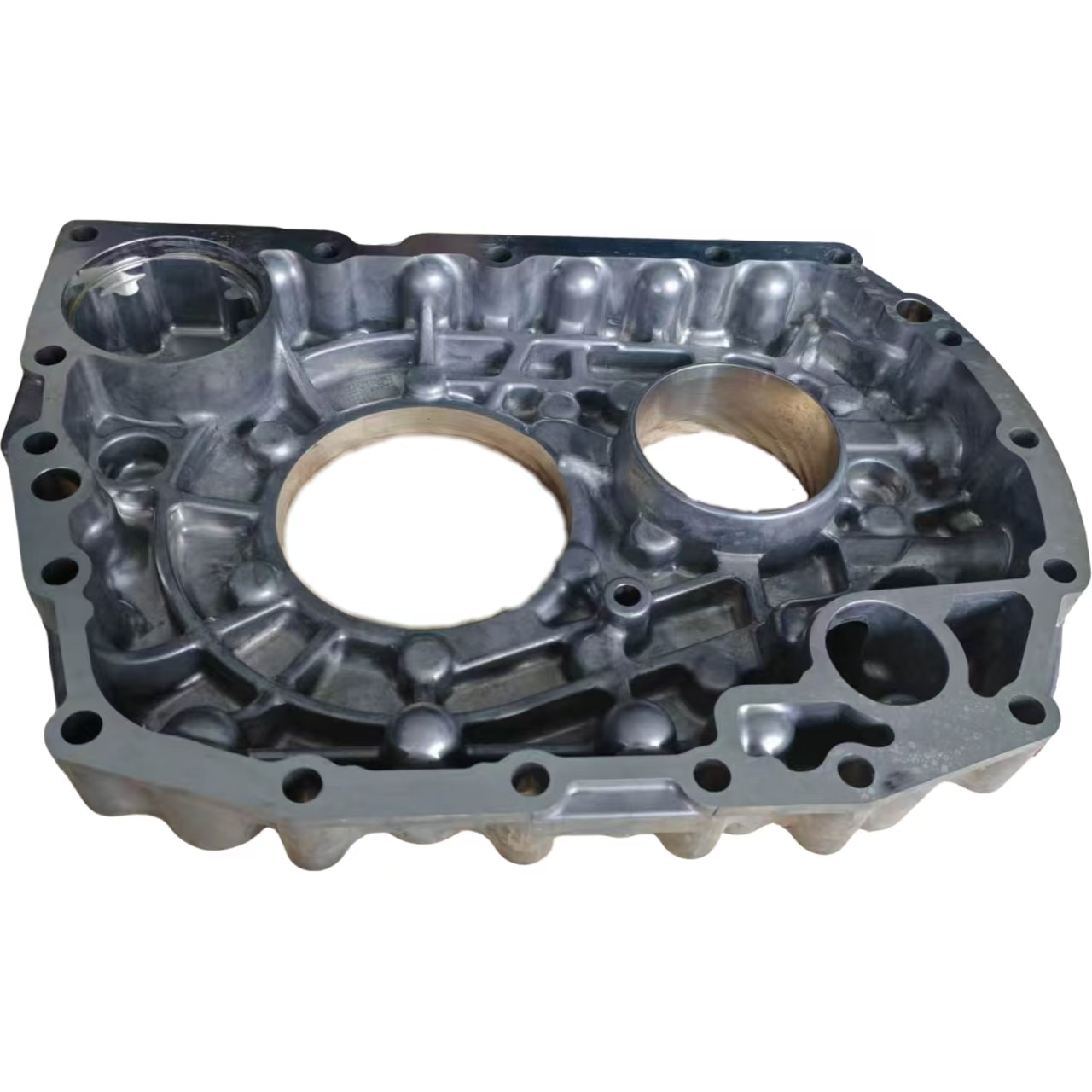

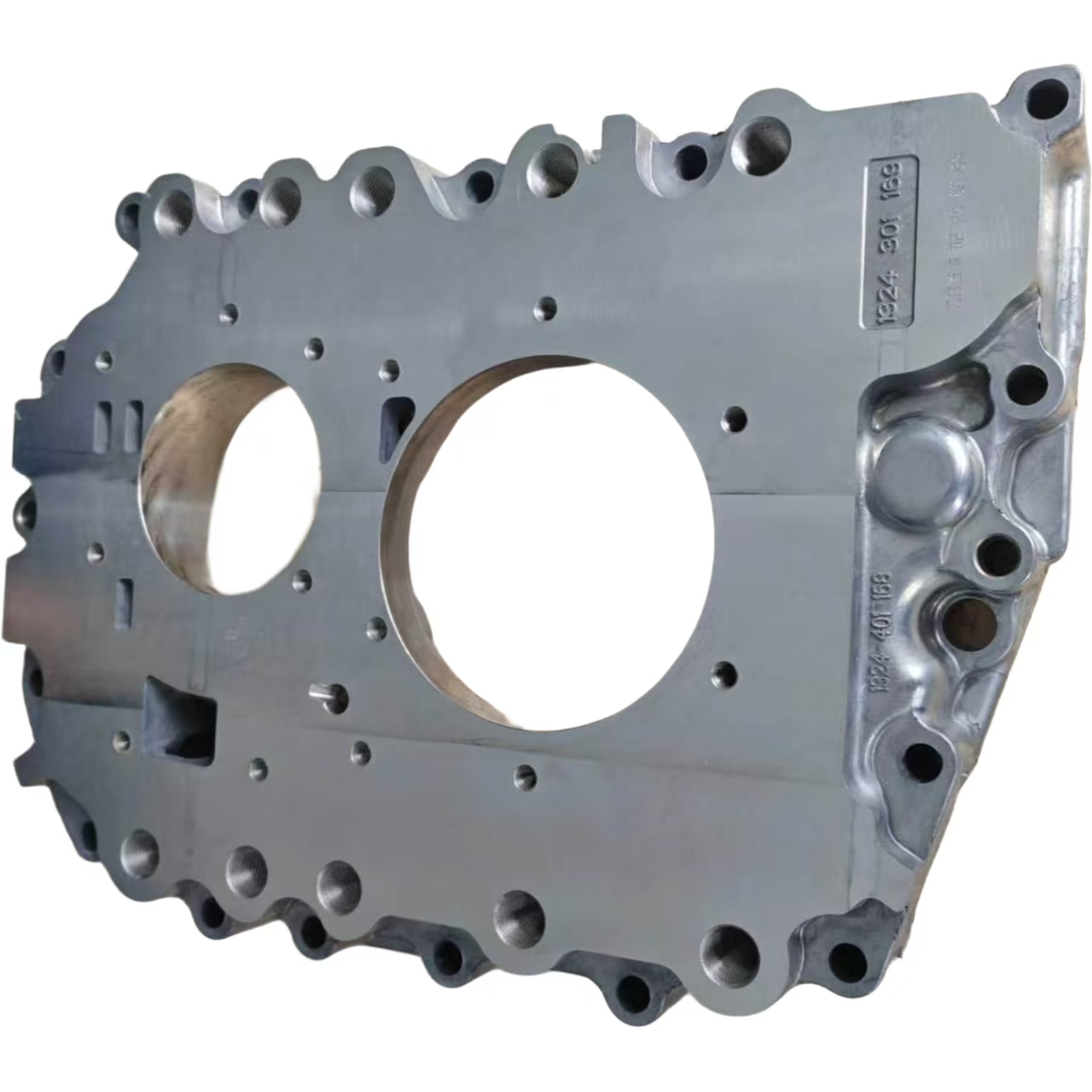

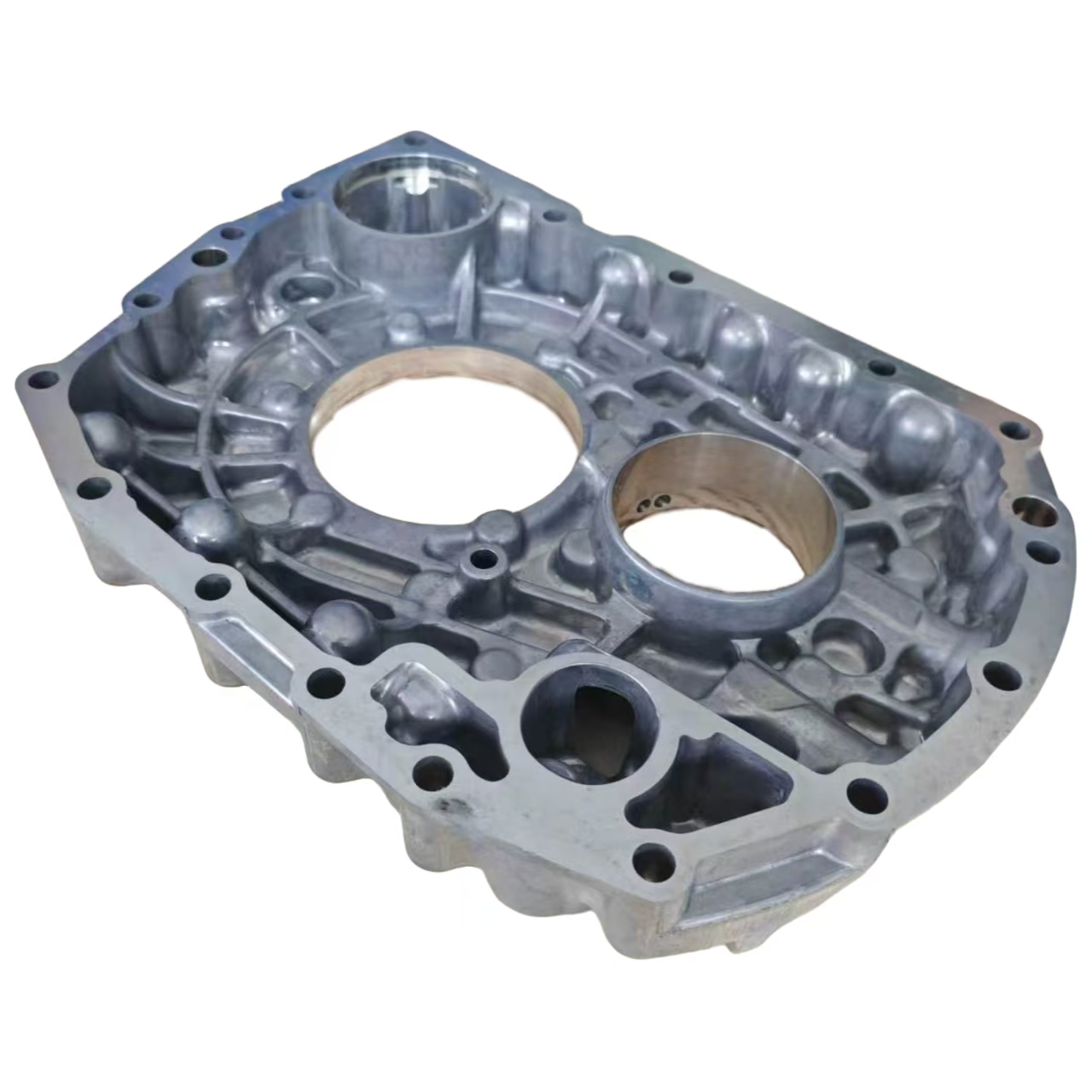

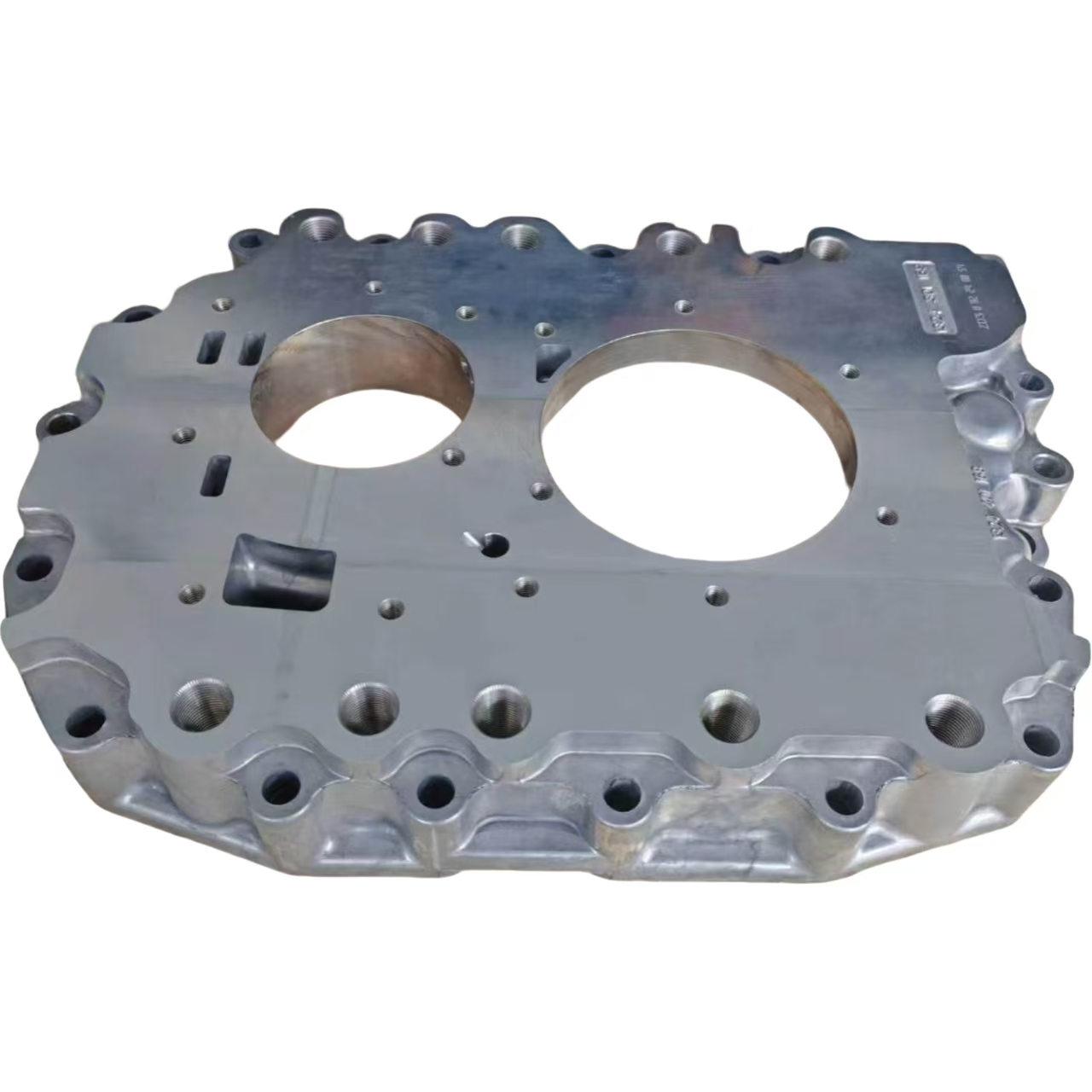

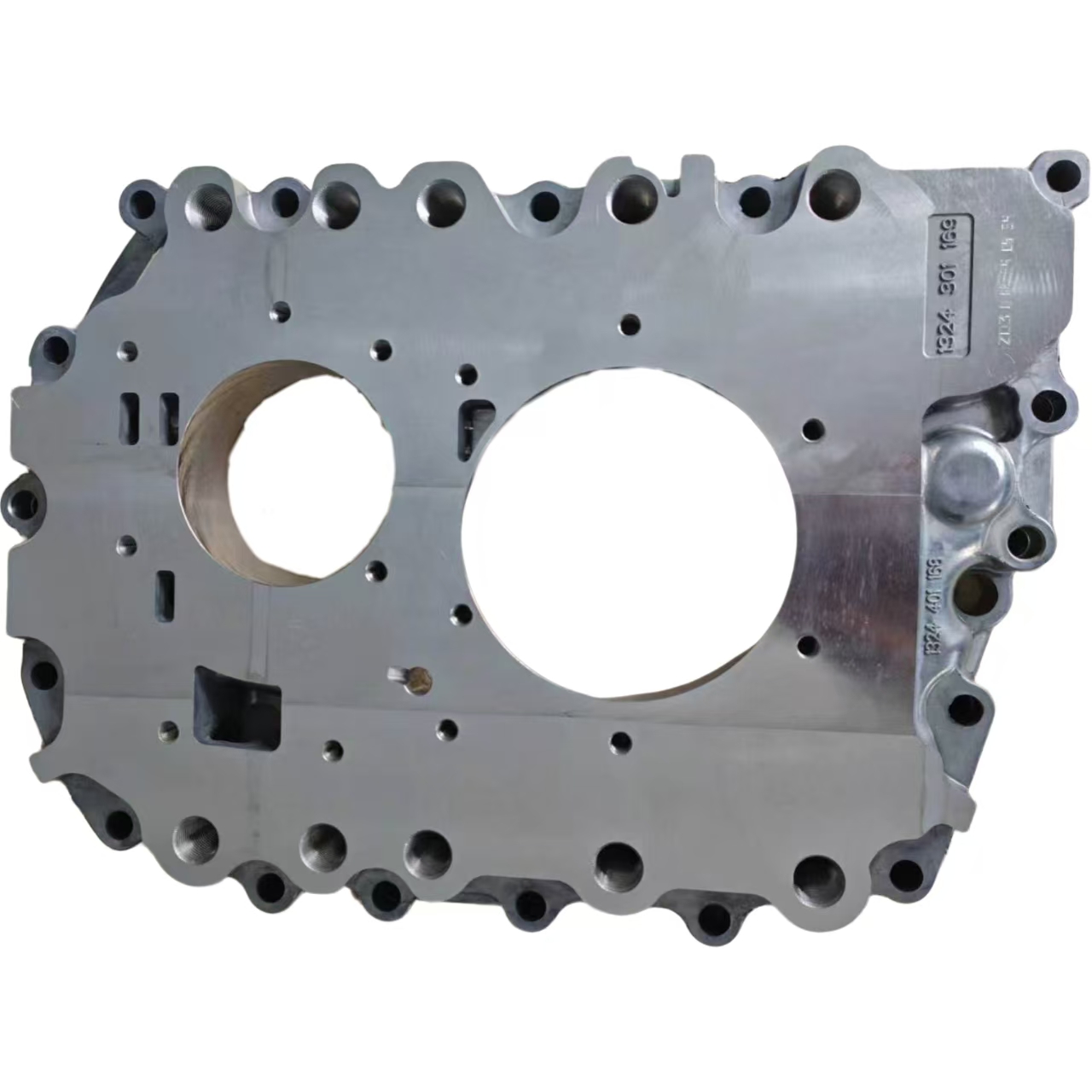

Product Type: Gearbox Front Housing / Front Casing
Brand: ZF OEM Matching Spare Parts
Compatible Gearbox: ZF 9S1110 TO, 9S1310 TO 9-speed medium-heavy truck transmission
Applicable Vehicles: DAF CF/XF, Mercedes Actros, MAN TGM/TGS, Sinotruk SITRAK heavy trucks
Material: High-strength die-cast aluminum alloy, reinforced rib integral casting
Net Weight: approx 5.0kg (reference value)
Matching Components: Input shaft oil seal, front bearing, clutch separation bearing base, front lubrication oil channel
Function: Connect clutch bell housing and main gearbox, fix front shaft bearing assembly, seal front lubrication cavity, provide installation positioning interface for external accessories
Category: Medium Heavy Truck ZF 9 Series Gearbox Shell Repair Spare Parts
High-pressure die-cast aluminum alloy with integrated thick reinforcing ribs, light weight and high structural rigidity, resistant to vibration deformation on mountain bumpy roads
Precision CNC machining sealing surface and bolt hole positions, flat fit surface to avoid oil seepage between housing and clutch housing
Standard OEM internal cavity size, perfect matching with input shaft bearing, oil seal and front internal components without modification
Built-in integrated lubrication oil flow channel design, stable oil supply for front synchronizer and bearing parts
Standard overall installation flange consistent with original housing, direct bolt-on assembly during gearbox overhaul without cutting or polishing
Replace cracked, thread damaged, deformed and leaking original front housing marked 1324 301 169
Fix gearbox front end oil leakage, loose bearing positioning and input shaft abnormal shaking faults
Complete gearbox disassembly overhaul and regular maintenance for logistics heavy truck fleets
Assemble matched front bearing, oil seal and clutch housing following ZF official assembly standards
MOQ: 1 piece
Warranty: 3–6 months (exclude collision crack, improper installation, overload and natural aging abrasion)
Packaging: Independent shockproof foam + thick carton sealed packaging to prevent casing collision damage
Remarks: Confirm gearbox model 9S1110/9S1310 and vehicle brand before order placement
