Basic Info

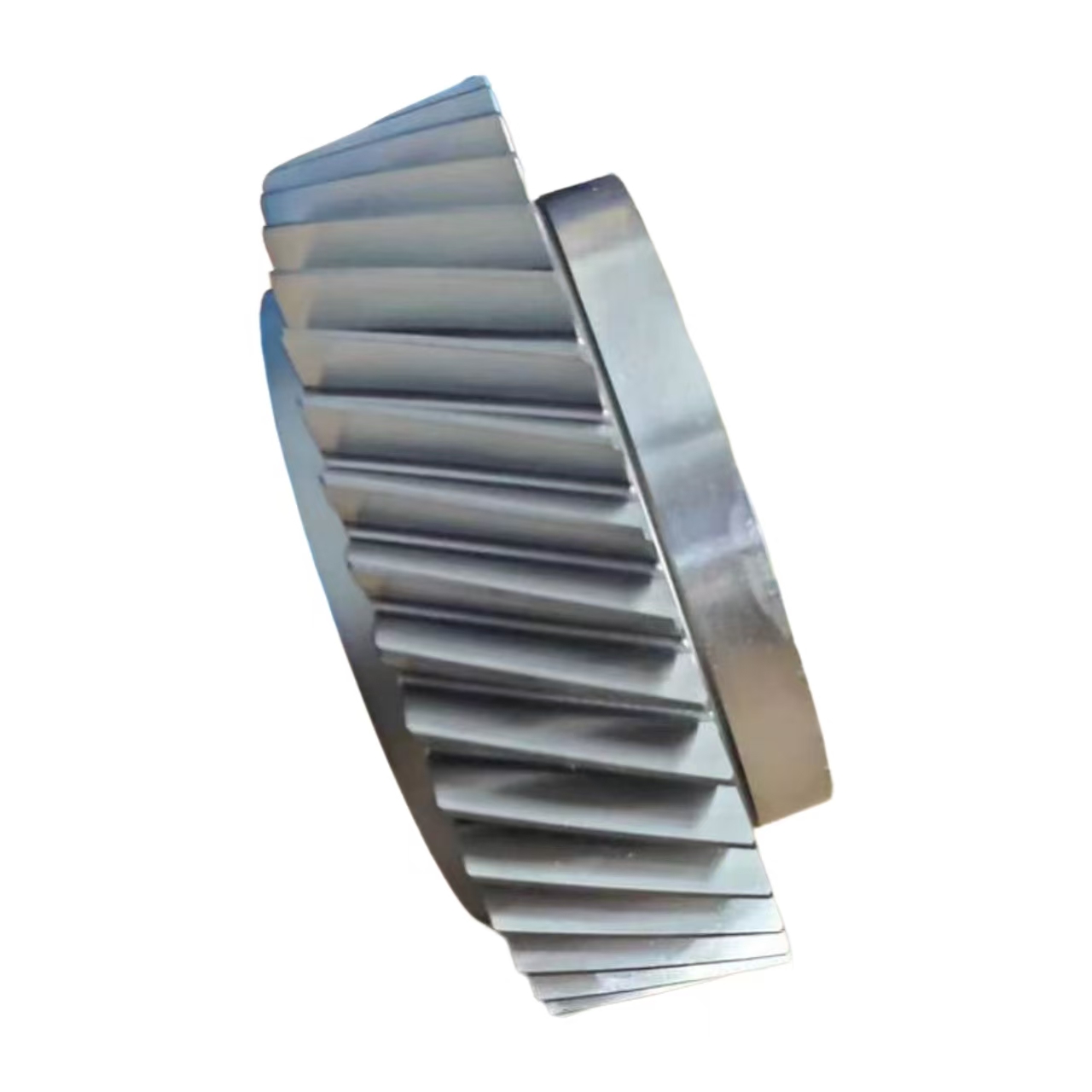

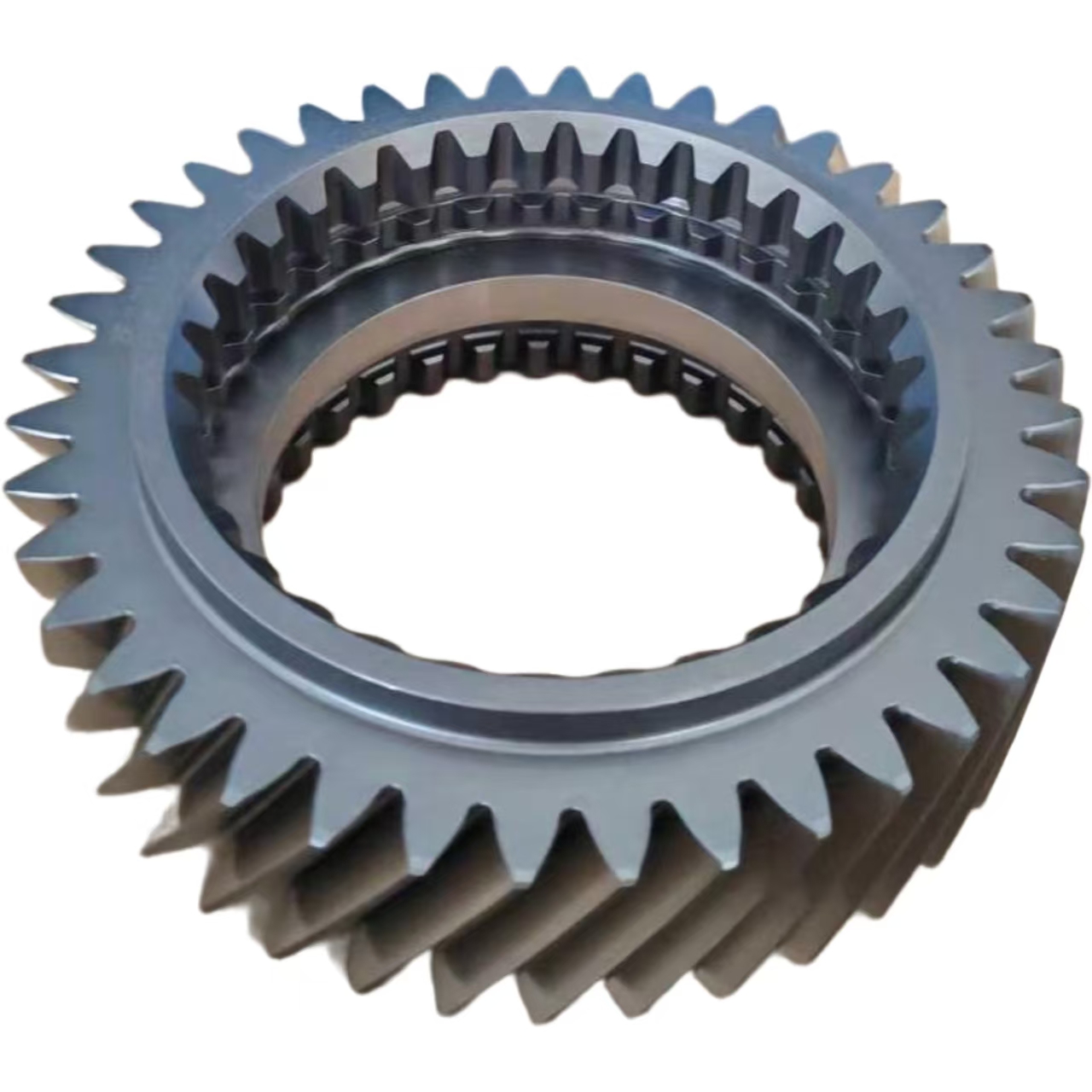

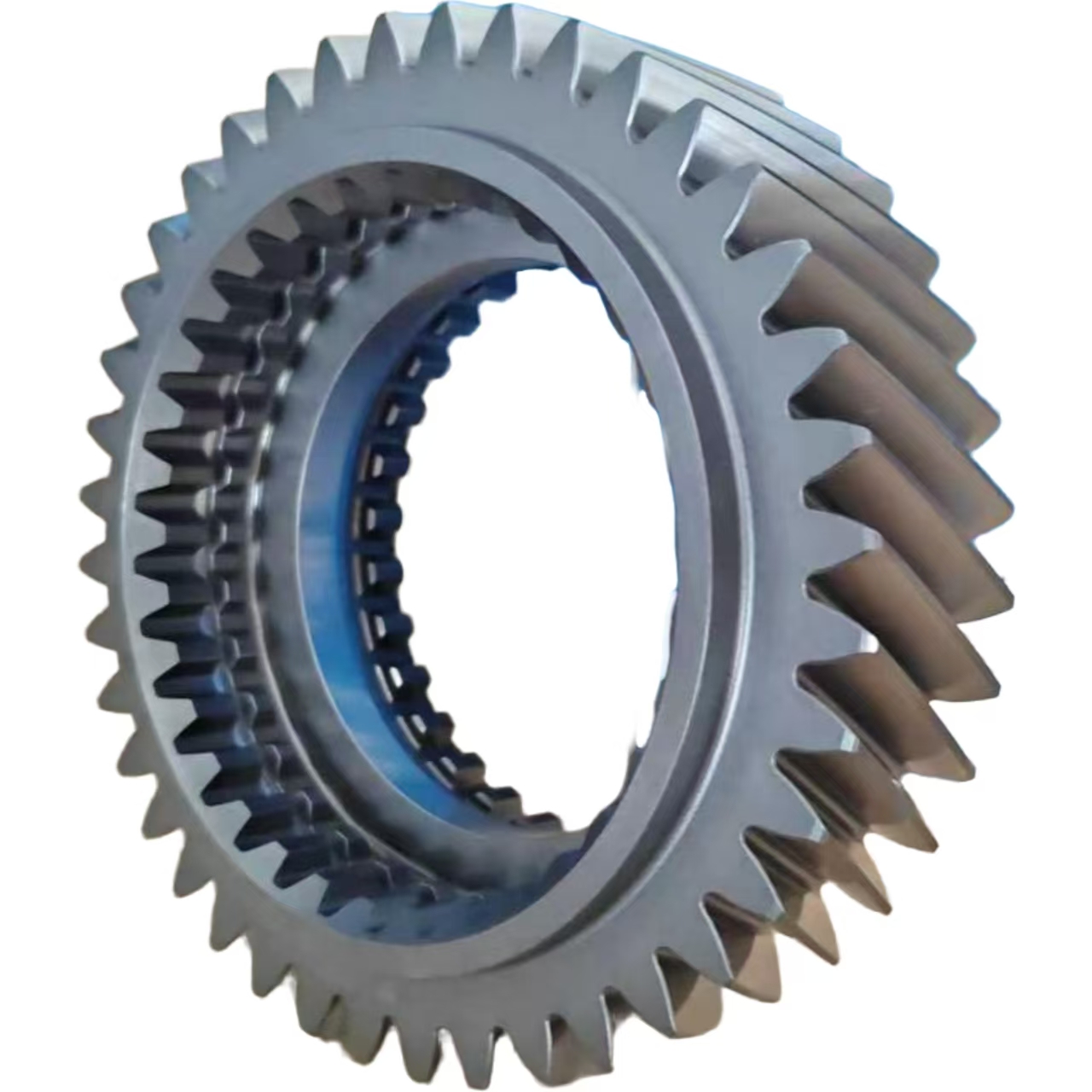

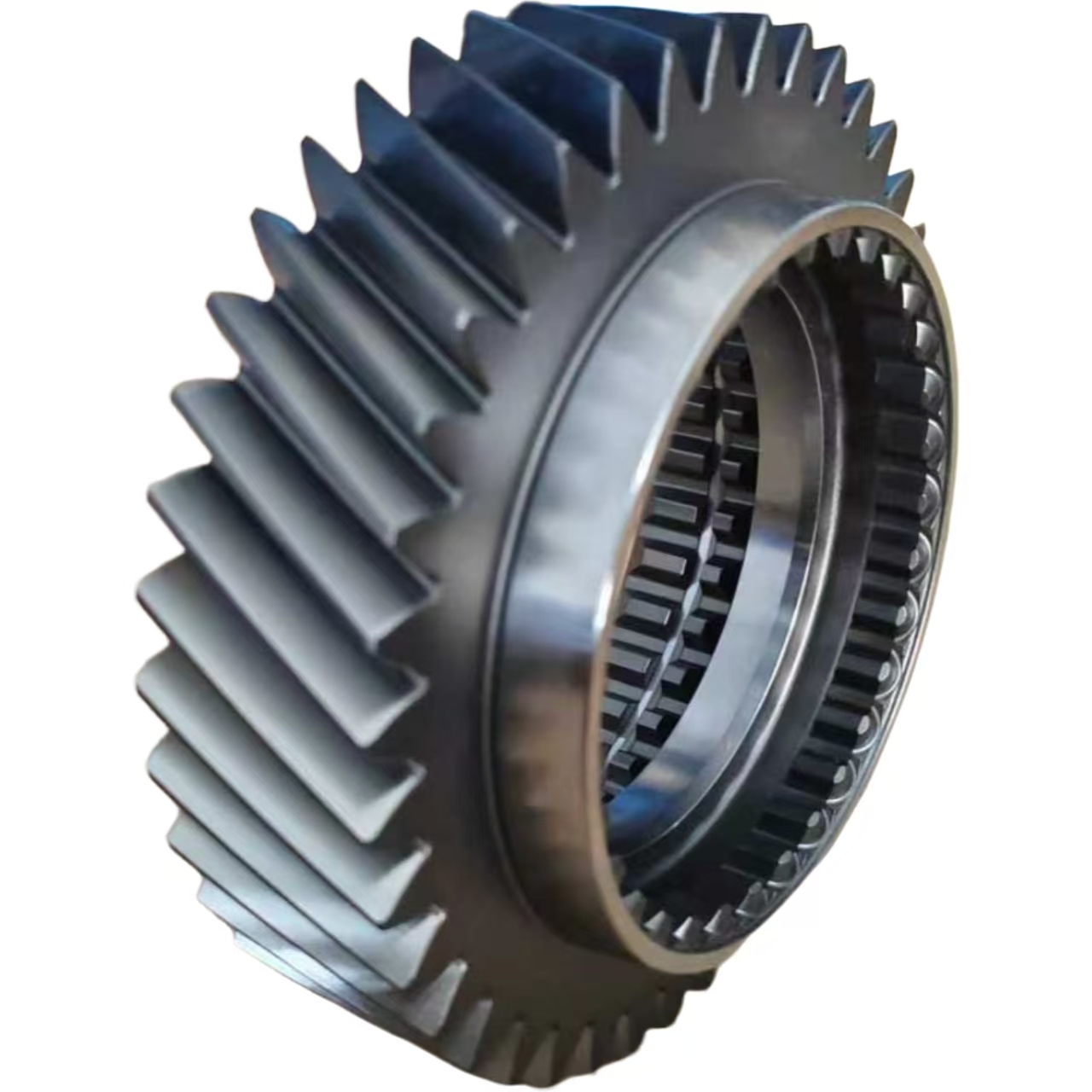

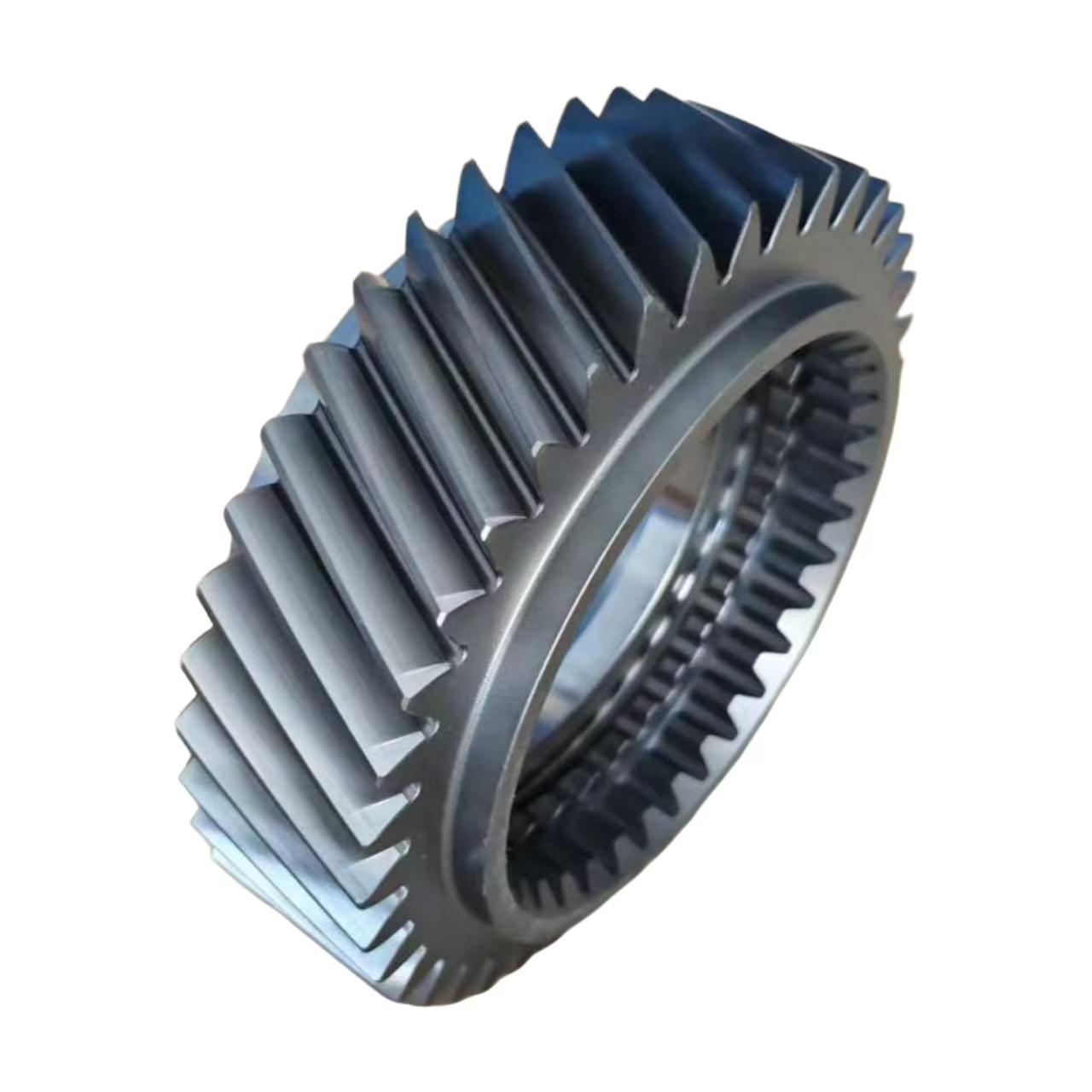

• OE Part No.: 1358 302 203

• Cross Reference OE: MAN 81323020241, DAF 2134088, Iveco 42578961

• Product Type: Mainshaft Constant Mesh Gear / K2 Gear

• Brand: ZF OEM Matching Replacement Spare Parts

• Compatible Gearbox: ZF 12TRAXON 12TX2420 / 12TX2620 / 12TX2820 AMT 12-speed transmission

• Applicable Vehicles: Sinotruk Sitrak, FAW J7, MAN TGX, DAF XF, Iveco Stralis heavy haul tractors

• Material: 20CrMnTi alloy steel, integral forging, carburized quenching + precision tooth grinding

• Net Weight: approx 2.77kg

• Tooth Count: 40 teeth

• Internal Structure: Inner involute splines for mainshaft fitting

• Max Matching Input Torque: 2800 N·m

• Function: Constant mesh power transmission for intermediate & high gears, stable torque delivery during automatic shifting

• Category: Heavy Truck ZF 12TRAXON AMT Transmission Main Shaft Gear Repair Spare Parts

Material & Advantages

1. One-piece forged alloy steel blank with full carburizing quenching, high tooth surface hardness, strong anti-impact and anti-fatigue performance under continuous heavy torque

2. Ultra-precise CNC ground gear teeth, smooth meshing with low noise, uniform stress distribution to avoid local tooth abrasion and point corrosion

3. Strict OEM outer diameter, tooth profile and inner spline dimension, perfect fit original mainshaft without cutting or polishing modification during overhaul

4. Optimized tooth root transition design to reduce stress concentration, effectively prevent tooth breakage under frequent automatic shifting

5. Stable meshing clearance reduces vibration, eliminates abnormal gear grinding noise and extends service life of matched countershaft gear and synchronizer assembly

6. Adapt to long-distance full-load logistics transportation, mountain climbing and frequent start-stop heavy-duty working conditions

Application Scenarios

• Replace pitted, broken-tooth, deformed original constant gear marked 1358 302 203 for ZF 12TRAXON gearbox

• Repair vehicle faults including insufficient power output, abnormal meshing noise, jumping gear and shifting vibration

• Complete main shaft and countershaft disassembly overhaul for heavy truck logistics fleets

• Assemble matched mainshaft, synchronizer assembly and countershaft gear following official ZF assembly standards

Supply & After-sale

• MOQ: 1 piece

• Warranty: 3–6 months (exclude overload operation, poor lubrication, improper installation and natural abrasion aging)

• Packaging: Independent shockproof foam + thick carton sealed packaging to prevent tooth collision damage

• Remarks: Confirm gearbox model 12TX series before order placement to guarantee matching accuracy
