Basic Info

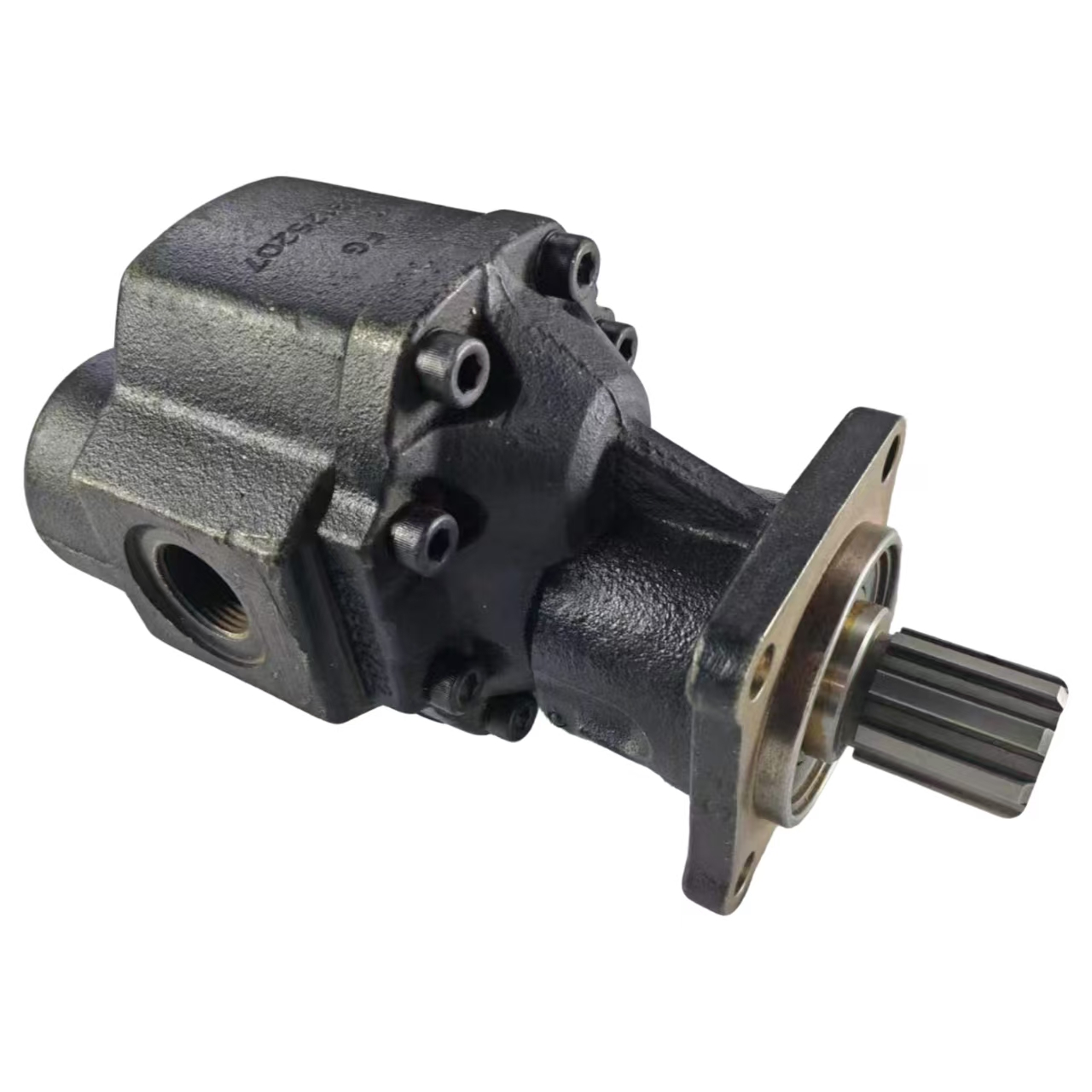

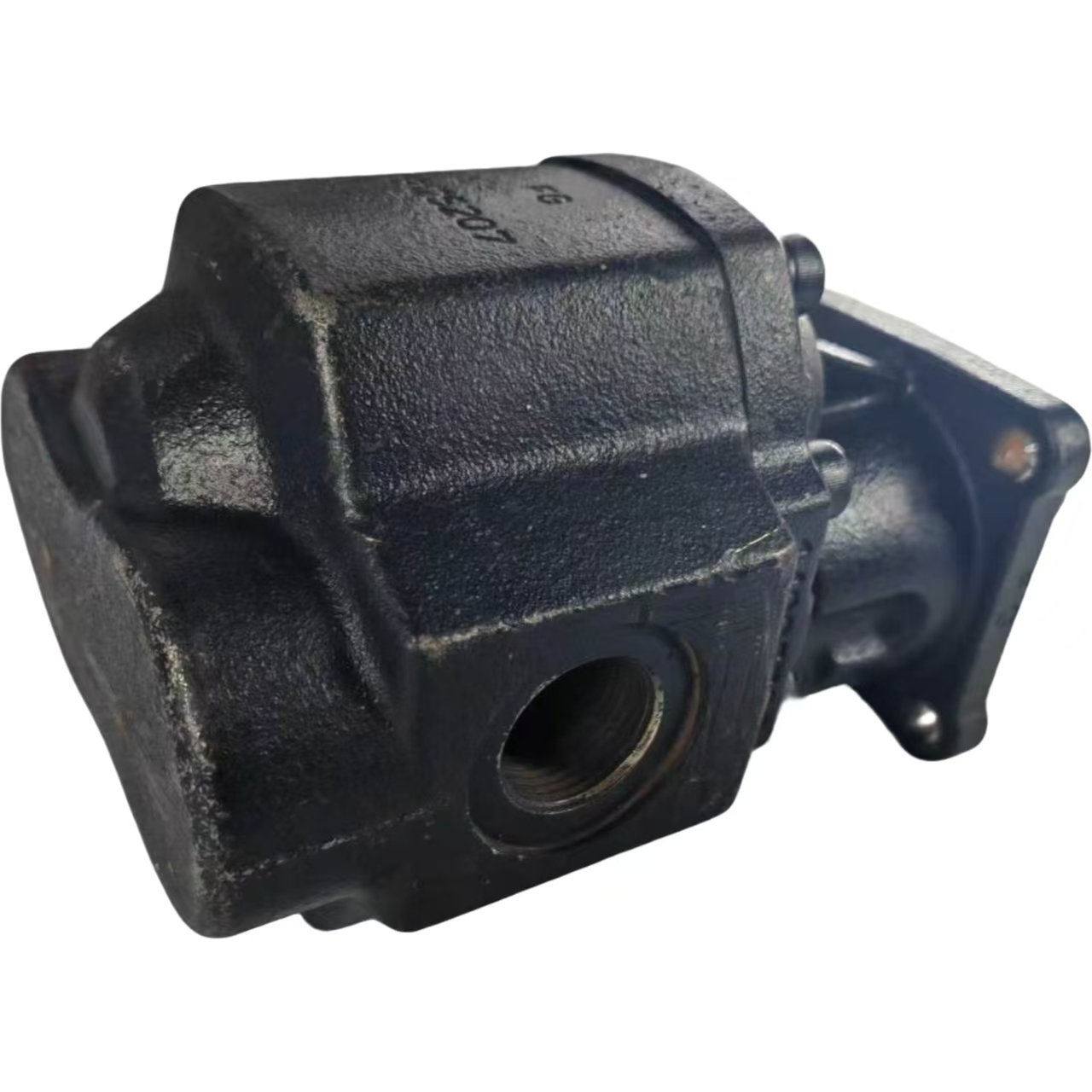

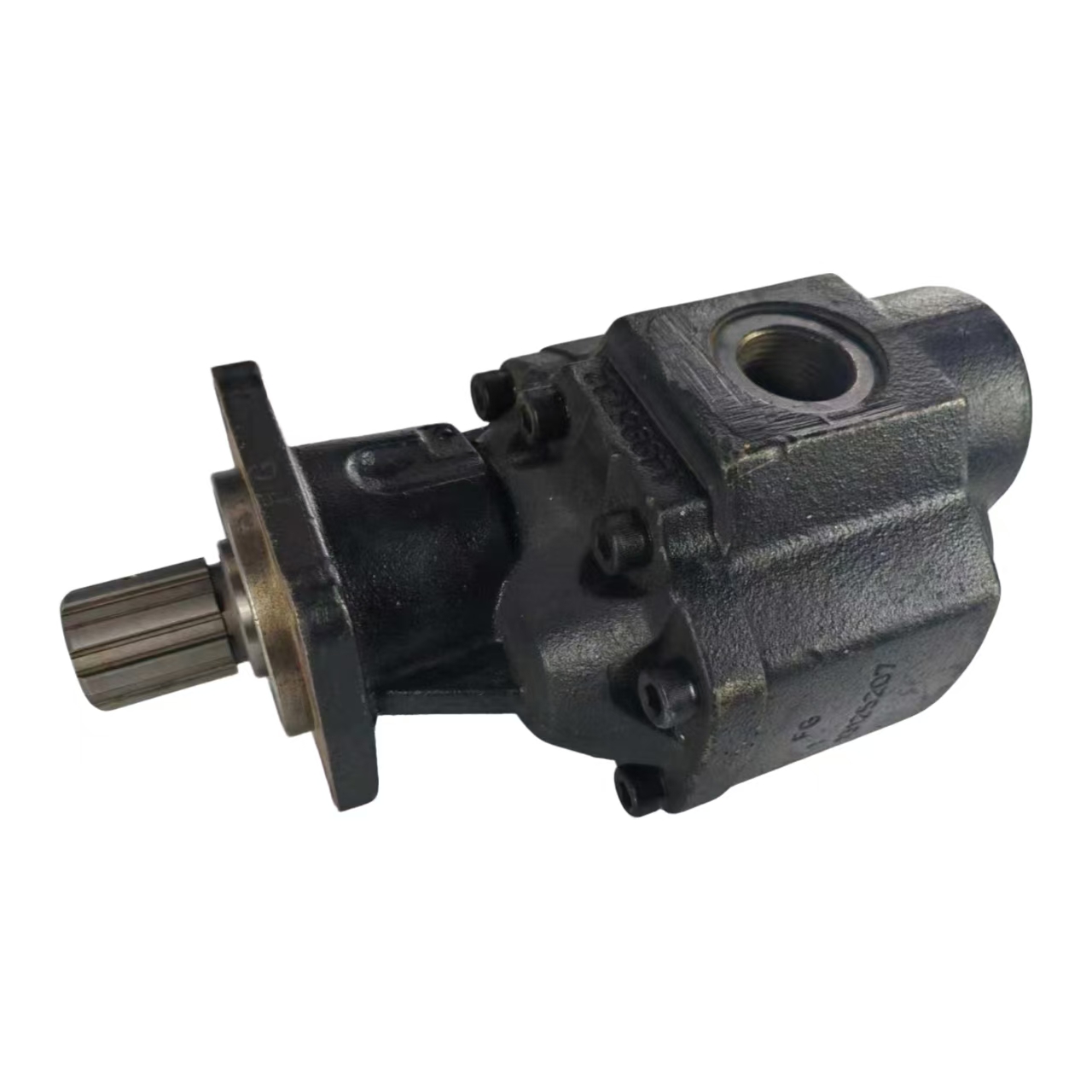

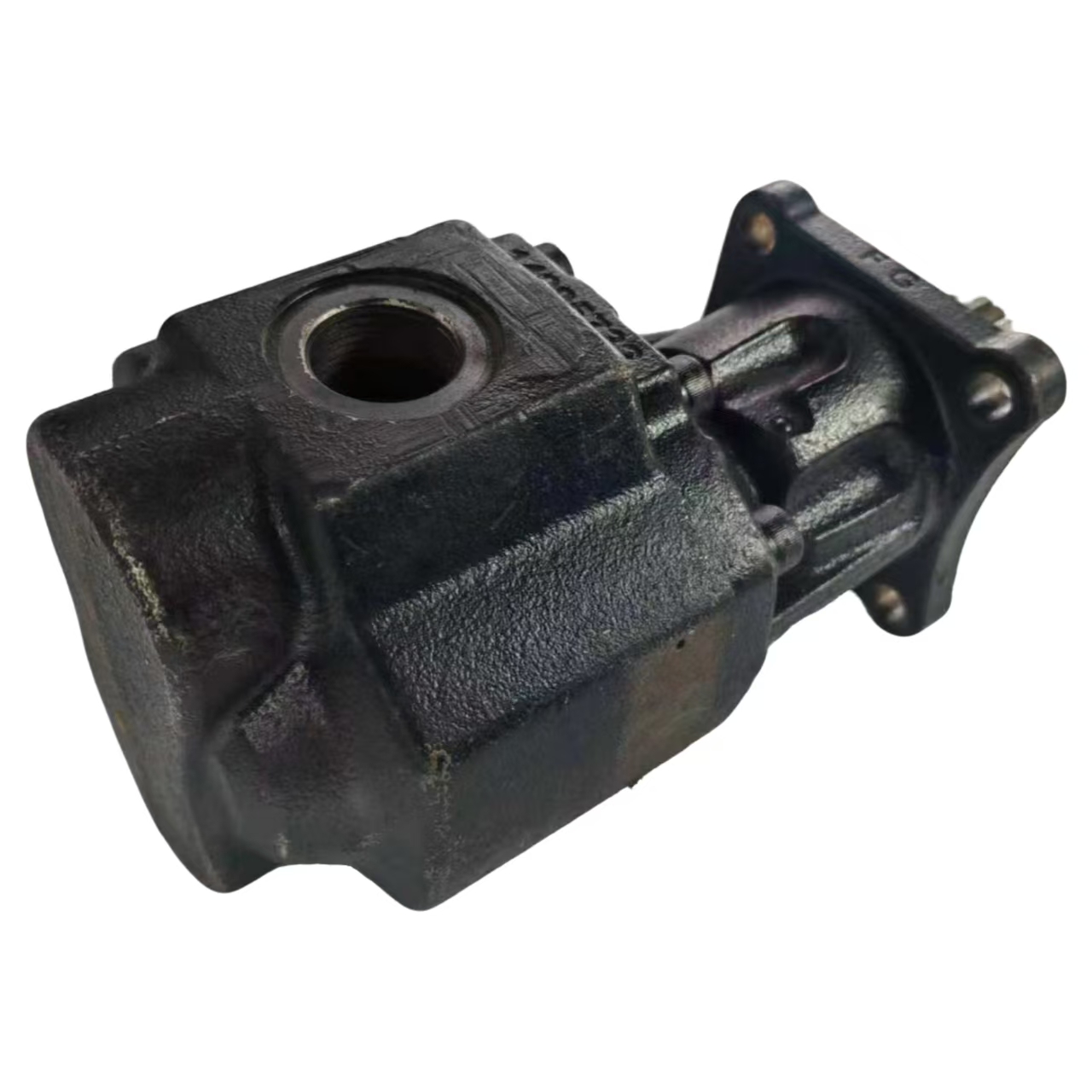

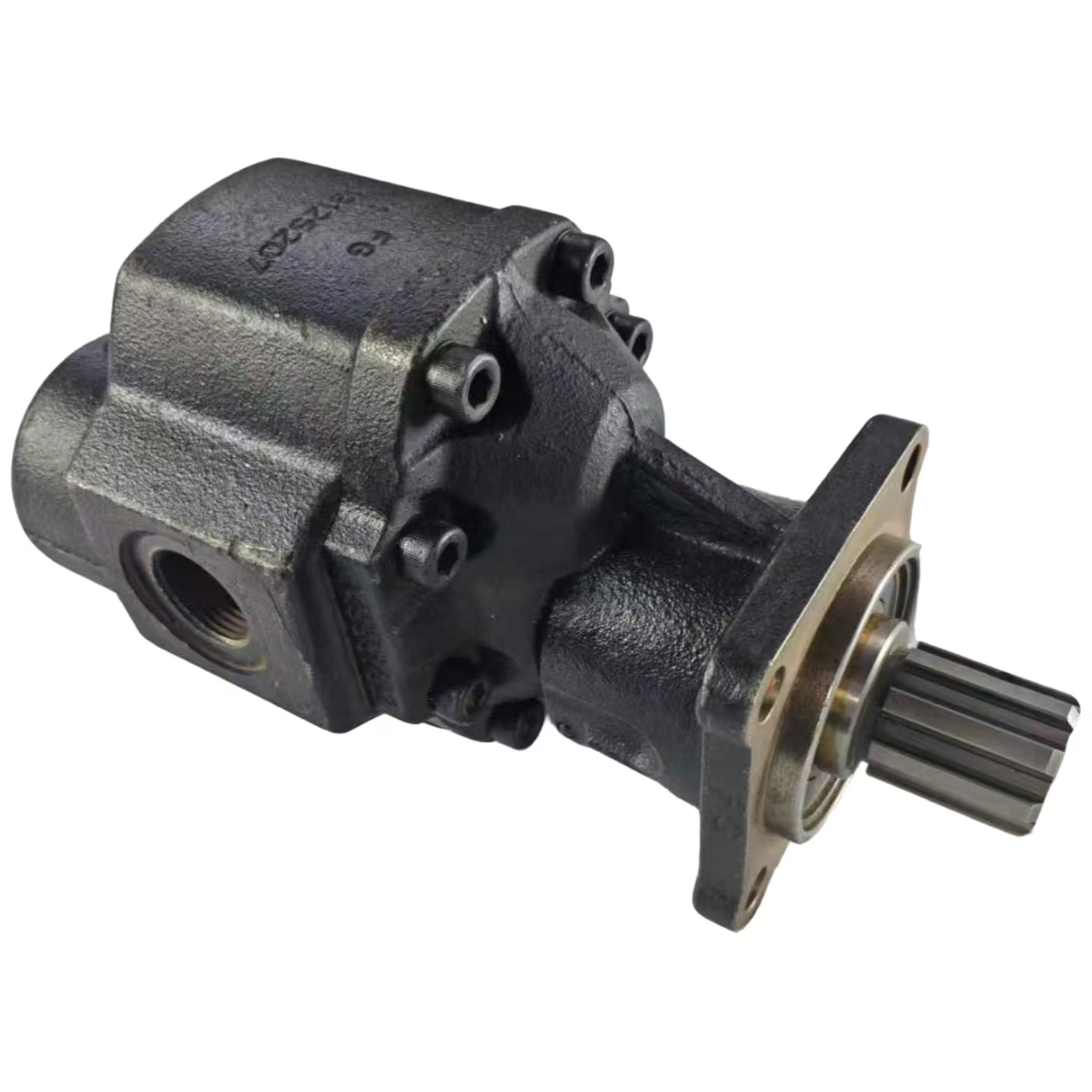

• OE Part No.: 13125207

• Product Type: Transmission Hydraulic Lubrication Gear Pump

• Brand: ZF OEM Matching Spare Parts

• Compatible Gearbox: ZF 16S series heavy-duty manual and AMT transmissions

• Material: High-strength cast iron pump housing, precision ground alloy steel gear pair, high temperature resistant integrated sealing rings

• Net Weight: approx 1.22kg (reference value)

• Rated Working Pressure: 24 bar

• Displacement: 9.1 cc/rev

• Function: Circulate lubricating cooling oil inside gearbox, provide stable hydraulic pressure for shift system, reduce friction heat of internal moving parts

• Category: Heavy Truck ZF Gearbox Hydraulic Lubrication System Repair Spares

Material & Advantages

1. Thick cast iron pump shell with strong structural rigidity, anti-vibration and anti-deformation under long-distance bumpy road conditions

2. Ultra-precise machined gear sets, stable oil output with low pressure fluctuation, no intermittent oil supply during operation

3. Fully consistent with OEM mounting dimension standards, directly bolted onto gearbox without cutting or modification during overhaul

4. Integrated multi-layer sealing structure greatly reduces oil seepage at pump joint surfaces, extends service cycle of whole transmission

5. Suitable for highway long haul, mountain climbing and frequent start-stop heavy transport working conditions

Application Scenarios

• Replace leaking, low-pressure output or seized original gear pump marked ZF 13125207

• Fix gearbox high temperature, poor lubrication, slow shifting and abnormal wear of internal synchronizer assemblies

• Complete transmission overhaul and regular maintenance for logistics heavy truck fleets

• Install together with matched oil pipelines and filter elements following ZF official assembly procedures

Supply & After-sale

• MOQ: 1 piece

• Warranty: 3–6 months (excluding improper installation, wrong hydraulic oil, overload operation and natural abrasion)

• Packaging: Independent shockproof foam + carton sealed packaging

• Remarks: Confirm ZF gearbox model before order placement to guarantee perfect matching
