Basic Info

• OE Part No.: 1358 302 262

• Cross Reference OE: MAN 81324200327, DAF 2134376, Iveco 42578645, Eurotec 95007791

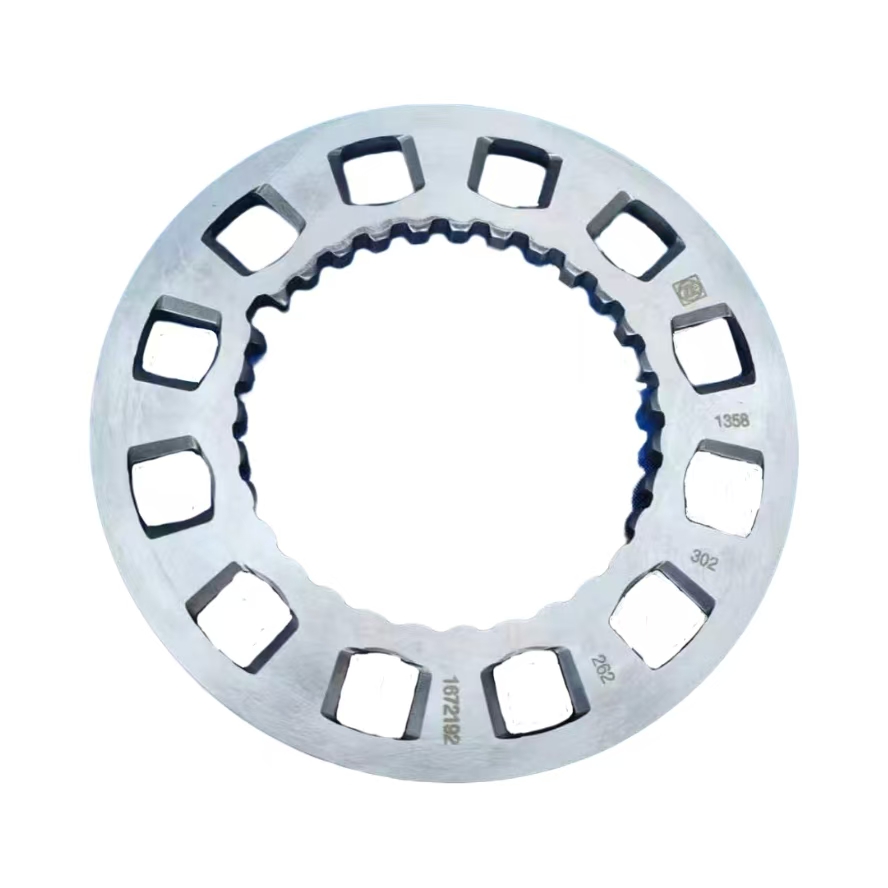

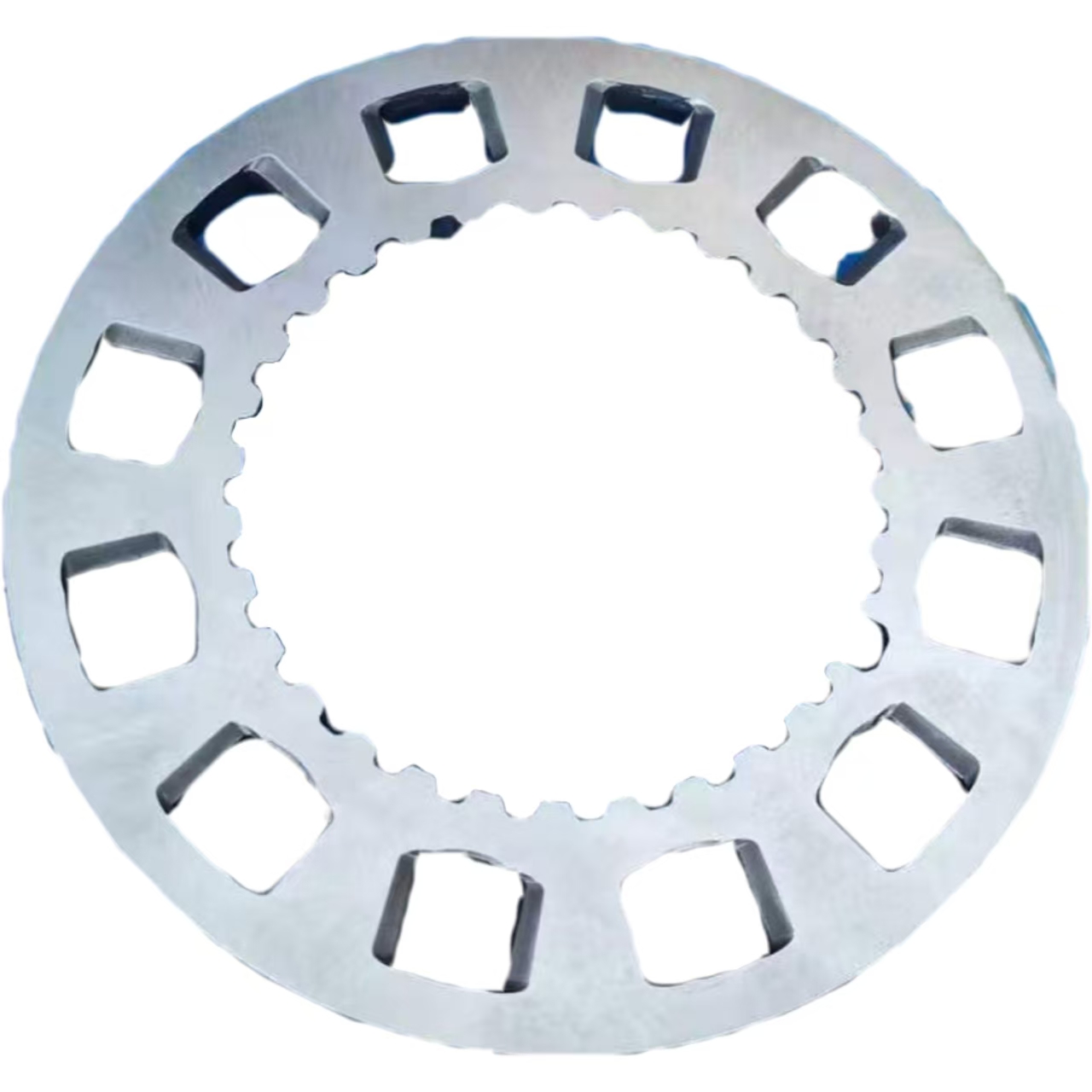

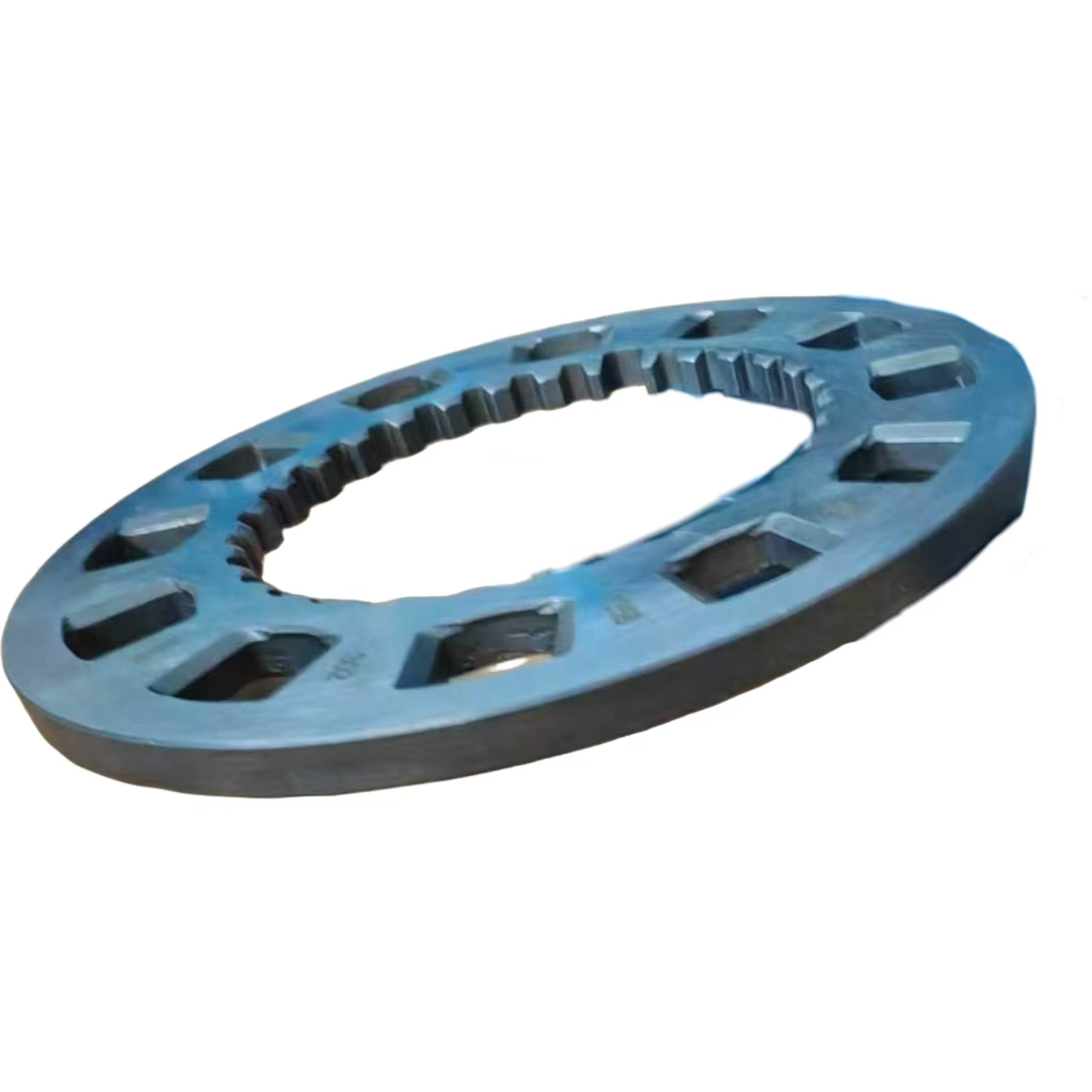

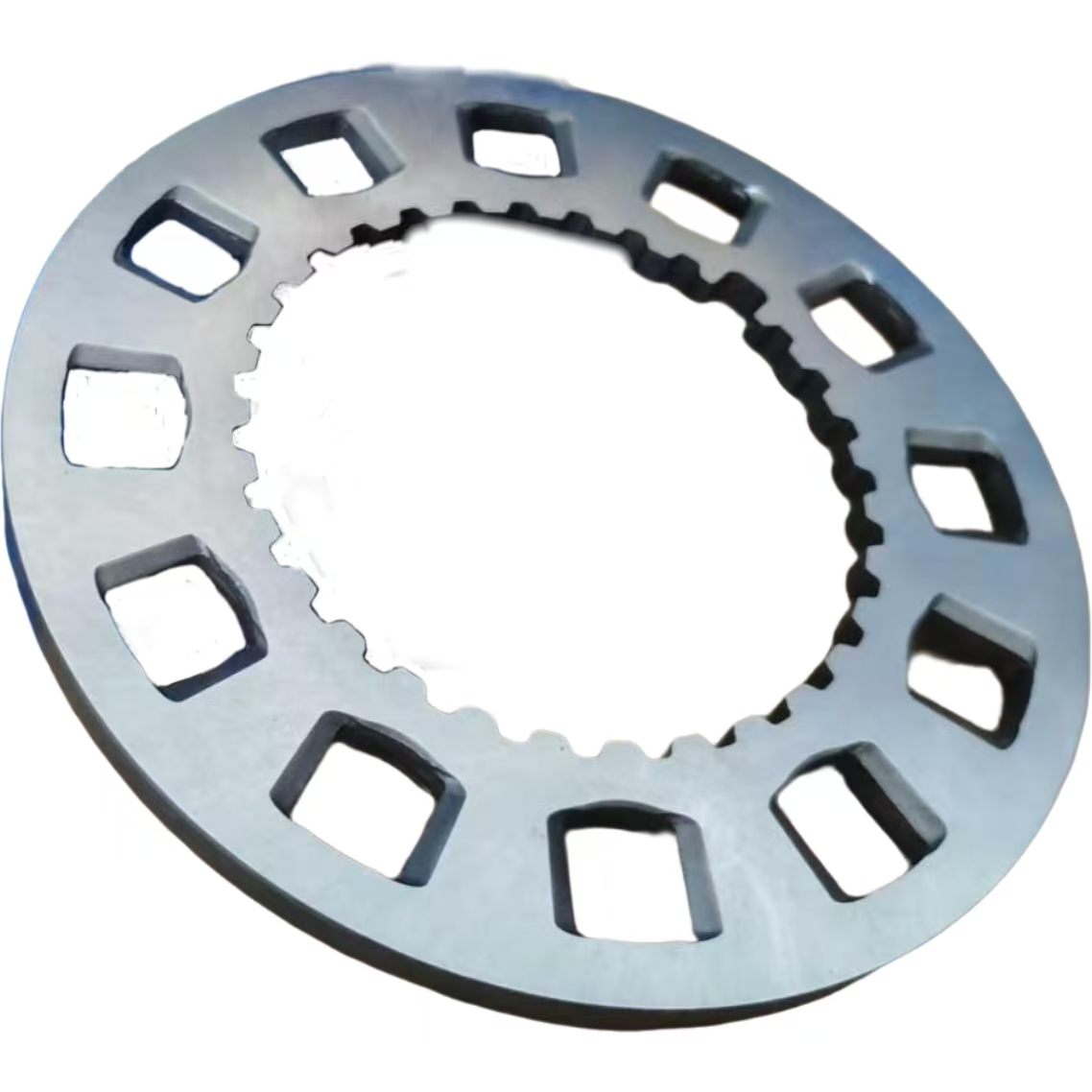

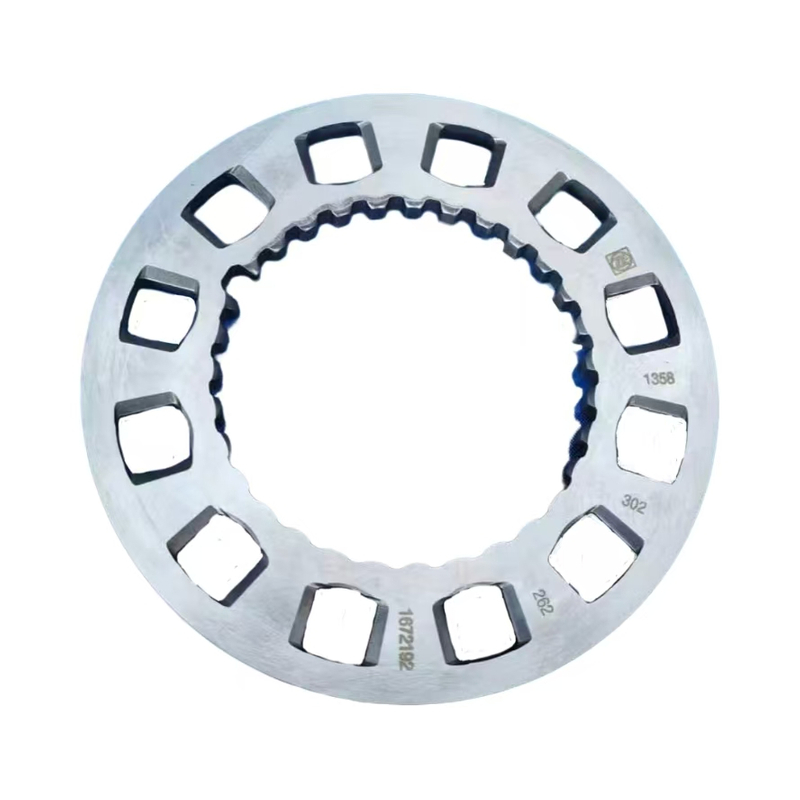

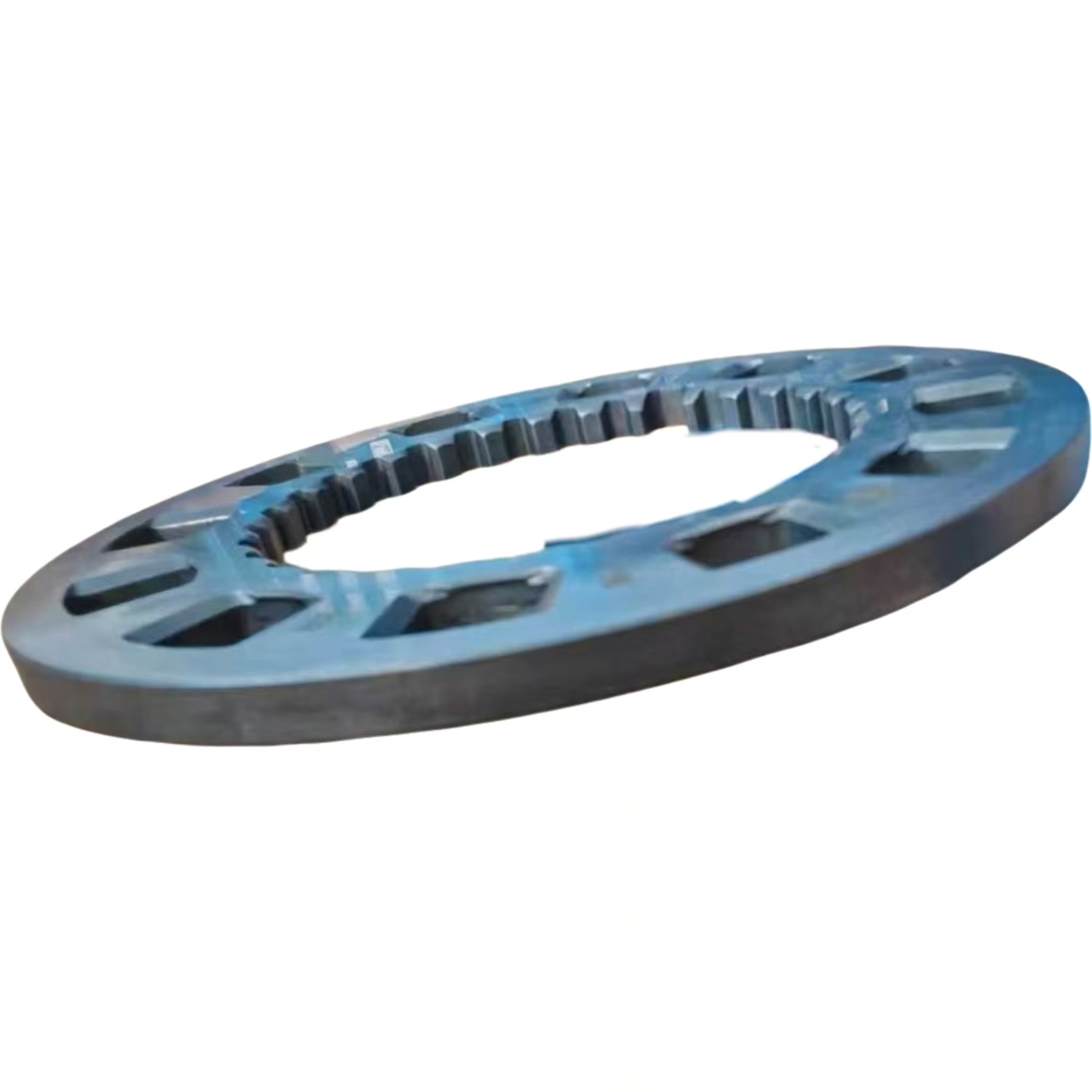

• Product Type: Synchronizer Lock Gear Plate / Synchro Stop Tooth Plate

• Brand: ZF OEM Matching Replacement Spare Parts

• Compatible Gearbox: ZF 12TRAXON 12TX2420 / 12TX2620 / 12TX2820 AMT 12-speed heavy truck transmission

• Applicable Vehicles: Sinotruk Sitrak, FAW J7, MAN TGX, DAF XF, Iveco Stralis heavy-duty tractors

• Material: 20CrMnTi alloy steel integral stamping & forging, carburized quenching + precision tooth grinding

• Net Weight: approx 0.635kg (reference value)

• Core Structure: Outer locking teeth, inner involute splines, hollow lightening holes

• Matching Components: Synchronizer sliding sleeve, friction synchro ring, main shaft constant mesh gear

• Function: Lock synchronizer sliding sleeve to fix gear position, transmit torque together with main shaft, eliminate gear jumping during driving

• Category: Heavy Truck ZF 12TRAXON AMT Transmission Main Shaft Synchronizer System Repair Spare Parts

Material & Advantages

1. Integral forged alloy steel blank with full carburizing quenching, high lock tooth surface hardness, anti-impact and anti-fatigue under frequent high-load shifting

2. Precision CNC ground lock teeth and inner splines, smooth meshing without jamming, uniform stress distribution to avoid partial tooth abrasion and breakage

3. Strict OEM outer diameter, tooth profile and inner spline dimension, perfect fit original synchronizer sleeve and main shaft without cutting or polishing modification during overhaul

4. Hollow lightening hole design reduces plate weight, improves lubricating oil circulation inside synchronizer assembly to avoid dry grinding

5. Optimized tooth root transition arc lowers stress concentration, effectively prevent lock tooth collapse under long-distance mountain heavy haul conditions

6. Standard locking clearance eliminates gear jumping and shifting vibration noise, extend service life of matched synchro ring and sliding sleeve

Application Scenarios

• Replace worn, tooth-broken, deformed original synchronizer gear plate marked 1358 302 262 for ZF 12TRAXON gearbox

• Fix transmission faults including jumping gear, loose gear lock, abnormal grinding noise during gear selection and shifting vibration

• Complete main shaft synchronizer disassembly overhaul and regular maintenance for logistics heavy truck fleets

• Assemble matched synchro sliding sleeve, friction ring and main shaft gear following official ZF synchronizer assembly standards

Supply & After-sale

• MOQ: 1 piece

• Warranty: 3–6 months (exclude contaminated transmission oil, overload operation, improper installation and natural abrasion aging)

• Packaging: Independent shockproof foam + thick carton sealed packaging to prevent lock tooth collision scratch and deformation

• Remarks: Confirm gearbox model 12TRAXON 12TX series before order placement to guarantee matching accuracy
