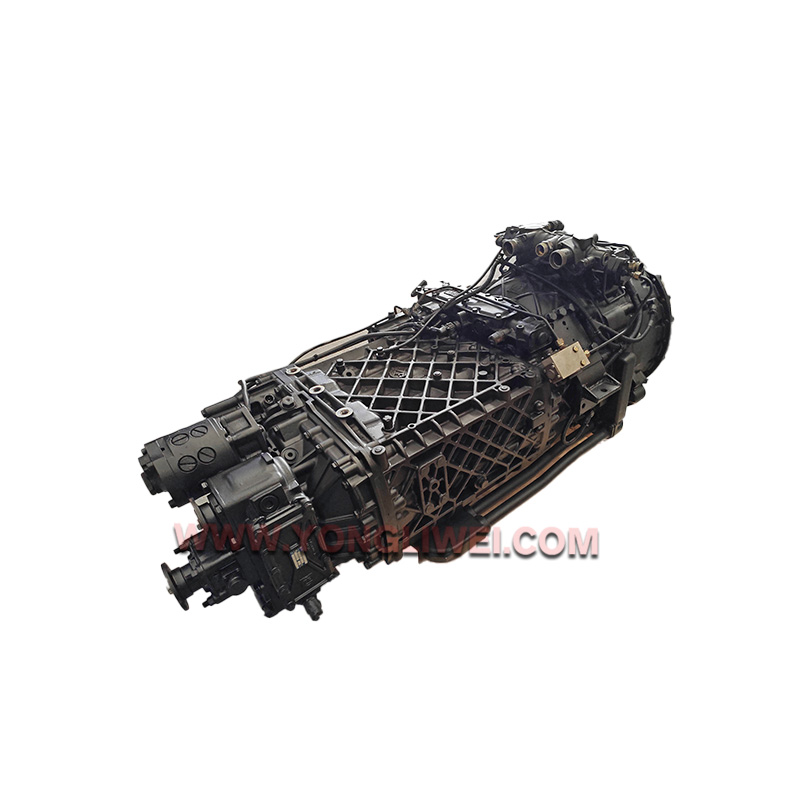

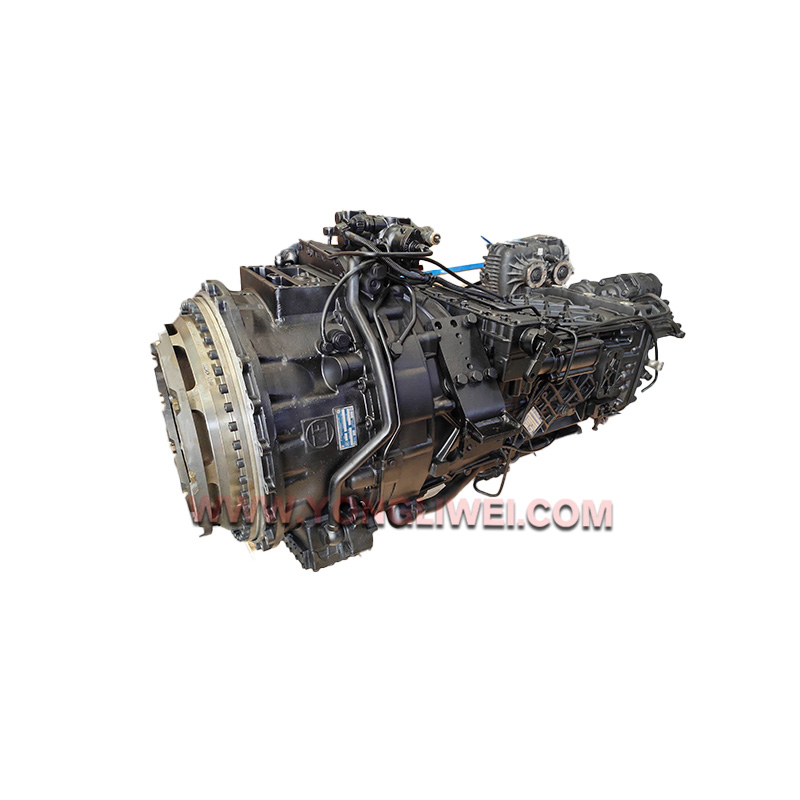

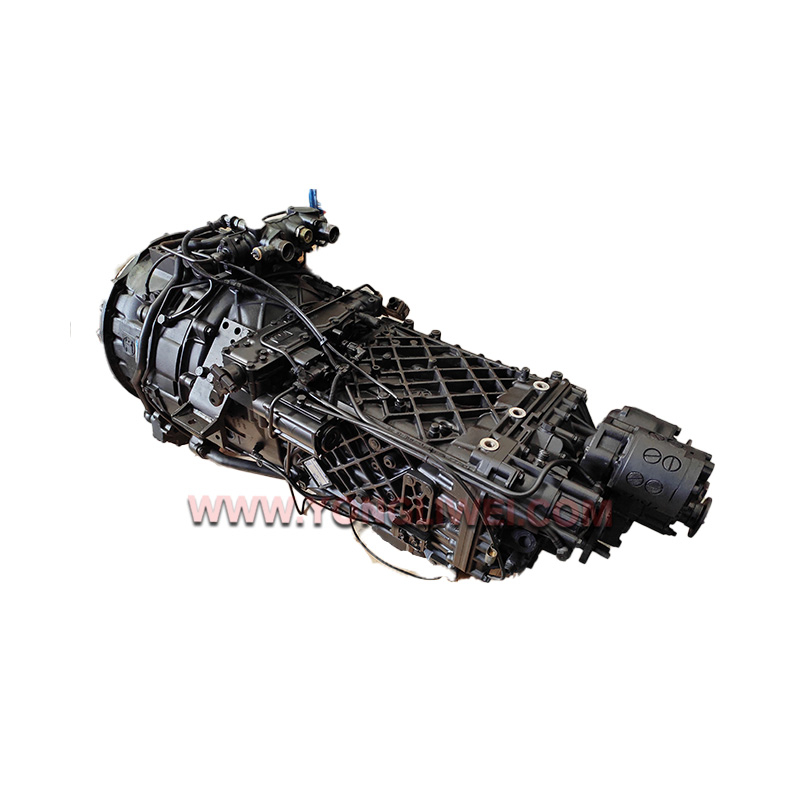

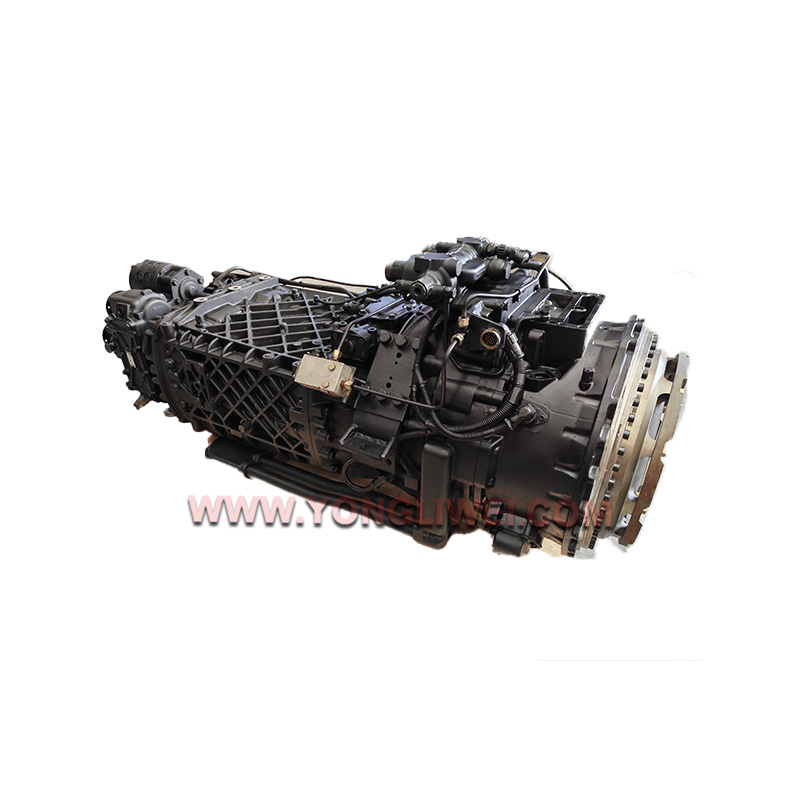

ZF Transmission Assembly ZF16S251WSK for Trucks Military Vehicles And Construction Machinery

ZF16S251WSK is ZF Ecosplit heavy-duty 16-speed manual transmission integrated with WSK hydraulic torque converter module, max input torque 2700Nm. Equipped with wide-range 16 forward gears and dual reverse gears, matched reinforced aluminum housing and full carburized helical gear sets, with outstanding shock resistance and off-road reliability. Built-in multi-channel PTO interfaces, dustproof & waterproof sealed structure, adapt to harsh working conditions including muddy mountain roads, desert and mining sites. Widely used in heavy transport trucks, military tactical vehicles, excavators, loaders, cranes and other construction machinery, delivering stable low-speed crawling torque and high efficiency cruising performance.
Availability:
Quantity:
  • ZF16S251WSK

  • ZF

  • ZF16S251WSK

Product parameters

Basic Info

Model No: ZF16S251WSK
Product Name: ZF Ecosplit 16S251WSK 16-Speed Manual Transmission Assembly with WSK Torque Converter
Brand: ZF
Series: Ecosplit Heavy-Duty Off-Road Transmission Platform
Max Rated Input Torque: 2700 Nm
Gear Layout: 16 forward gears / 2 reverse gears
Core Matching Module: WSK integrated torque converter
Category: Complete Heavy-Duty Off-Road Transmission Assembly



Weight Parameter

Net Weight: 200KG
Gross Weight: 242KG with export wooden case packing



Material & Feature

  1. Reinforced low-pressure cast aluminum alloy housing with grid rib structure, anti-deformation under severe vibration and large impact torque;

  2. All internal gears adopt 20CrMnTi alloy steel integral forging + full carburizing quenching treatment, high wear resistance for long-term off-road heavy load;

  3. Integrated WSK hydraulic torque converter module, smooth power output during start and climbing, effectively reduce gear impact;

  4. Multiple standard power take-off ports reserved, support hydraulic drive for engineering auxiliary working devices;

  5. Fully sealed dustproof, waterproof and anti-sediment design, stable operation under muddy, dusty and low-temperature harsh environments;

  6. Ultra-wide gear ratio coverage, strong low-speed traction for climbing & crawling, high fuel efficiency at medium-high speed;

  7. Modular integrated structure, standard mounting dimensions, convenient maintenance and direct replacement for military and engineering equipment.




Application

Compatible with heavy cargo trucks, military off-road tactical transport vehicles, mine dump trucks; also widely fitted on construction machinery: large excavators, wheel loaders, mobile cranes, road rollers and engineering pump trucks, suitable for desert, mountain, mine, plateau and all complex off-road working scenarios.



Origin & Lead Time

In stock in Shiyan warehouse, delivery within 1–2 working days after payment; bulk order production cycle 3–7 working days, sea transport cycle 7–18 days.



MOQ & Packing

MOQ: 1 unit
Warranty: 6–12 months, warranty void for man-made damage and wrong installation
Packing: Anti-rust plastic film + thick foam buffer + reinforced shockproof export solid wooden case, moisture-proof and anti-collision for long-distance ocean transportation
