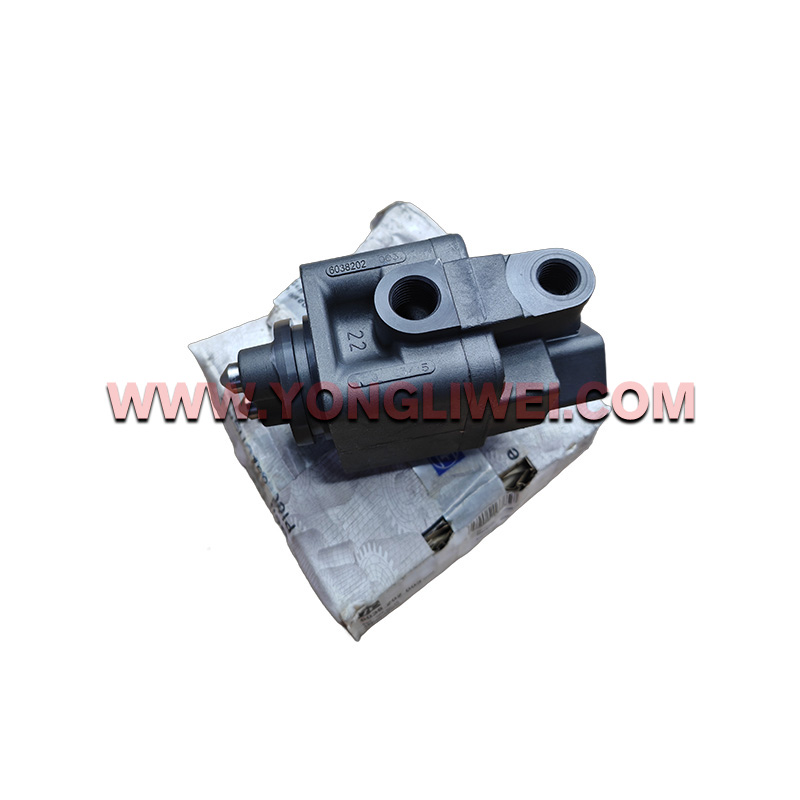

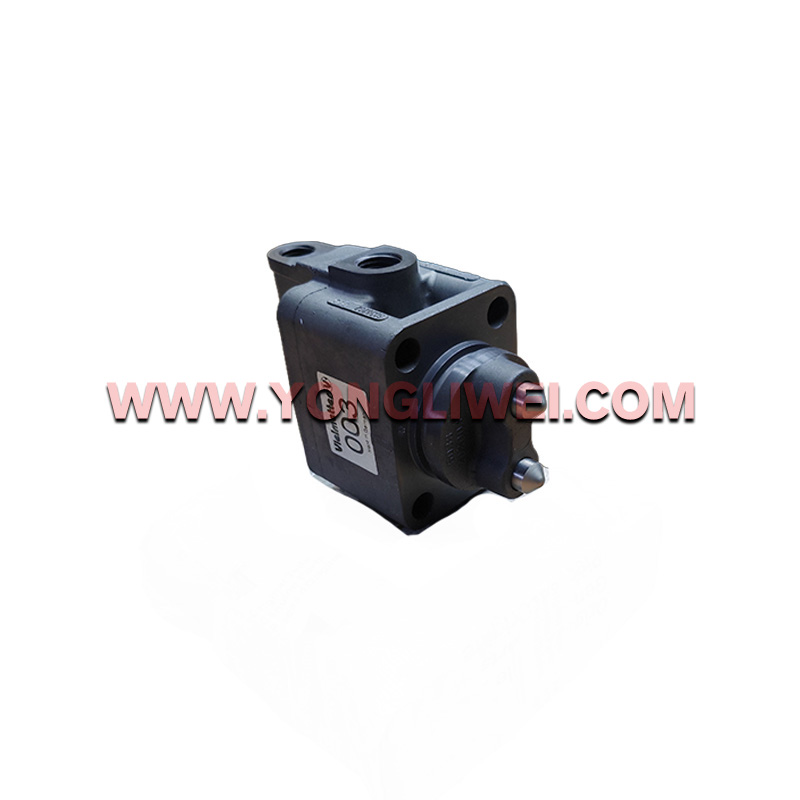

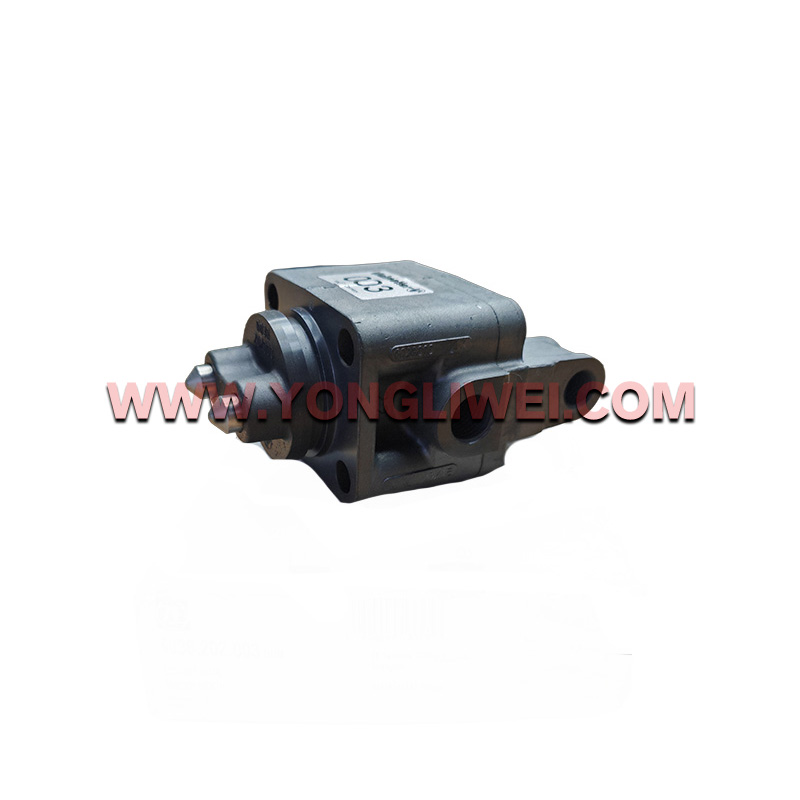

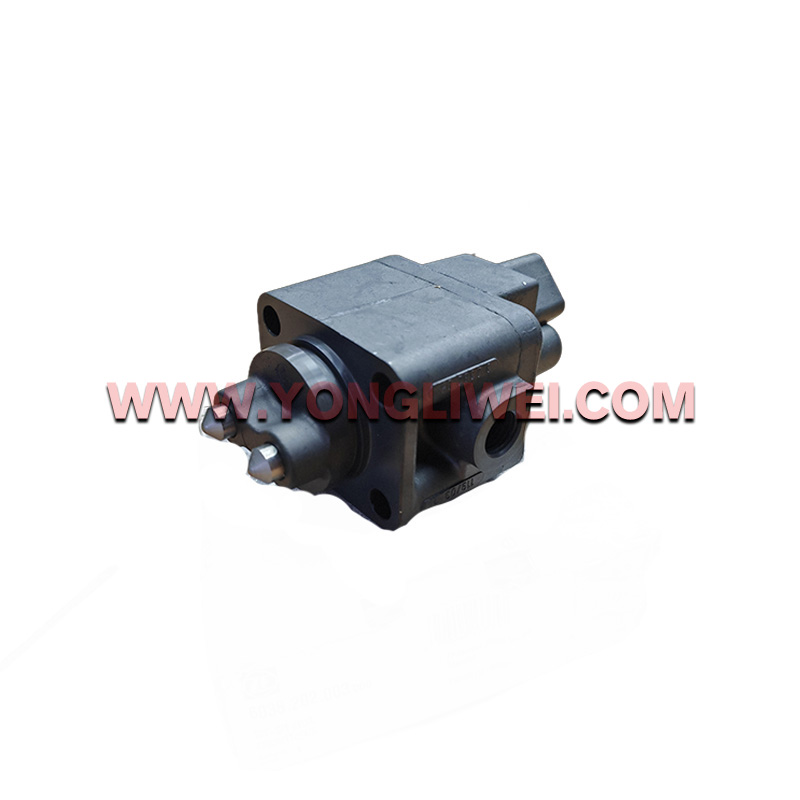

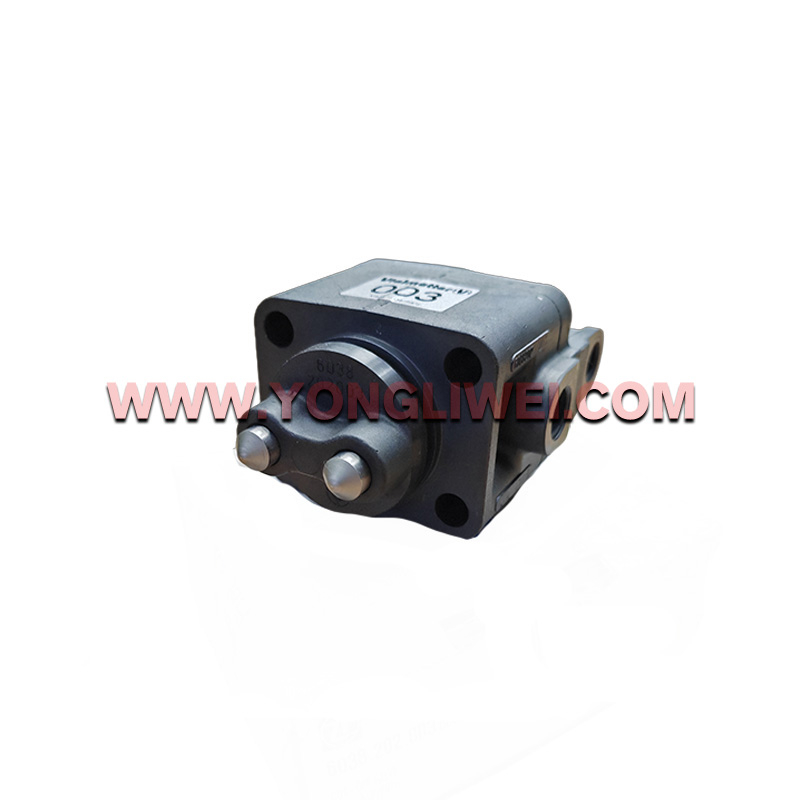

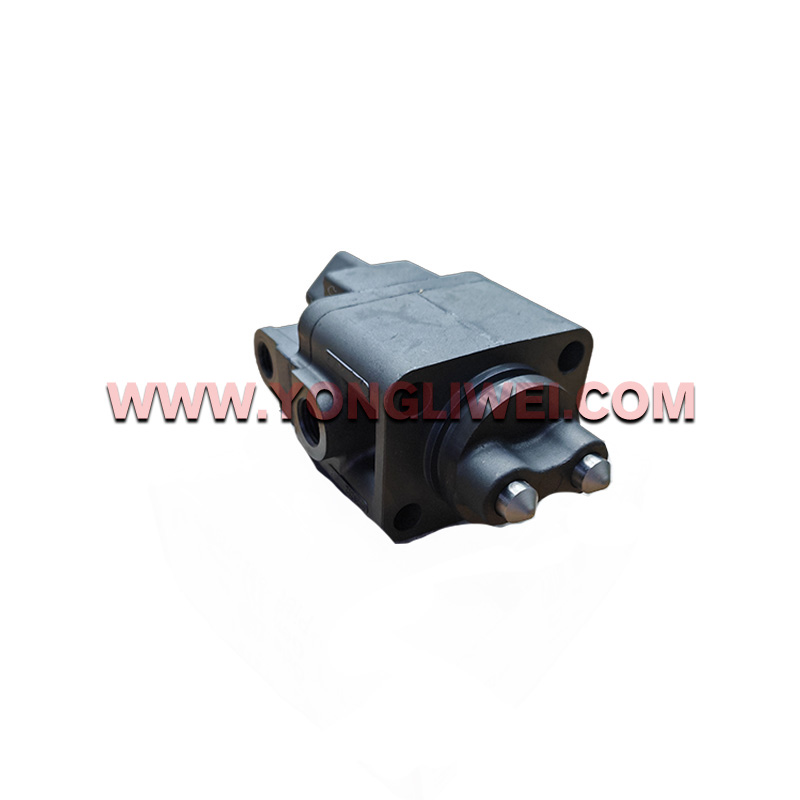

ZF gearbox high and low valve body 6038 202 043

6038202043 splitter high-low gear valve body (range shift air valve) is original pneumatic control component for ZF Ecosplit4 16-speed manual transmissions 16S1930,16S2230,16S2231,16S2530,16S2531. Die-cast aluminum integrated valve body with built-in precision air circuit and double steel ball valve core, precisely control high/low range gear switching via compressed air. Stable air sealing performance avoids air leakage, delayed shift and gear missing faults during mountain climbing and full-load long haul. Perfect replacement for Sinotruk Sitrak, MAN TGX/TGS, DAF XF, IVECO heavy trucks with ZF 16-speed gearboxes.
Availability:
Quantity:
  • ZF gearbox high and low valve body 6038 202 043

  • ZF

  • 6038 202 043

Product parameters

Basic Info

OEM No: 6038 202 043
Alias: Splitter Valve / Range Shift Valve / High & Low Gear Air Valve
Product Name: ZF Ecosplit4 16-Speed Gearbox High-Low Splitter Valve Body
Brand: ZF
Applicable Gearboxes: ZF16S1930 / 16S2230 / 16S2231 / 16S2530 / 16S2531
Category: Transmission Pneumatic Control Parts – Splitter Shift Valve Assembly



Weight Parameter

Net Weight: 0.42KG
Gross Weight: 0.7KG with export carton packing



Material & Feature

  1. High-pressure die-cast aluminum alloy valve housing, lightweight, anti-deformation under air pressure and vibration;

  2. Integrated internal air flow channels, one-piece forming without air leakage risk, M12×1.5 / M14×1.5 standard thread interfaces;

  3. Double hard steel ball valve core with wear-resistant sealing ring, sensitive response for fast high-low gear switch;

  4. Complete built-in dustproof & waterproof sealing structure, adapt to dusty mine and muddy mountain road conditions;

  5. Standard mounting hole layout and overall dimension same as OEM 6038202043, plug-and-play replacement without modification;

  6. Strict air tightness test before delivery, effectively solve slow range shift, air leak, can’t switch high/low gear faults.




Application

Matched with heavy tractors equipped with ZF Ecosplit4 16-speed manual gearboxes: Sinotruk Sitrak C7H, MAN TGX/TGS, DAF XF/CF, IVECO Stralis, JAC Gallop K7; widely used in long-distance logistics, mining, mountain and plateau full-load transportation.



Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.


MOQ & Packing

MOQ: 1 piece
Warranty: 3–6 months, man-made damage and wrong installation excluded
Packing: Anti-rust plastic bag + bubble wrap + neutral export carton, moisture-proof for long ocean transportation
