Basic Info
Alias: All Wheel Drive Transfer Case Assy / Two-Speed Power Split Box / Heavy Vehicle Transfer Unit

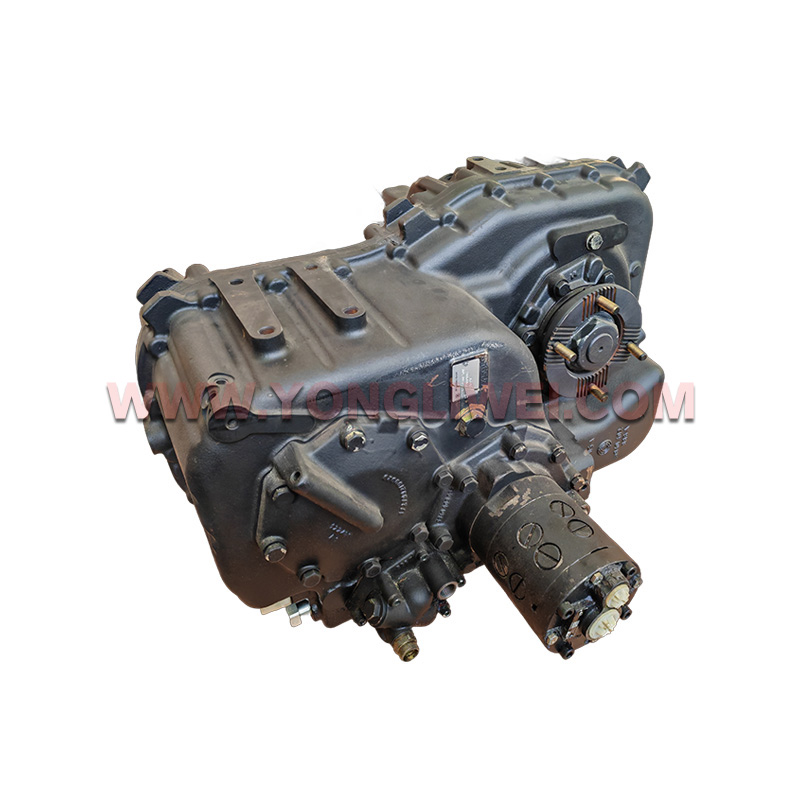

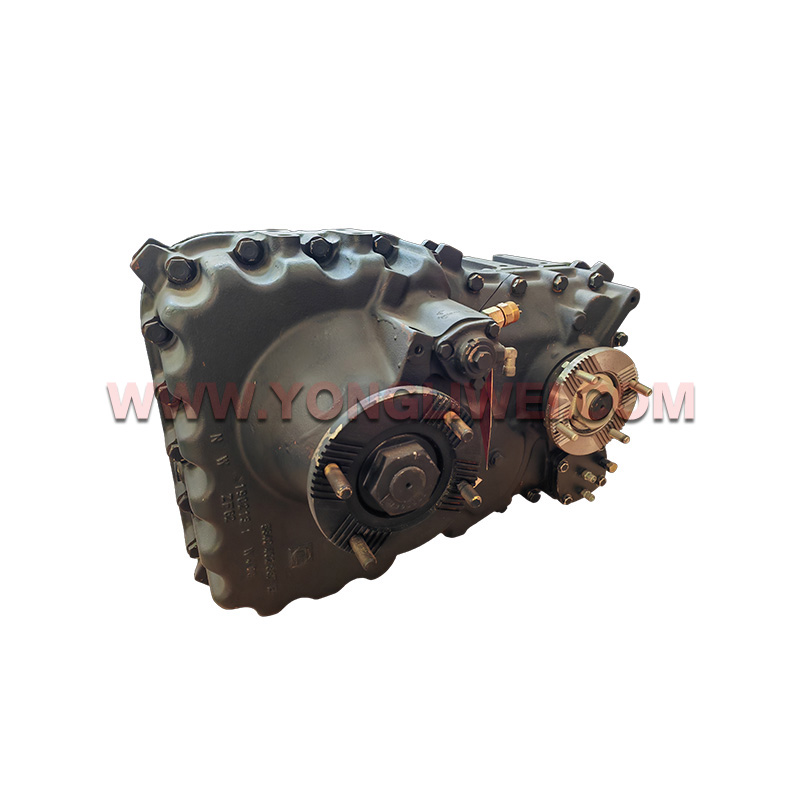

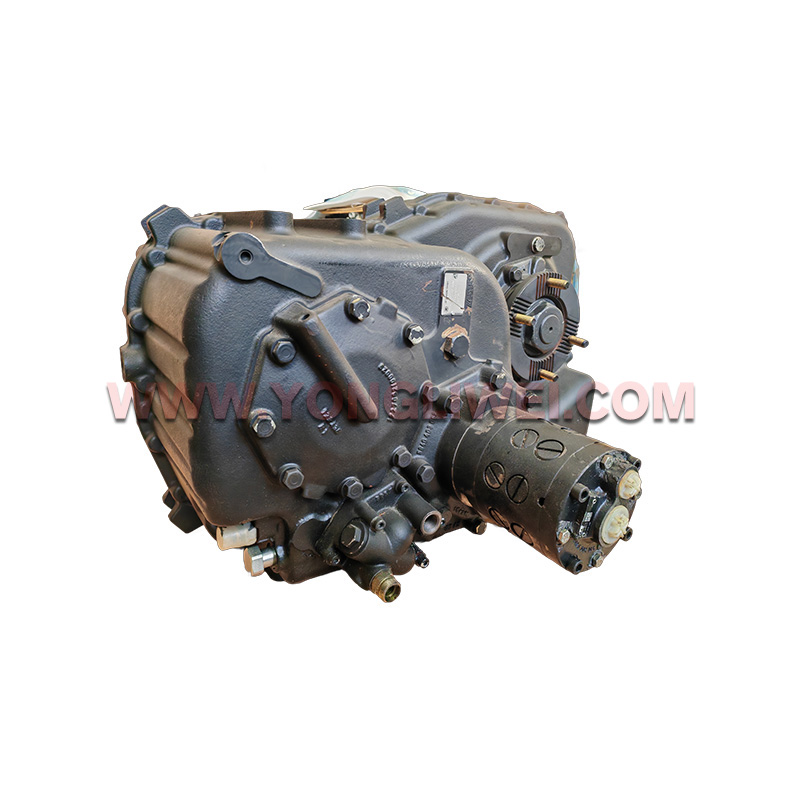

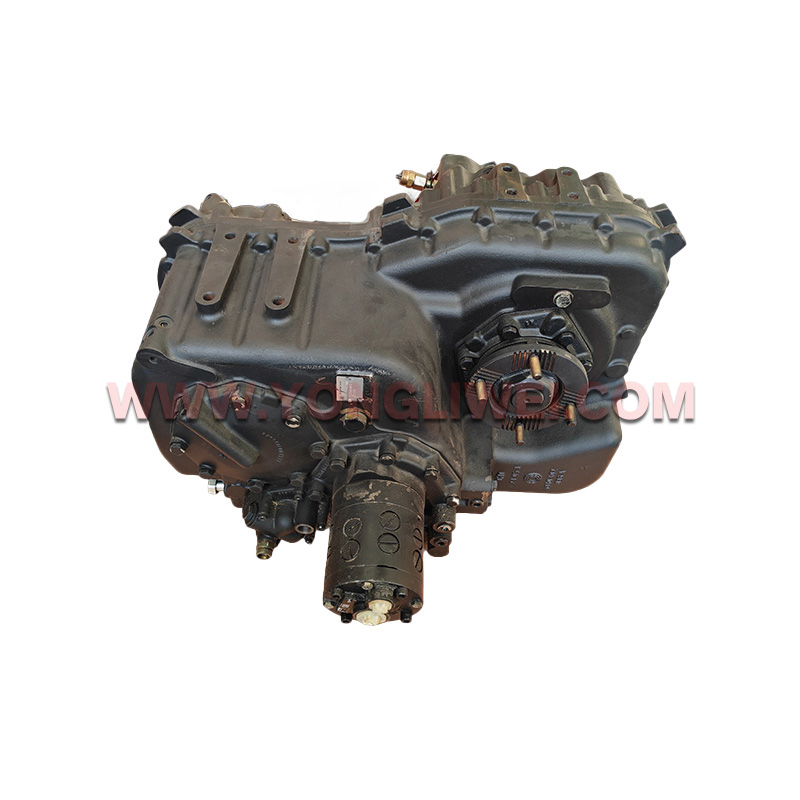

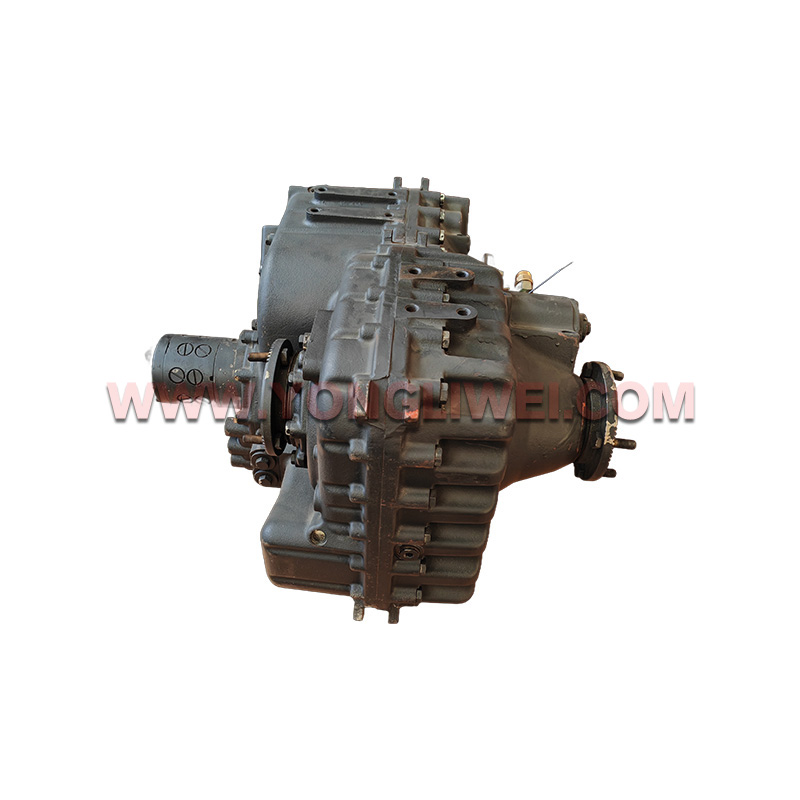

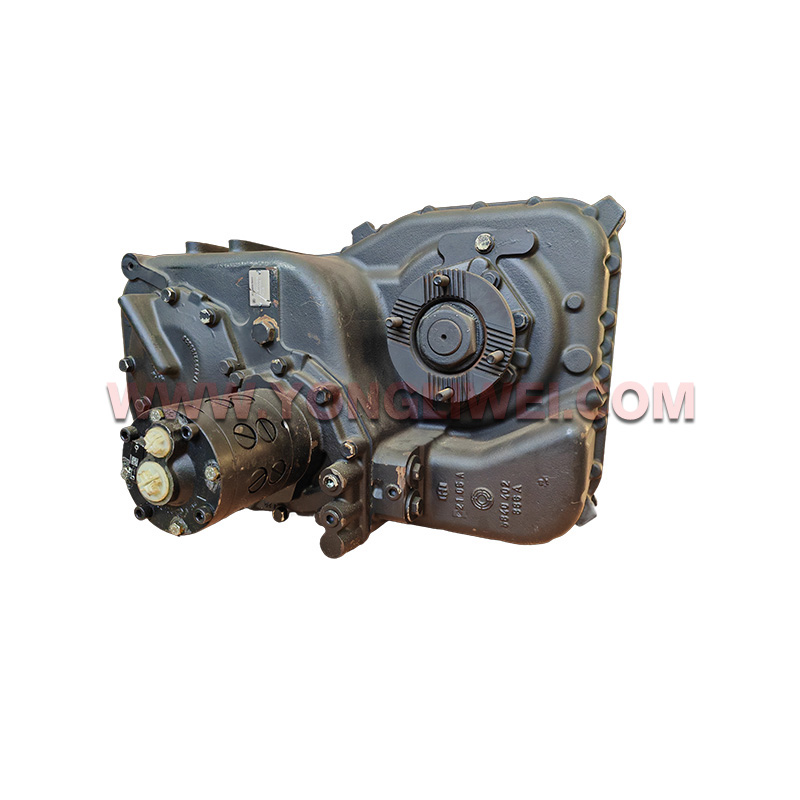

Product Name: ZF Transfer Box Assembly Model VG2700
Brand: ZF
Applicable Vehicles: Large mining dump trucks, mobile all-terrain cranes, heavy fire fighting vehicles, off-road special engineering vehicles
Category: Special Vehicle Drivetrain Parts – Heavy-Duty All-Wheel Drive Transfer Case Assembly
Weight Parameter
Net Weight: 435KG (without differential) / 465KG (with differential)
Gross Weight: 510KG with export solid wooden case packing
Material & Feature
Integrated high-strength die-cast aluminum alloy housing, weight optimized structure with strong rigidity, anti-deformation under long-time ultra-high torque operation;
Three-shaft internal layout, no rotation reversal during power split, stable power output to multi axles;
2-speed pneumatic shift system: road gear ratio 0.91, off-road low gear ratio 1.407, adapt highway and muddy rugged terrain;
All internal gears use carburized alloy steel with precision helical tooth grinding, low running noise and outstanding impact wear resistance;
Lockable planetary longitudinal differential optional, ADM automatic drive management system for auto differential lock control;
Built-in integrated lubrication oil pump, support external oil cooler installation for high-temperature continuous operation;
Idler shaft reserved hydraulic pump mounting interface for emergency steering auxiliary equipment;
Standard multi-surface bolt mounting structure, input/output flange spline size fully match original factory parameters;
Heavy-duty labyrinth sealing system with hose breather, prevent mud, dust and water infiltration for off-road working conditions;
Strict 35000Nm full-load torsion test, vibration fatigue test and high-low temperature cycle test before delivery, stable performance within -30℃~130℃ working temperature range.
Application
Perfectly matched ultra-heavy all-wheel drive special vehicles, including open-pit mining articulated dump trucks, multi-axle mobile truck cranes, large heavy rescue fire trucks and military off-road engineering vehicles; widely used in mine haulage, construction site cross-country operation, emergency rescue and mountain heavy transport scenarios.
Origin & Lead Time
Shiyan warehouse maintains continuous spot stock, deliver goods within 2–3 working days after payment; bulk wholesale orders take 5–10 working days, sea shipping cycle ranges from 12 to 25 days.
MOQ & Packing
MOQ: 1 unit
Warranty: 6–12 months, warranty invalid for man-made overload driving, improper disassembly and insufficient lubrication maintenance
Packing: Anti-rust oil spraying + plastic wrapping + shockproof foam filling + reinforced solid export wooden case, moisture-proof and anti-collision for long-distance ocean transportation
