ZF transmission synchronizer sleeve 6002 305 515

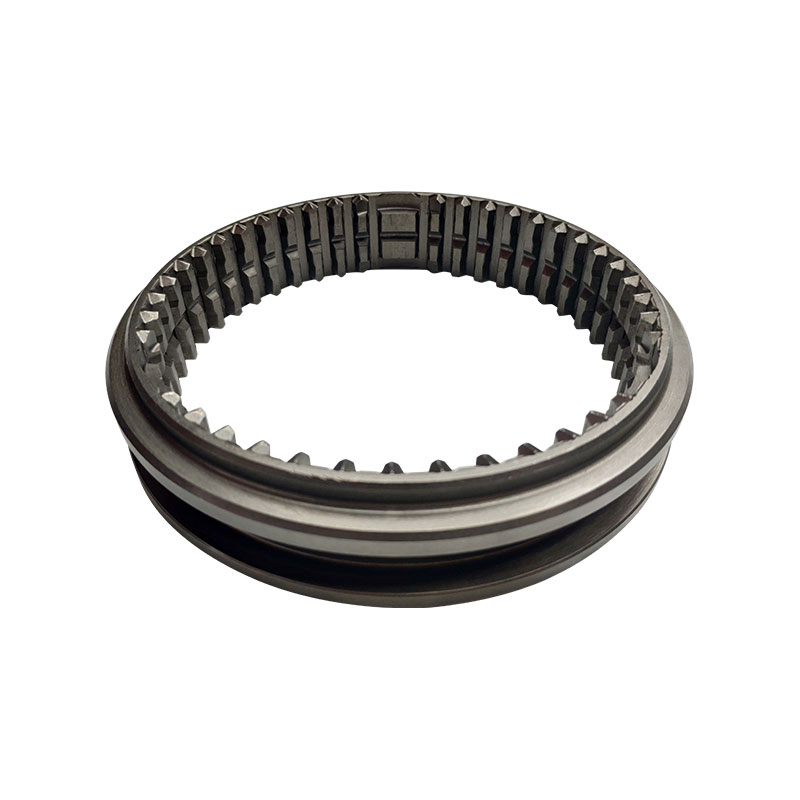

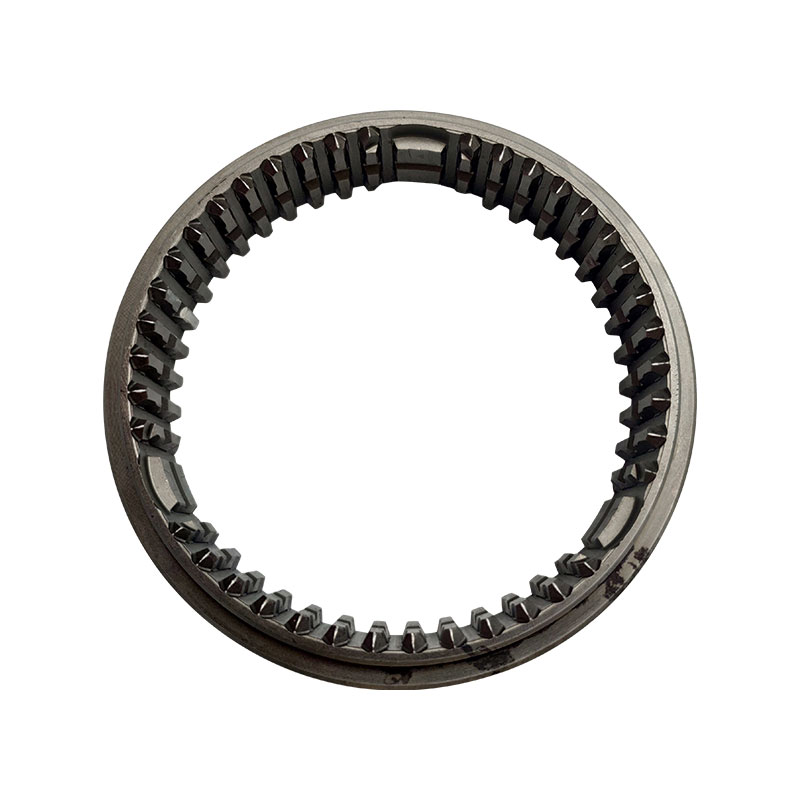

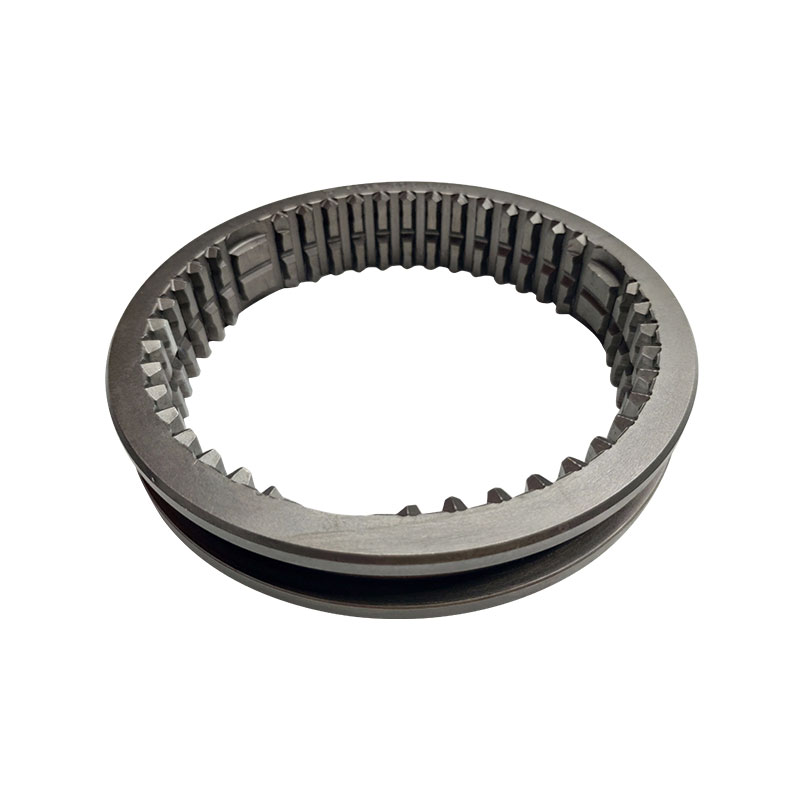

6002305515 is original 3rd & 4th gear synchronizer sliding sleeve exclusively matched for ZF9S109 Ecomid 9-speed fully synchronized manual transmission. Made of integrated forged alloy steel with vacuum carburizing quenching hardening treatment, internal multi-tooth splines are precision broached to realize smooth meshing during gear shifting. It bears axial shift impact torque and cooperates with synchronizer ring to realize stable 3/4 gear engagement, effectively solve common faults such as stiff gear shifting, jumping gear, rapid synchronizer wear and abnormal transmission noise for European medium-duty cargo trucks, municipal vehicles and light dump trucks.

Availability:
Quantity:
  • 6002 305 515

  • ZF

  • 6002 305 515

Product parameters

Basic Info

OEM No: 6002 305 515
Alias: Synchro Sliding Sleeve / Gear Shift Sleeve / 3/4 Speed Synchronizer Sleeve
Product Name: ZF ZF9S109 Transmission 3rd & 4th Gear Synchronizer Sliding Sleeve
Brand: ZF
Applicable Gearbox Series: ZF9S109 9-speed fully synchronized manual transmission
Category: Manual Transmission Synchronizer Core Parts – Shift Sliding Sleeve Assembly



Weight Parameter

Net Weight: 0.81KG
Gross Weight: 1.15KG with export carton packing



Material & Feature

  1. High-strength alloy steel integral forging, vacuum carburizing quenching & tempering, surface high hardness with strong impact toughness and wear resistance;

  2. Internal multi-tooth spline precision broaching processing, uniform tooth surface stress, low friction and smooth gear shifting without jamming;

  3. Outer ring shift dog teeth precision milling, perfect fit with shift fork, stable axial pushing without deflection;

  4. Standard overall dimension, spline tooth profile and thickness consistent with OEM 6002305515, direct plug-and-play replacement without cutting or modification;

  5. Whole piece surface anti-rust passivation treatment, resist long-term erosion of high-temperature gear oil inside gearbox;

  6. Strict wear resistance and impact fatigue test before delivery, stable service performance under urban logistics and medium-load mountain transportation conditions.



Application

Perfectly matched European medium-duty commercial vehicles equipped with ZF9S109 9-speed manual gearboxes: Mercedes-Benz Atego, MAN TGM, Iveco Eurocargo, Renault Midlum medium cargo trucks, municipal sanitation vehicles, light mining dump trucks; widely used in urban distribution, short-distance freight and medium-load mountain haulage transportation.



Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.



MOQ & Packing

MOQ: 1 piece
Warranty: 3–6 months, warranty void for man-made damage, improper disassembly and wrong installation
Packing: Anti-rust plastic film + thick foam buffer + reinforced shockproof export solid wooden case, moisture-proof and anti-collision for long ocean transportation
