ZF12 Automatic Transmission Assembly 12AS2130TO

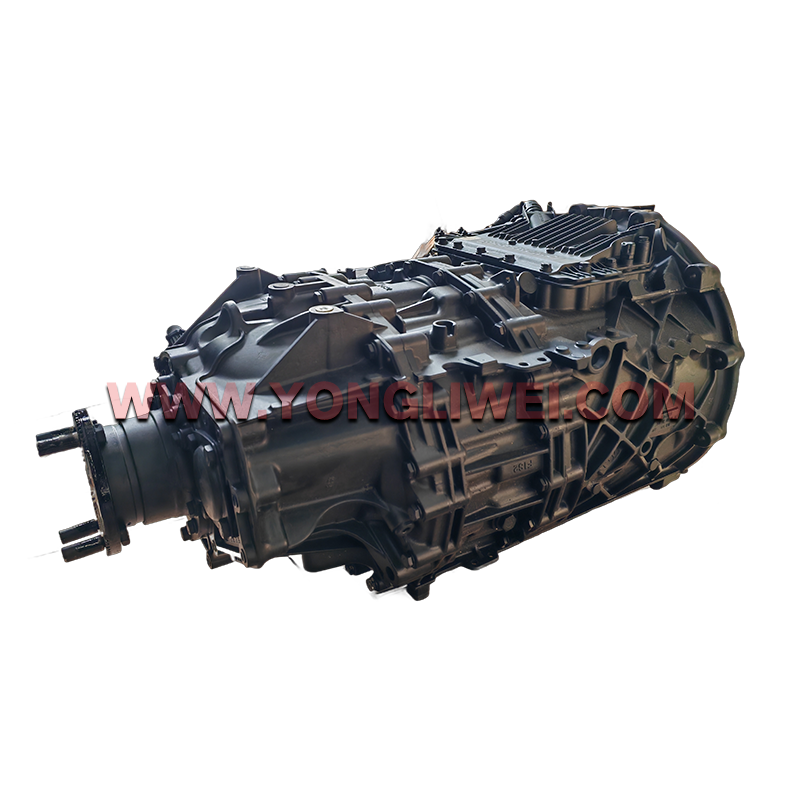

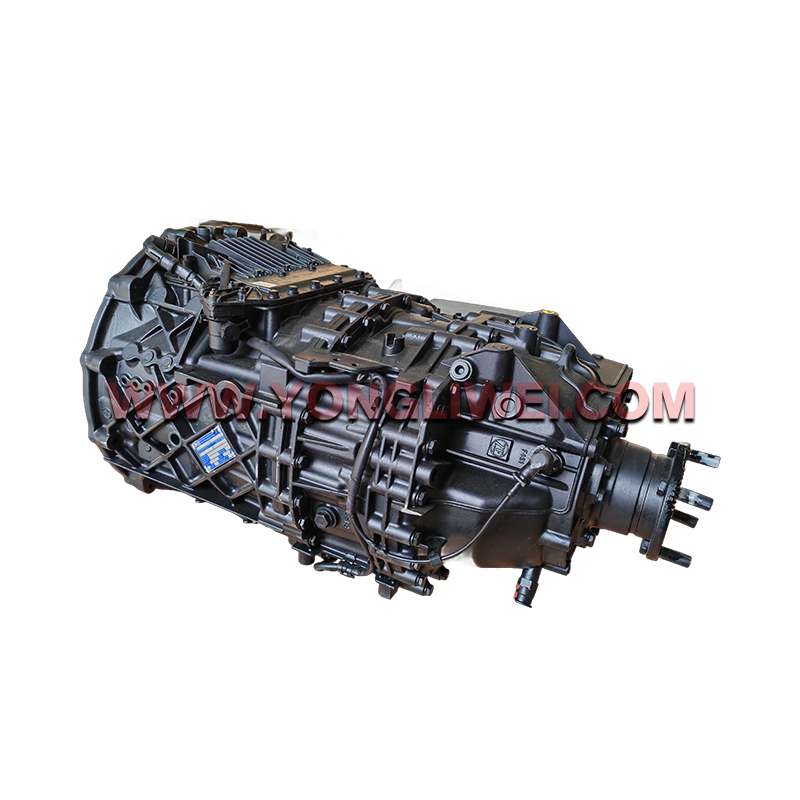

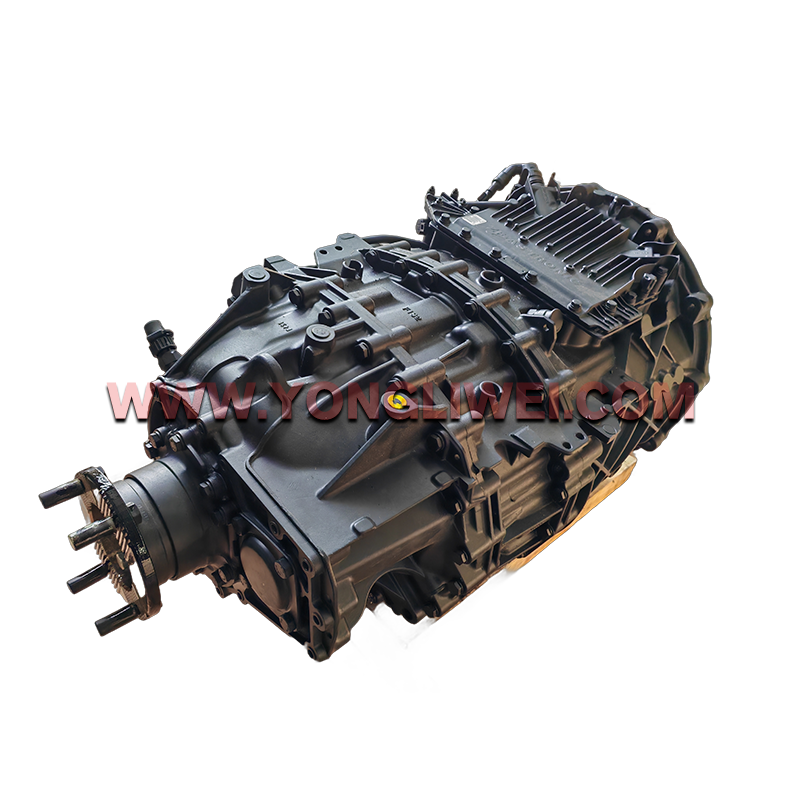

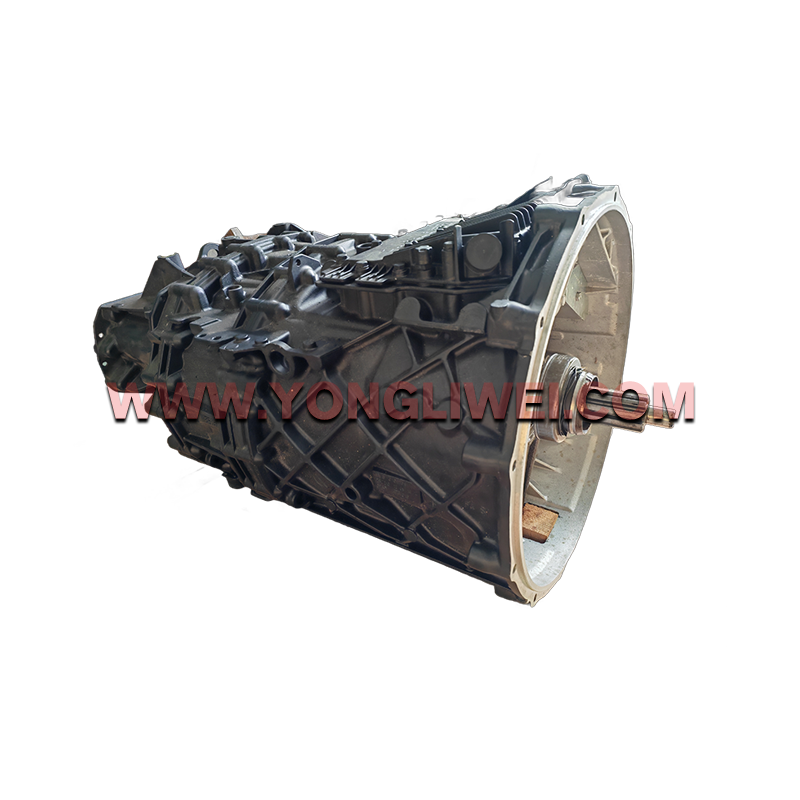

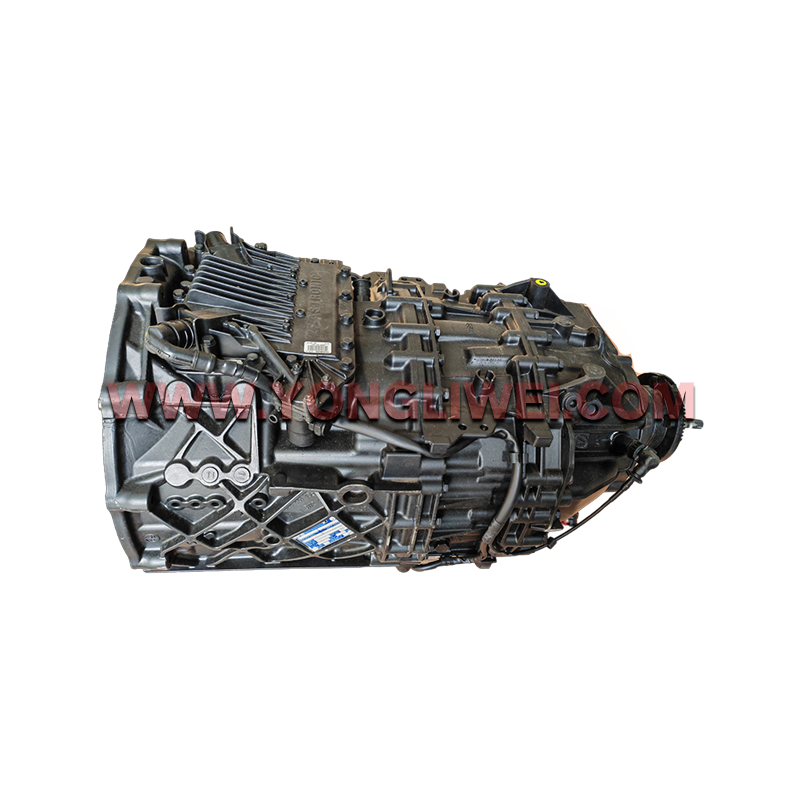

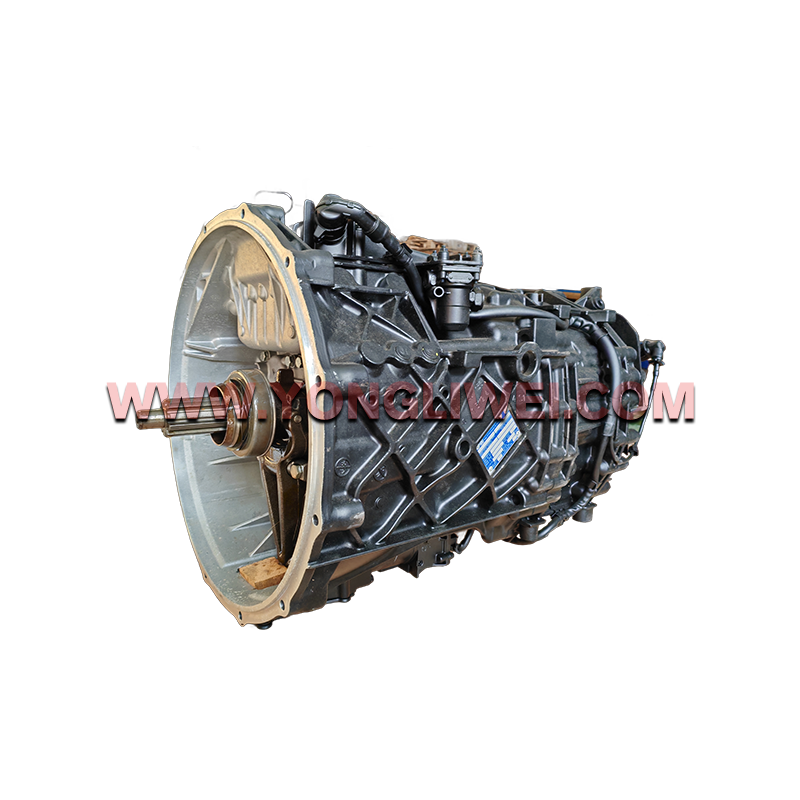

ZF12AS2130TO is ZF Astronic AS-Tronic modular 12-speed automated manual transmission with TO overdrive structure, maximum rated input torque 2100 Nm. Equipped with integrated TCU electronic control unit, intelligent adaptive shift program and optional dual PTO interfaces. 12 forward gears + 2 reverse gears, 12th gear overdrive ratio 0.78 effectively reduces engine RPM at cruising speed to cut fuel consumption. Smooth automatic shifting lowers driver fatigue, stable power output for long-distance logistics, mountain and plateau heavy haul trucks. Perfect match for Sinotruk Sitrak, Auman EST-A, MAN TGS/TGX, DAF XF/CF heavy tractors.
Availability:
Quantity:
  • ZF12AS2130TO

  • ZF

  • ZF12AS2130TO

Product parameters

Basic Info

Model No: ZF12AS2130TO
Product Name: ZF Astronic 12AS2130TO 12-Speed Overdrive AMT Transmission Assembly
Brand: ZF
Series: Astronic AS-Tronic Medium Heavy Duty AMT Platform
Max Input Torque: 2100 Nm
Gear Layout: 12 forward / 2 reverse
Top Gear: TO Overdrive (Ratio 0.78)
Net Weight: 240KG
Category: Complete Heavy Truck Transmission Assembly



Weight Parameter

Net Weight: 240KG
Gross Weight: 278KG with export wooden case packing



Material & Feature

  • Lightweight high-pressure cast aluminum alloy housing, high structural rigidity, fast heat dissipation, anti-deformation under long-time heavy torque operation;

  • Built-in integrated TCU control module, CAN bus communication, intelligent automatic shifting without manual intervention, compatible predictive shift logic;

  • Full set carburized precision helical gear sets, low meshing noise, outstanding wear resistance and long service life;

  • Optional dual side PTO ports, support hydraulic power equipment for mixer, wrecker, sanitation special vehicles;

  • Wide gear ratio range (12.33~0.78), strong low-speed climbing torque and high-speed fuel-saving performance;

  • Independent transmission oil cooling circuit, compatible optional external hydraulic retarder;

  • Standard OEM vehicle mounting interface, direct replacement without chassis modification during overhaul.



Application

Compatible with mainstream heavy-duty tractors: Sinotruk Sitrak C7H, Foton Auman EST-A, MAN TGS/TGX, DAF XF/CF, Dongfeng Kinland flagship; widely used in long-distance bulk cargo logistics, intercity freight, mountain and plateau full-load heavy haul transportation 1688阿... .



Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.


MOQ & Packing

MOQ: 1 unit
Warranty: 6–12 months, man-made damage and wrong installation excluded
Packing: Anti-rust plastic film + thick foam buffer + reinforced shockproof export wooden case, moisture-proof for long ocean transportation
