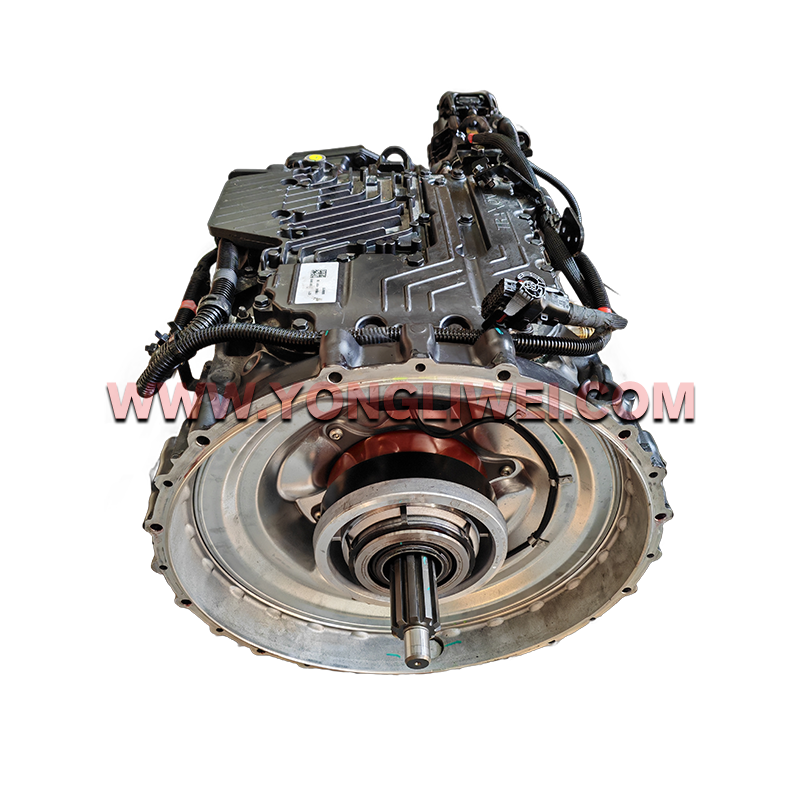

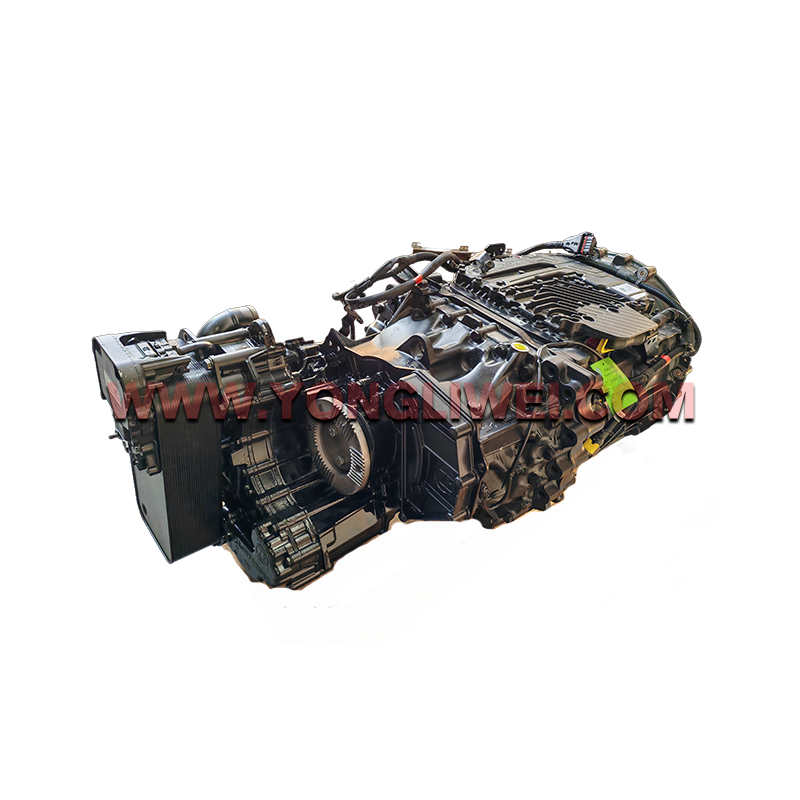

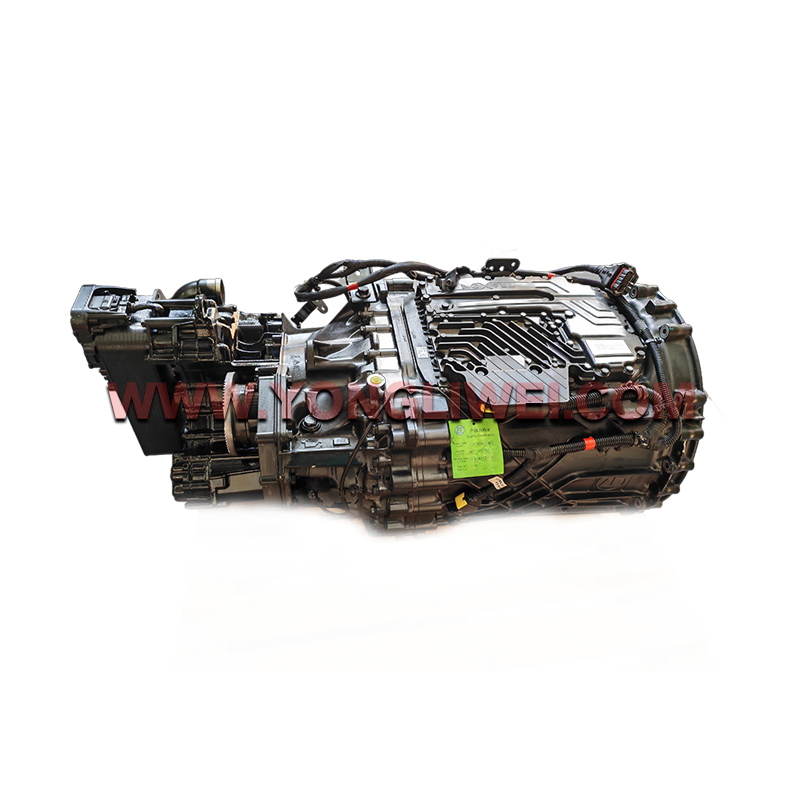

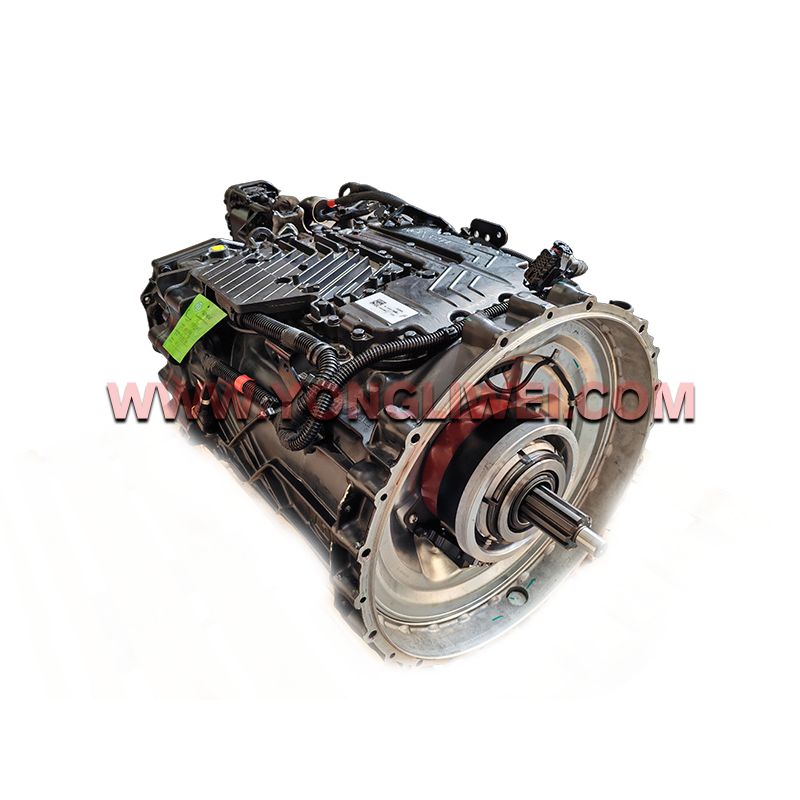

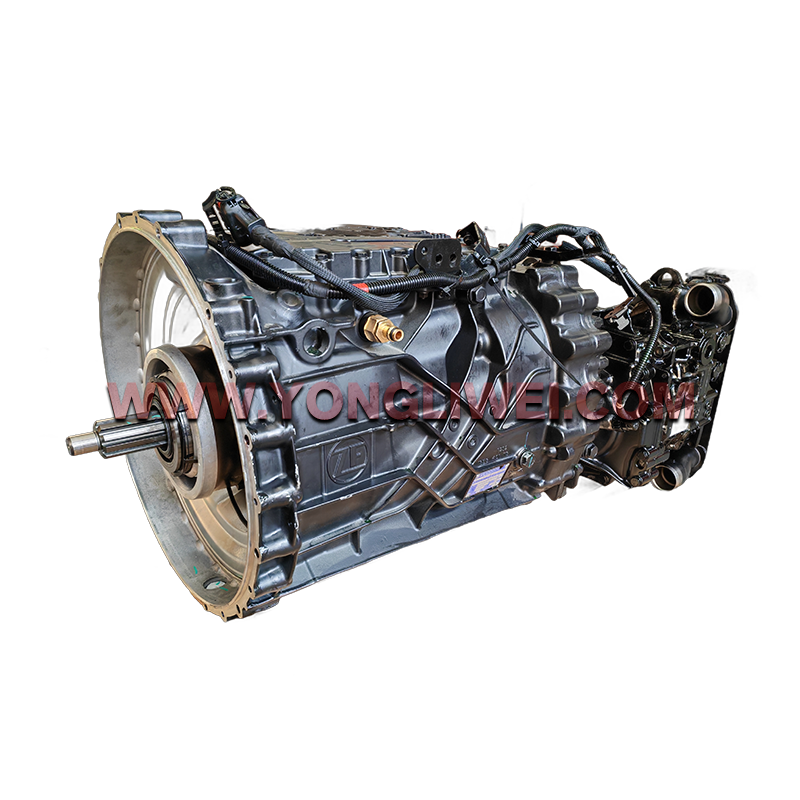

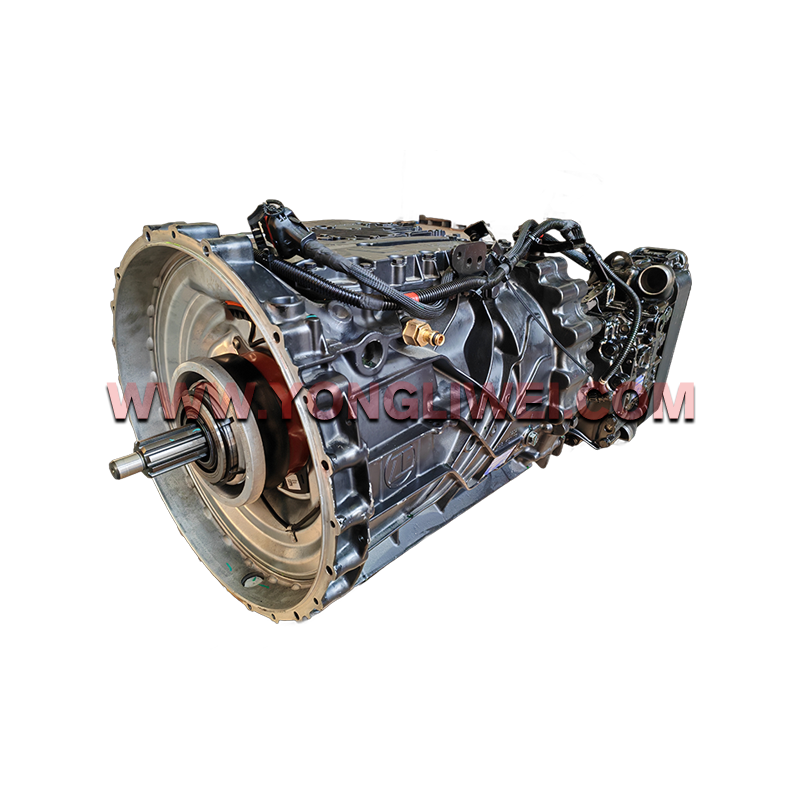

ZF12 automatic transmission assembly 12TX3221TO

ZF12TX3221TO is a full modular 12-speed TraXon automated manual transmission (AMT) with overdrive gear, max input torque 3200 Nm. Equipped with integrated TCU control system, intelligent PreVision shift logic and optional dual PTO interfaces. Smooth automatic shifting reduces driver fatigue, high transmission efficiency cuts fuel consumption for long-haul heavy tractors. Perfect match for Foton Auman Galaxy, JAC Gallop K7, Sinotruk Sitrak, FAW J7 and Dongfeng flagship trucks. Stable power output for plateau, mountain and full-load freight transport.

Availability:
Quantity:
  • 12TX3221TO

  • ZF

  • 12TX3221TO

Product parameters

Basic Info

Model No: ZF12TX3221TO
Product Name: ZF TraXon 12TX3221TO 12-Speed Automatic Transmission Assembly
Brand: ZF
Series: TraXon Modular Heavy-Duty AMT Platform
Max Rated Input Torque: 3200 Nm
Top Gear Type: TO Overdrive
Forward Gears: 12
Reverse Gears: 2
Category: Complete Truck Transmission Assembly



Weight Parameter

Net Weight: 265KG
Gross Weight: 302KG with export wooden case packing



Material & Feature

  • Lightweight high-pressure cast aluminum alloy housing, high rigidity, good heat dissipation and anti-deformation under heavy torque;

  • Built-in intelligent TCU electronic control unit, automatic gear shifting without manual operation, compatible GPS PreVision predictive shift strategy;

  • Precision helical gear set with carburizing quenching treatment, low meshing noise, strong wear resistance and long service life;

  • Optional dual power take-off ports, support hydraulic equipment for sanitation, mixer and wrecker special vehicles;

  • Optimized overdrive speed ratio design, lower engine RPM at highway cruising to save fuel;

  • Integrated double cooling circuit for transmission oil and optional hydraulic retarder;

  • Standard vehicle mounting interface, direct replacement for original damaged gearbox without chassis modification.



Application

Compatible with heavy-duty tractors equipped with high-torque diesel engines: Foton Auman Galaxy GTL, JAC Gallop K7, Sinotruk Sitrak C7H, FAW J7/Yingtu, Dongfeng Kinland Flagship; widely used in long-distance bulk cargo transportation, intercity logistics, mountain and plateau overloaded haulage.



Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.


MOQ & Packing

MOQ: 1 piece
Warranty: 3–6 months, man-made damage and incorrect installation not covered
Packing: Anti-rust plastic film + thick foam buffer + reinforced shockproof export wooden case, moisture-proof for long ocean transportation
