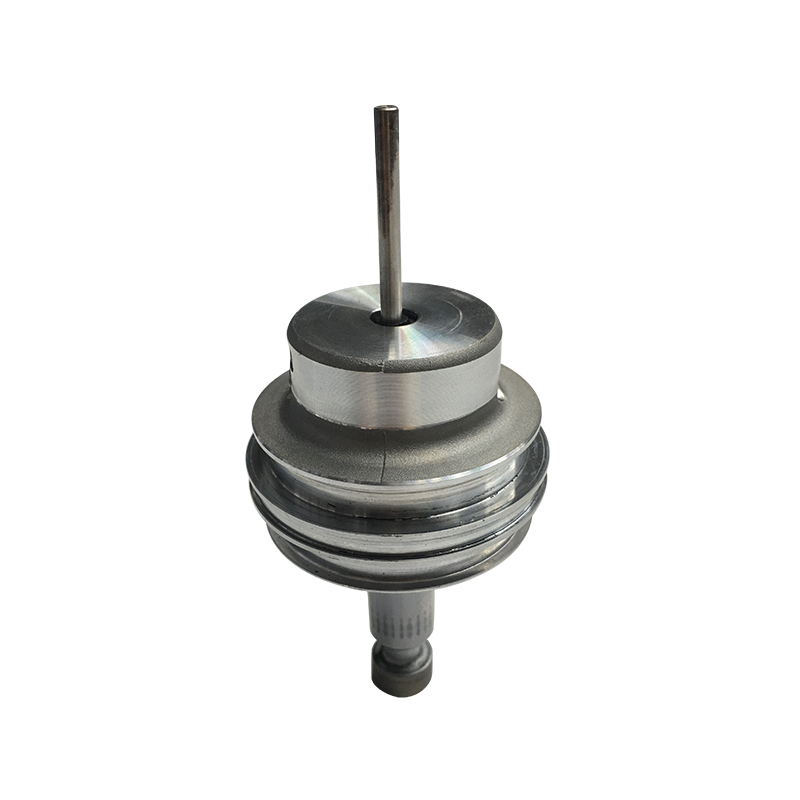

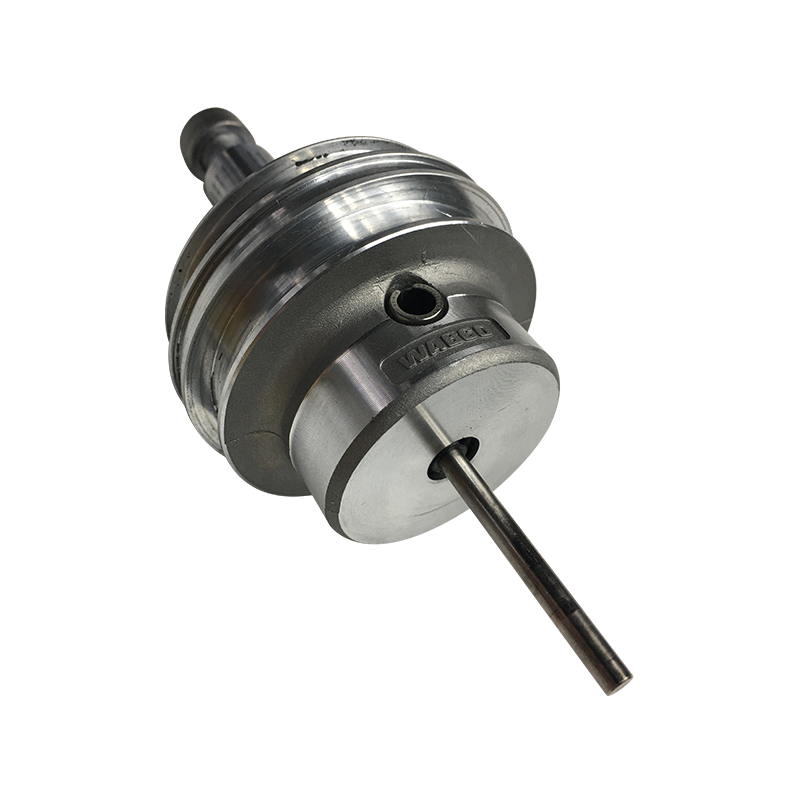

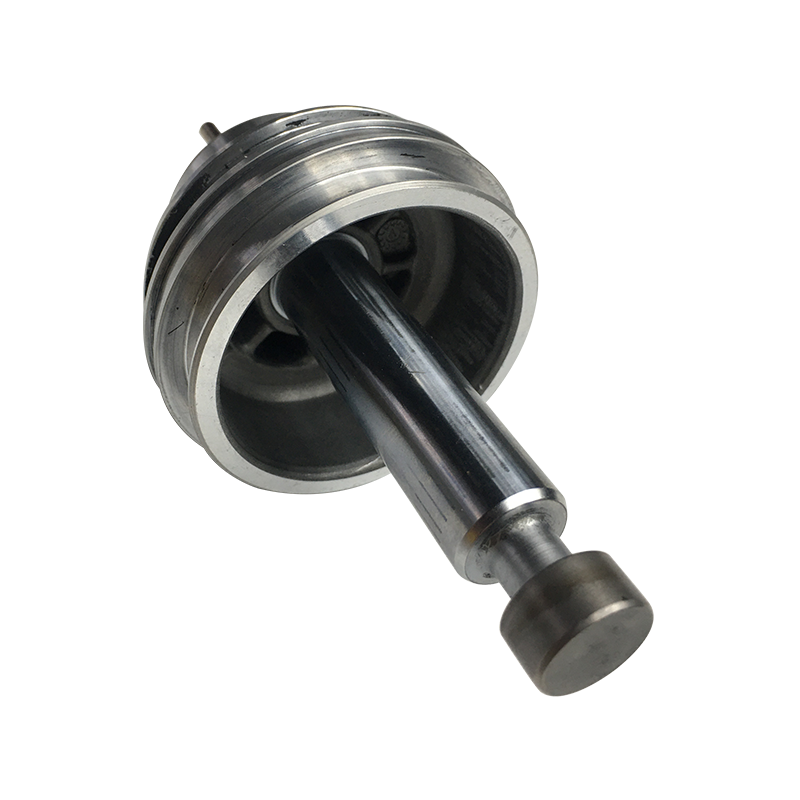

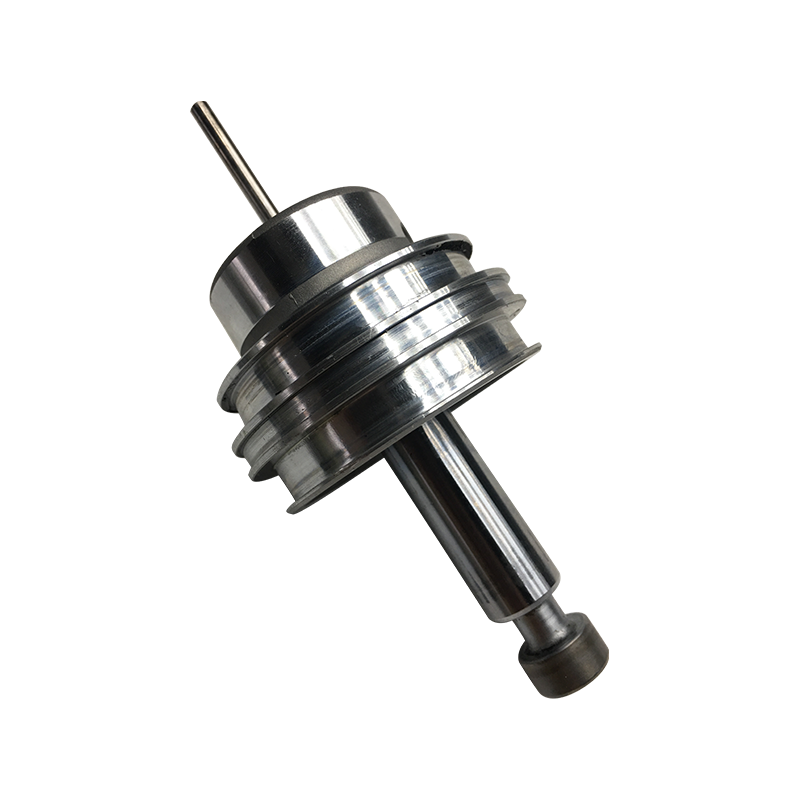

ZF12AS Automatic Transmission Cylinder Repair Kit 4213556294

4213556294 is complete overhaul repair kit matched for ZF Astronic ZF12AS series 12-speed AMT shift actuator cylinder, jointly developed by ZF and WABCO. The kit contains full matched sealing rings, piston rubber sleeves, dust seals and wear-resistant gaskets for internal gear selection & shift cylinders. It eliminates air leakage, slow gear engagement, gear missing and actuator malfunction caused by aging & damaged seals, with IP6K9K dustproof & waterproof performance, stable working range -40℃~+95℃. Ideal maintenance replacement for MAN TGX/TGS, DAF XF/CF, IVECO Stralis, Renault and Volvo heavy tractors equipped with ZF12AS gearboxes.
Availability:
Quantity:
  • 4213556294

  • ZF

  • 4213556294

Product parameters

Basic Info

OEM No: 4213556294
Alias: Shift Actuator Cylinder Seal Overhaul Kit / Piston Seal Repair Kit
Product Name: ZF Astronic ZF12AS Transmission Shift Cylinder Complete Repair Kit
Brand: ZF + WABCO
Applicable Gearbox Series: ZF12AS2130 / 12AS2330 / 12AS2530 Astronic 12-speed AMT
Working Voltage: 24V DC
Max Air Operating Pressure: 12 bar
Protection Class: IP6K9K
Category: Transmission Pneumatic Control Parts – Actuator Cylinder Maintenance Repair Kit



Weight Parameter

Net Weight: 0.33KG
Gross Weight: 0.58KG with export carton packing



Material & Feature

  • Full set high-temperature fluorine rubber sealing components, oil-resistant, anti-aging and wear-resistant to extend overhaul cycle;

  • Complete supporting accessories including piston seals, dust rings, O-rings, flat gaskets and buffer rubber sleeves, one-stop overhaul without separate purchasing;

  • Strict OEM dimensional tolerance, perfectly fit original shift cylinder inner cavity, no air leakage after assembly;

  • Anti-corrosion metal support rings matched with rubber seals to prevent seal deformation under high air pressure;

  • Standard maintenance matching specification, no modification required during disassembly and installation, simple operation;

  • Strict air tightness and aging test before delivery, stable sealing performance under mine, mountain and plateau harsh environments.



Application

Perfectly matched European heavy-duty tractors fitted with ZF Astronic 12AS series AMT transmissions: MAN TGA/TGS/TGX, DAF XF/CF Euro 5/Euro 6, IVECO Stralis, Renault Magnum/Premium, Volvo FM/FMX; widely used in cross-border logistics, long-distance bulk cargo transport, mountain full-load haulage and mine transportation.


Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.



MOQ & Packing

MOQ: 1 set
Warranty: 3–6 months, warranty void for man-made damage, improper disassembly and wrong installation
Packing: Anti-static plastic bag + bubble wrap + neutral export carton, moisture-proof and anti-collision for long ocean transportation
