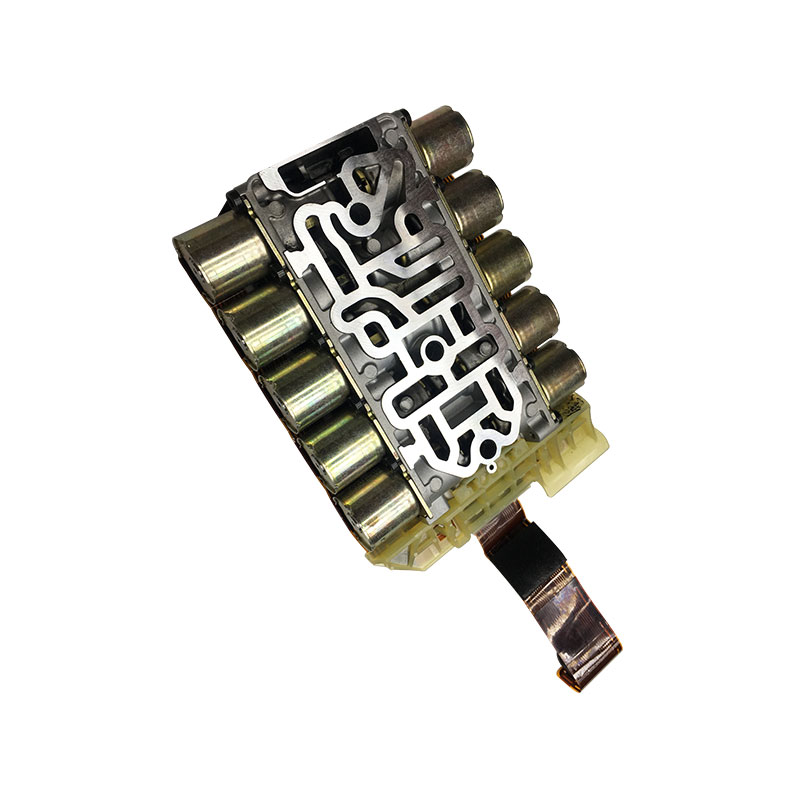

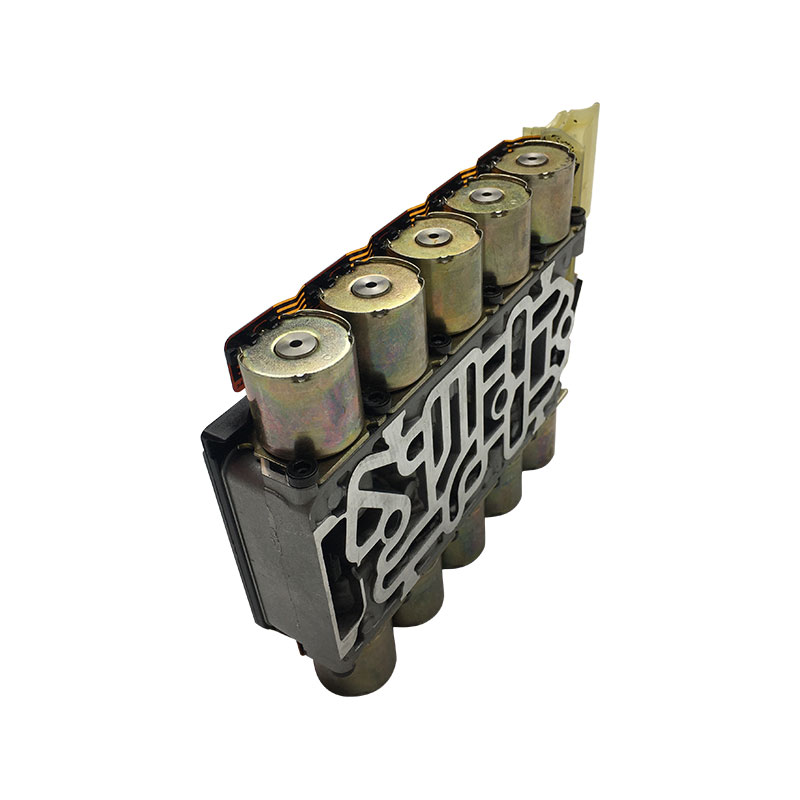

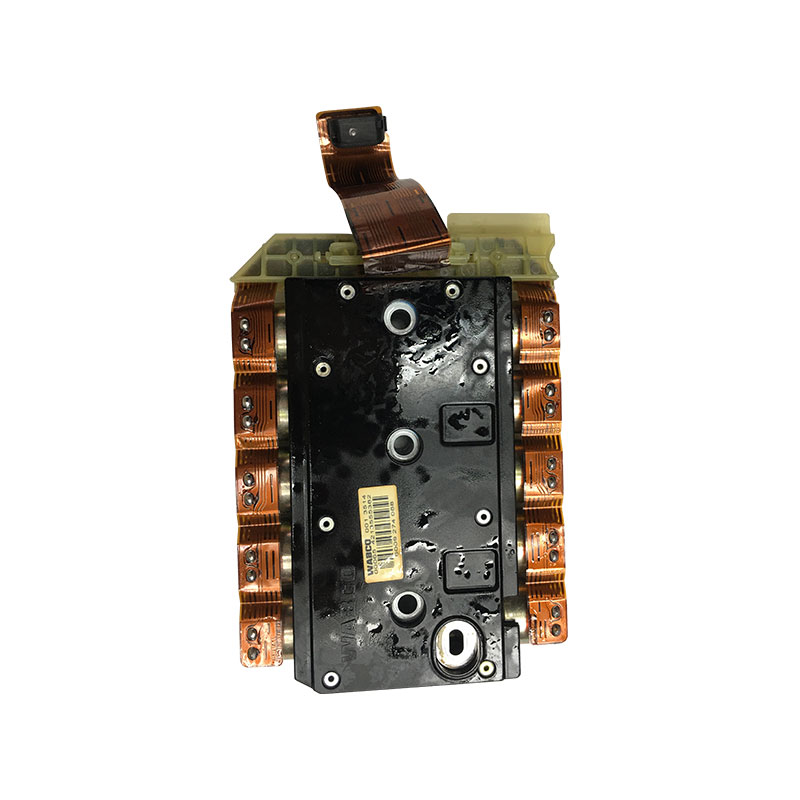

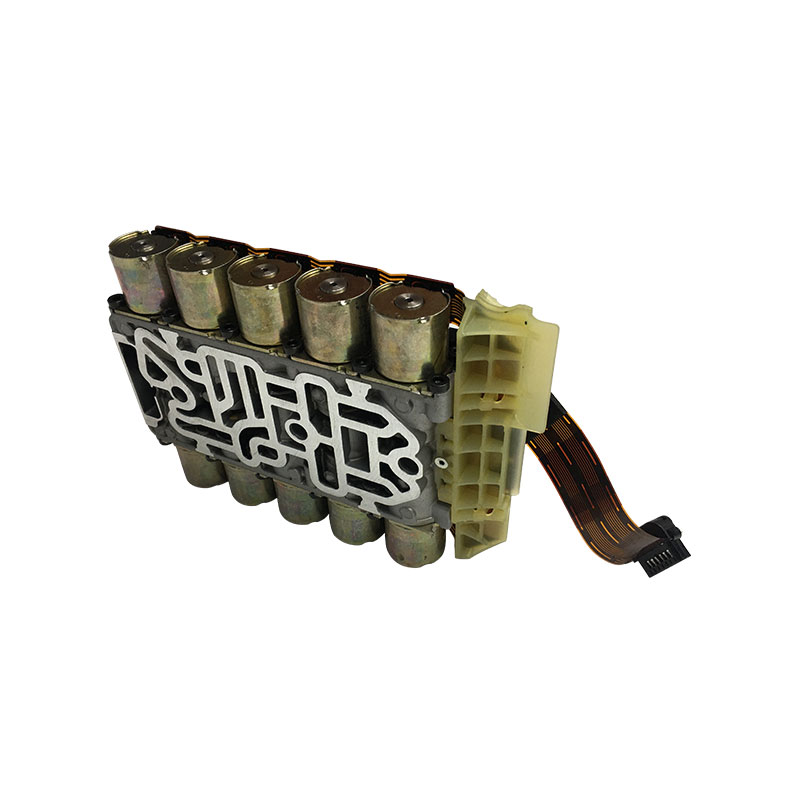

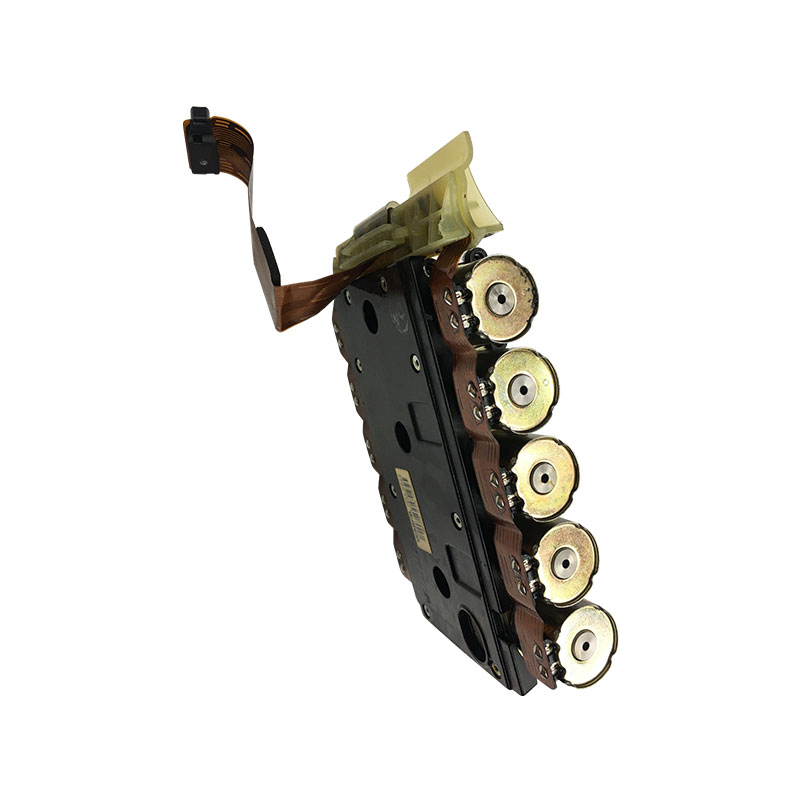

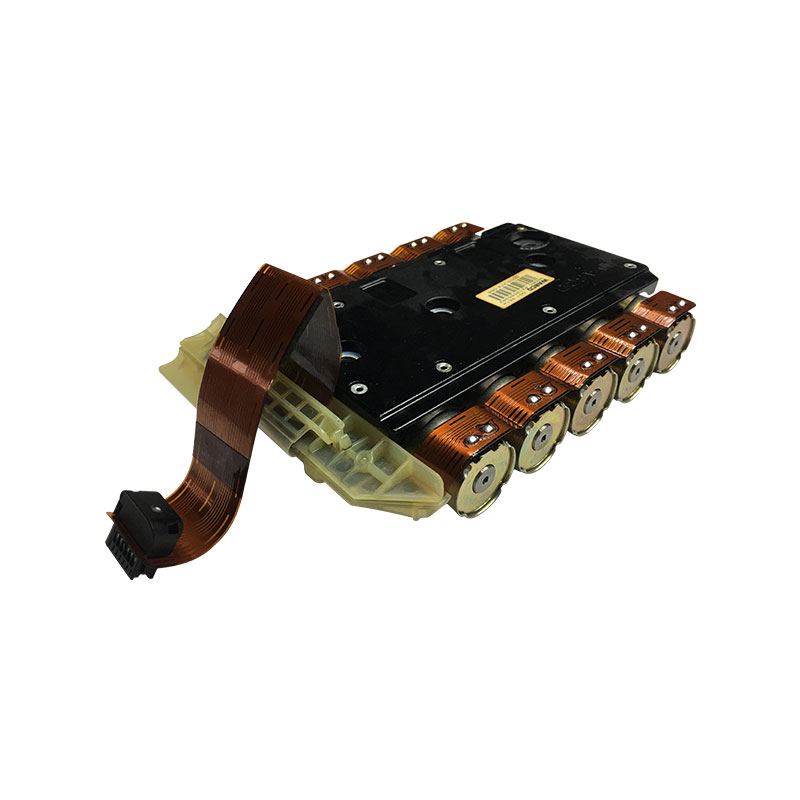

ZF12AS automatic transmission shift module 6009 274 088

6009274088 is integrated electro-pneumatic shift control module jointly developed by ZF and WABCO, dedicated to ZF Astronic ZF12AS series 12-speed AMT transmissions. This all-in-one unit integrates multi-channel solenoid valves, built-in air flow circuits, shift piston cylinders and signal communication wiring harness. It receives CAN-BUS gear shift signals to precisely control gear selection, range shift and clutch disengagement via compressed air. IP6K9K full dustproof & oil-proof sealing, stable operation within -40℃~+95℃, thoroughly solves gear shift delay, air leakage, gear missing, fault code alert and vehicle limp mode failures for MAN, DAF, IVECO, Renault, Volvo heavy tractors equipped with ZF12AS gearboxes.
Availability:
Quantity:
  • 6009 274 088

  • ZF

  • 6009 274 088

Product parameters

Basic Info

OEM No: 6009 274 088
Alias: Shift Control Valve Module / Electro-Pneumatic Actuator Integrated Unit / Solenoid Shift Module
Product Name: ZF Astronic ZF12AS Transmission Integrated Shift Control Module
Brand: ZF + WABCO
Applicable Gearbox Series: ZF12AS1930 / 12AS2130 / 12AS2330 / 12AS2530 Astronic 12-speed AMT
Working Voltage: 24V DC
Max Air Operating Pressure: 12 bar
Protection Class: IP6K9K
Category: Transmission Electrical & Pneumatic Control Parts – Complete Shift Actuator Core Module Assembly



Weight Parameter

Net Weight: 8.6KG
Gross Weight: 11.5KG with export wooden case packing



Material & Feature

  • High-pressure gravity cast aluminum alloy main body with integral air channels, no secondary welding, zero hidden air leakage risk;

  • Imported industrial anti-corrosion solenoid valves, quick response and stable output under long-term vibration and high temperature;

  • Integrated built-in shift & select piston cylinder assembly, matched fluorine rubber high-temperature sealing parts for long service life;

  • Original standard multi-pin communication plug and air thread interfaces, perfectly match vehicle wiring harness and air pipes without modification;

  • Complete built-in CAN communication protocol, synchronous linkage with engine ECU, ABS and retarder control system;

  • Strict air tightness, high-low temperature cycle and vibration aging test before delivery, reliable performance in mine, mountain and plateau harsh working environments.



Application

Perfectly matched European heavy-duty tractors fitted with ZF Astronic 12AS series AMT transmissions: MAN TGA/TGS/TGX, DAF XF/CF Euro 5/Euro 6, IVECO Stralis, Renault Magnum/Premium, Volvo FM/FMX; widely used in cross-border logistics, long-distance bulk cargo transport, mountain full-load haulage and mine heavy-duty transportation.


Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.



MOQ & Packing

MOQ: 1 piece
Warranty: 3–6 months, warranty void for man-made damage, improper disassembly and wrong installation
Packing: Anti-static plastic bag + bubble wrap + neutral export carton, moisture-proof and anti-collision for long ocean transportation
