ZF12TX Automatic Transmission 12TX2620 2621 2821 2820 3221 Gear Selector Actuator 0501 301 353

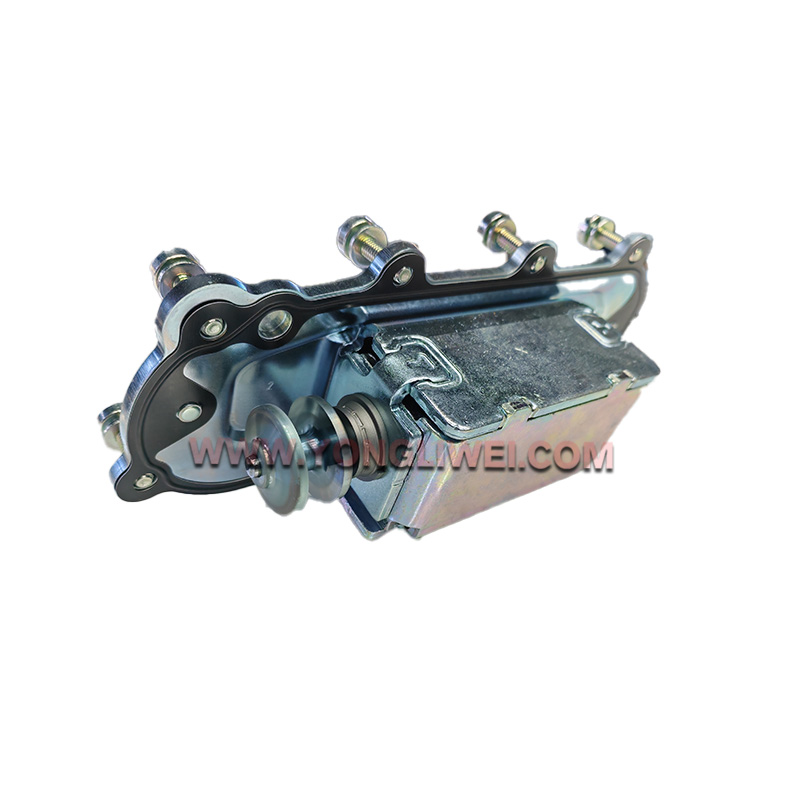

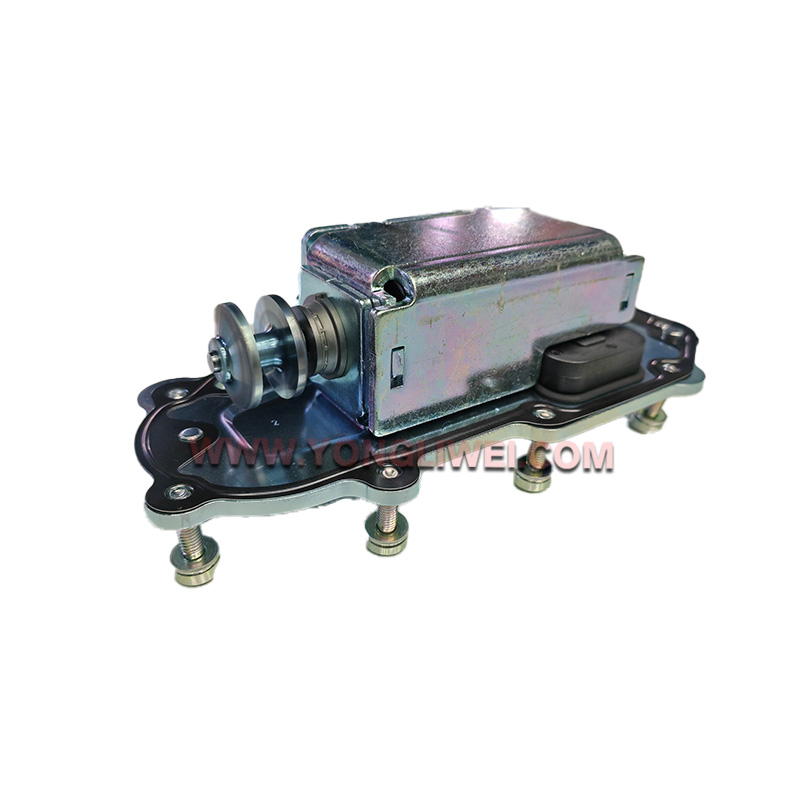

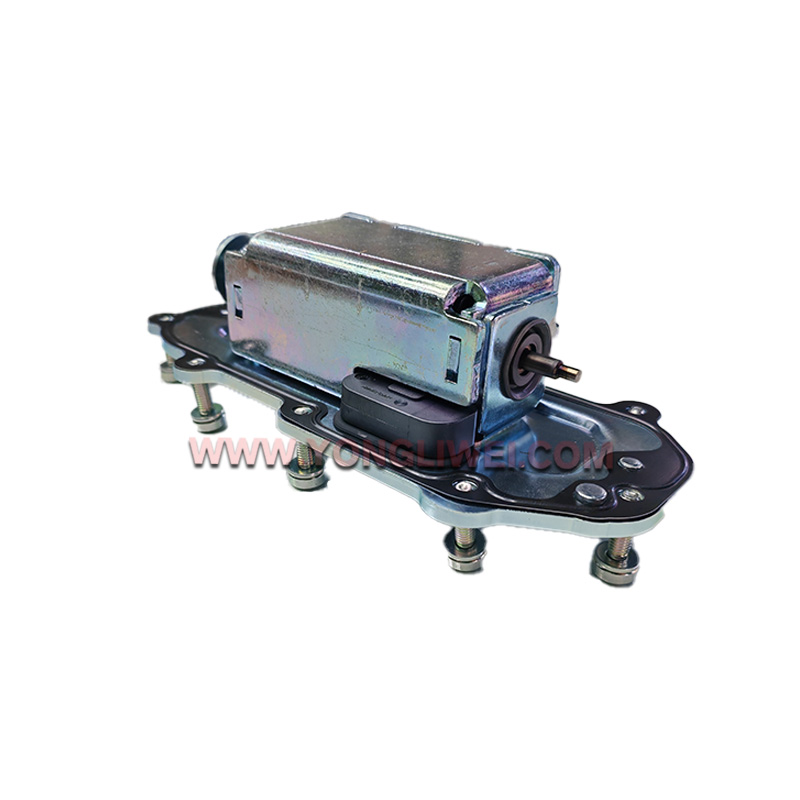

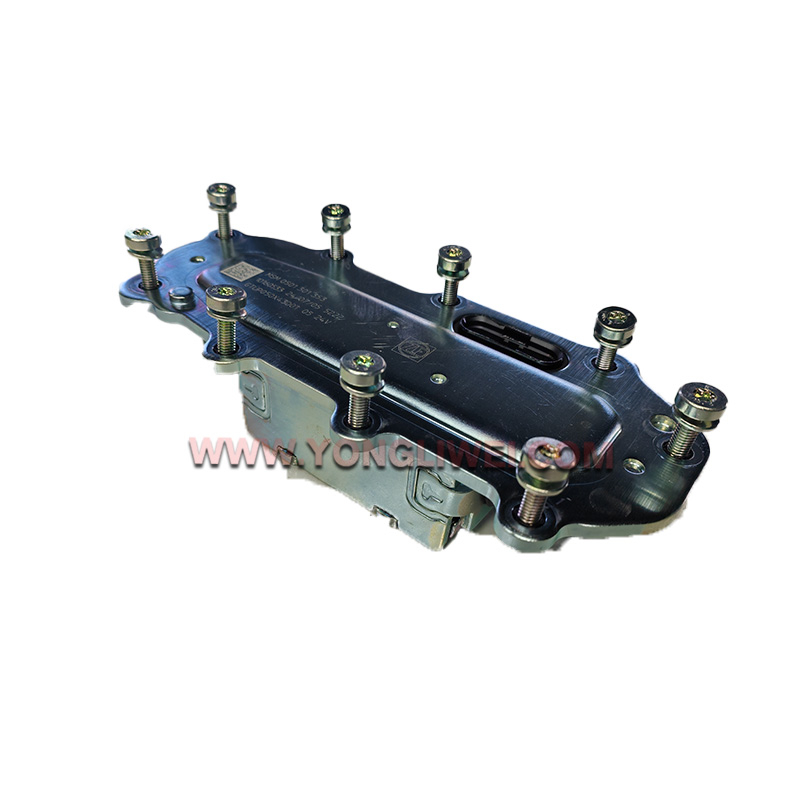

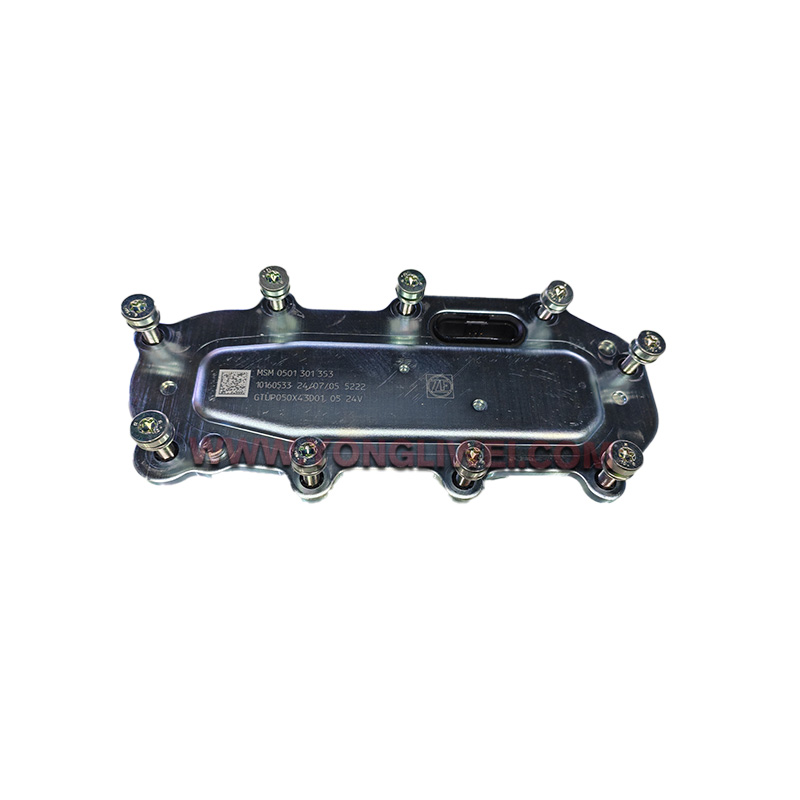

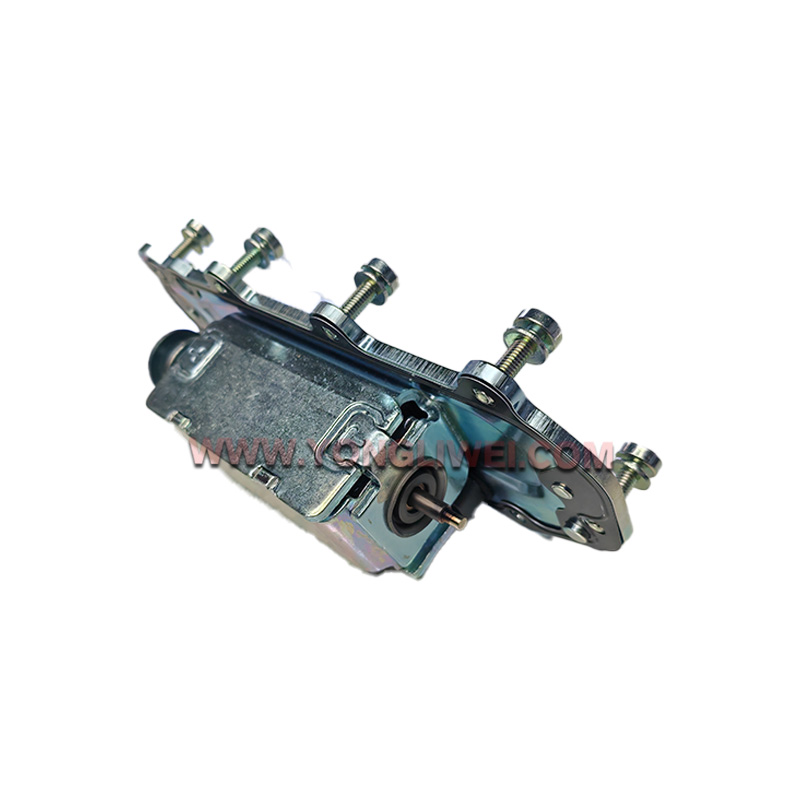

0501 301 353 electronic gear selector actuator exclusively matched for ZF TRAXON 12TX series AMT automatic transmissions, compatible with 12TX2620,12TX2621,12TX2820,12TX2821,12TX3221. Built-in precision drive motor and position sensor, receives TCU shift signals to drive shift forks for automatic gear selection. IP67 waterproof housing, strong anti-vibration performance, accurate gear positioning, effectively solve shift failure, gear jumping and signal loss faults on long-haul heavy tractors.
Availability:
Quantity:
  • 0501 301 353

  • ZF

  • 0501 301 353

Product parameters

Basic Info

OEM No: 0501 301 353
Product Name: ZF TRAXON 12TX Series Gear Selector Actuator
Brand: ZF
Series: TRAXON 12-speed AMT
Applicable Models: 12TX2620, 12TX2621, 12TX2820, 12TX2821, 12TX3221
Category: Transmission Parts > Shift Actuator / Electronic Shift Motor



Weight Parameter

Net Weight: 1.6KG
Gross Weight: 2.0KG with export carton packing



Material & Feature

    1. High-strength flame-retardant plastic outer shell, IP67 waterproof and dustproof grade, adapt to complex road environments;

    2. High-precision built-in drive motor with fast response speed, low operating noise and stable output torque;

    3. Integrated high-sensitivity position feedback sensor, real-time gear position signal transmission to TCU;

    4. Anti-interference internal circuit board, stable operation under strong vibration and electromagnetic interference;

    5. Standard OEM mounting hole layout, plug-and-play direct replacement without modification during gearbox overhaul;

    6. Built-in overcurrent and overheat protection function to avoid actuator burnout caused by stuck shifting.


Application

Suitable for all ZF Traxon 12TX heavy-duty automated manual transmissions: 12TX2620,12TX2621,12TX2820,12TX2821,12TX3221; widely equipped on Sinotruk Shandeka, Foton Auman EST, FAW J7, Howo Max, IVECO heavy tractors and bulk cargo transport trucks.



Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.


MOQ, Warranty & Packing

MOQ: 1 piece
Warranty: 3–6 months, man-made damage and incorrect installation not covered
Packing: Shockproof export carton with foam filling, anti-rust and moisture-proof for long-distance ocean transport
