ZF12TX Automatic Transmission Housing 6093 201 062

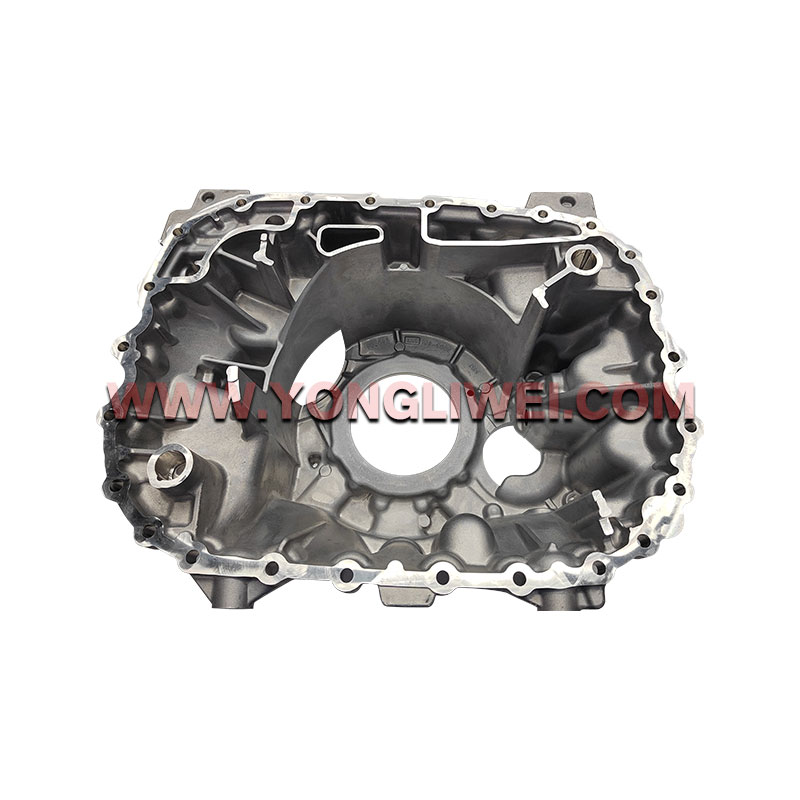

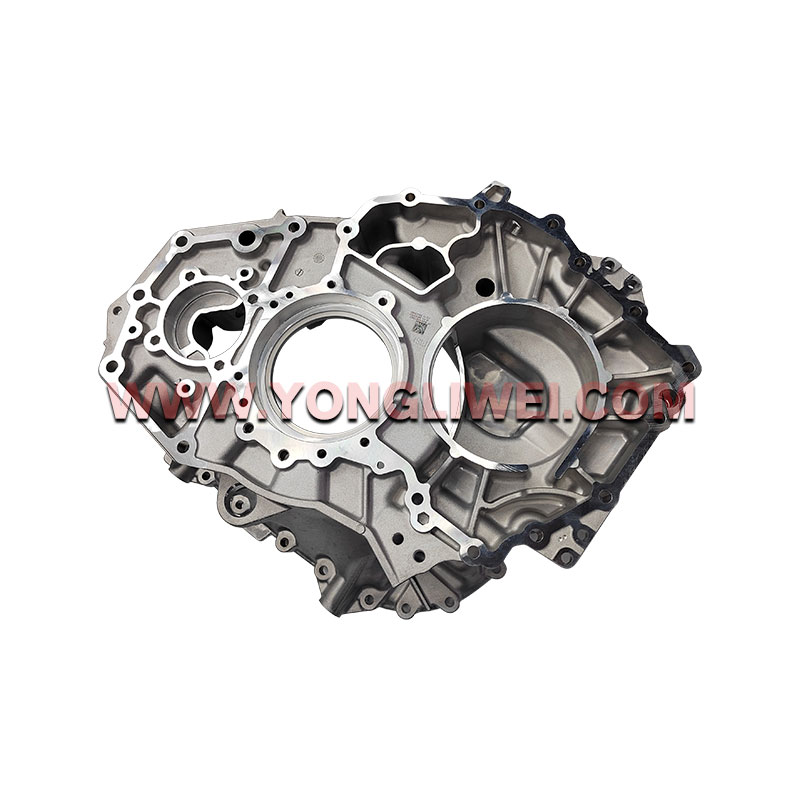

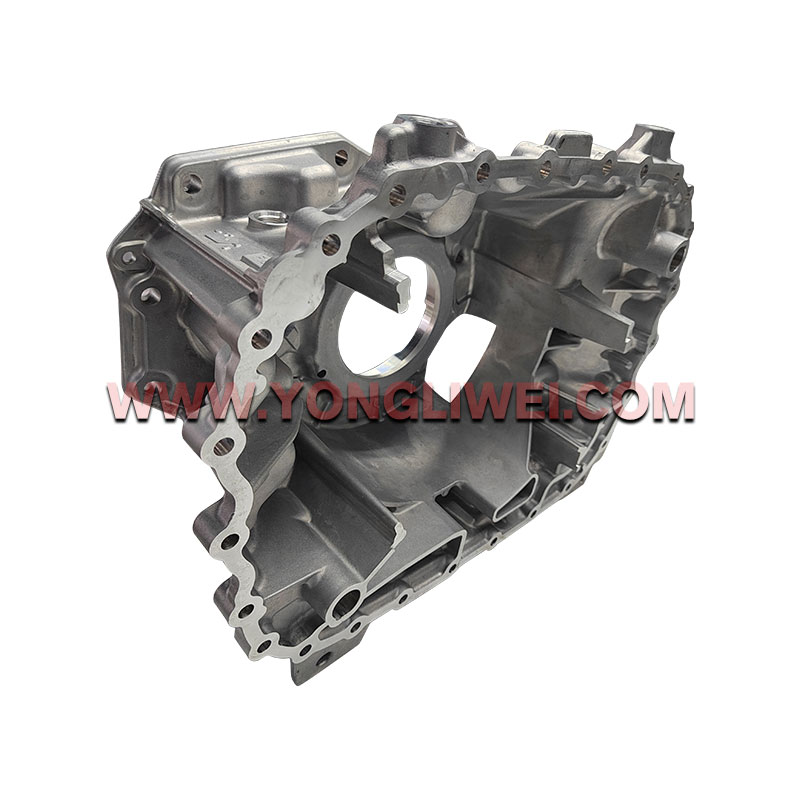

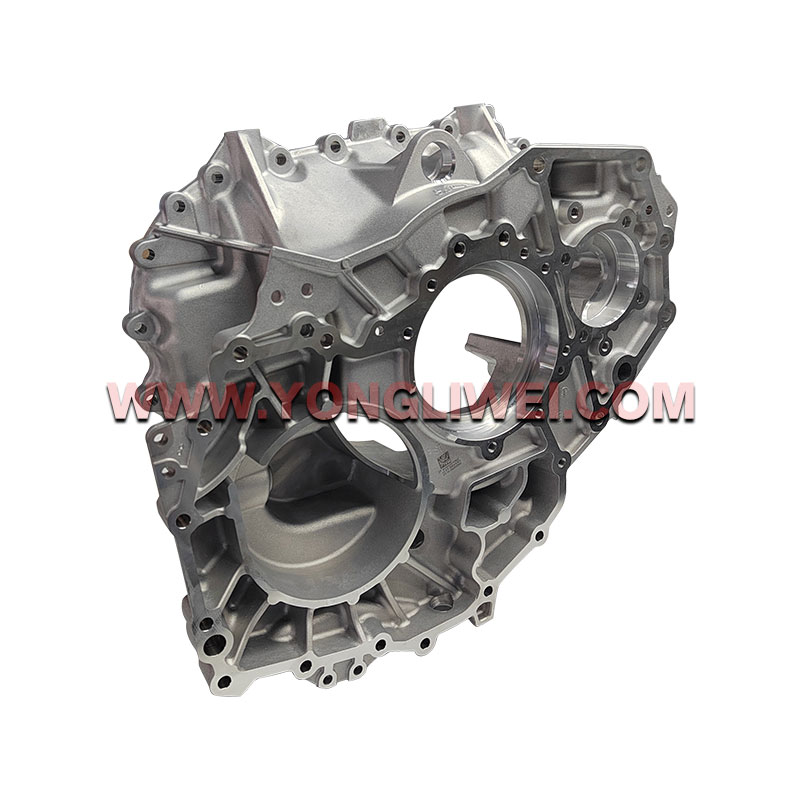

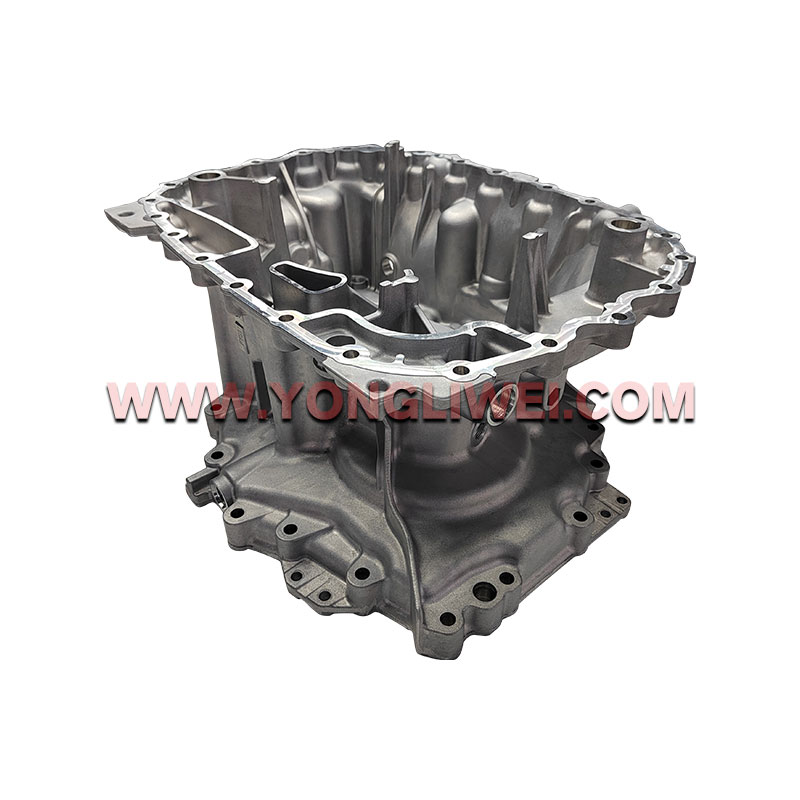

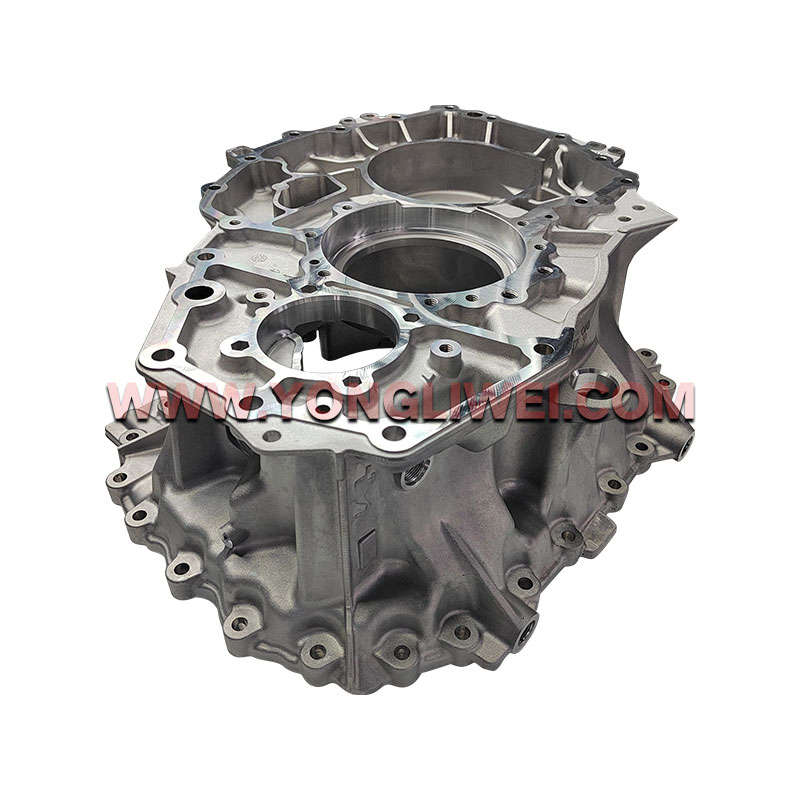

ZF12TX retarder rear housing 6093 201 062 is die-cast aluminum rear casing for ZF TraXon 12TX AMT gearbox with integrated hydraulic retarder cavity. It holds output shaft, retarder rotor and cooling oil channels, bearing heavy torque during downhill braking. Solves shell crack, oil leakage and abnormal rear noise; all mounting dimensions match OEM for direct replacement.
Availability:
Quantity:
  • ZF12TX automatic transmission housing 6093 201 062

  • ZF

  • 6093 201 062

Product parameters

Basic Info

Alias: TraXon retarder rear casing / ZF12TX gearbox output housing
Product Name: ZF12TX Automatic Transmission Retarder Rear Housing OEM 6093 201 062
Cross Ref: 6093 201 059
Applicable Gearbox: ZF12TX2420/2620/2820 retarder version AMT
Applicable Vehicles: Sitrak C7H, MAN TGX/TGS, DAF XF heavy tractors
Category: Heavy Truck ZF TraXon AMT Transmission Parts – Retarder Aluminum Rear Housing



Weight Parameter

Net Weight: 22.6KG

Gross Weight: 26.2KG with export wooden case


Material & Feature

  • Die-cast aluminum alloy with thickened reinforcing ribs, anti-deformation under long-time high torque and retarder hydraulic impact

  • Integral retarder mounting cavity and dual cooling oil channels for synchronous heat dissipation

  • CNC milled sealing planes with great flatness to stop oil seepage

  • Standard flange bolt holes, reserved drain plug, oil level port and cooling pipeline interface

  • Fillet stress relief design to avoid fatigue cracking; surface sandblasting anti-corrosion

  • Pass hydraulic sealing, torsion impact and continuous braking fatigue test before delivery



Application

Suitable for domestic and European heavy tractors equipped with ZF12TX retarder AMT, including logistics trucks, cement haulers, mining dumpers and refrigerated semi-trailers. Widely used in mountain downhill, plateau full-load and construction site transportation.



Origin & Lead Time

Shiyan warehouse spot stock, deliver goods within 2–3 working days after payment; bulk wholesale orders take 5–8 working days, sea shipping cycle ranges from 10 to 24 days.



MOQ & Packing

MOQ: 1 piece
Warranty: 6–12 months, warranty invalid for man-made collision deformation, wrong plug insertion, water soaking and long-time overload driving
Packing: Anti-rust oil spraying + plastic protective film + shockproof foam filling + reinforced solid export wooden case, moisture-proof, anti-collision and anti-extrusion for long ocean transportation
