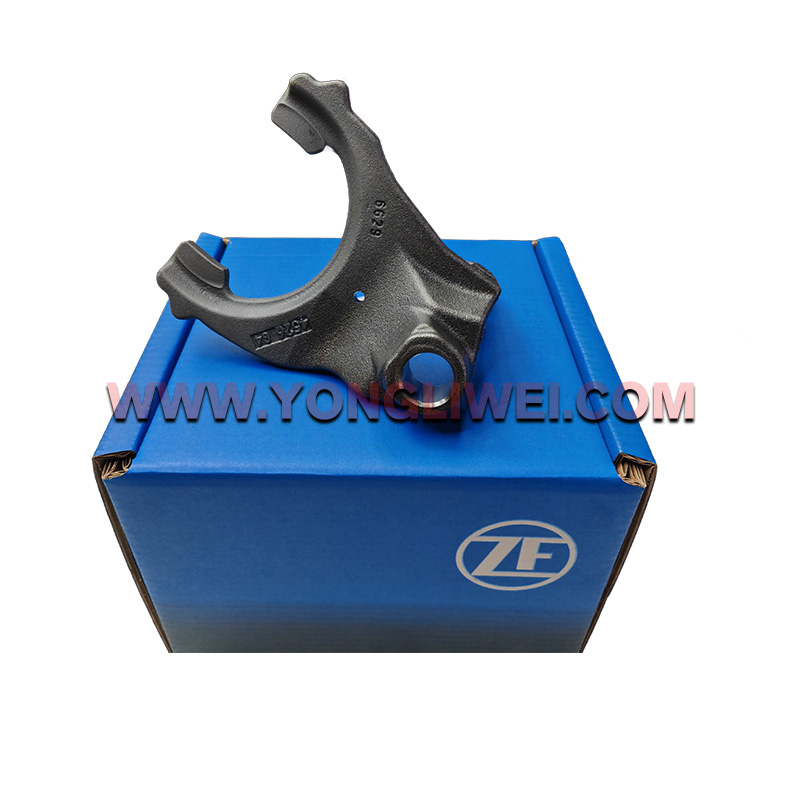

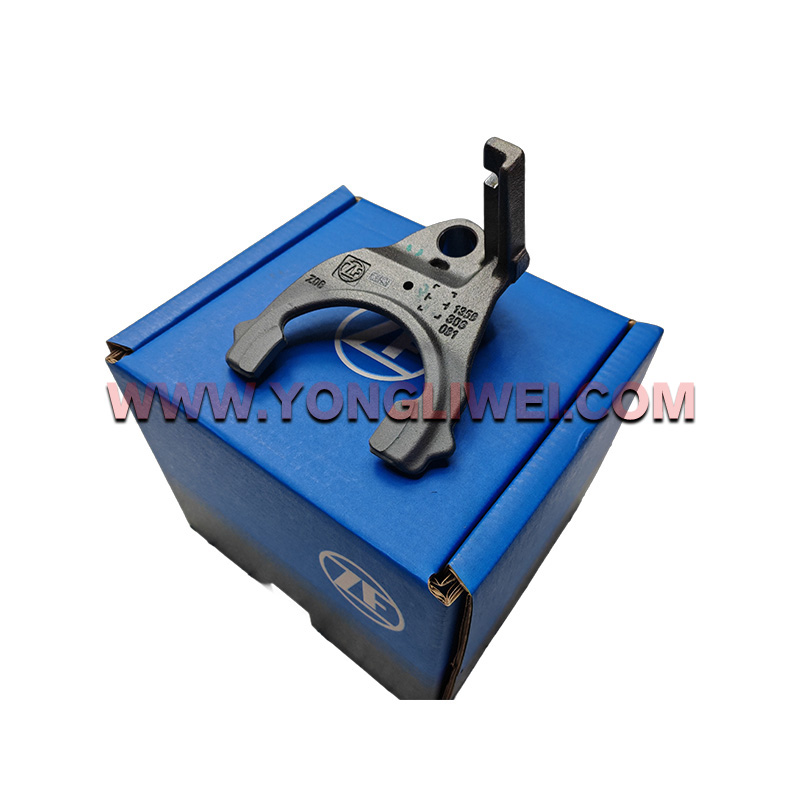

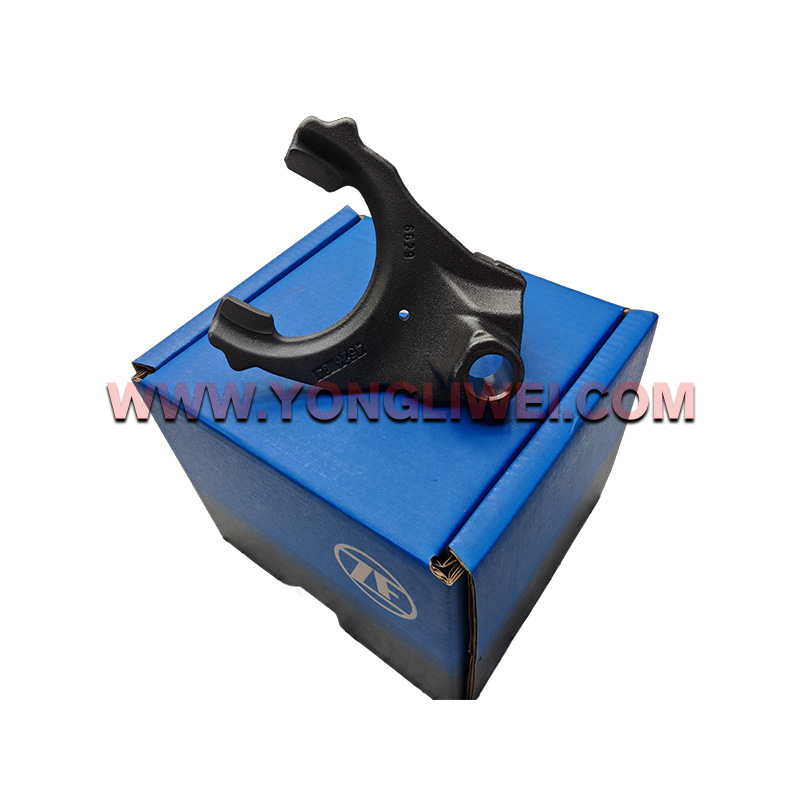

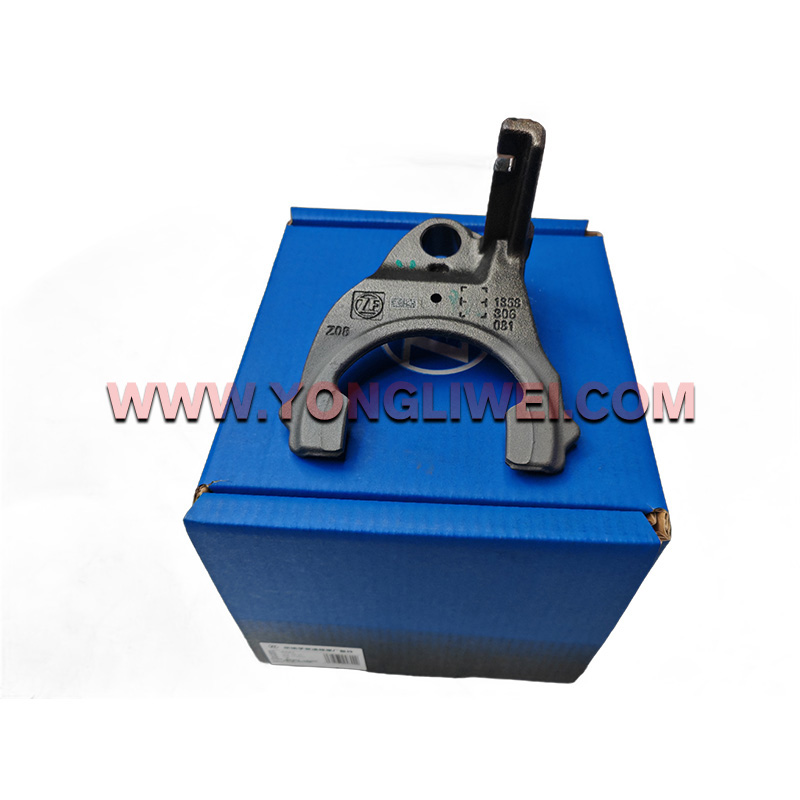

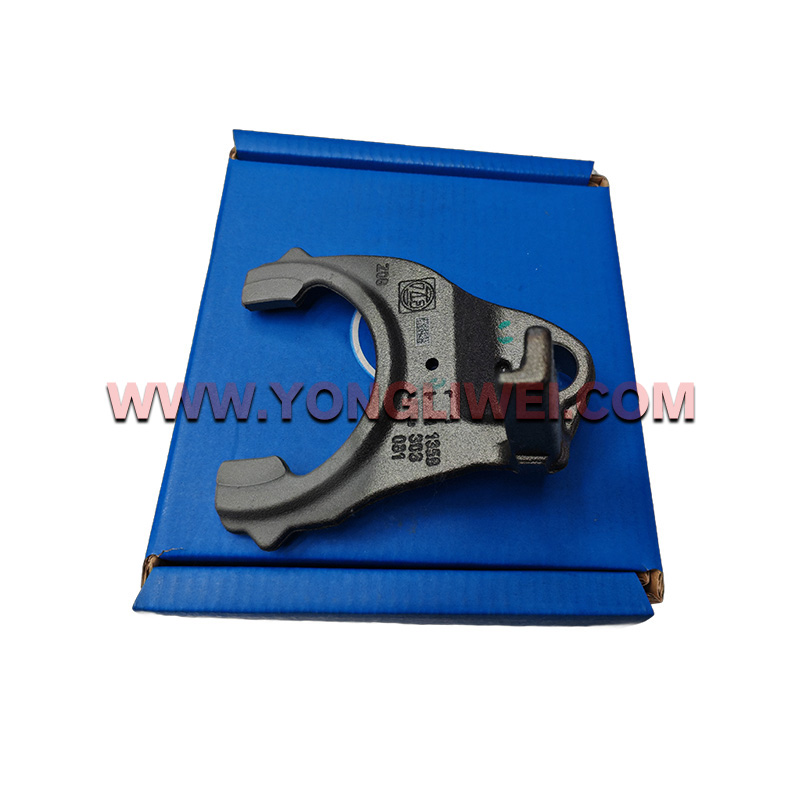

ZF12TX automatic transmission fork 1358 306 081

ZF12TX automatic transmission shift fork 1358 306 081 is OEM 2nd & 3rd gear selector fork exclusively matched with ZF TraXon 12TX series 12-speed automated manual transmission. This alloy steel shift yoke pushes the synchronizer sleeve to complete 2/3 gear engagement, transmitting stable shift thrust under full-load long haul conditions. ZF12TX automatic transmission shift fork 1358 306 081 resolves stiff shifting, gear jumping, abnormal synchronizer wear and shift failure issues; bore diameter, fork finger width and overall mounting dimensions fully comply with ZF OEM standards for direct plug-and-play replacement without secondary grinding.
Availability:
Quantity:
  • 1358 306 081

  • ZF

  • 1358 306 081

Product parameters

Basic Info

Alias: 2/3 Gear Synchronizer Shift Yoke / TraXon Gear Selector Fork / Transmission Shift Fork
Product Name: ZF12TX TraXon Automatic Transmission Shift Fork OEM 1358 306 081
Cross Reference OE: Iveco 42578983
Compatible Gearbox Models: ZF12TX2420, 12TX2620, 12TX2820, 12TX3221 TraXon AMT
Applicable Vehicles: MAN TGX/TGS, DAF XF/CF, Iveco Trakker, Shacman X5000/X6000, FAW J7, Sitrak heavy-duty tractors
Category: Heavy Truck ZF TraXon AMT Transmission Parts – Synchronizer Shift Fork



Weight Parameter

Net Weight: 1.26KG
Gross Weight: 1.55KG with export carton packing



Material & Feature

Integrated high-density cast alloy steel blank with overall quenching heat treatment, high toughness to resist fatigue fracture under frequent automatic shifting impact;

Fork contact jaws adopt precision milling + local surface hardening, low friction coefficient, scratch-resistant to protect synchronizer sleeves;

Standard shift rail matching inner bore with tight uniform tolerance, no jamming during reciprocating shift strokes;

Integrated limit positioning boss to restrict shift travel, prevent over-shift and gear disengagement;

Smooth fillet transition at fork root to disperse instantaneous shifting impact load and extend service life;

Surface black anti-rust treatment, resistant to long-term erosion of high-temperature transmission oil inside gearbox;

Strict reciprocating shift fatigue test, dimensional tolerance inspection and hardness testing before delivery, stable shifting performance within -30℃~140℃ gearbox working temperature range.



Application

Perfectly compatible with European and domestic heavy tractors equipped with ZF TraXon 12TX automated transmission, including cross-border long-distance logistics trucks, bulk cement haulers, open-pit mining dumpers and refrigerated semi-trailers; widely used in highway trunk transportation, mountain full-load freight and muddy construction site transport scenarios.



Origin & Lead Time

Shiyan warehouse spot stock, ship within 1–2 working days after payment; bulk wholesale orders take 3–6 working days, sea transit cycle 8–22 days.



MOQ & Packing

MOQ: 1 piece
Warranty: 4–6 months; warranty invalid for man-made overload driving, improper disassembly and insufficient gearbox oil lubrication
Packing: Anti-rust oil coating + shockproof bubble wrap + thick neutral export carton, moisture-proof and anti-collision for long ocean transportation
