ZF16S2531 16S2530 Transmission Shift Cylinder Shaft 1325 334 017

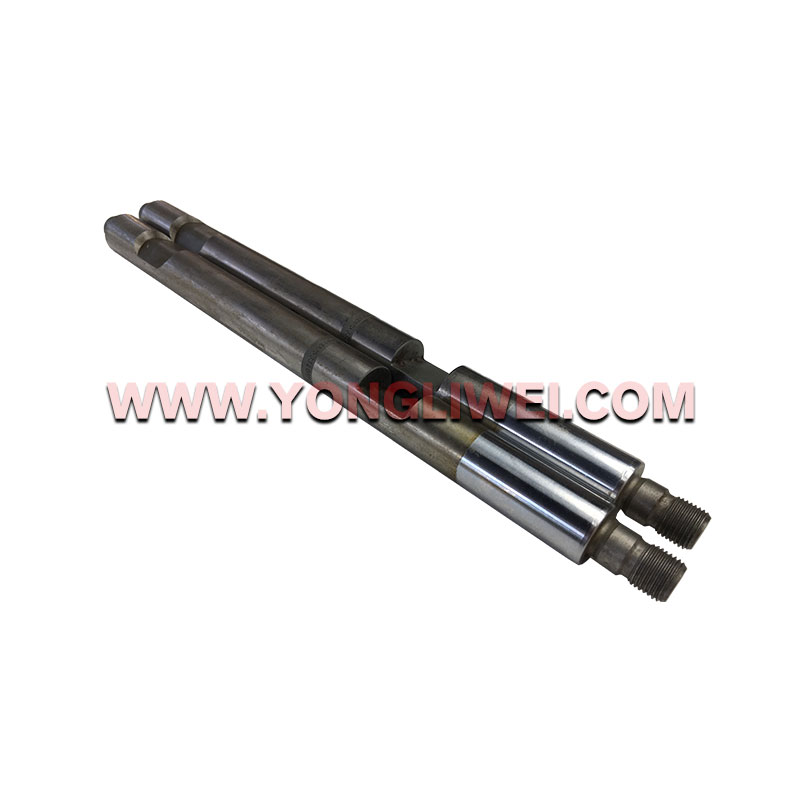

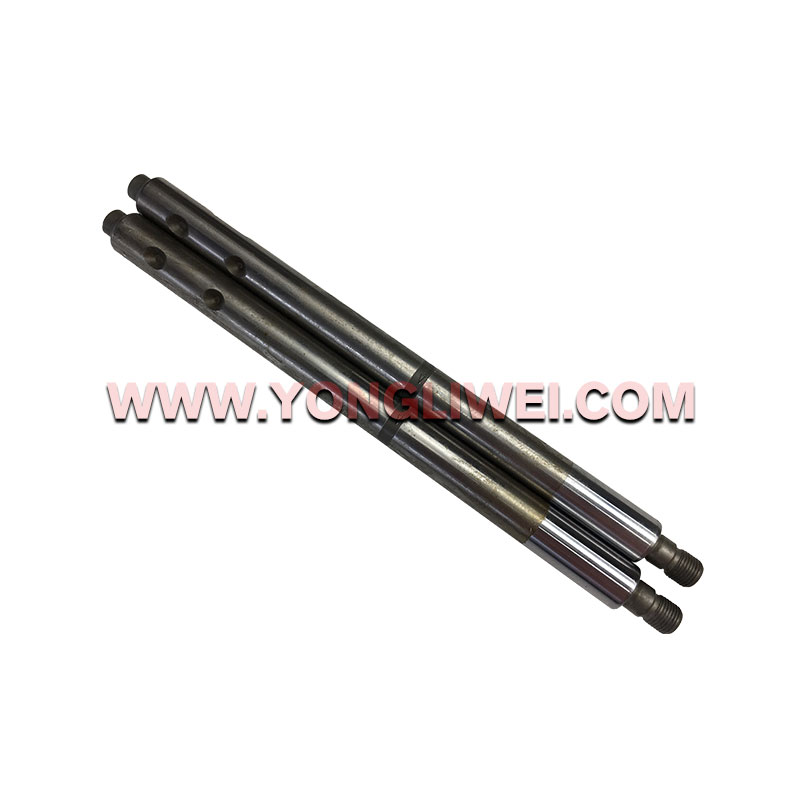

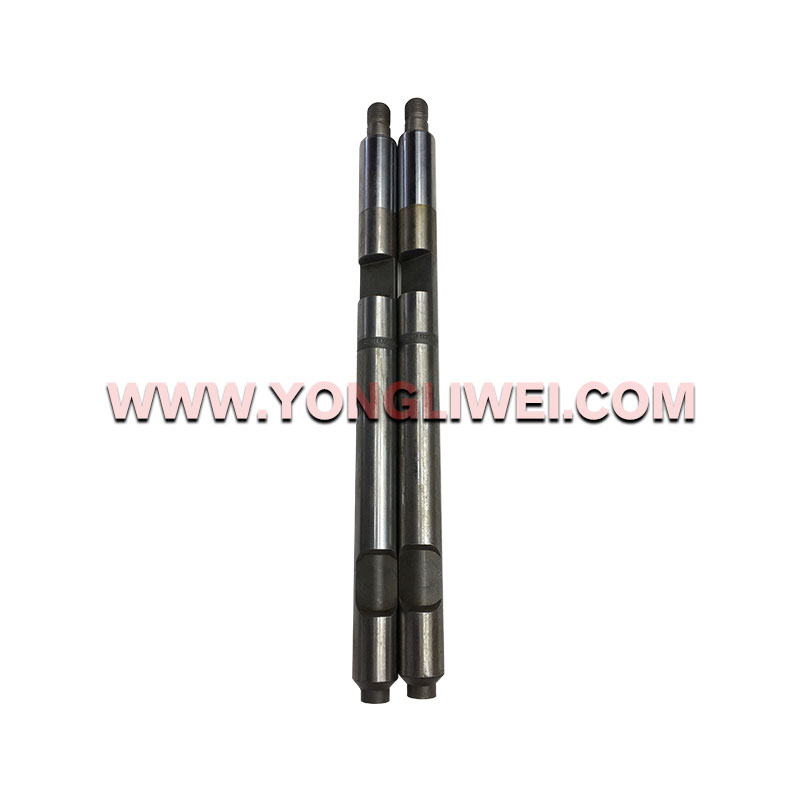

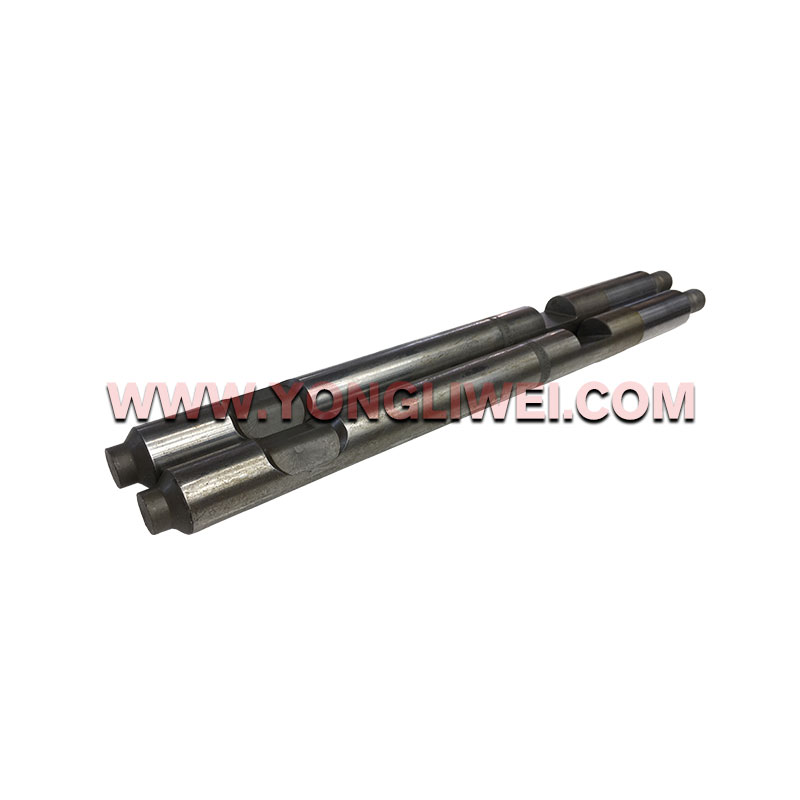

1325 334 017 shift cylinder shaft (shift rail) is the core pneumatic shift transmission part for ZF Ecosplit4 heavy-duty 16-speed manual transmissions 16S2530 and 16S2531. Made of high-strength alloy steel with precision milled positioning grooves and piston matching journals, it converts pneumatic cylinder thrust into linear shift movement to drive shift forks and synchronizer sleeves. High straightness and wear resistance ensure accurate gear selection under frequent pneumatic shift operation, effectively solve stuck shifting, hard gear engagement and shift cylinder failure faults for long-distance mountain heavy tractors.
Availability:
Quantity:
  • 1325 334 017

  • ZF

  • 1325 334 017

Product parameters

Basic Info

OEM No: 1325 334 017
Product Name: ZF16S2530/16S2531 Pneumatic Shift Cylinder Shaft / Shift Rail
Brand: ZF
Series: Ecosplit4 Heavy-duty 16-speed Manual Gearbox
Applicable Models: ZF16S2530, ZF16S2531
Category: Transmission Parts > Gearbox Top Cover Shift Control Shaft


Weight Parameter

Net Weight: 2.85KG
Gross Weight: 3.52KG with export wooden case packing



Material & Feature

  1. High-carbon alloy steel solid bar integral machining, surface quenching treatment, high hardness, wear resistance and bending resistance;

  2. CNC precision processing positioning locking grooves, piston matching journals and limit steps, fully consistent with OEM dimensional tolerance;

  3. Strict overall straightness control, no bending deformation under long-term reciprocating impact of pneumatic cylinder;

  4. Smooth polished journal surface reduces friction loss with cylinder sealing rings, prevent air leakage and shift power attenuation;

  5. Standard length, limit groove spacing and mounting positioning size, direct replacement during gearbox top cover overhaul without grinding modification;

  6. Surface anti-rust passivation treatment, stable performance under high-temperature gear oil and compressed air mixed working environment.



Application

Compatible with ZF Ecosplit4 16-speed heavy manual gearboxes 16S2530, 16S2531; widely equipped on Sinotruk Shandeka, Dongfeng Tianlong, Foton Auman, Shaanxi Automobile, MAN, DAF, IVECO heavy tractors, bulk cargo trucks and mining dump trucks for mountain and plateau long haul transport.



Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.


MOQ & Packing

MOQ: 1 piece
Warranty: 3–6 months, man-made damage and incorrect installation not covered
Packing: Anti-rust oil paper + foam filling + reinforced shockproof export wooden case, moisture-proof for long-distance ocean transportation
