Basic Info
Alias: 6-Speed Bus Manual Gearbox Assy / ZF Ecolite Coach Transmission Unit / Full Synchronized Passenger Vehicle Gearbox

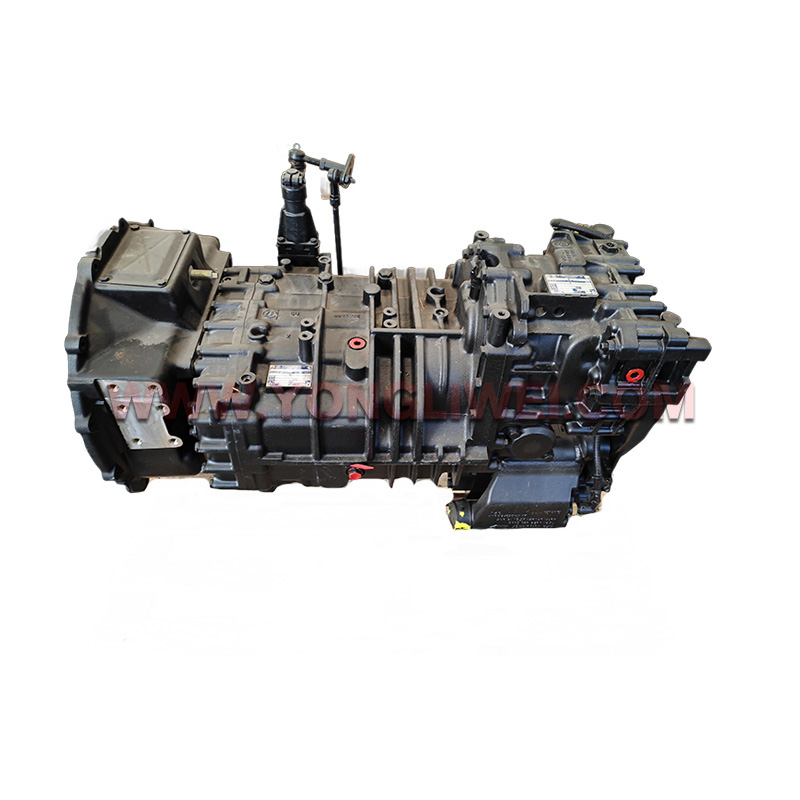

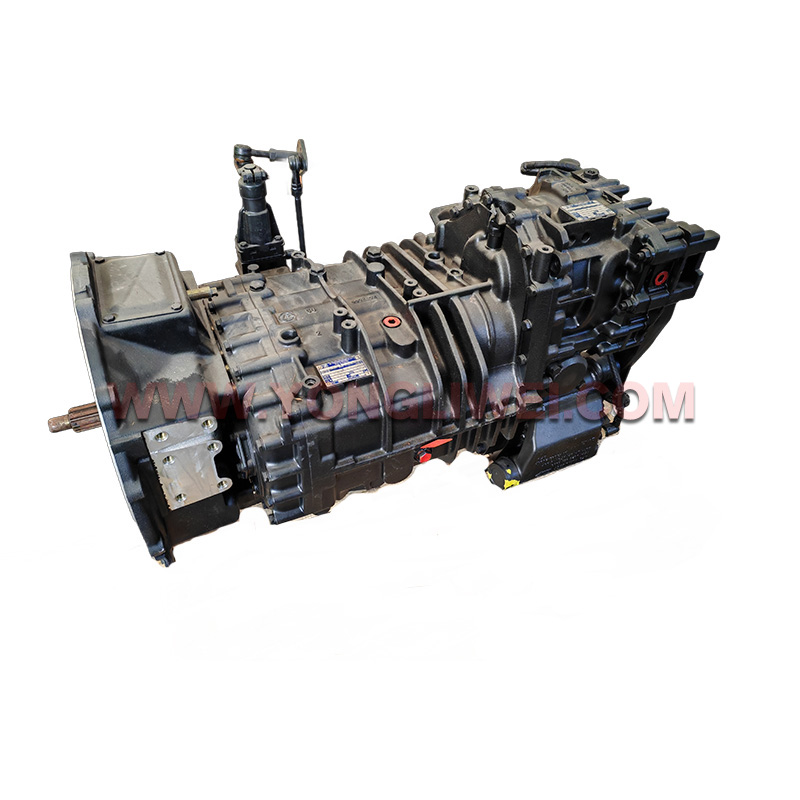

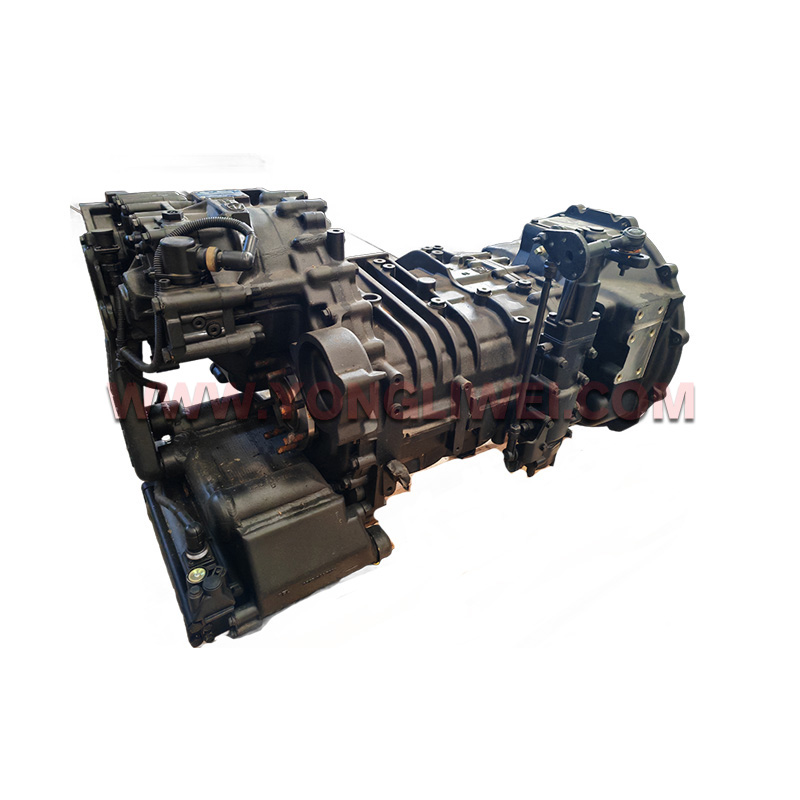

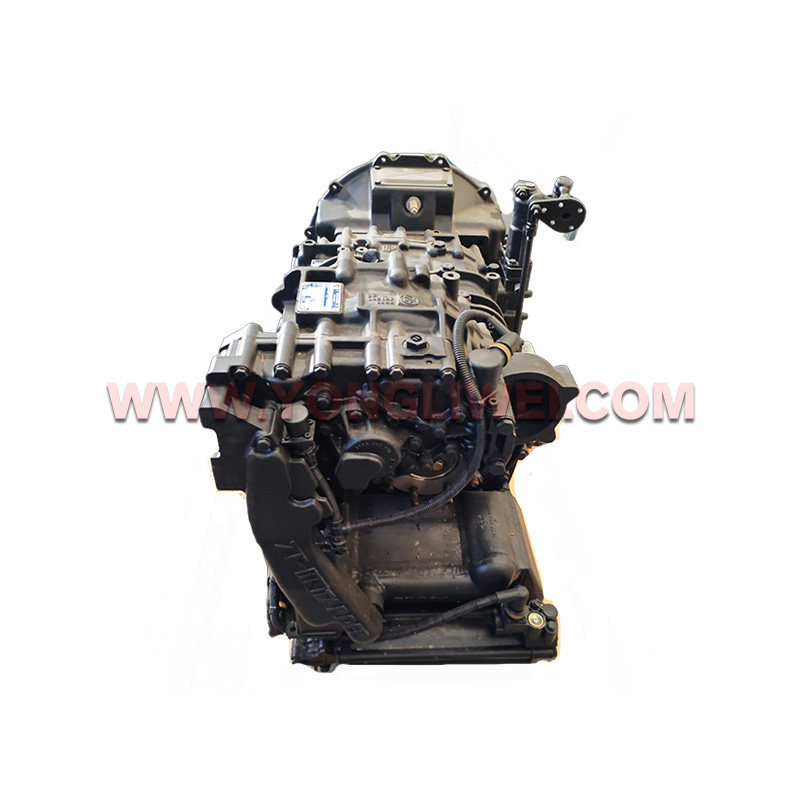

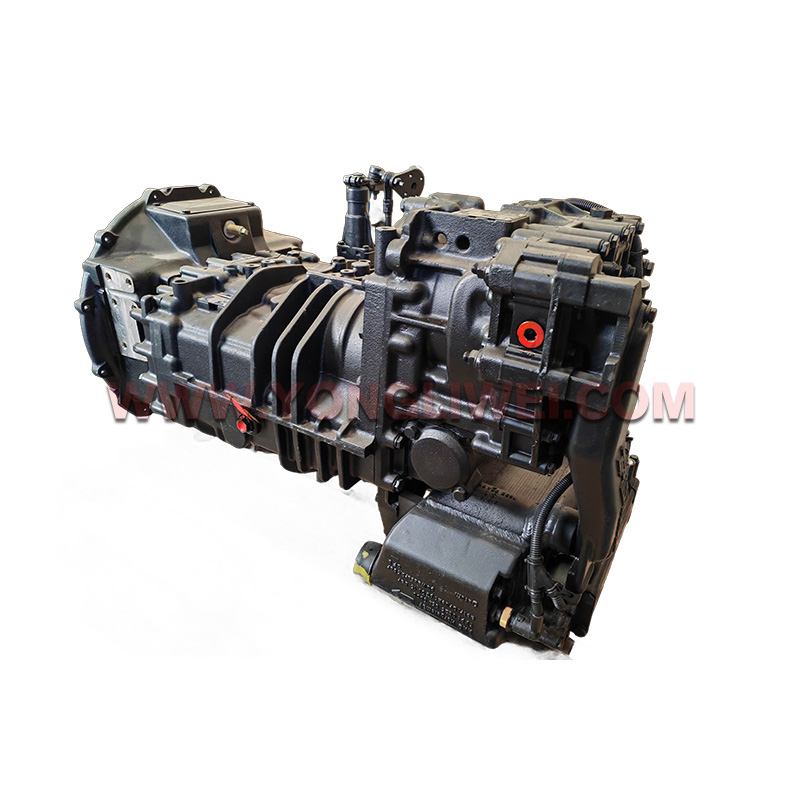

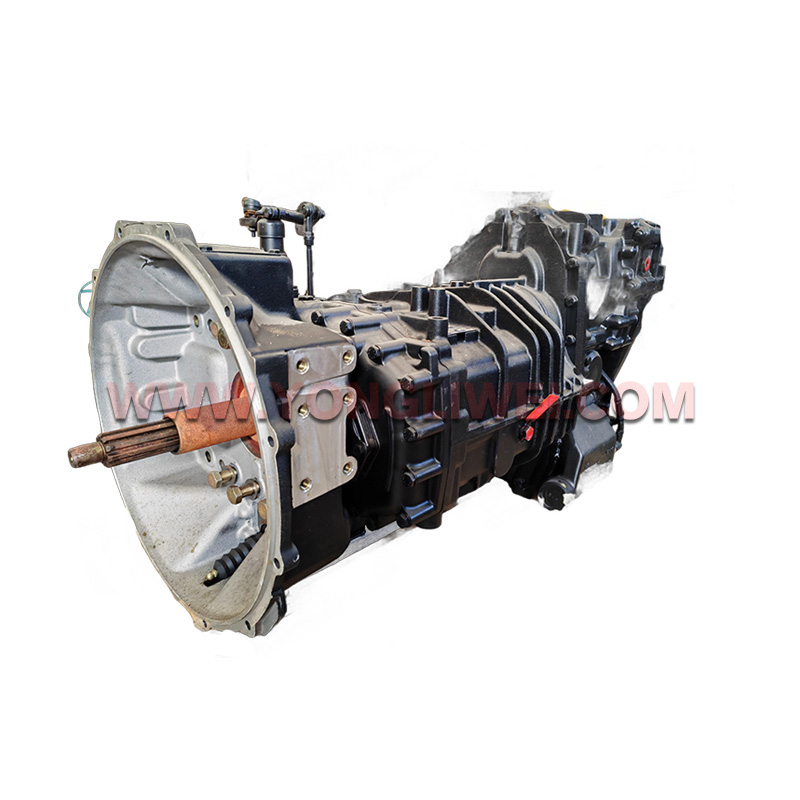

Product Name: ZF6S1600 Complete Bus Manual Transmission Assembly
Brand: ZF
Applicable Vehicles: MAN, Bova Futura, Yutong, Higer, Kinglong intercity coaches, tourist buses, medium city passenger vehicles
Category: Bus Manual Transmission Parts – ZF Ecolite Full Gearbox Assembly
Weight Parameter
Net Weight: 136KG
Gross Weight: 153KG with export wooden case packing
Material & Feature
Integrated die-cast aluminum alloy housing, lightweight structure with high rigidity, reduce whole vehicle weight and resist long-term high-temperature deformation;
Twin countershaft layout, all forward gears full multi-cone synchronizer design, light shift force and smooth operation;
20CrMnTi carburized alloy steel gear sets, vacuum quenching + precision helical tooth grinding, low noise and excellent wear resistance;
Optimized gear ratio range 6.32–0.81, small speed ratio step, outstanding fuel economy for highway passenger transport;
Built-in forced circulation lubrication system, uniform oil supply for internal bearings and gears to avoid dry friction;
Optional rear PTO interface and parallel retarder mounting position, compatible bus hydraulic auxiliary equipment;
Standard input/output spline, mounting flange and cooling joint fully comply with ZF factory specifications;
Axial force balance design to reduce bearing load and extend service life;
Strict torsion fatigue test, hydraulic sealing test and continuous shift cycle test before delivery, stable performance under -30℃~130℃.
Application
Perfectly matched European and domestic medium & large passenger vehicles, including long-distance tourist coaches, intercity shuttle buses, school buses and urban transit buses; widely used in highway passenger transportation, suburban passenger routes and scenic spot shuttle operation scenarios.
Origin & Lead Time
Shiyan warehouse spot stock, deliver 1–2 working days after payment; bulk wholesale orders 3–7 working days, sea shipping cycle 8–19 days.
MOQ & Packing
MOQ: 1 unit
Warranty: 5–8 months, warranty void for man-made overload, improper disassembly and insufficient lubrication maintenance
Packing: Anti-rust oil spraying + plastic wrapping + shockproof foam filling + solid export wooden case, moisture-proof and anti-collision for long ocean transit
