ZF9S1310 Transmission Synchronizer Gear Sleeve 1304 304 597

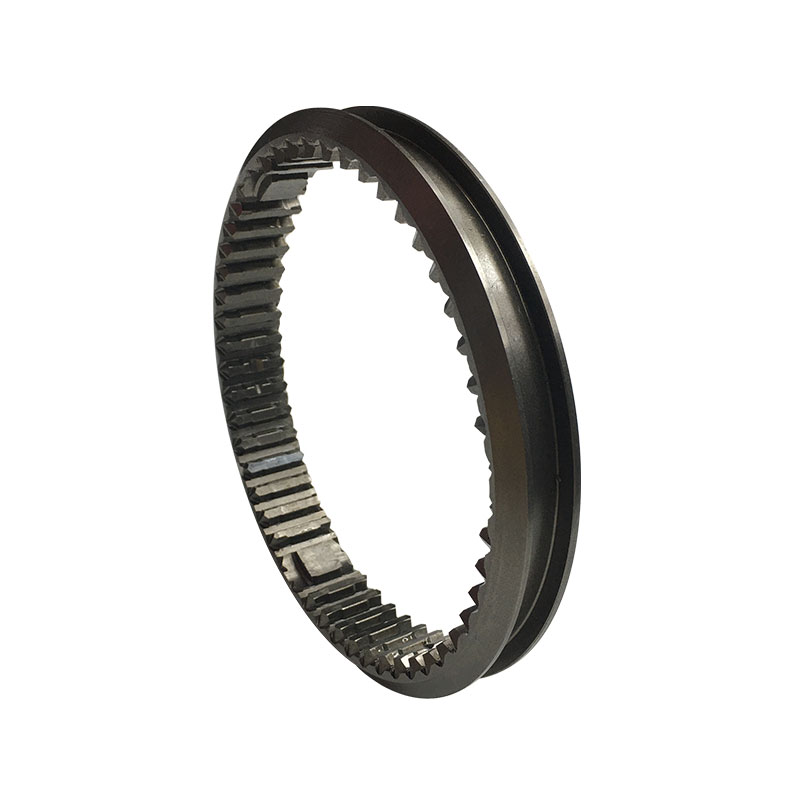

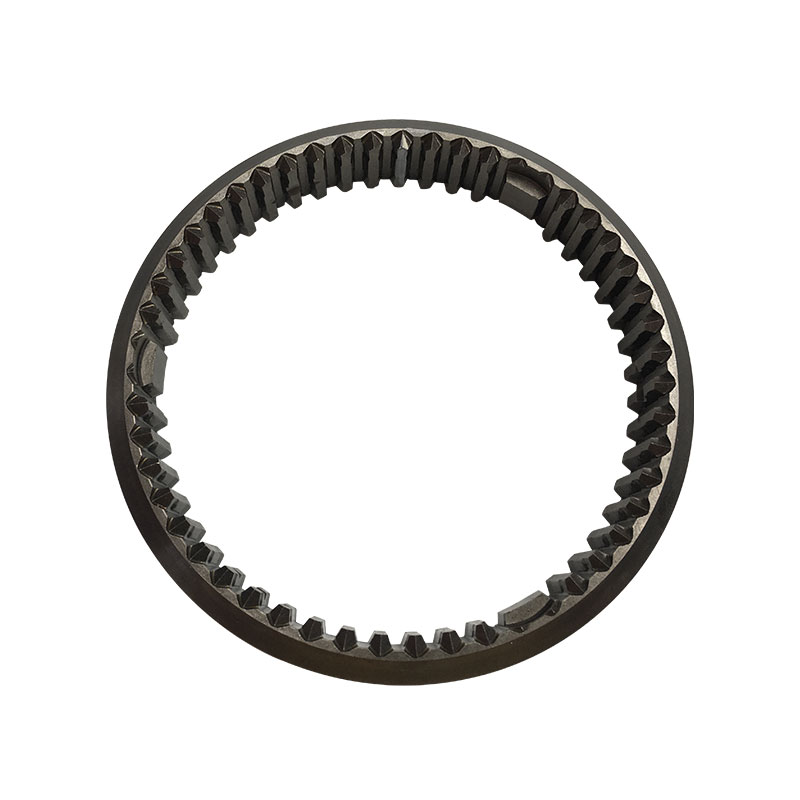

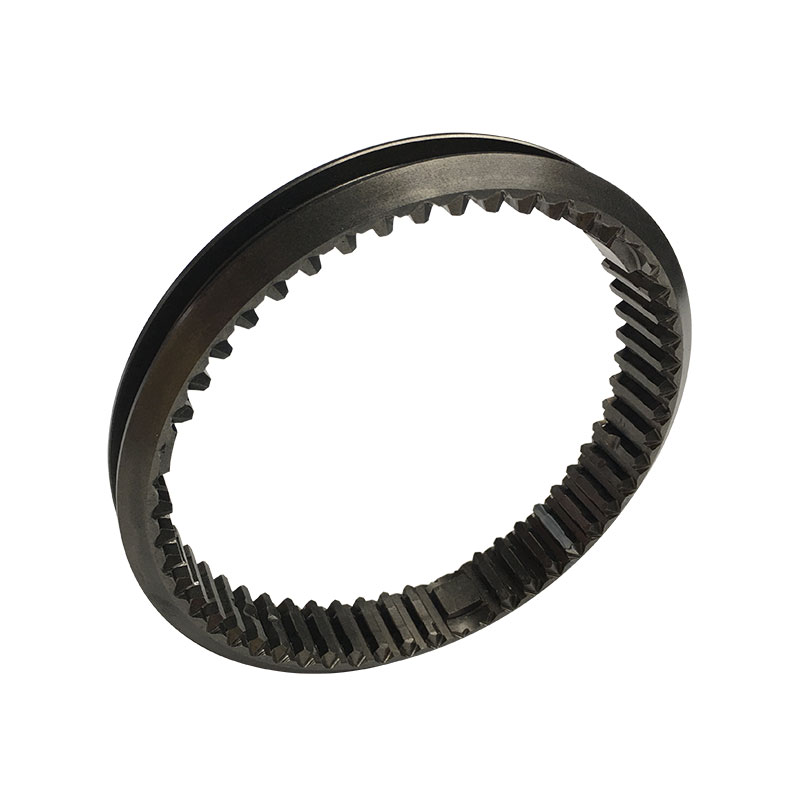

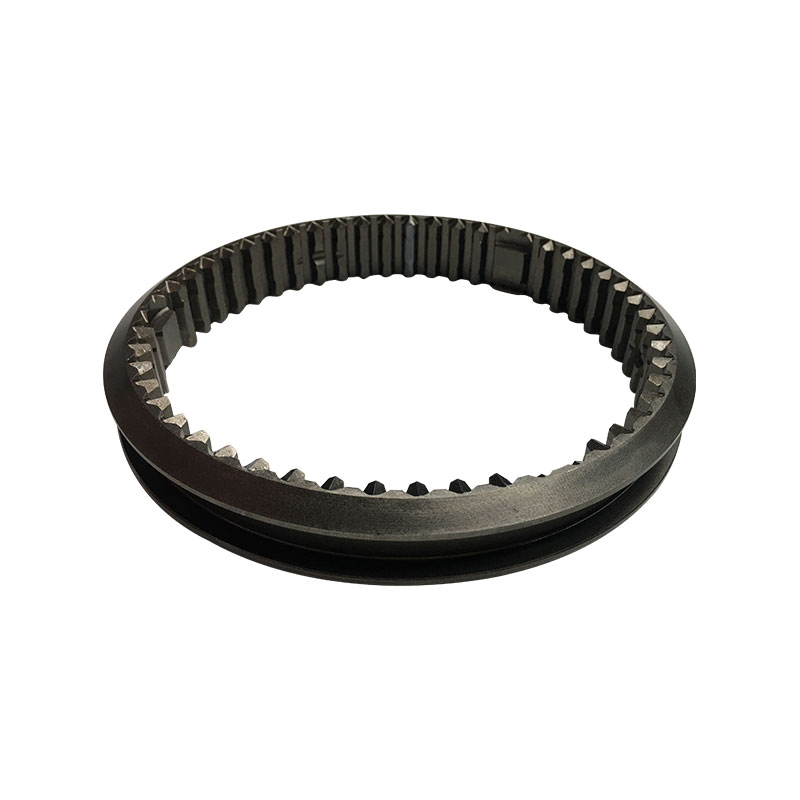

1304304597 is original synchronizer sliding gear sleeve exclusively matched for ZF Ecomid series 9-speed fully synchronized manual transmissions ZF9S1110 and ZF9S1310. Made of integrated forged alloy steel with vacuum carburizing quenching hardening treatment, internal multi-tooth splines are precision broached to realize smooth meshing during gear shifting. It bears axial shift impact torque and cooperates with synchronizer ring to realize stable gear engagement, effectively solve common faults such as stiff gear shifting, jumping gear, rapid synchronizer wear and abnormal transmission noise for European medium-duty cargo trucks, municipal vehicles and light dump trucks.
Availability:
Quantity:
  • 1304 304 597

  • ZF

  • 1304 304 597

Product parameters

Basic Info

OEM No: 1304 304 597
Alias: Synchro Sliding Sleeve / Gear Shift Sleeve / Synchronizer Gear Sleeve
Product Name: ZF Ecomid 9S Series Transmission Synchronizer Gear Sliding Sleeve
Brand: ZF
Applicable Gearbox Series: ZF9S1110, ZF9S1310 9-speed fully synchronized manual transmission
Category: Manual Transmission Synchronizer Core Parts – Shift Sliding Sleeve Assembly



Weight Parameter

Net Weight: 1.25KG
Gross Weight: 1.65KG with export carton packing



Material & Feature

  • High-strength alloy steel integral forging, vacuum carburizing quenching & tempering, surface high hardness with strong impact toughness and wear resistance;

  • Internal multi-tooth spline precision broaching processing, uniform tooth surface stress, low friction and smooth gear shifting without jamming;

  • Outer ring shift dog teeth precision milling, perfect fit with shift fork, stable axial pushing without deflection;

  • Standard overall dimension, spline tooth profile and thickness consistent with OEM 1304304597, direct plug-and-play replacement without cutting or modification;

  • Whole piece surface anti-rust passivation treatment, resist long-term erosion of high-temperature gear oil inside gearbox;

  • Strict wear resistance and impact fatigue test before delivery, stable service performance under urban logistics and medium-load mountain transportation conditions.



Application

Perfectly matched European medium-duty commercial vehicles equipped with ZF Ecomid 9-speed manual gearboxes: Mercedes-Benz Atego, MAN TGM, Iveco Eurocargo, Renault Midlum medium cargo trucks, municipal sanitation vehicles, light mining dump trucks; widely used in urban distribution, short-distance freight and medium-load mountain haulage transportation.



Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.



MOQ & Packing

MOQ: 1 piece
Warranty: 3–6 months, warranty void for man-made damage, improper disassembly and wrong installation
Packing: Anti-rust plastic bag + bubble wrap + neutral export carton, moisture-proof and anti-collision for long ocean transportation
