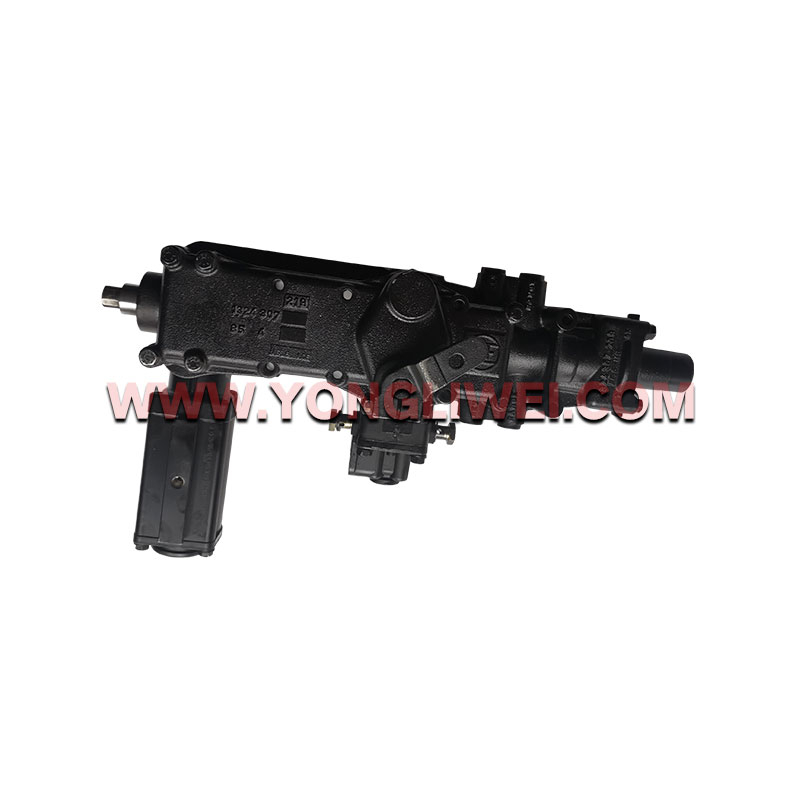

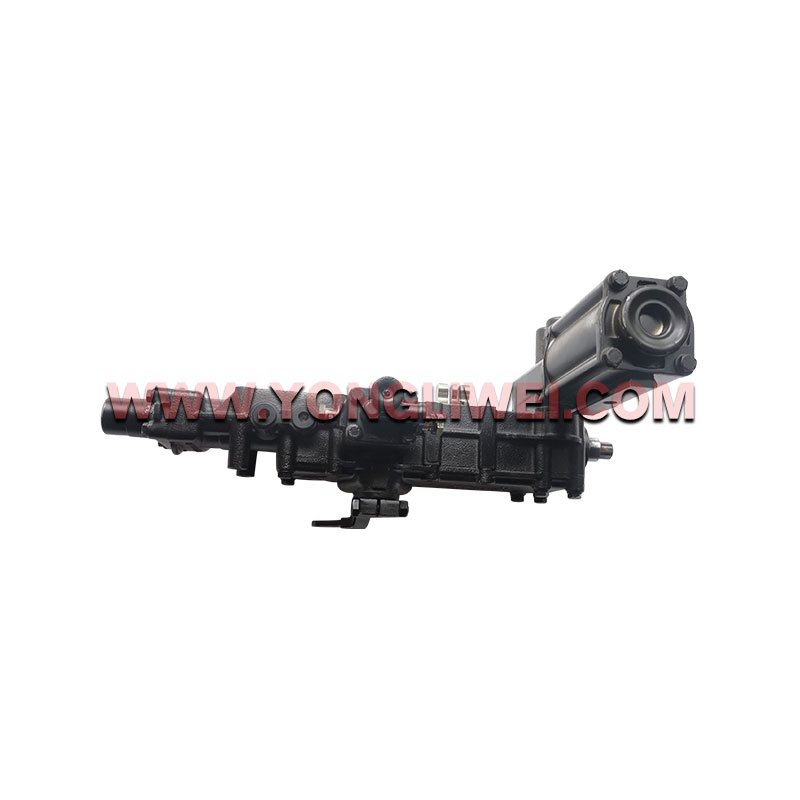

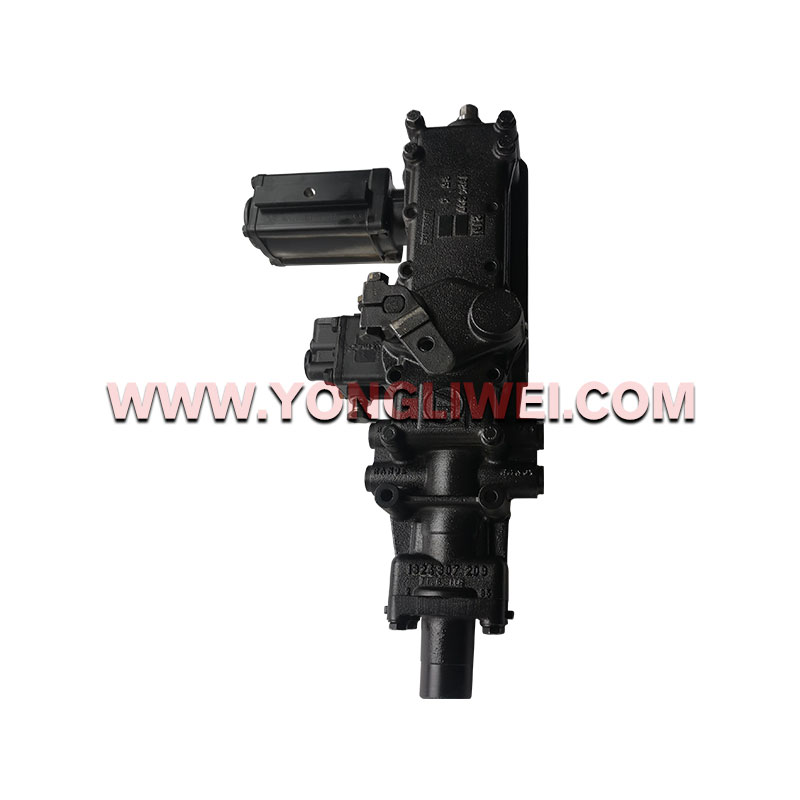

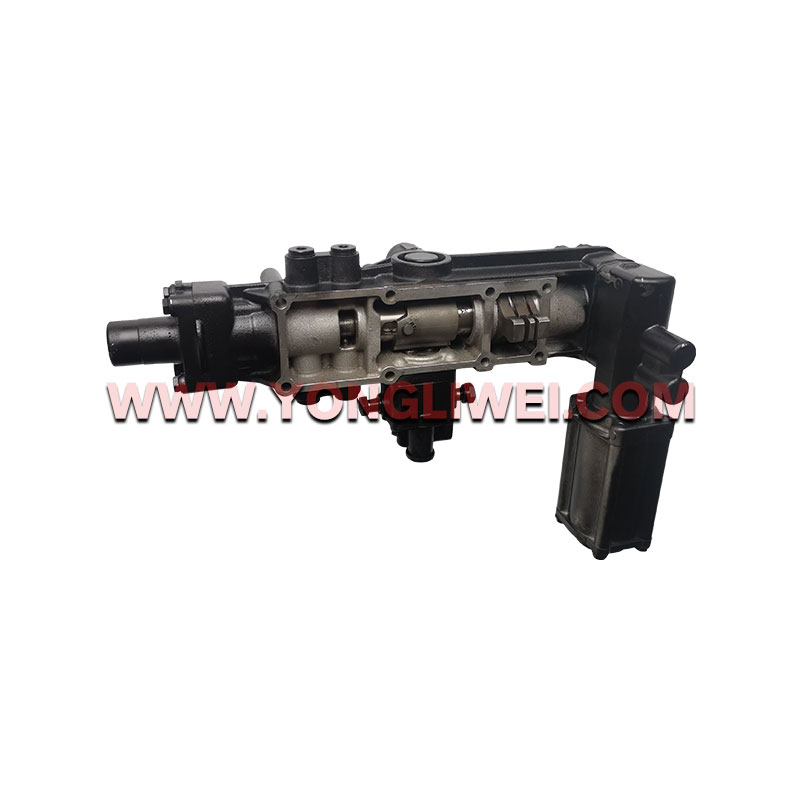

ZF9S1315 transmission shift actuator assembly 0501 211 290

0501211290 is original pneumatic shift actuator cylinder assembly exclusively matched for ZF Ecomid ZF9S1315 9-speed fully synchronized manual transmission. Integrated cast aluminum cylinder body with built-in piston, high temp fluorine rubber sealing components and reset spring, it completes air-driven gear selection and shift actions under vehicle air system control. Effectively solve gear shift stiffness, slow engagement, cylinder air leakage and shift failure caused by internal seal aging, direct OEM replacement for MAN TGM, DAF LF, Iveco Eurocargo, Renault Midlum medium trucks and municipal engineering vehicles.
Availability:
Quantity:
  • 0501 211 290

  • ZF

  • 0501 211 290

Product parameters

Basic Info

OEM No: 0501 211 290
Alias: Shift Servo Cylinder / Pneumatic Shift Actuator / Gear Shift Cylinder Assembly
Product Name: ZF Ecomid ZF9S1315 Transmission Pneumatic Shift Actuator Complete Assembly
Brand: ZF
Applicable Gearbox Series: ZF9S1315, ZF9S1310 9-speed fully synchronized manual transmission
Max Air Operating Pressure: 10 bar
Category: Manual Transmission Pneumatic Control Parts – Shift Actuator Cylinder Assembly



Weight Parameter

Net Weight: 2.3KG
Gross Weight: 2.9KG with export carton packing



Material & Feature

  1. Integral gravity cast aluminum cylinder housing, light weight and high structural rigidity, anti-corrosion and anti-vibration for long service life;

  2. Alloy steel piston matched with full set fluorine rubber high-temperature sealing rings, oil-resistant, anti-aging and wear-resistant, effectively prevent air leakage;

  3. Built-in high-strength reset spring, stable piston reciprocating motion, quick gear return without lag;

  4. Standard OEM flange mounting hole layout and air thread interface, perfectly match original gearbox without cutting or modification;

  5. Complete integrated assembly with all internal wearing parts, one-piece replacement without separate overhaul of seals and springs;

  6. Strict air tightness reciprocating fatigue test before delivery, stable performance under urban logistics and medium-load mountain transportation conditions.




Application

Perfectly matched European medium-duty commercial vehicles equipped with ZF Ecomid 9-speed manual gearboxes: Mercedes-Benz Atego, MAN TGM, DAF LF, Iveco Eurocargo, Renault Midlum medium cargo trucks, sanitation vehicles, light mining dump trucks; widely used in urban distribution, short-distance freight and medium-load mountain haulage transportation.


Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.



MOQ & Packing

MOQ: 1 piece
Warranty: 3–6 months, warranty void for man-made damage, improper disassembly and wrong installation
Packing: Anti-rust plastic film + thick foam buffer + reinforced shockproof export solid wooden case, moisture-proof and anti-collision for long ocean transportation
