Zf 16-speed transmission 16S2530 16S2531 Shift copper block 1325 334 008

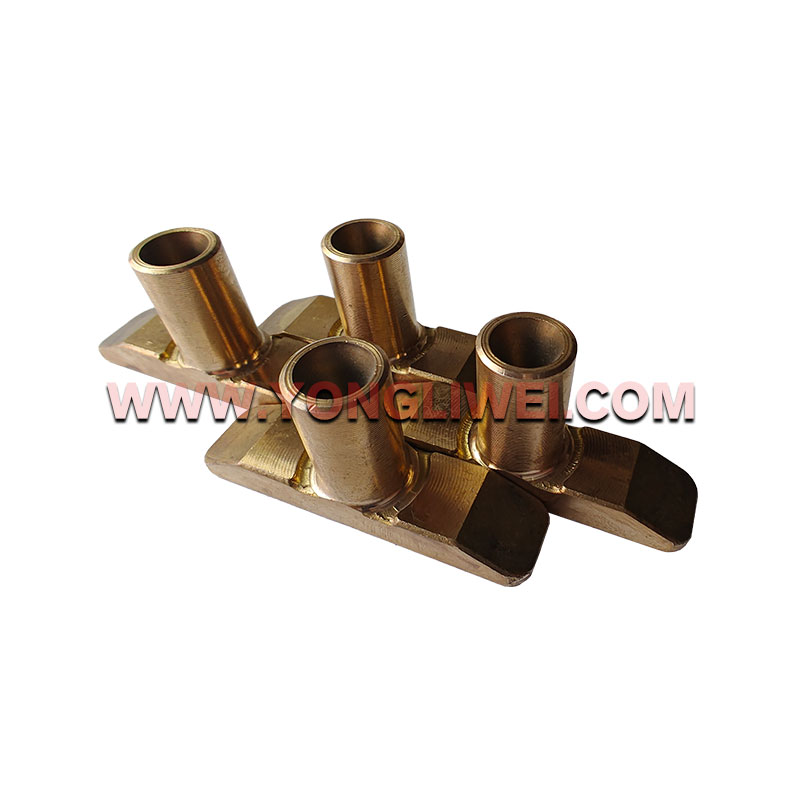

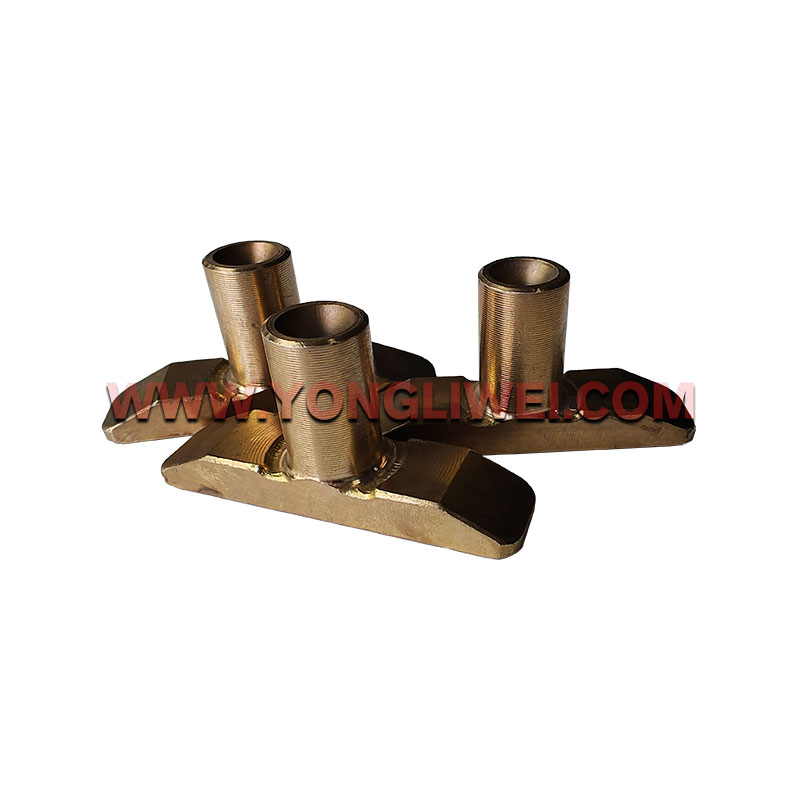

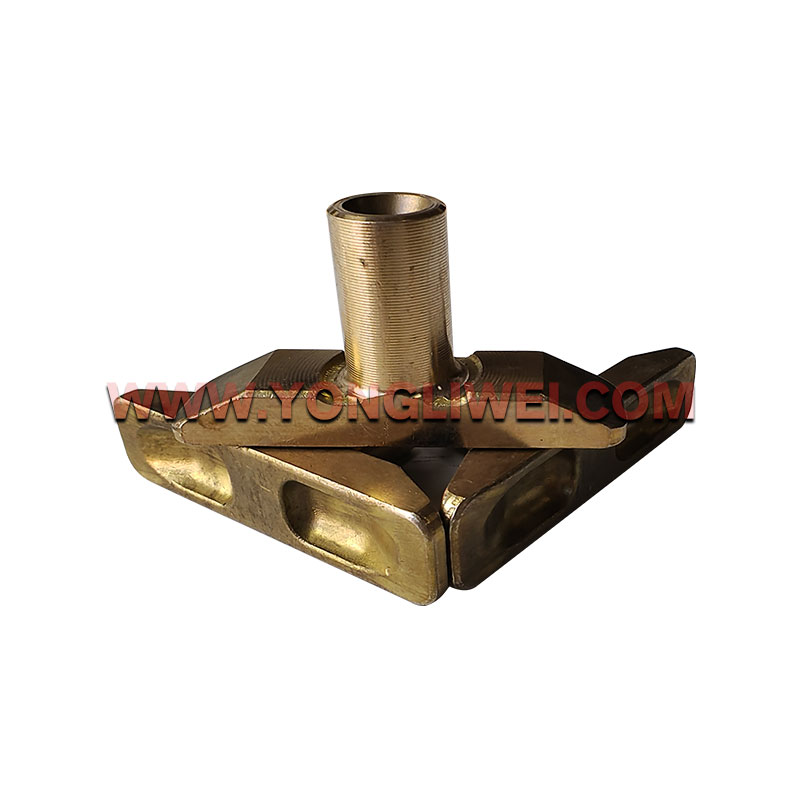

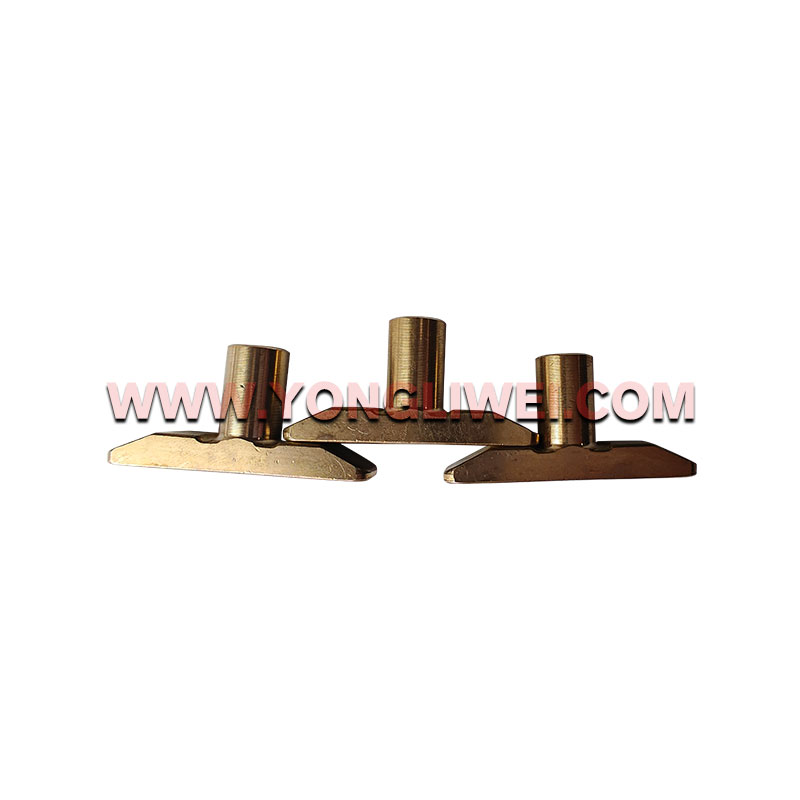

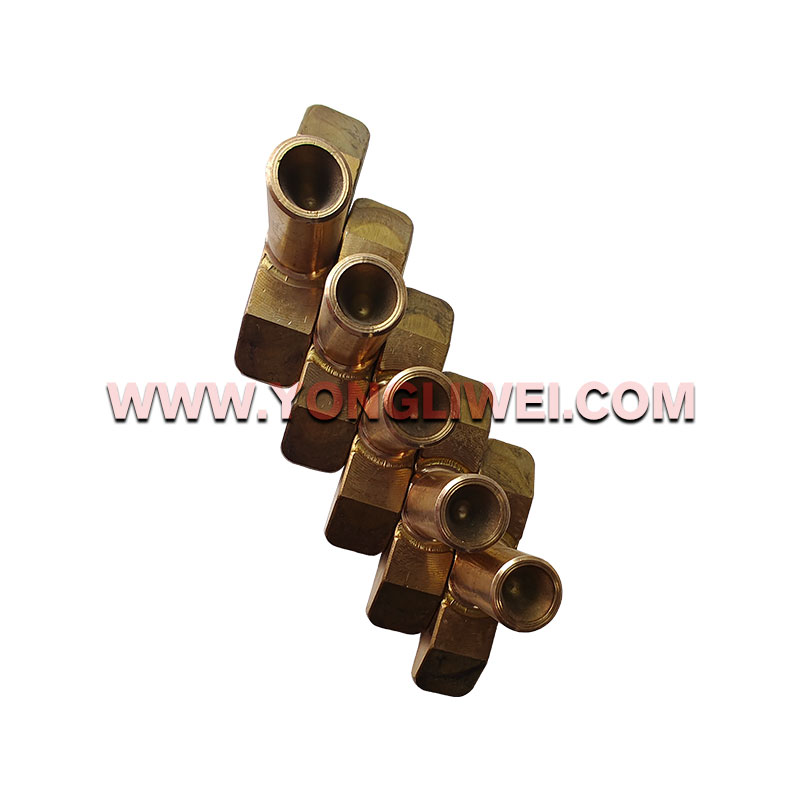

1325334008 is genuine bronze shift sliding block exclusively matched for ZF Ecosplit4 ZF16S2530 & ZF16S2531 sixteen-speed heavy-duty manual transmissions. Made of high wear-resistant copper alloy with integrated steel base, it is installed on shift fork head to contact synchronizer sleeve during gear shifting, reducing friction and eliminating metal direct abrasion. It thoroughly solves stiff shifting, abnormal gearbox knocking noise, rapid wear of shift fork and synchro sleeve caused by worn sliding copper blocks, direct OEM plug-and-play replacement for European and Chinese heavy tractors equipped with ZF 16-speed gearboxes.

Availability:
Quantity:
  • 1325 334 008

  • ZF

  • 1325 334 008

Product parameters

Basic Info

OEM No: 1325 334 008
Alias: Shift Sliding Pad / Bronze Slider Block / Fork Copper Wear Pad
Product Name: ZF Ecosplit4 ZF16S2530/16S2531 Transmission Shift Sliding Copper Block
Brand: ZF
Applicable Gearbox Series: ZF16S2530, ZF16S2531, ZF16S2230, ZF16S2231 16-speed heavy-duty synchronized manual transmission
Category: Heavy Truck Transmission Shift Control Parts – Shift Fork Wear Copper Block



Weight Parameter

Net Weight: 0.22KG
Gross Weight: 0.28KG with export carton packing



Material & Feature

  1. Composite structure of high-strength steel base + wear-resistant bronze friction surface, strong structural rigidity with ultra-low friction coefficient;

  2. Precision CNC machined sliding contact surface, flat and smooth to avoid scratching synchronizer sleeve during frequent shifting;

  3. Standard mounting pin hole size and overall outline fully consistent with OEM 1325334008, directly fixed on shift fork without cutting or grinding modification;

  4. Excellent anti-abrasion and self-lubricating performance, adapt to long-term high-temperature gear oil working environment;

  5. Optimized stress dispersion structure, resistant to continuous shift impact under mountain full-load transportation without cracking or peeling;

  6. Strict reciprocating friction fatigue test before delivery, stable shifting performance in mine, mountain and long-distance full-load transportation conditions.



Application

Perfectly matched heavy-duty commercial vehicles fitted with ZF Ecosplit4 16-speed manual transmissions: MAN TGA/TGS/TGX, DAF XF/CF Euro 5/Euro 6, IVECO Stralis, Sinotruk Sitrak Howo, Shaanxi Delong, Dongfeng Kinland, FAW J7 heavy tractors; widely used in cross-border logistics, long-distance bulk cargo transport, mountain full-load haulage and mine heavy-duty transportation.



Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.



MOQ & Packing

MOQ: 1 piece
Warranty: 3–6 months, warranty void for man-made collision deformation, improper disassembly and wrong installation
Packing: Anti-rust plastic film + thick foam buffer + neutral export carton, moisture-proof and anti-collision for long ocean transportation
