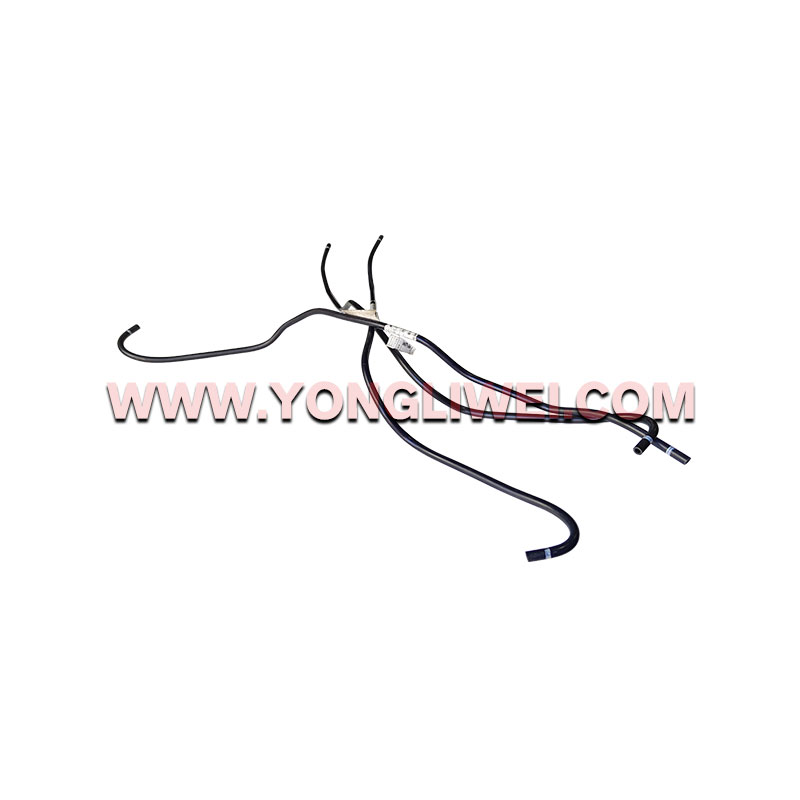

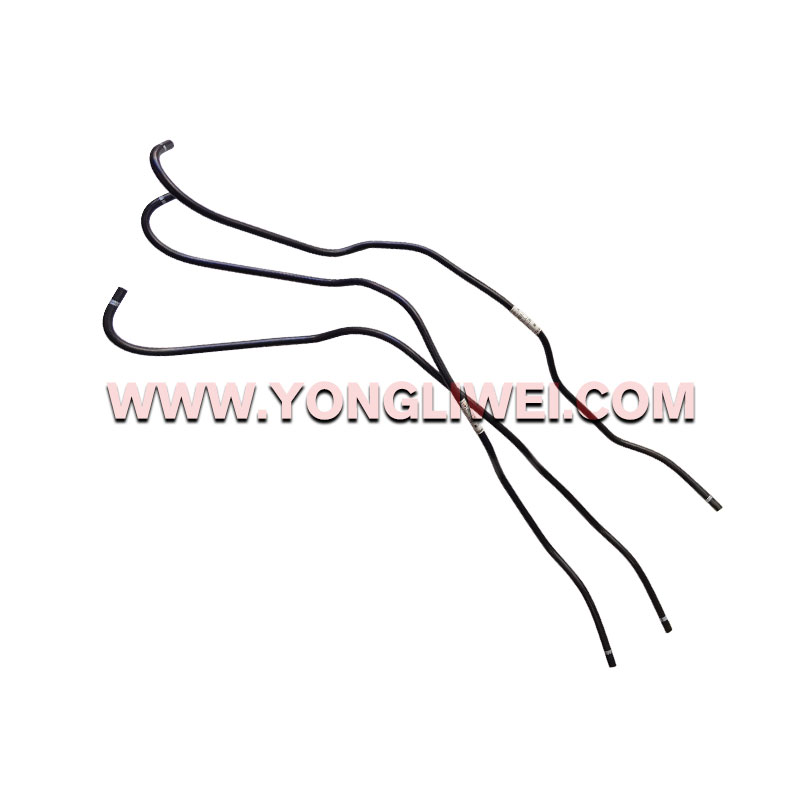

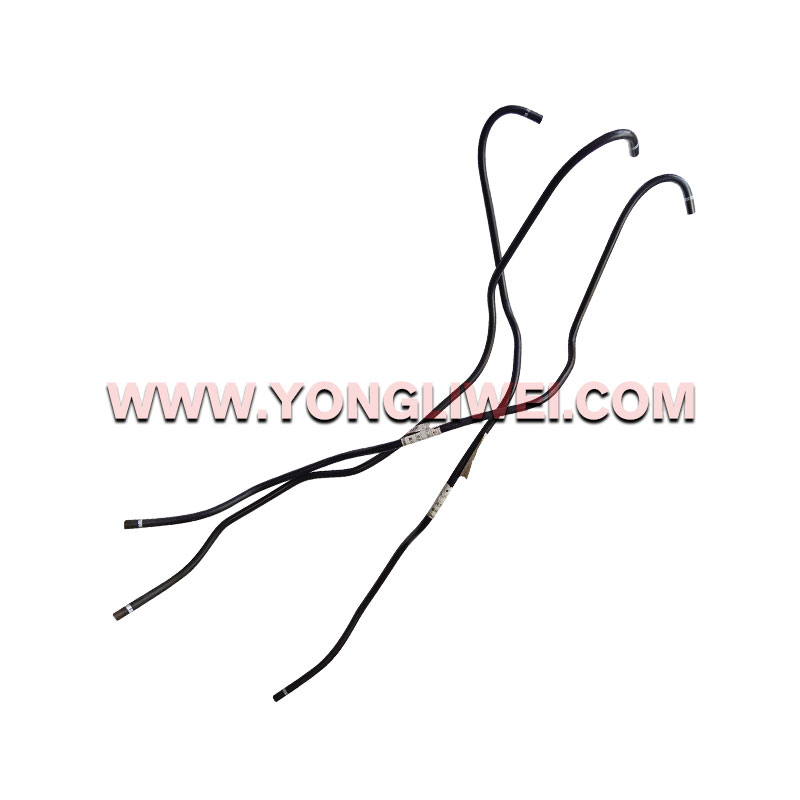

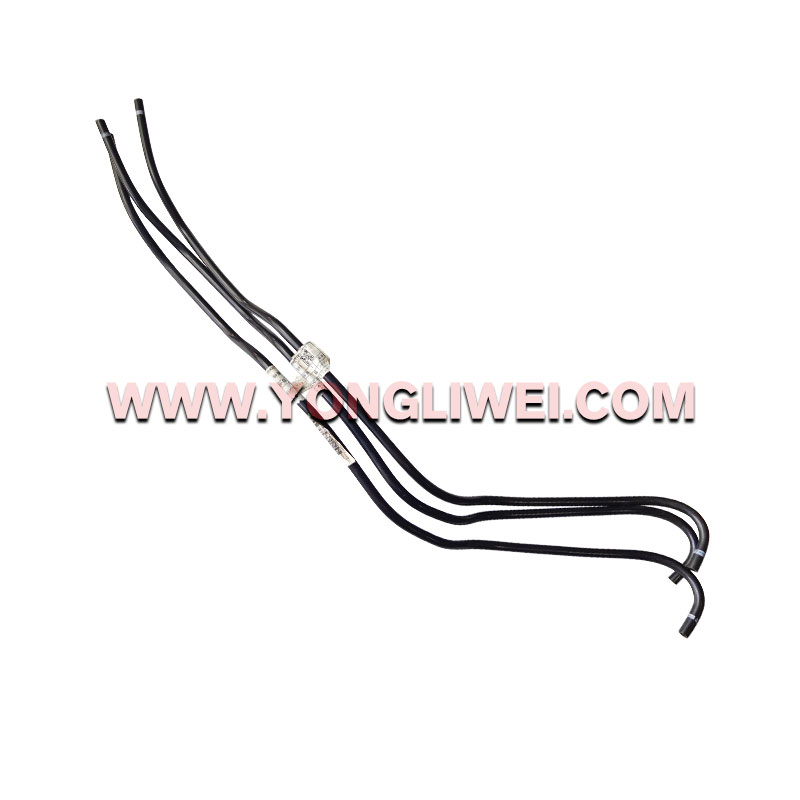

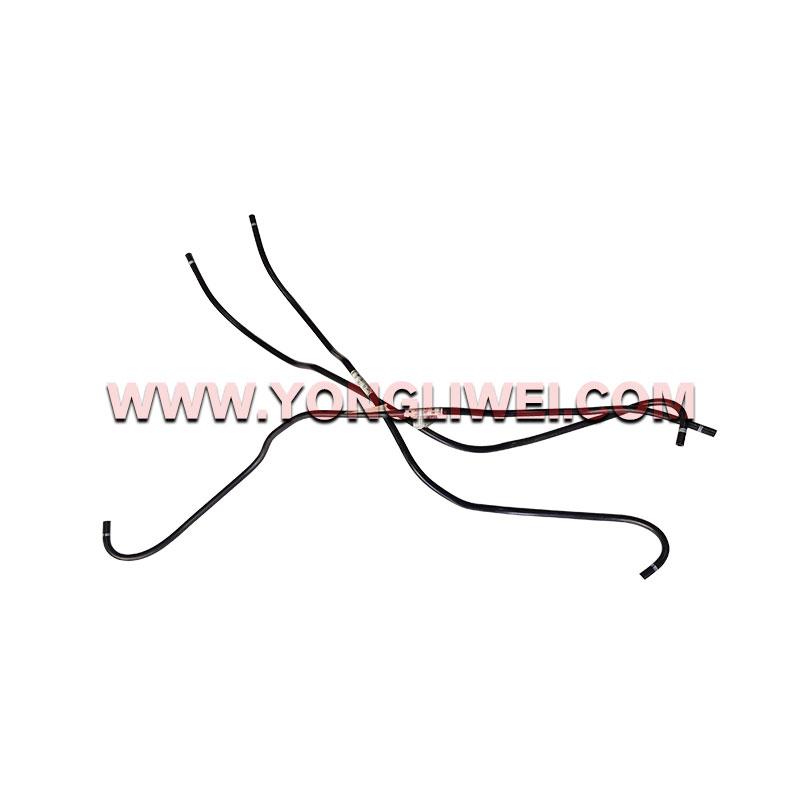

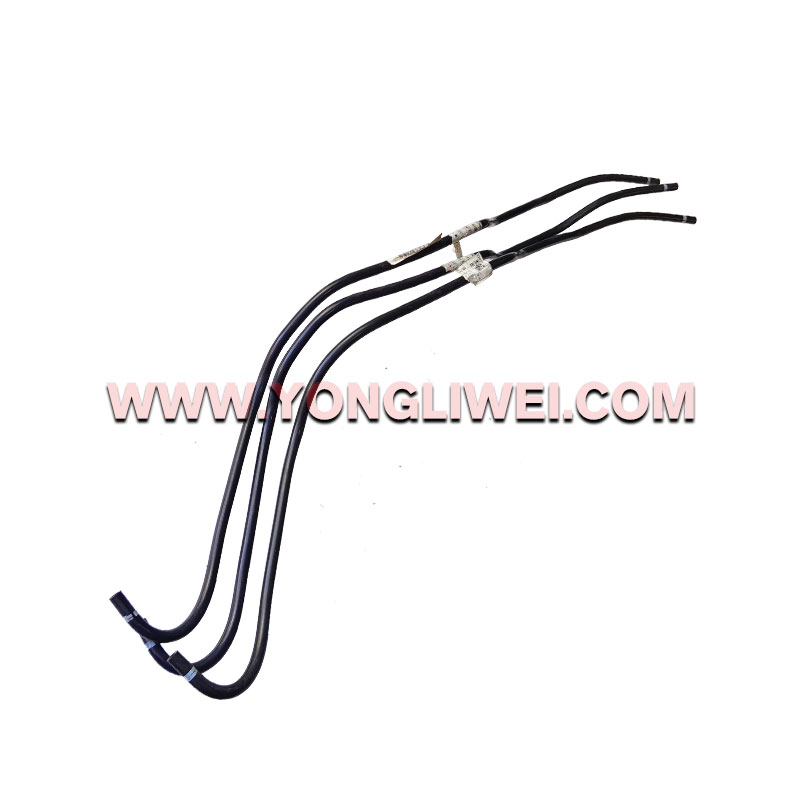

Zf 16-speed transmission 16S2530 16S2531 air pipe 1325 345 009

1325345009 is original pneumatic air pipe exclusively matched for ZF Ecosplit4 ZF16S2530 & 16S2531 sixteen-speed heavy-duty manual transmissions. It adopts seamless steel tube with one-time precise bending and anti-rust coating, responsible for delivering stable compressed air to gearbox shift servo cylinder and range cylinder to complete gear shift and high-low range switching actions. It thoroughly solves shift lag, hard gear change, air leakage and shift failure caused by pipe cracking, deformation or blockage, direct OEM plug-and-play replacement for European and domestic heavy tractors equipped with ZF 16-speed gearboxes.

Availability:
Quantity:
  • 1325 345 009

  • ZF

  • 1325 345 009

Product parameters

Basic Info

OEM No: 1325 345 009
Alias: Shift Cylinder Air Tube / Gearbox Pneumatic Delivery Pipeline / Auxiliary Box Air Conduit
Product Name: ZF Ecosplit4 ZF16S2530/16S2531 Transmission Shift Air Pipe
Brand: ZF
Applicable Gearbox Series: ZF16S2530, ZF16S2531, ZF16S2230, ZF16S2231 16-speed heavy-duty synchronized manual transmission
Category: Heavy Truck Transmission Pneumatic Control Parts – Internal Air Pipeline Assembly



Weight Parameter

Net Weight: 0.32KG
Gross Weight: 0.40KG with export carton packing



Material & Feature

  1. High-precision seamless steel tube, integral one-time bending forming, radian fully consistent with original gearbox internal layout without secondary adjustment;

  2. Whole surface black phosphating anti-rust coating, oil-resistant and corrosion-resistant, long service life under high-temperature gear oil and compressed air environment;

  3. Smooth inner wall without burrs, guarantee stable air flow transmission, avoid insufficient air pressure and slow shift response;

  4. Standard pipe diameter, bending radian, overall length and thread joint size fully match OEM 1325345009, no cutting or grinding modification during installation;

  5. Excellent mechanical ductility and anti-vibration performance, not easy to crack or deform under long-term full-load bumping on mountain and mine roads;

  6. Strict compressed air pressure resistance and circulation test before delivery, stable air supply performance under long-distance full-load transportation conditions.



Application

Perfectly matched heavy-duty commercial vehicles fitted with ZF Ecosplit4 16-speed manual transmissions: MAN TGA/TGS/TGX, DAF XF/CF Euro 5/Euro 6, IVECO Stralis, Sinotruk Sitrak Howo, Shaanxi Delong, Dongfeng Kinland, FAW J7 heavy tractors; widely used in cross-border logistics, long-distance bulk cargo transport, mountain full-load haulage and mine heavy-duty transportation.



Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.



MOQ & Packing

MOQ: 1 piece
Warranty: 3–6 months, warranty void for man-made damage, improper disassembly and wrong installation
Packing: Anti-rust plastic film + thick foam buffer + reinforced shockproof export solid wooden case, moisture-proof and anti-collision for long ocean transportation
